Side Shield - Outboard - Driver Seat (Model Y L) (Remove and Replace)

Correction code 13010703602 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-11-05: Updated the correction code and added steps to remove the switch buttons from the side shield.

Remove

  1. Remove the outboard side shield assembly from the front seat. See Side Shield - Outboard - Driver Seat (Model Y L) (Remove and Replace).
  2. Remove the driver seat thigh extension switch button. See Button - Thigh Extension - 1st Row - LH (Model YL) (Remove and Replace).

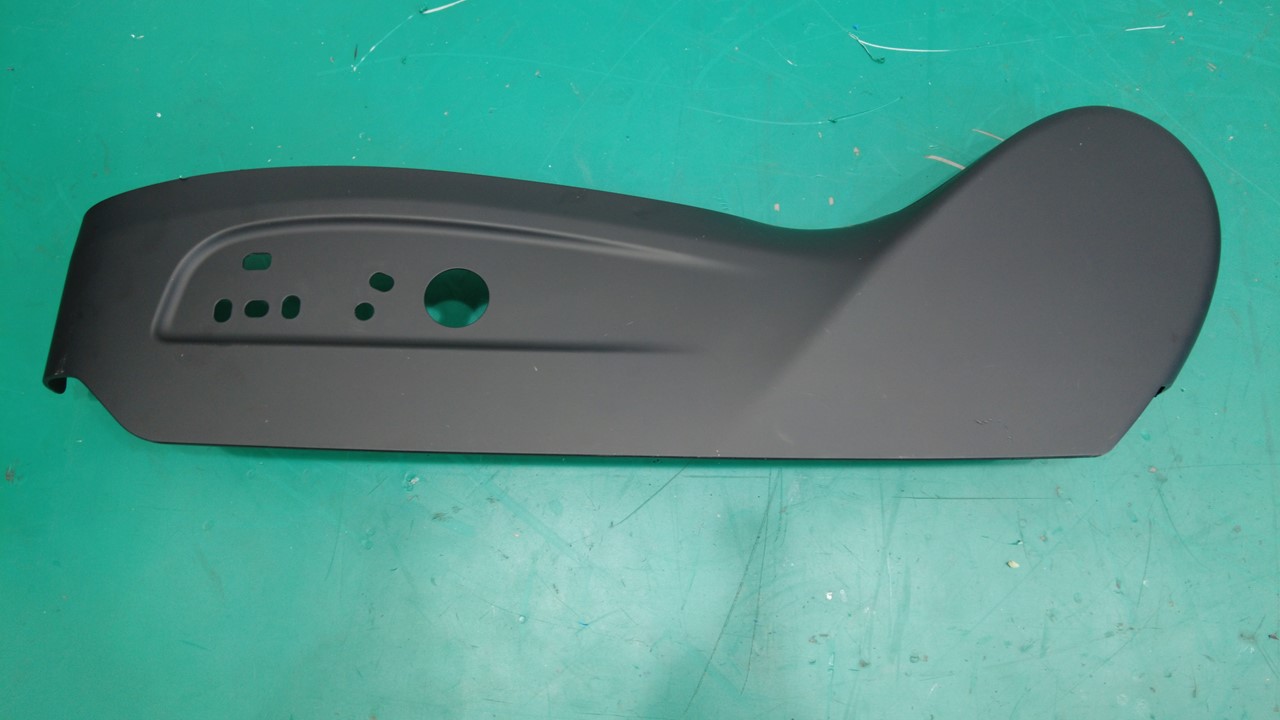

  3. Remove the seat cushion button switch and recliner button switch from the side shield assembly (5x clips).
    Note
    Remove by twisting the trim tool. Ensure the trim and the switch are not damaged during removal.
  4. Remove the driver seat thigh extension switch. See Thigh Extension - 1st Row - LH (Model YL) (Remove and Replace).
  5. Remove the driver seat lumbar switch. See Lumbar Switch - Backrest - Driver Seat (Model YL) (Remove and Replace).

Install

  1. Install the driver seat lumbar switch. See Lumbar Switch - Backrest - Driver Seat (Model YL) (Remove and Replace).
  2. Install the driver seat thigh extension switch. See Thigh Extension - 1st Row - LH (Model YL) (Remove and Replace).
  3. Install the seat cushion button switch and recliner button switch to the side shield assembly (5x clips).
  4. Install the driver seat thigh extension switch button. See Button - Thigh Extension - 1st Row - LH (Model YL) (Remove and Replace).
  5. Install the outboard side shield assembly to the front seat. See Side Shield - Outboard - Driver Seat (Model Y L) (Remove and Replace).
