Tuned Mass Damper - Liftgate (Model YL) (Remove and Replace)

Correction code 11332900202 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Tuned Mass Damper - Liftgate (Model YL) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes

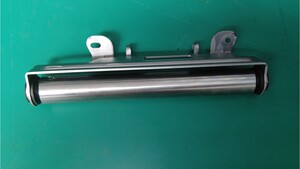

Bolts (x2) that attach the tuned mass damper to the liftgate assembly
9 Nm (6.6 lbs-ft)
  • 10 mm deep socket
Replace 1995122-99-A

Remove

  1. Remove the liftgate lower trim. See Liftgate Lower Trim (Remove and Replace).

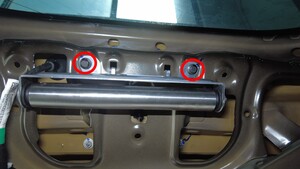

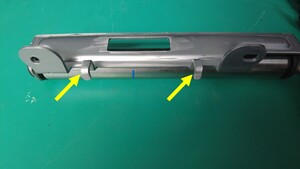

  2. Remove and discard the bolts (x2) that attach the tuned mass damper to the liftgate assembly, and release the hooks (x2) to remove it from the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

Install

  1. Position the tuned mass damper to the liftgate and install the hooks (x2), and then install new bolts (x2) that attach the tuned mass damper to the liftgate assembly.
    9 Nm (6.6 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  2. Install the liftgate lower trim. See Liftgate Lower Trim (Remove and Replace).
