Audio Speakers - Audio Speaker Tweeter Active 25MM - LH (Remove and Replace)

Correction code 2121010502 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the LH front tweeter. See Door Trim Tweeter - Front - LH (Remove and Replace).

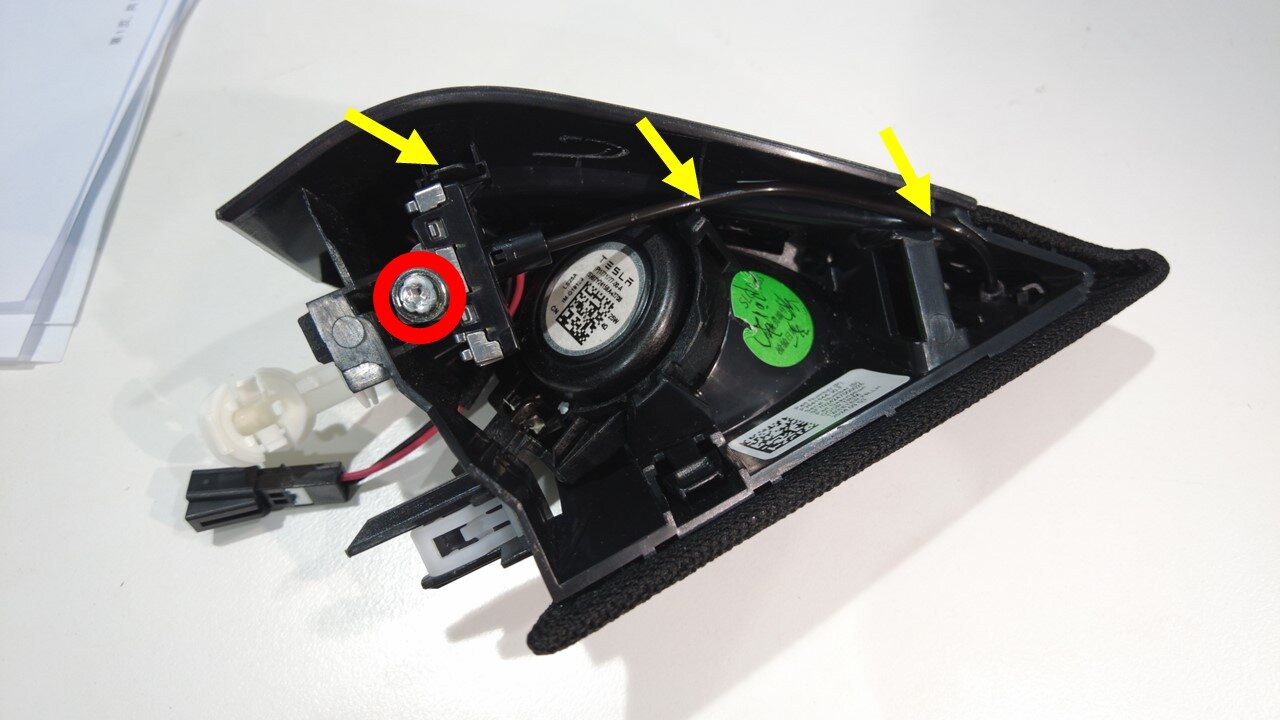

  2. Remove the screw and the tabs (x3) that secure the blind spot indicator module assembly.
    Note
    Be careful not to damage the lamp pipe.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

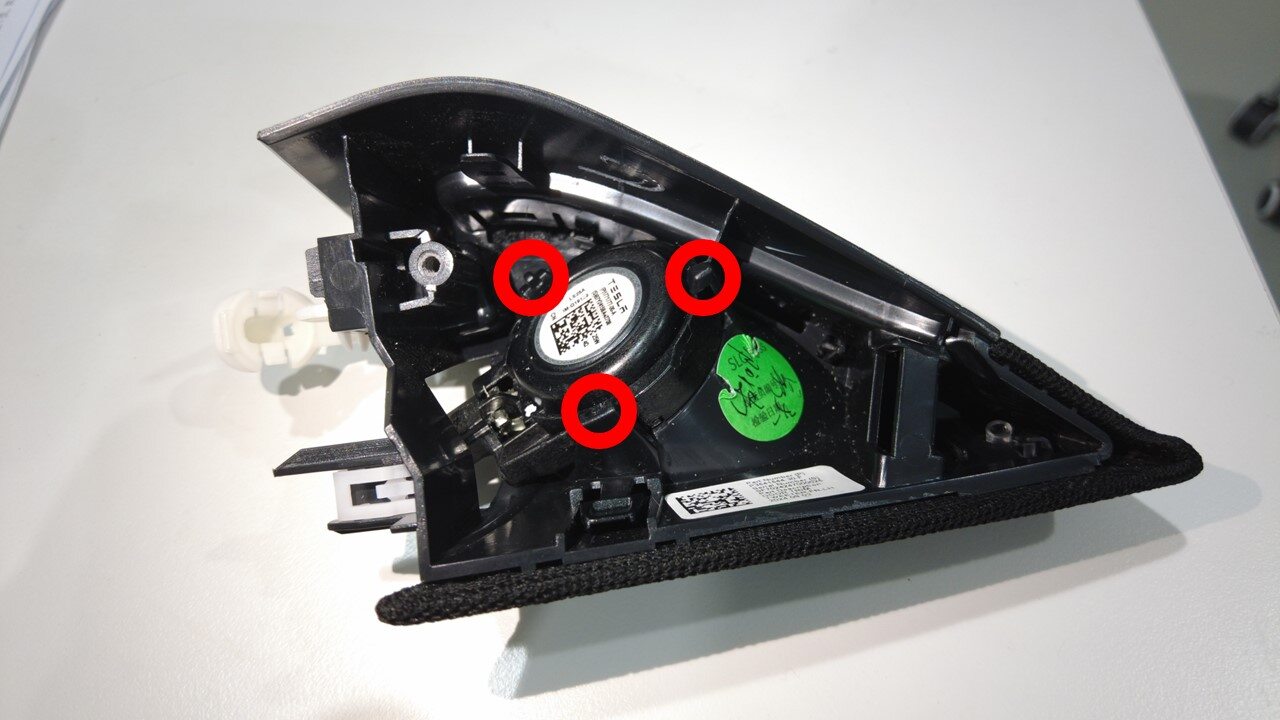

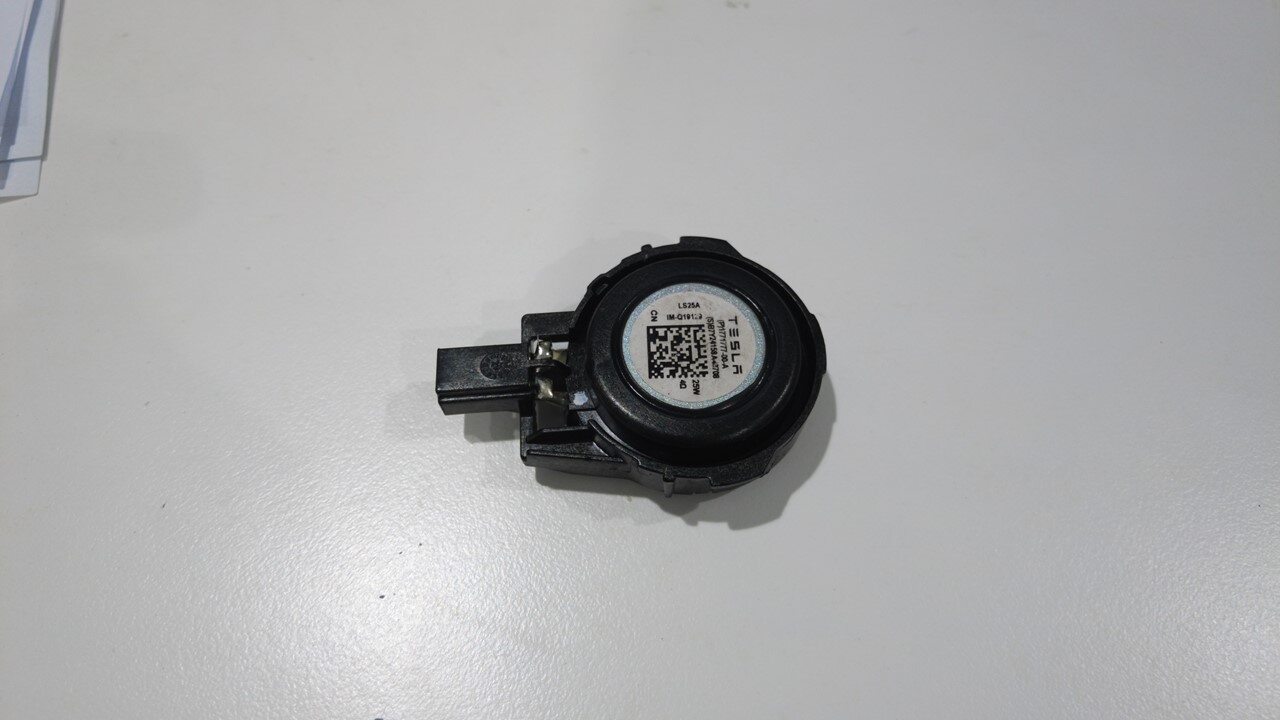

  3. Release the tabs (x3) to remove the 25mm tweeter speaker.

Install

  1. Engage the tabs (x3) to install the 25mm tweeter speaker.
  2. Install the screw and the tabs (x3) that secure the blind spot indicator module assembly.
    1.5 Nm (1.1 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  3. Install the LH front tweeter. See Door Trim Tweeter - Front - LH (Remove and Replace).
