Center Console (Model Y L) (Remove and Install)

Correction code 15190205301 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Center Console (Model Y L) (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes

Bolts (x2) that attaches the LH and RH rear of the center console to the body

Bolts (x4) that attach the LH and RH front exterior of the center console to the body
6 Nm (4.4 lbs-ft)
  • 10 mm deep socket
 Reuse

Remove

  1. Remove the center console rear end panel. See Rear End Panel - Lower - Center Console (Model YL) (Remove and Replace).
    Note
    During removal, certain steps require extra care. See the animation(s) for detailed guidance.

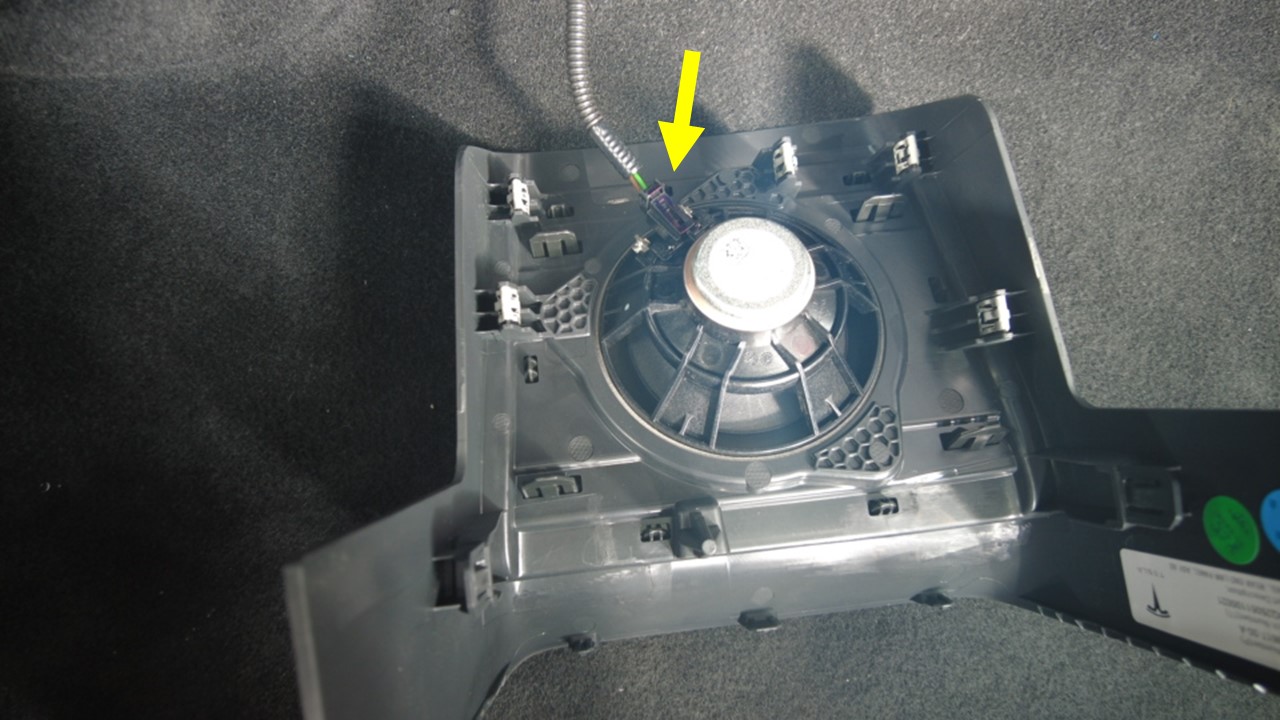

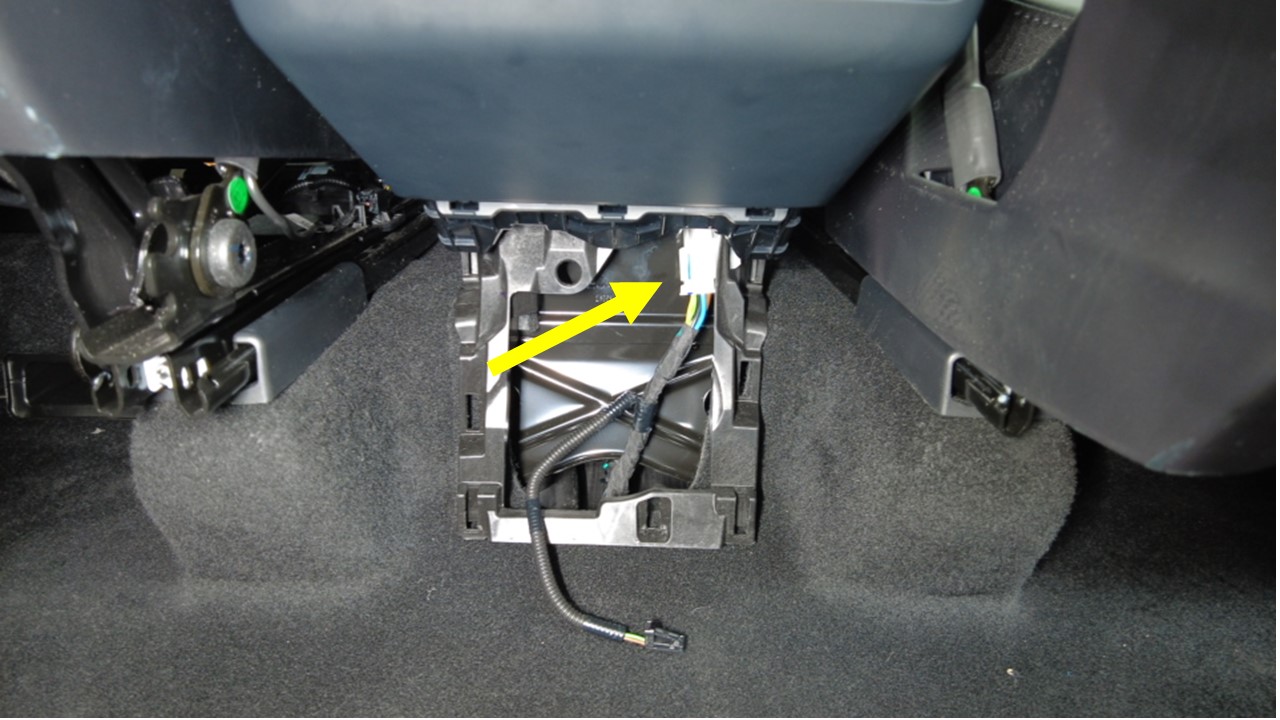

  2. Disconnect the cup holder speaker connector.

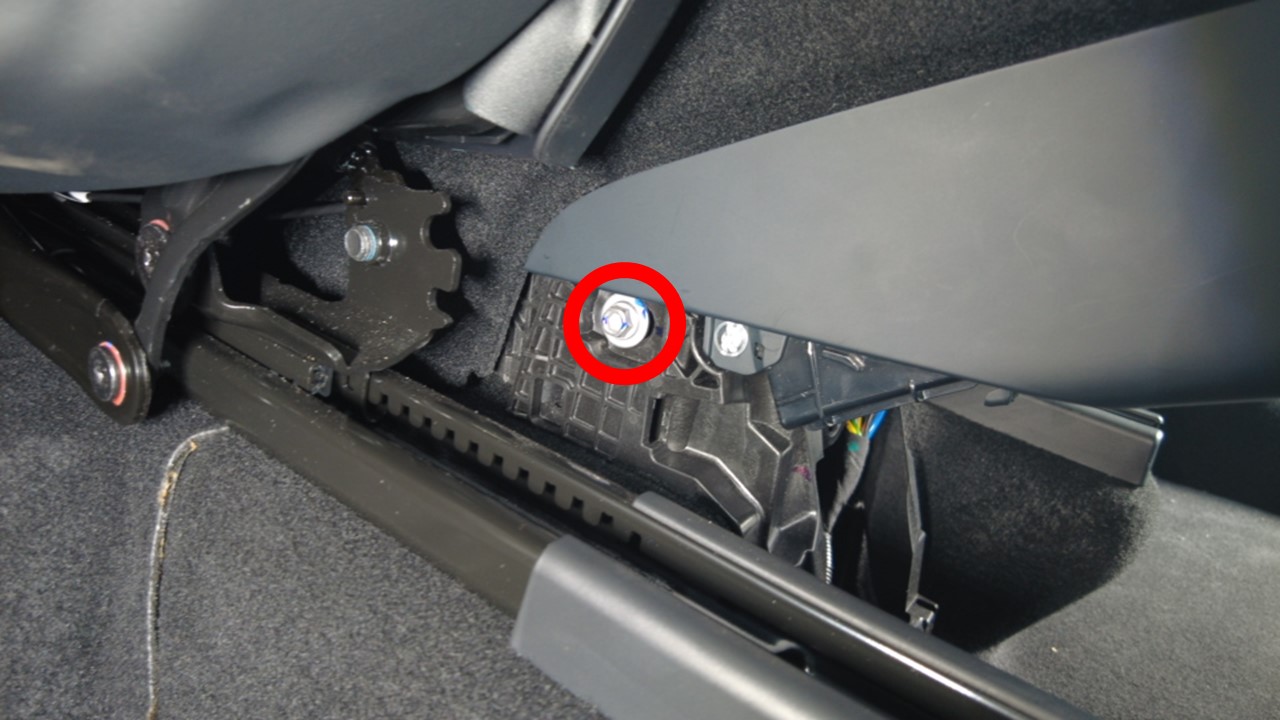

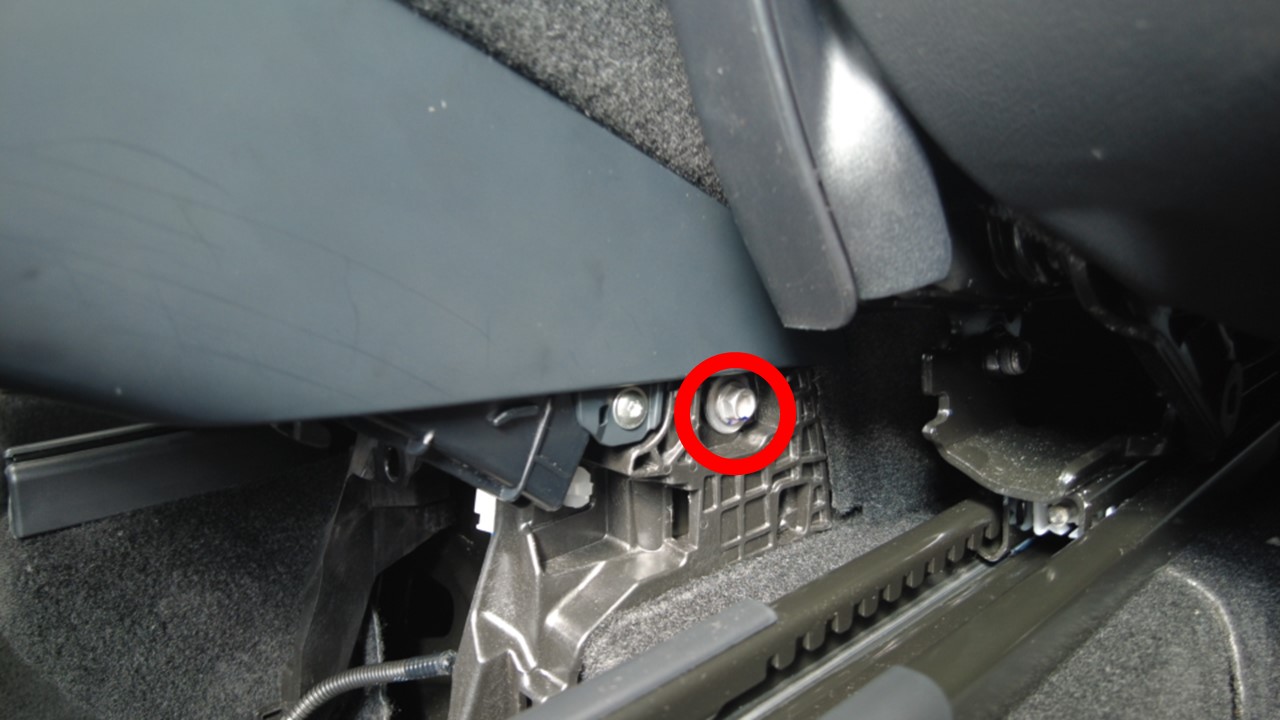

  3. Remove the bolts (x2) that attaches the LH and RH rear of the center console to the body.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  4. Remove the center console LH and RH front side panels. See Side Panel - Front - Center Console - LH (Model YL) (Remove and Replace).

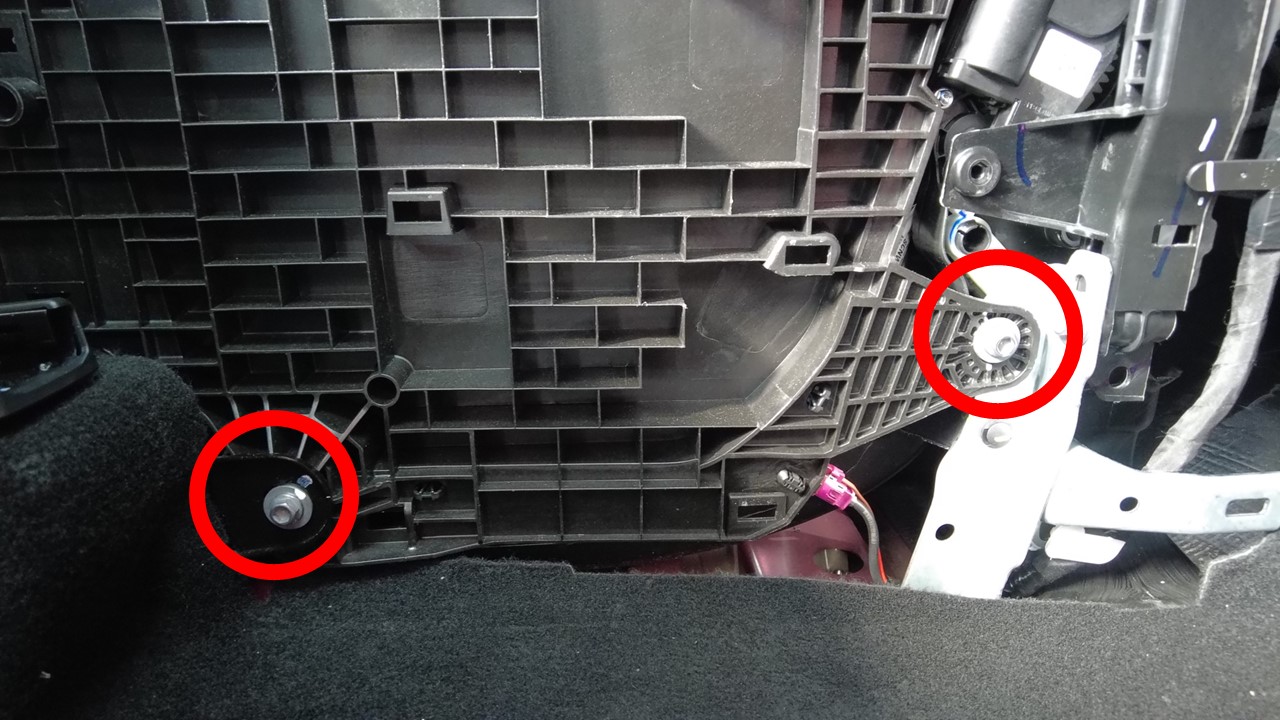

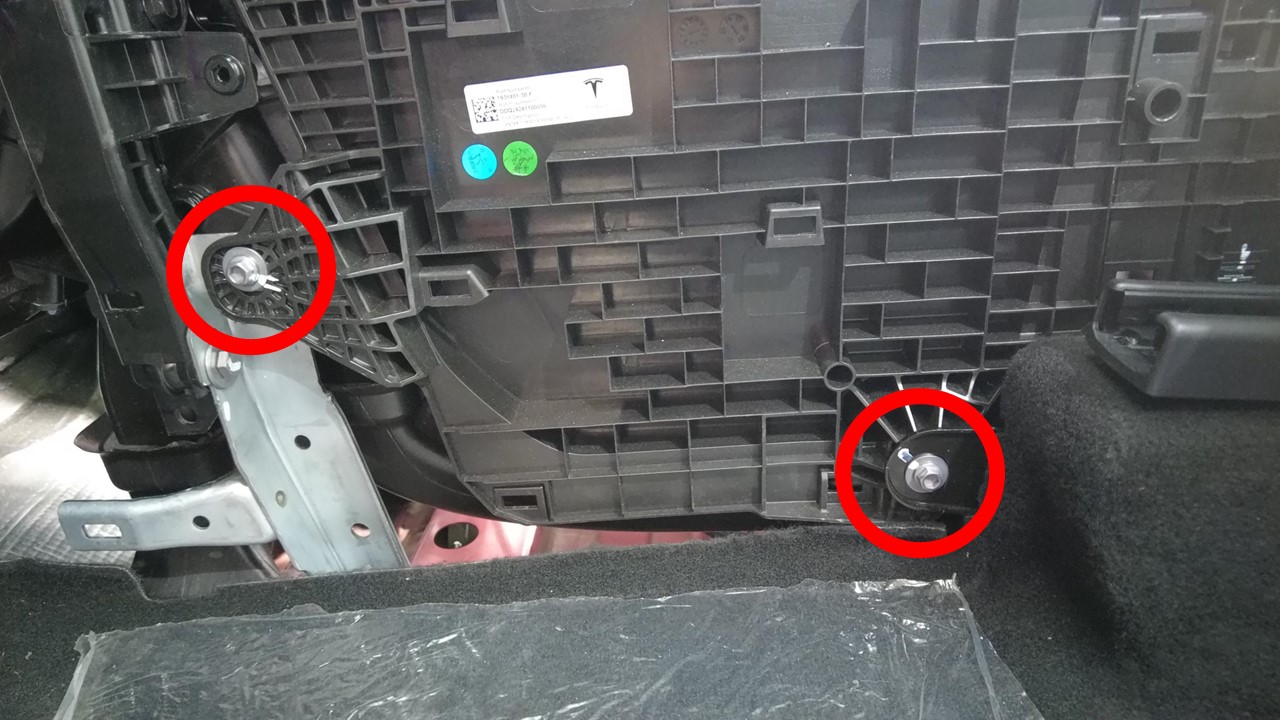

  5. Remove the bolts (x4) that attach the LH and RH front exterior of the center console to the body.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  6. Disconnect the LV battery power. See LV Power (Disconnect and Connect) (Modify).
  7. Release the center console connector.

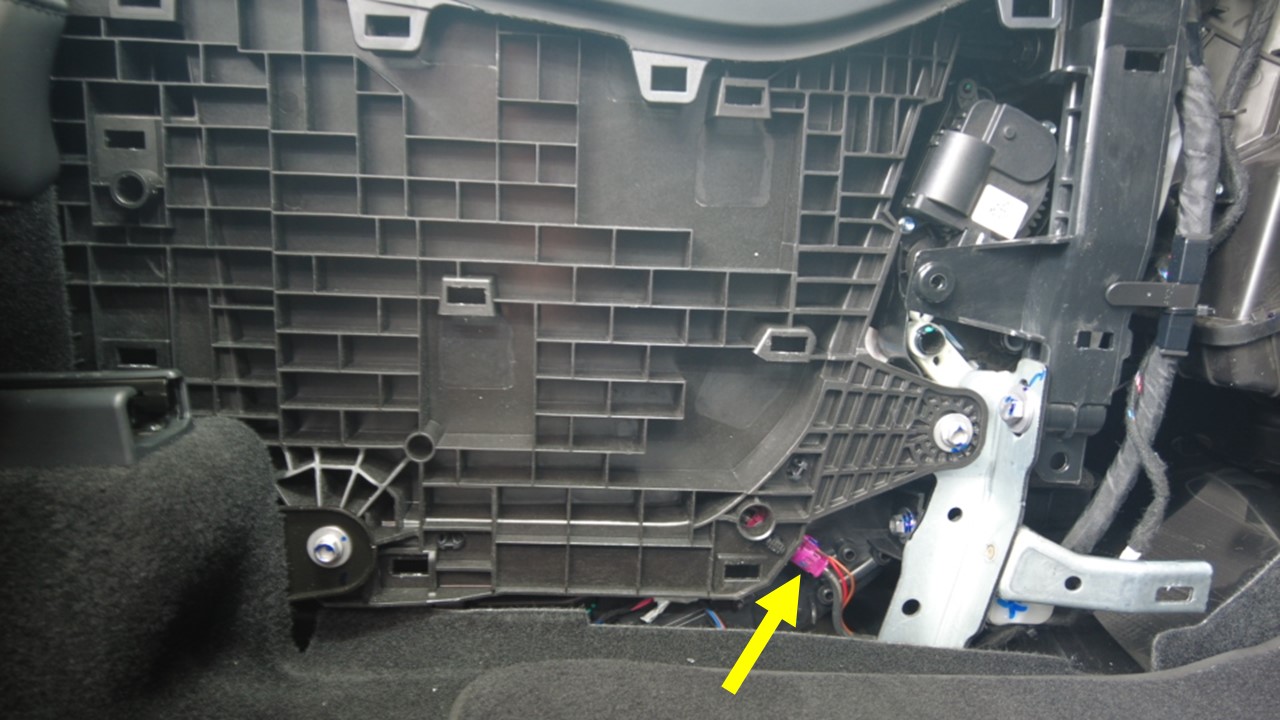

  8. Disconnect the harness connector from the right front of the center console.

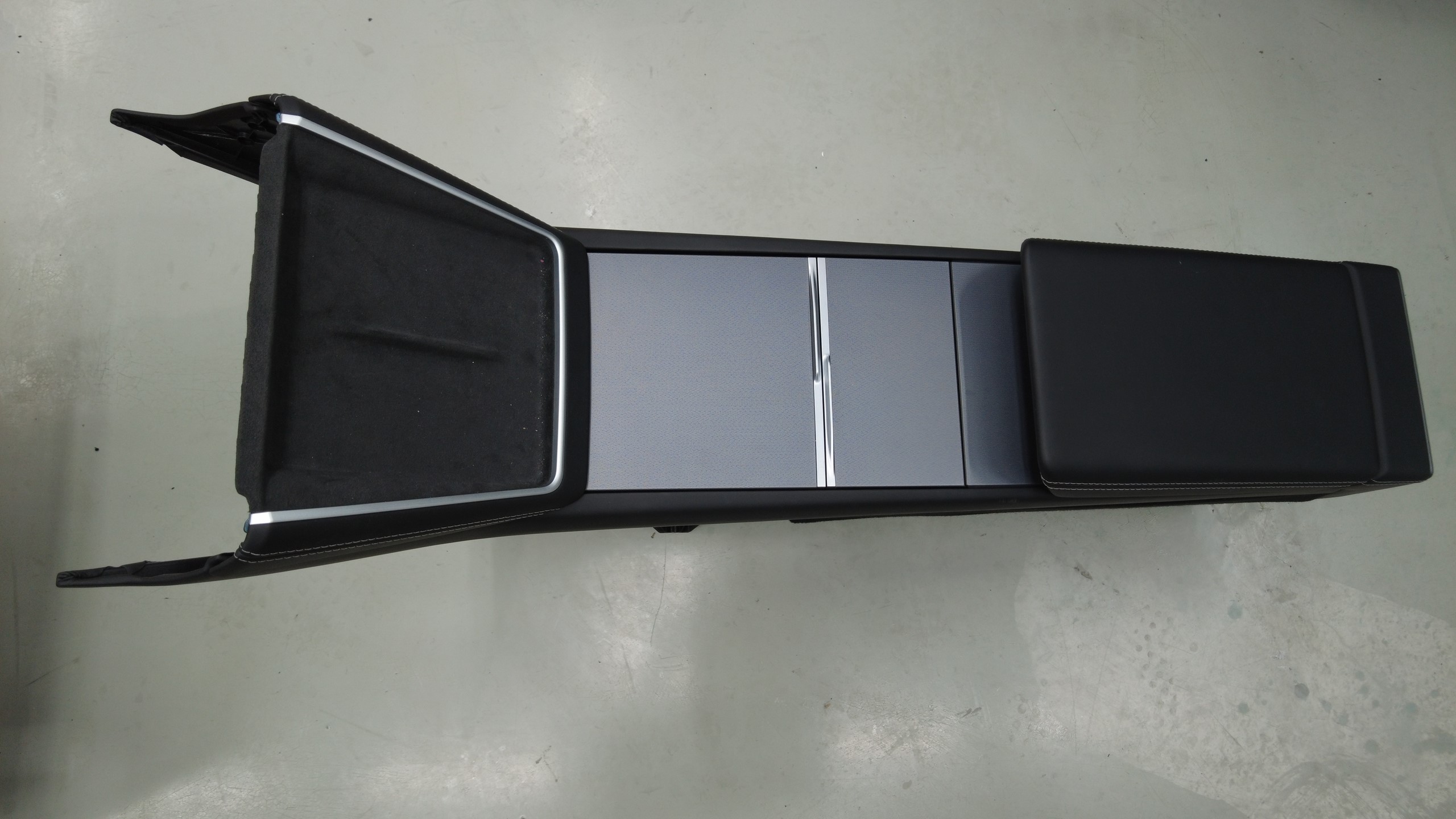

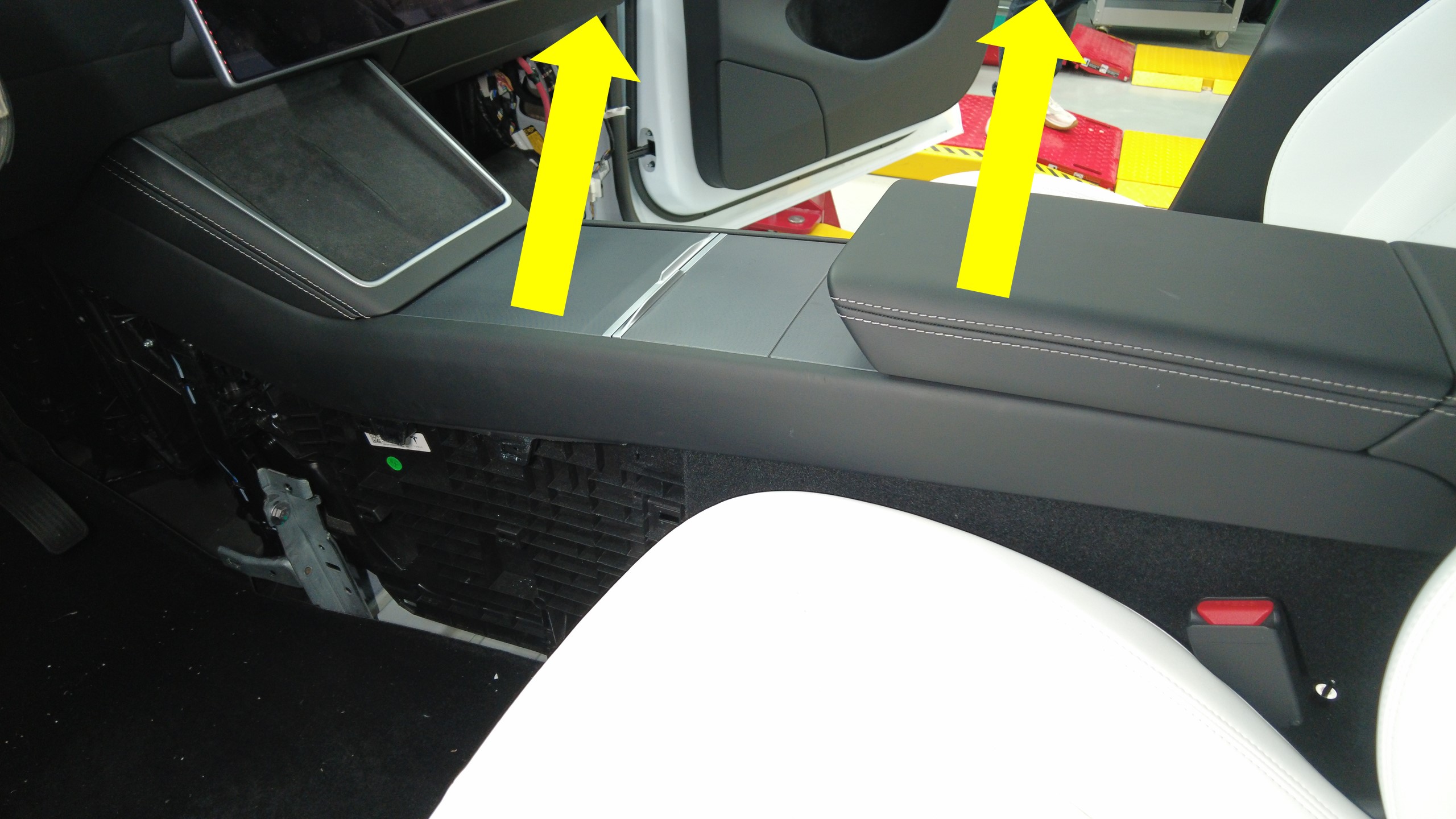

  9. Remove the center console from the vehicle as follows:
    1. Tilt the rear of the center console upwards.
    2. Pull the center console towards the rear of the vehicle.
    3. Tilt the front of the center console upwards.
    4. Remove the center console through the passenger front door.

Install

  1. With an assistant, install the center console into the vehicle as follows:
    1. Tilt the front of the center console downwards.
    2. Slide the center console towards the front of the vehicle.
    3. Tilt the rear of the center console downwards until it is in place.
  2. Connect the harness connector from the right front of the center console.
  3. Secure the center console connector.
  4. Install the bolts (x4) that attach the LH and RH front exterior of the center console to the body.
    6 Nm (4.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  5. Install the center console LH and RH front side panels. See Side Panel - Front - Center Console - LH (Model YL) (Remove and Replace).
  6. Connect the LV battery power. See LV Power (Disconnect and Connect) (Modify).
  7. Install the bolts (x2) that attaches the LH and RH rear of the center console to the body.
    6 Nm (4.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  8. Connect the cup holder speaker connector.
  9. Install the center console rear end panel. See Rear End Panel - Lower - Center Console (Model YL) (Remove and Replace).
