Liftgate Extension Harness (Model Y Standard) (Remove and Install)
Correction code
17101200301
17101200302
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the liftgate applique carrier. See Carrier - Applique - Liftgate (Model Y Standard) (Remove and Install).
-

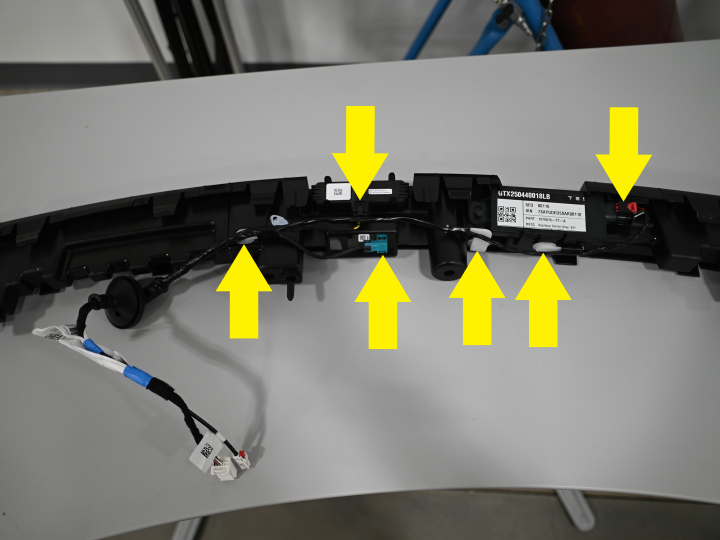

Disconnect the liftgate extension
connectors (x3), release the clips (x3) that attach the harness to the liftgate applique

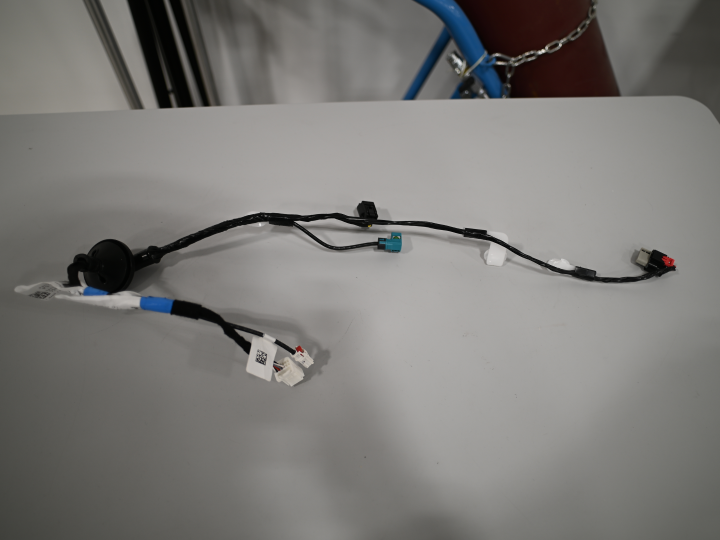

carrier, and then remove the harness from the carrier.
Install
-
Connect the liftgate extension
connectors (x3), and then install the clips (x3) that attach the harness to the liftgate
applique carrier.
- Install the liftgate applique carrier. See Carrier - Applique - Liftgate (Model Y Standard) (Remove and Install).
