Rear Bumper Fascia - Tail Lamp Bracket - LH (Remove and Replace)

Correction code 1001050502 FRT 0.4 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Rear Bumper Fascia - Tail Lamp Bracket - LH (Remove and Replace)
Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolts (x2) that attach the LH tail lamp bracket to the body	4 Nm (2.9 lbs-ft)	10 mm socket	Reuse

Remove

Remove the rear fascia assembly. See Fascia - Rear - Lower (Remove and Replace).

Note
It is not necessary to separate the rear lower fascia, LH and RH rear upper fascia from the rear fascia assembly.
Remove the middle aero shield. See Aero Shield - Rear (Remove and Replace).

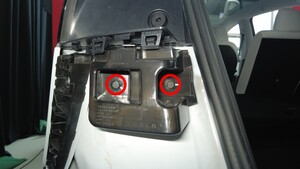

Remove the bolts (x2) that attach the LH tail lamp bracket to the body, and then remove the bracket from the vehicle.
Note
Use of the following tool(s) is recommended:

10 mm socket

Install

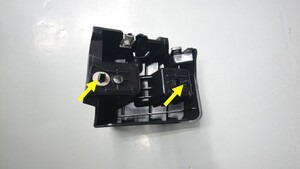

Position the LH tail lamp bracket to the body, and then install the bolts (x2) that attach the bracket to the body.
4 Nm (2.9 lbs-ft)
Note
Use of the following tool(s) is recommended:

10 mm socket
Install the middle aero shield. See Aero Shield - Rear (Remove and Replace).
Install the rear fascia assembly. See Fascia - Rear - Lower (Remove and Replace).
