Outer Sideshield - Outboard - 2nd Row Seat - RH (7-Seat) (Remove and Replace)
Correction code 13080300102 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.
Remove
- Remove RH seat toe kick cover. See Cover - Toe Kick - 2nd Row - RH (7-Seat) (Remove and Replace).
-

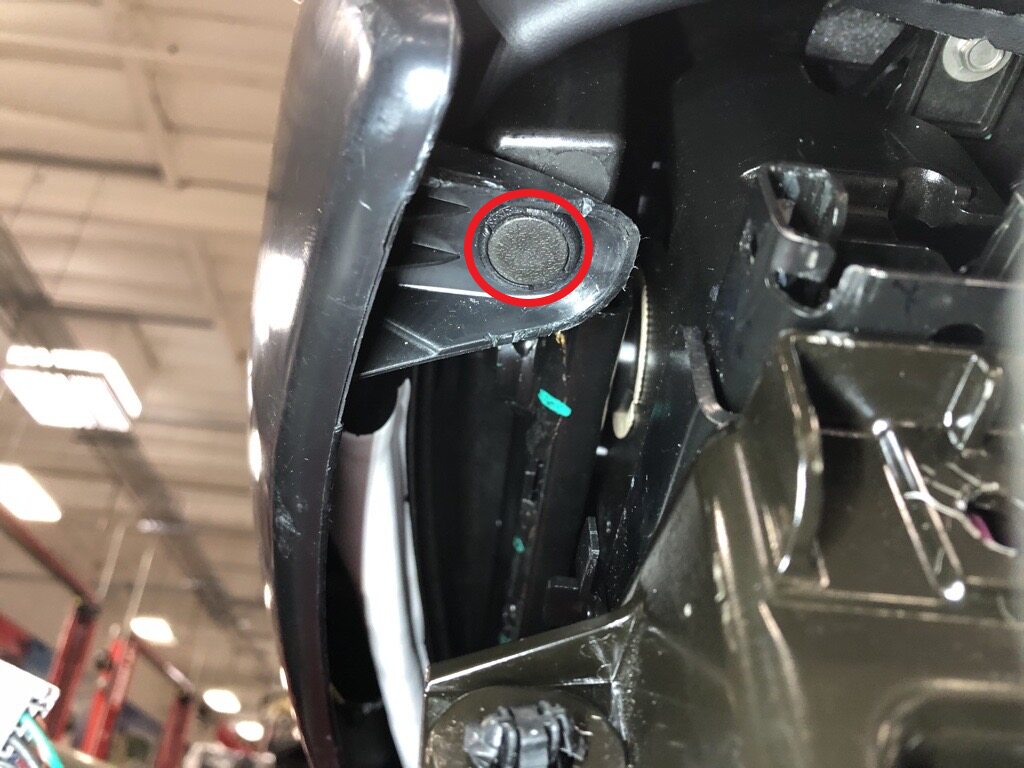

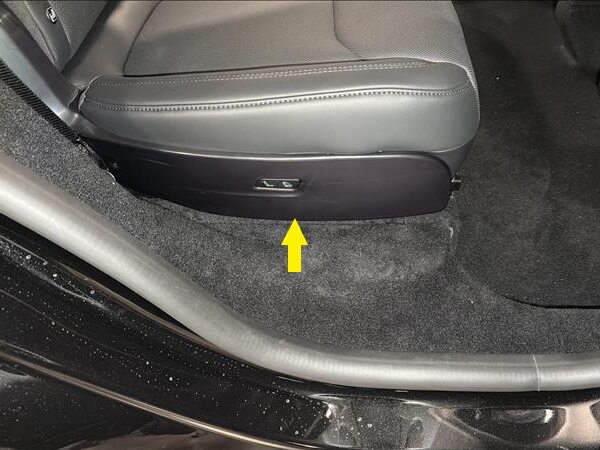

Remove clip securing RH seat side shield to cushion pan.
-

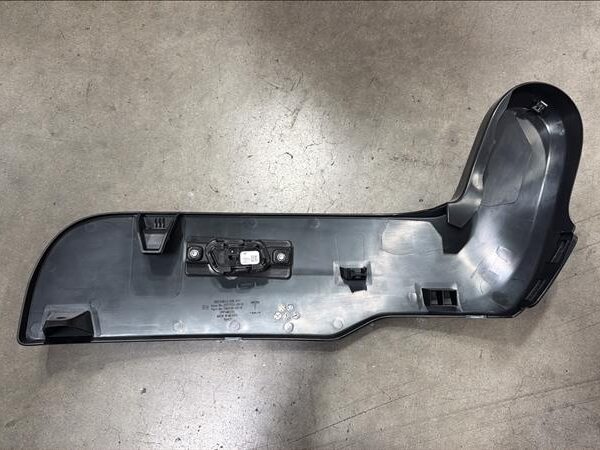

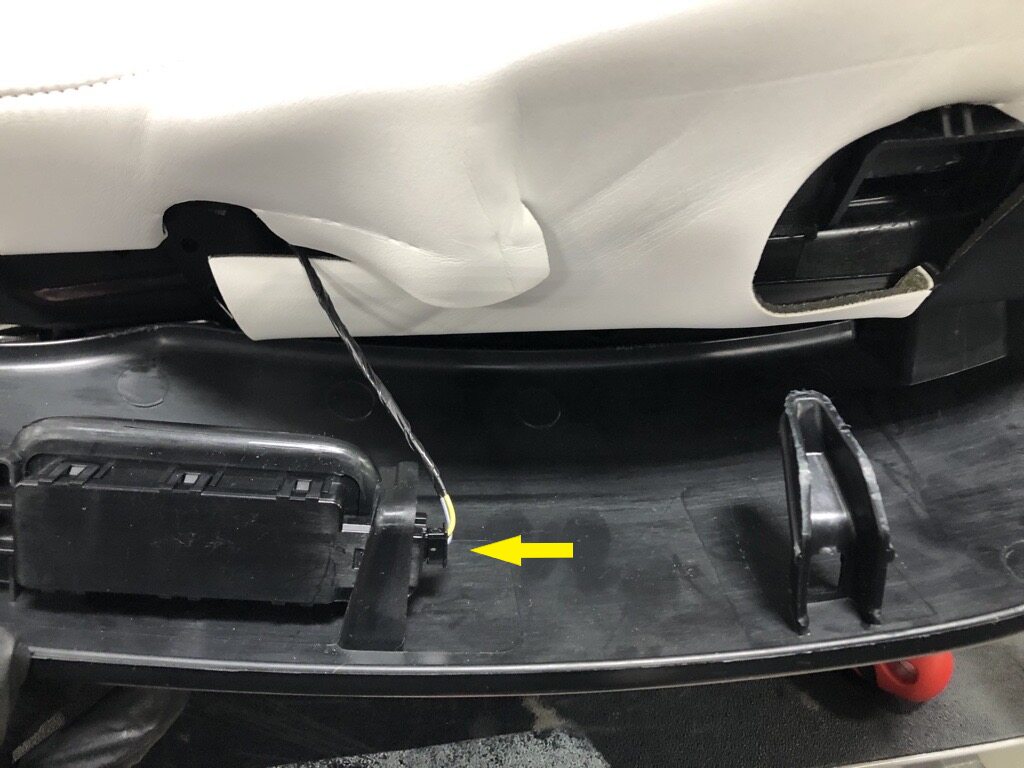

Remove RH seat side shield from RH seat.

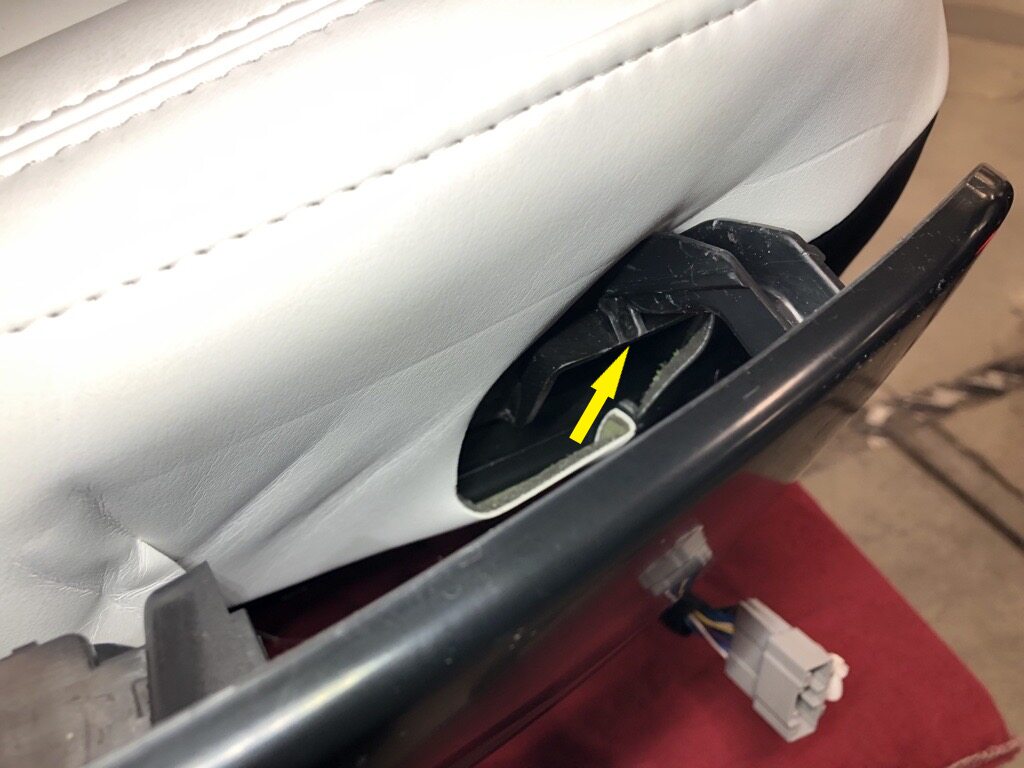

NoteRelease rear side shield clip, then lift side shield upward to release hook from cushion pan.
Install
-
Install RH seat side shield to RH
seat.
NoteInstall side shield hook first, then secure clip.
-
Install clip securing RH seat side
shield to cushion pan.
- Install RH seat toe kick cover. See Cover - Toe Kick - 2nd Row - RH (7-Seat) (Remove and Replace).
