USB Hub Duo - Center Console (Model YL) (Remove and Replace)

Correction code 15190202502 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the 2nd row cup holder assembly. See Cup Holder Assembly - 2nd Row (Model YL) (Remove and Replace).
    Note
    During removal, certain steps require extra care. See the animation(s) for detailed guidance.

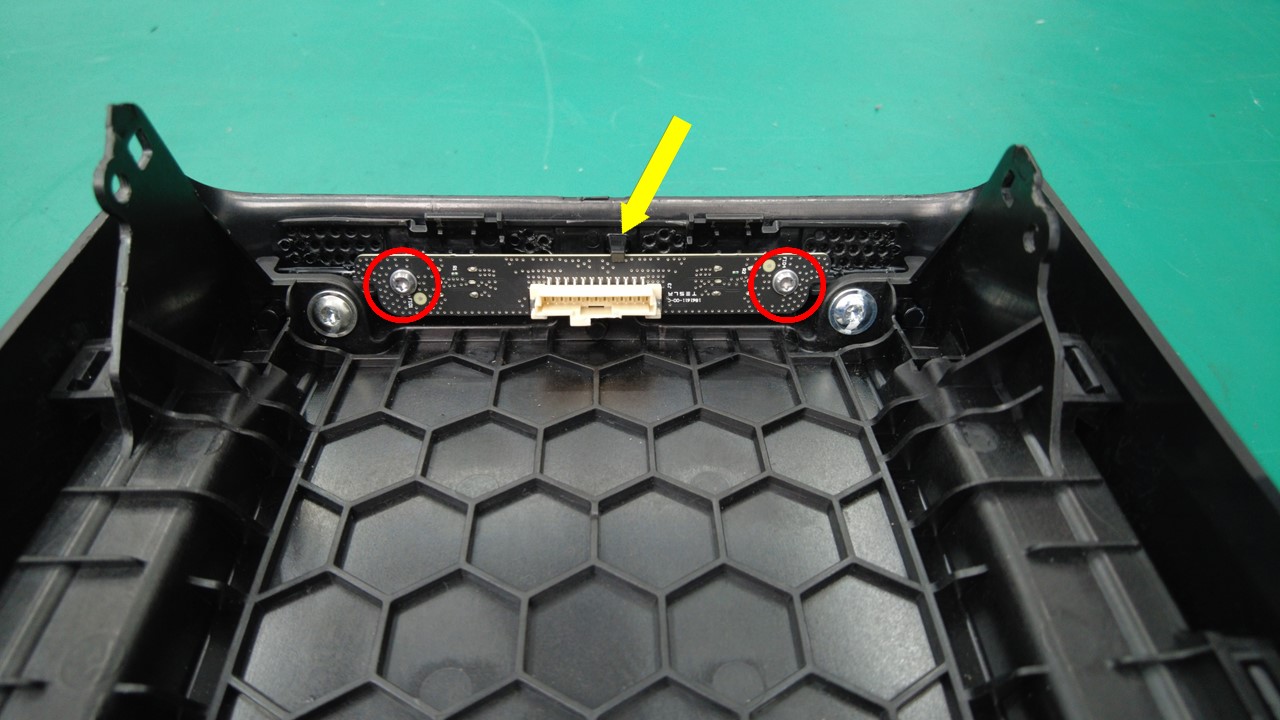

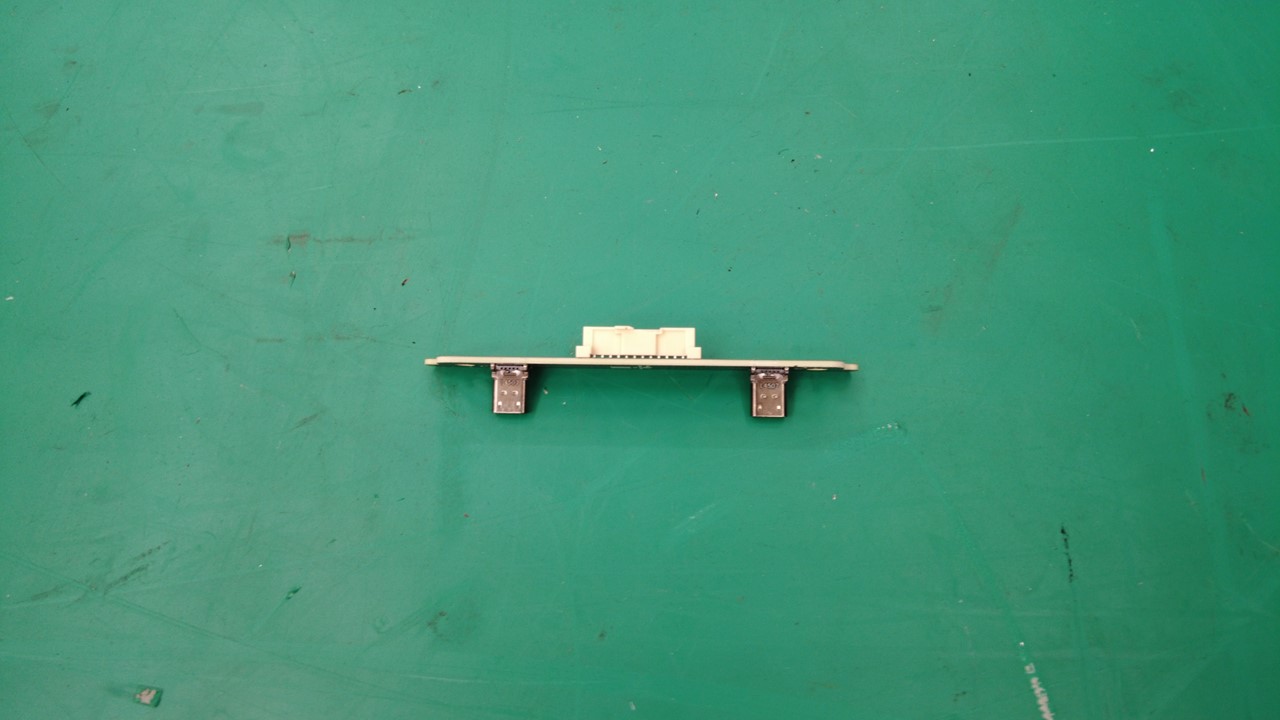

  2. Remove the screws (x2) that secure the USB hub duo, and then release the tab to remove the USB hub duo.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

Install

  1. Install the USB hub duo to the tab, and then install the screws (x2) that secure the USB hub duo.
    1.2 Nm (.9 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  2. Install the 2nd row cup holder assembly. See Cup Holder Assembly - 2nd Row (Model YL) (Remove and Replace).
