Caliper - Front Brake - LH (RWD) (Remove and Replace)

Correction code 3301011412 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-06-10: Corrected procedure to reuse the bolts that attach the brake caliper to the brake caliper bracket.
  • 2026-02-17: Released new procedure.
CAUTION
Brake fluid dissolves paint. Have clean towels and plenty of water standing by to wash spilled brake fluid off painted surfaces.
Note
Dispose of used brake fluid in a manner consistent with local environmental codes.

Torque Specifications

Table 1. Torque Specifications: Caliper - Front Brake - LH (RWD) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the LH front brake caliper to the caliper bracket
32 Nm (23.6 lbs-ft)
  • External Torx E12
 Reuse

Remove

  1. Remove the LH brake hose. See Brake Hose - Front - LH (Remove and Replace).

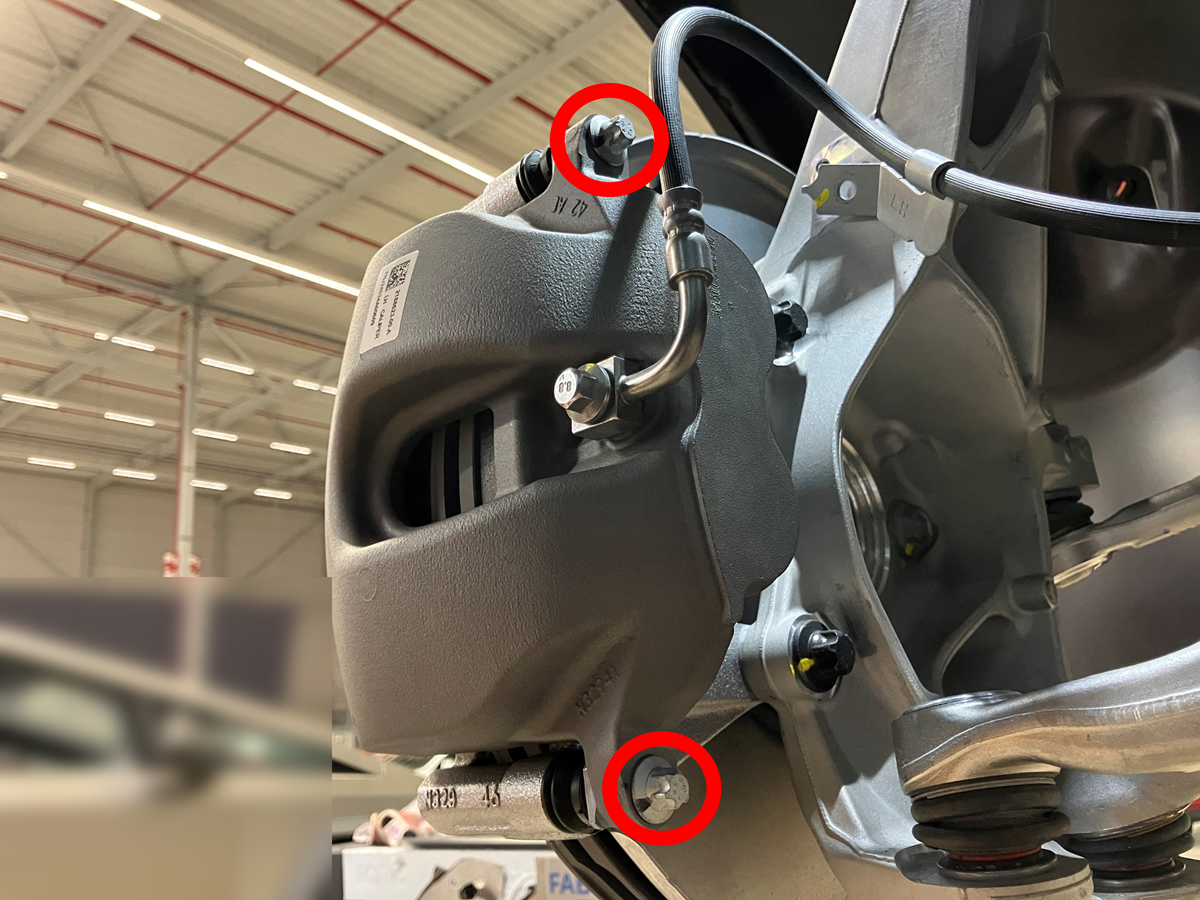

  2. Remove the bolts (x2) that attach the LH front brake caliper to the caliper bracket.
    Tip
    Use of the following tool(s) is recommended:
    • External Torx E12
  3. Release the pressure from the brake caliper on the brake pads by pushing the brake caliper outwards, and then remove the brake caliper.
    Note
    Do not remove the brake pads from the brake caliper bracket.
