Surround - Phone Dock - Center Console (Model Y Standard) (Remove and Install)

Correction code 15190404301 15190404302 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the U-shape panel assembly. See Side Panel - Rear - LH - Center Console (Model Y Standard) (Remove and Install).
  2. Move the front seats forward and tilt the front seatbacks forward.

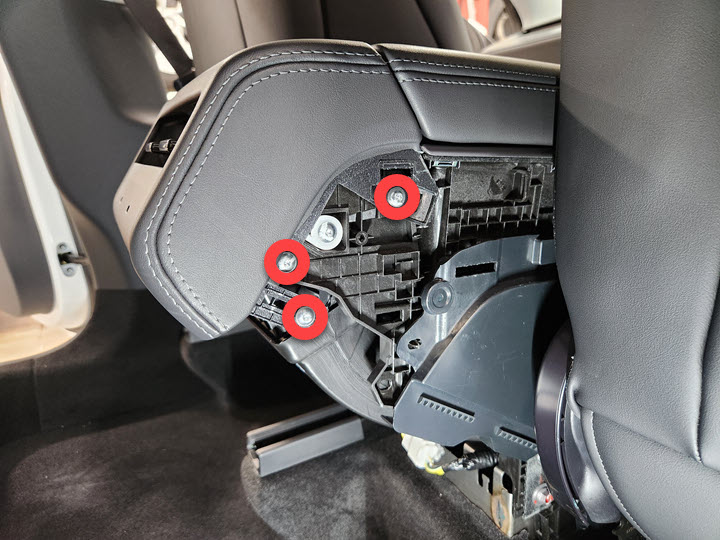

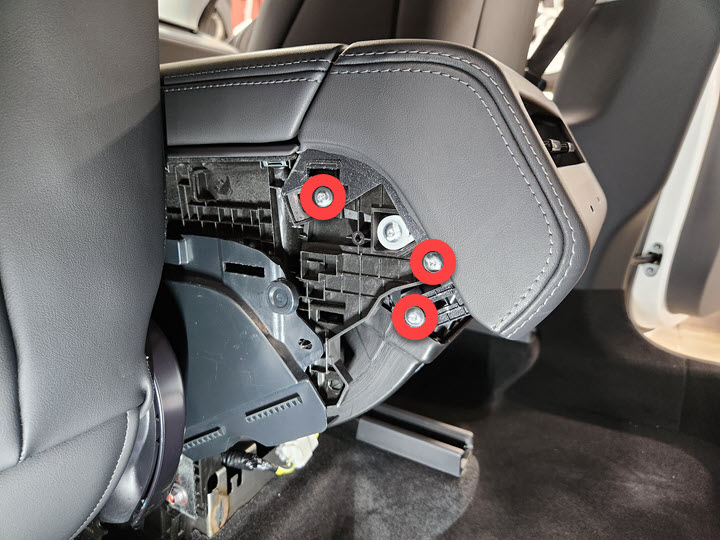

  3. Remove the screws (x6) that attach the rear end module assembly to the center console assembly.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

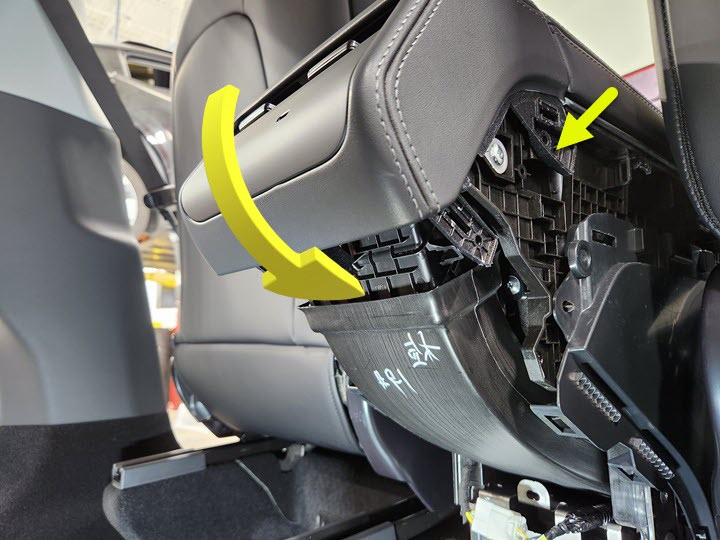

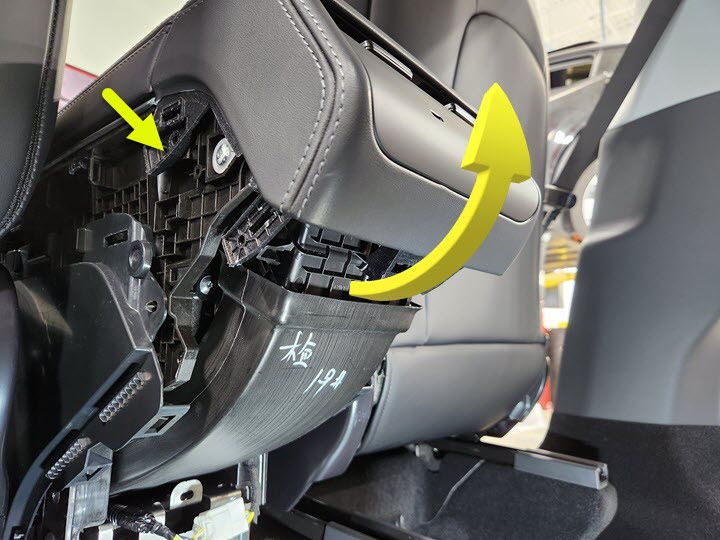

  4. Release the tabs (x2) that attach the rear end module to the center console assembly.
    CAUTION
    Do not pull the module too far from the center console, as the rear end module connector is still attached.

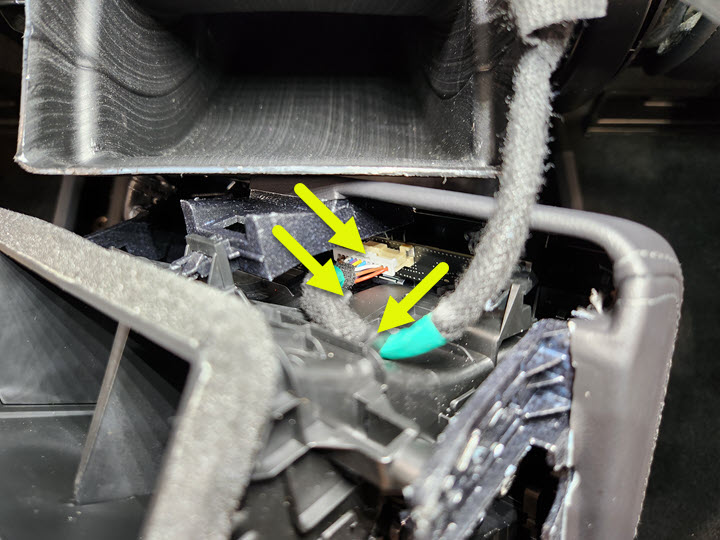

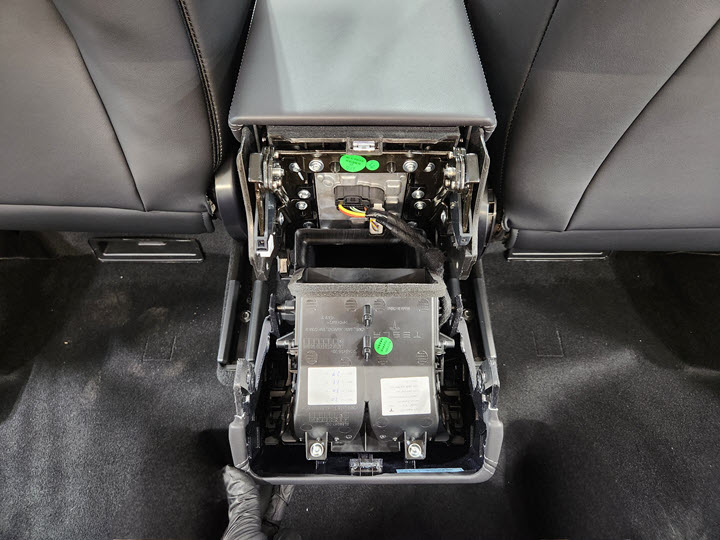

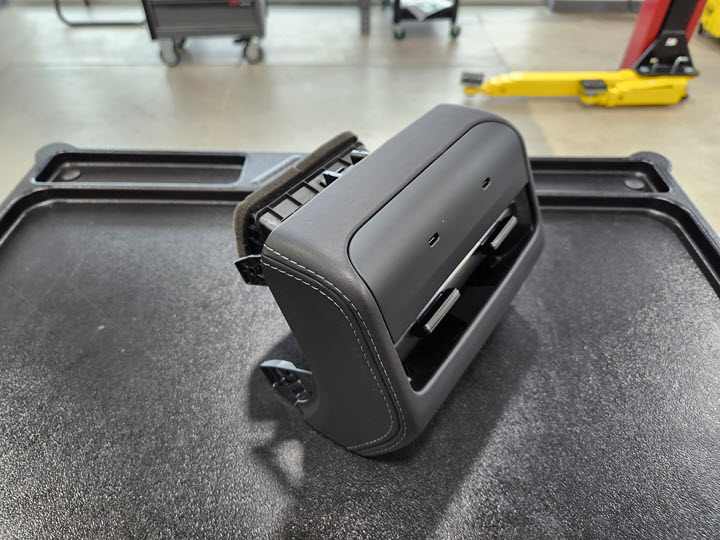

  5. Disconnect the rear end module connector, rotate the module to access and release the tabs (x2) that attach the center console harness to the module, and then remove the module from the vehicle.

Install

  1. Connect the rear end module connector, and then rotate the module to access and install the tabs (x2) that attach the center console harness to the module.
    Note

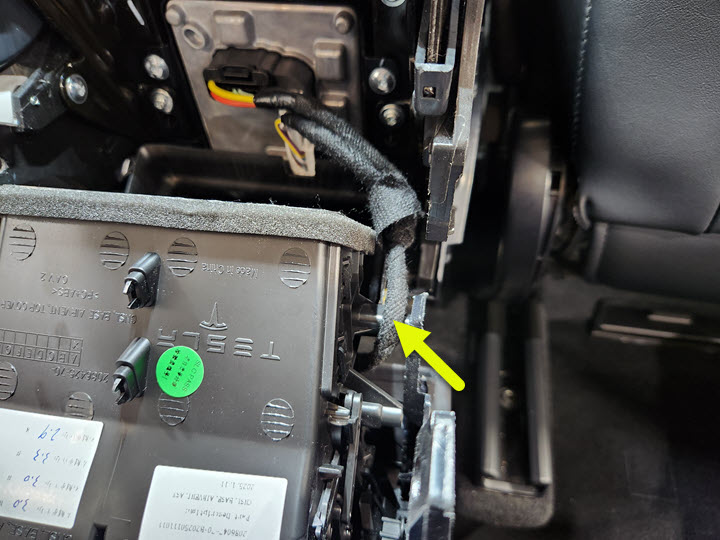

    Route the electrical harness around the fastener mount.

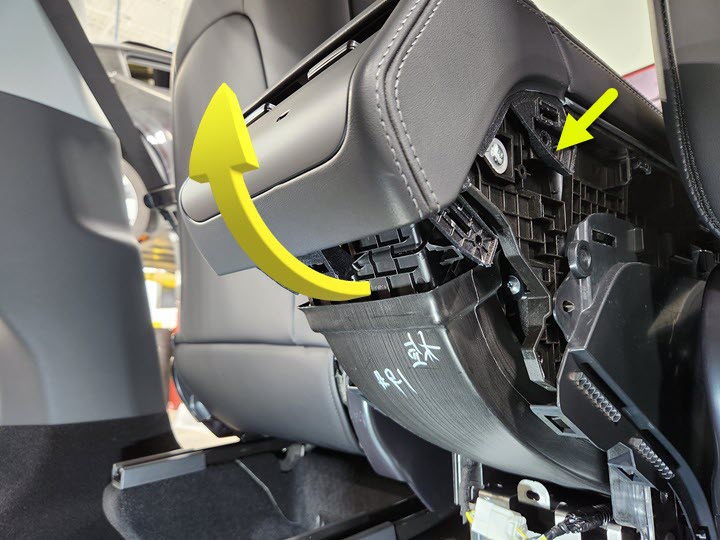

  2. Install the tabs (x2) that attach the rear end module to the center console assembly.
  3. Install the screws (x6) that attach the rear end module assembly to the center console assembly
    1.2 Nm (.9 lbs-ft)
    .
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  4. Move the front seats back to their original position.
  5. Install the U-shape panel assembly. See Side Panel - Rear - LH - Center Console (Model Y Standard) (Remove and Install).
