Headliner Assembly (Remove and Replace)
Correction code
15203102
FRT
1.08
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the front and rear headliners. See Front Headliner (Remove and Install).
Install
-

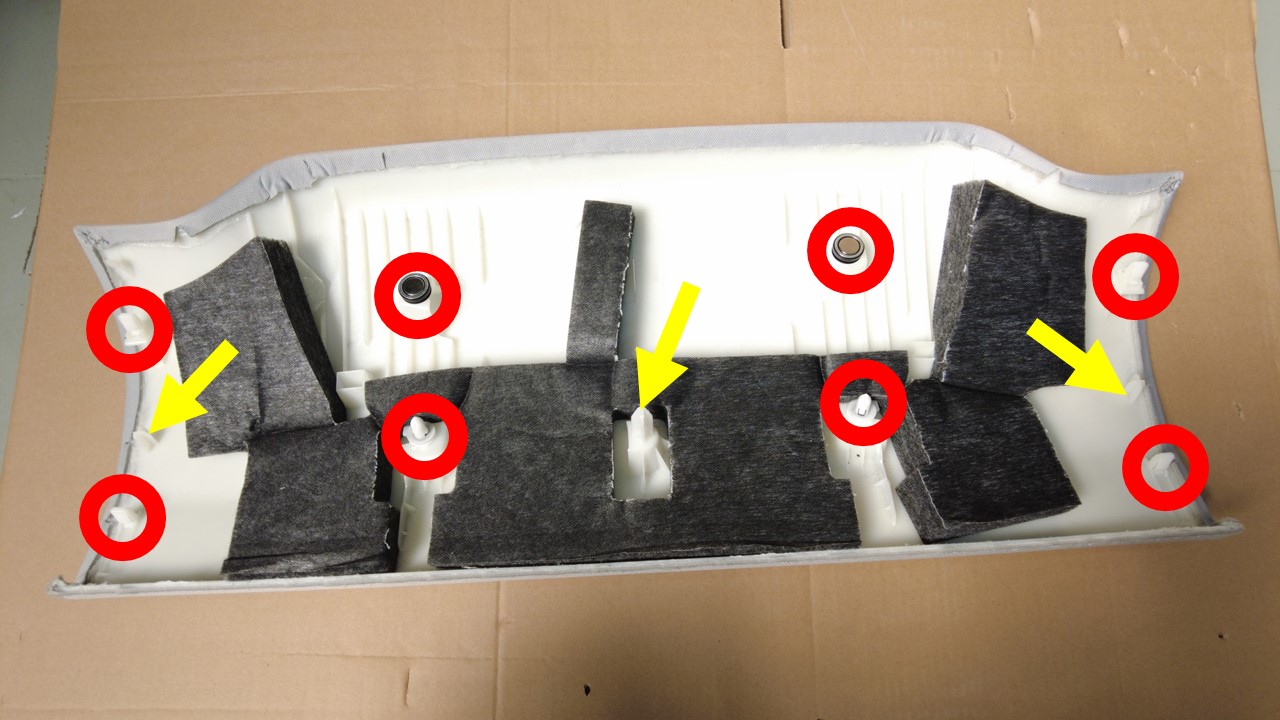

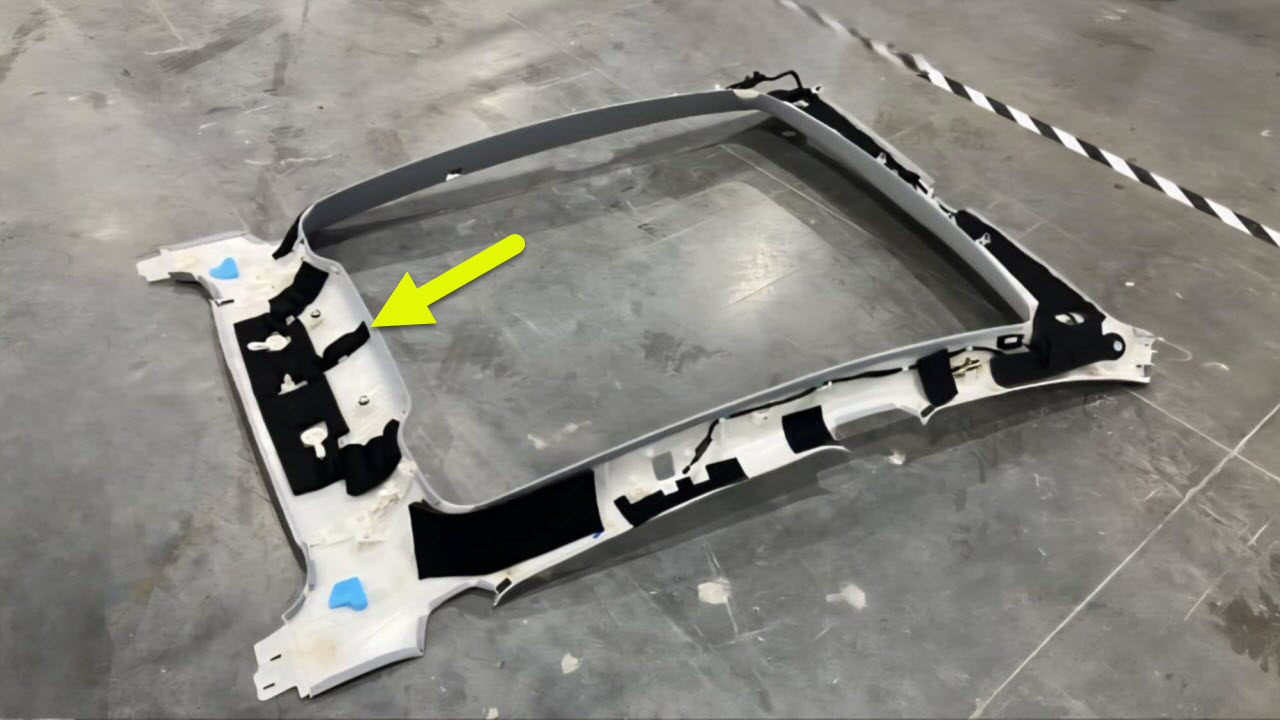

Release the clips (x6), location pins (x3) and magnets (x2) to separate the new rear
headliner and the new front headliner.
- Install the front and rear headliners. See Front Headliner (Remove and Install).
- Reinstall the vehicle firmware. See Software Reinstall - Touchscreen.
