Foam - Seat Cushion - 2nd Row Seat - RH (7-Seat) (Remove and Replace)

Correction code 1308020302 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

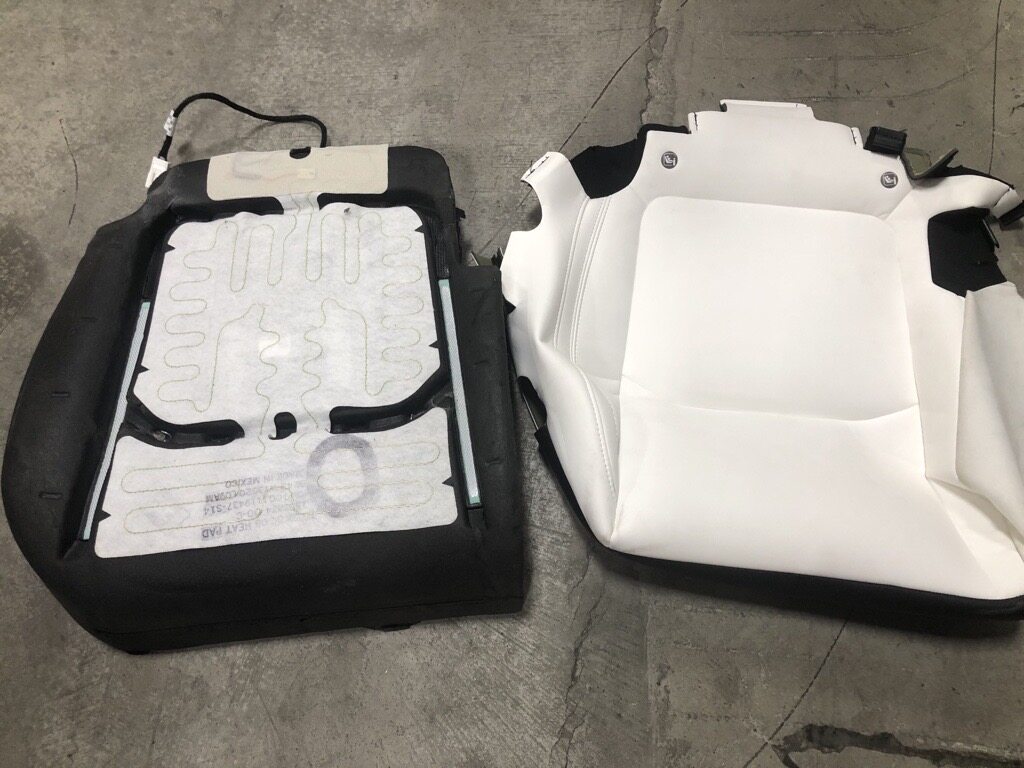

  1. Remove the 2nd row RH seat cushion trim cover assembly. See Trim Cover - Cushion - 2nd Row Seat - RH (7-Seat) (Remove and Replace).

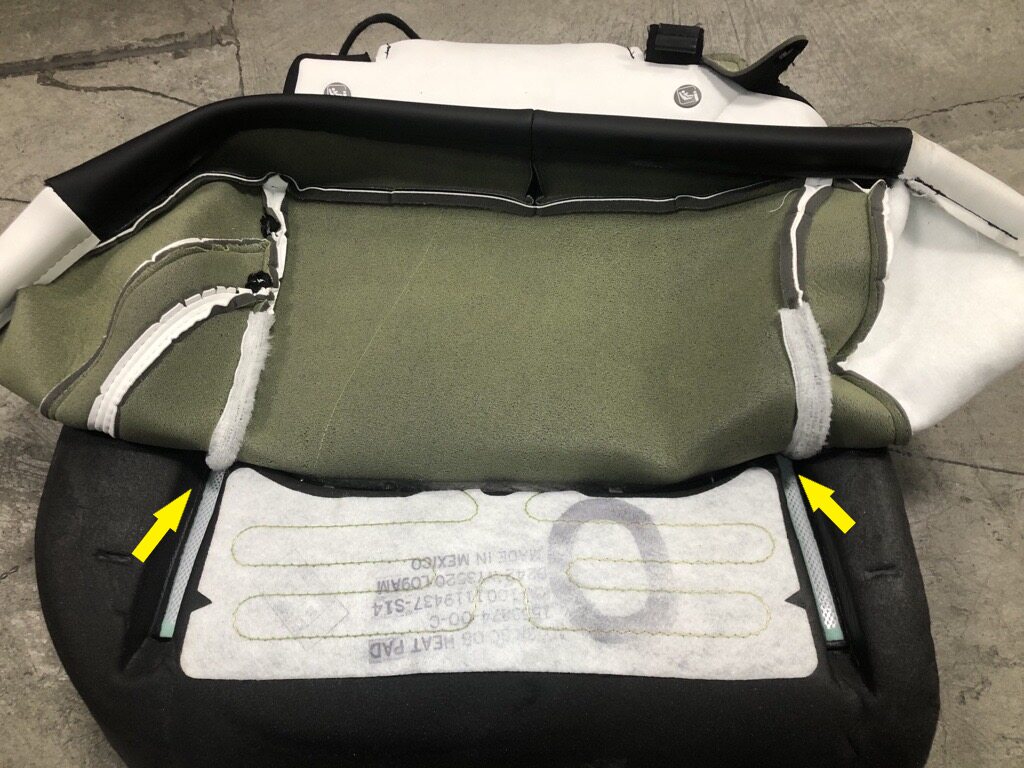

  2. Release Velcro securing RH seat cushion trim cover to foam pad.
    Note
    Release Velcro approximately 11 cm until hog rings are visible.

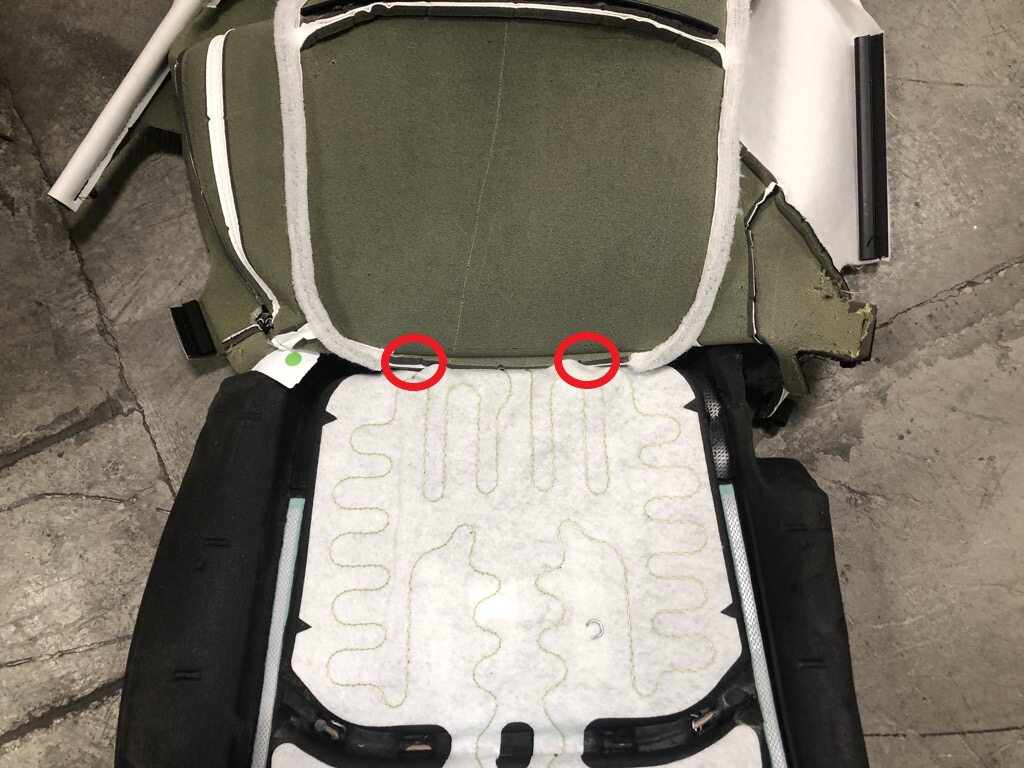

  3. Remove front hog rings securing RH seat cushion trim cover to foam pad.
  4. Release remaining Velcro securing RH seat cushion trim cover to foam pad.
    Note
    Release Velcro approximately 21 cm until hog rings are visible.

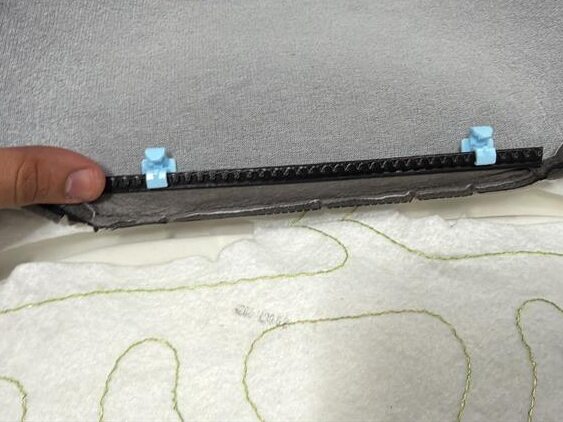

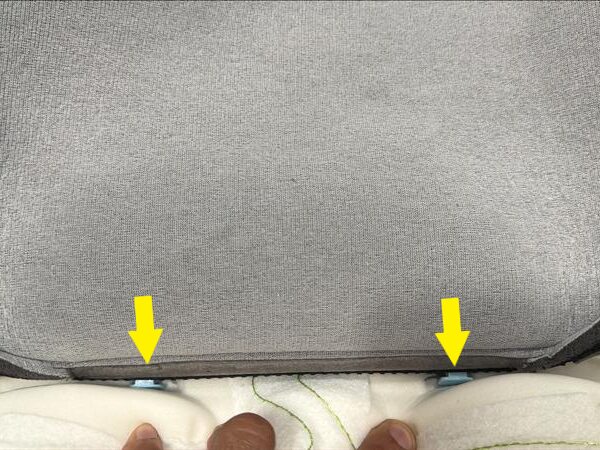

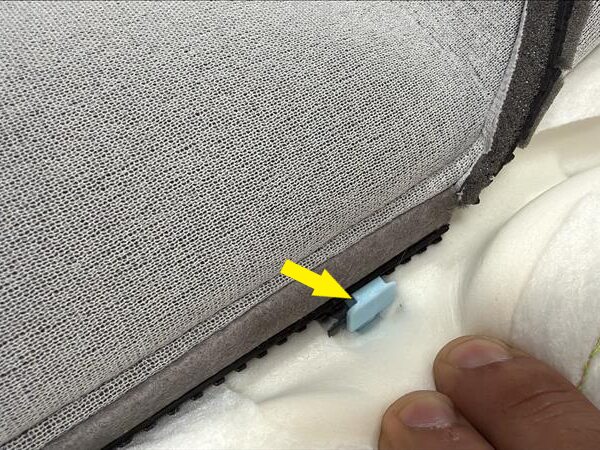

  5. Remove rear hooks securing RH seat cushion trim cover to foam pad and remove RH seat cushion trim cover.

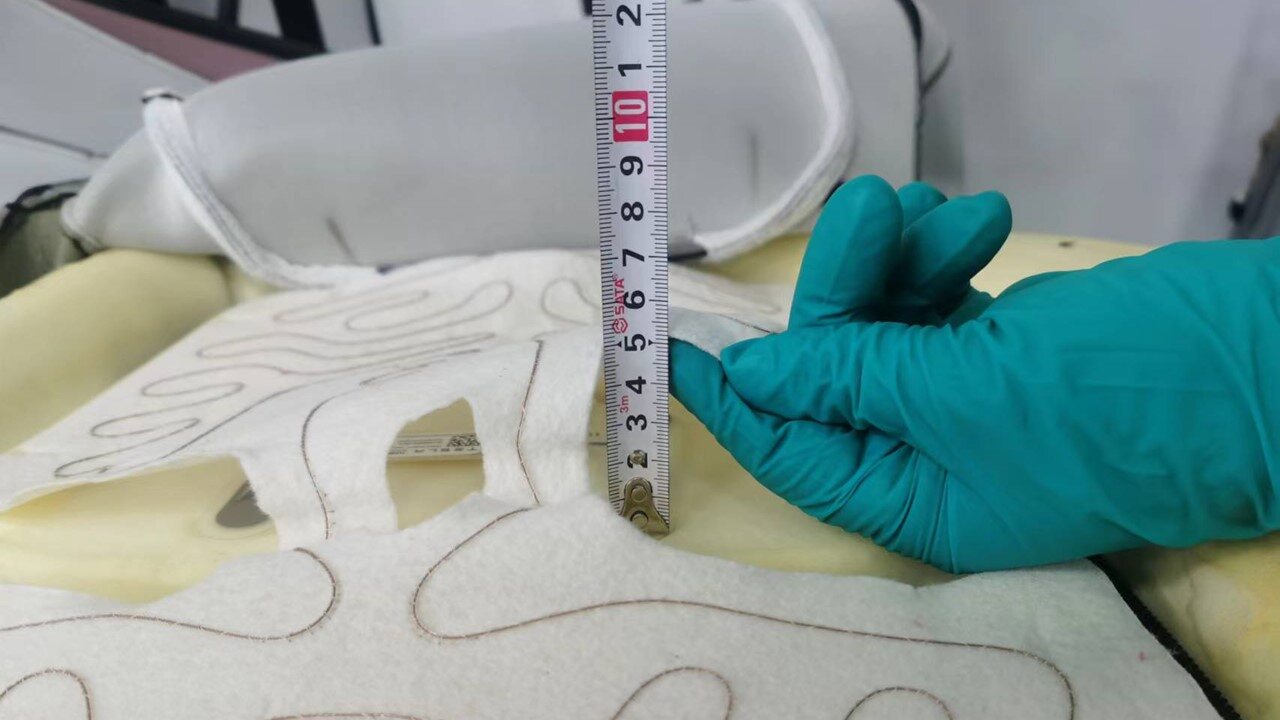

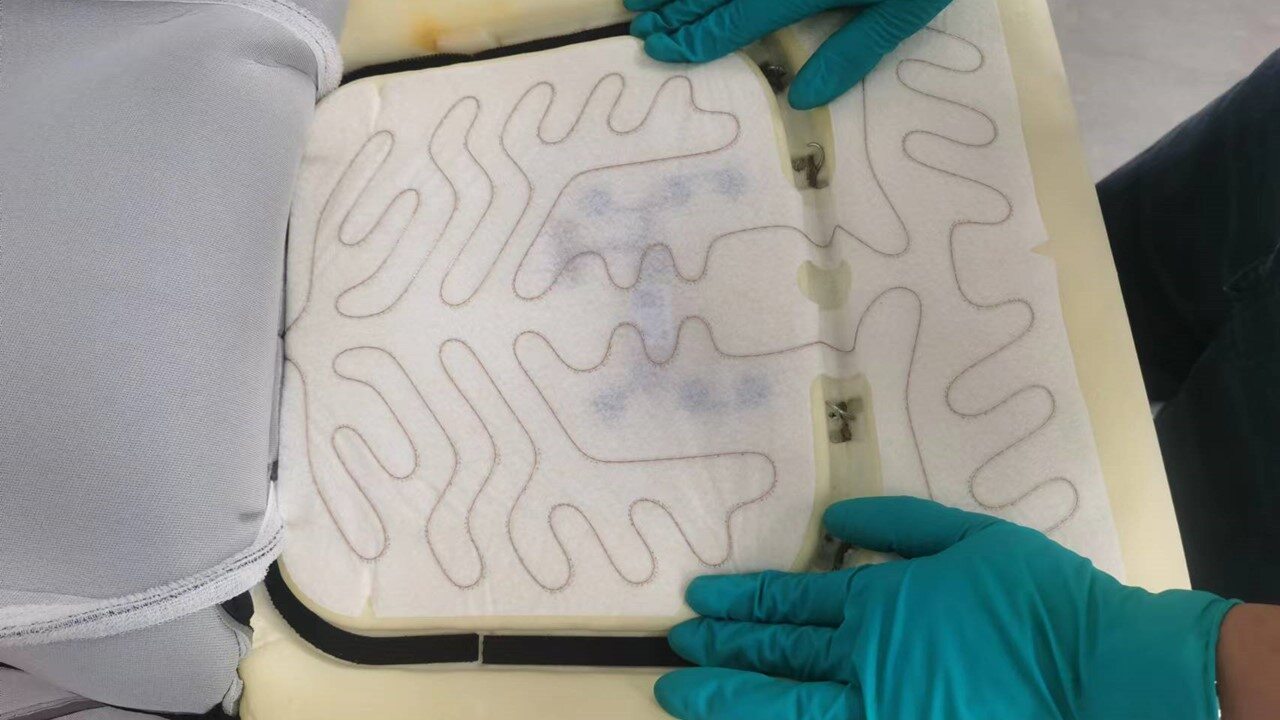

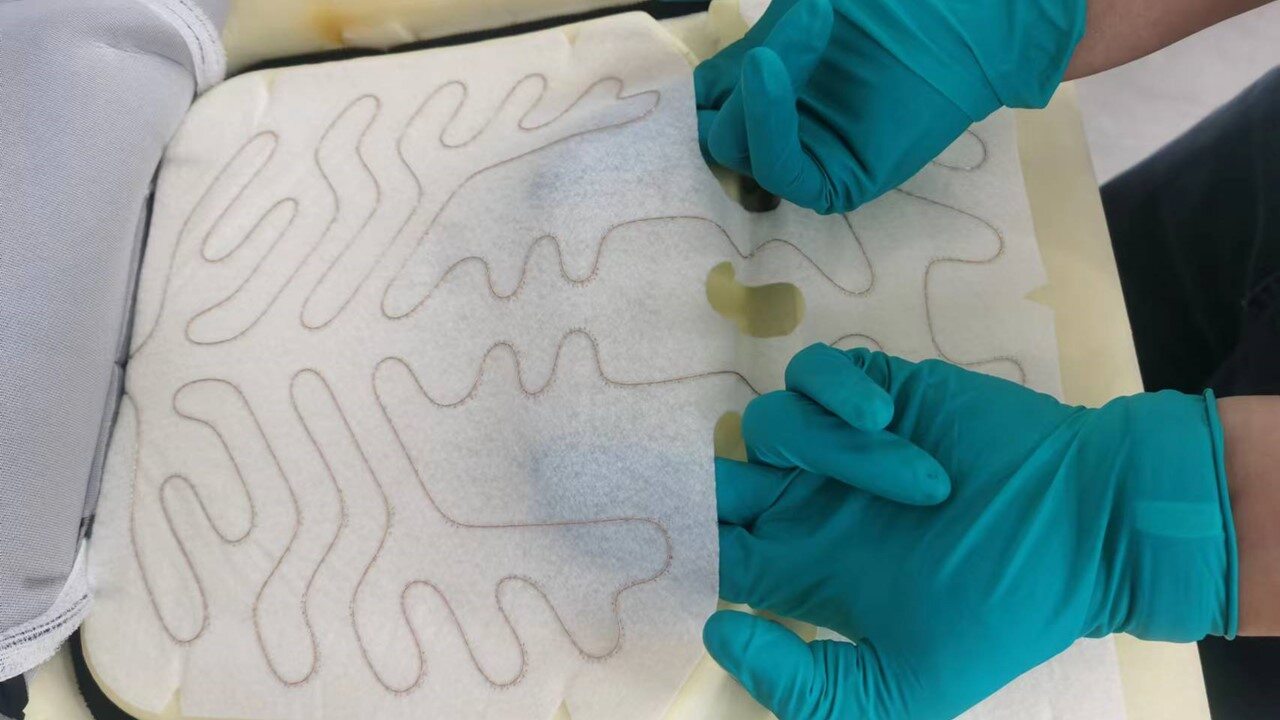

  6. Gently lift the seat RH pad heating wire.
    Note
    Lift the heating wire of the seat cushion gently to remove the seat cushion occupancy sensor. Do not damage or deform the heating wire. Need assistance.

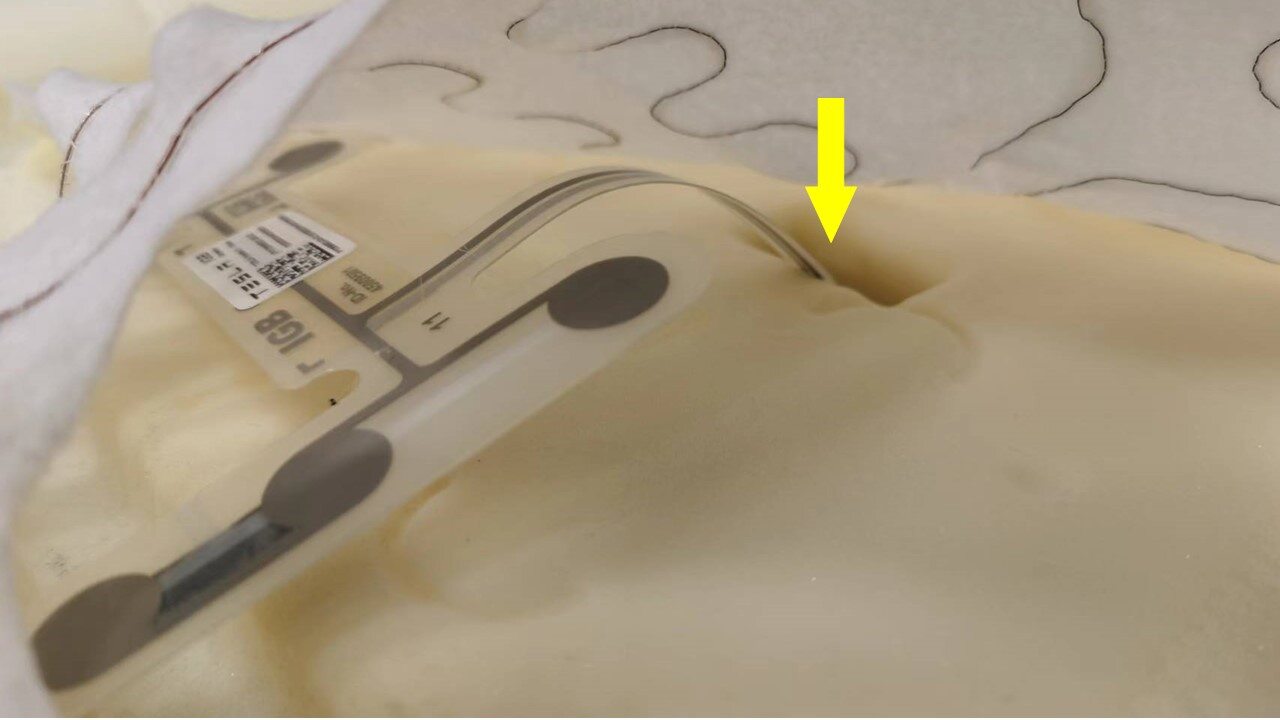

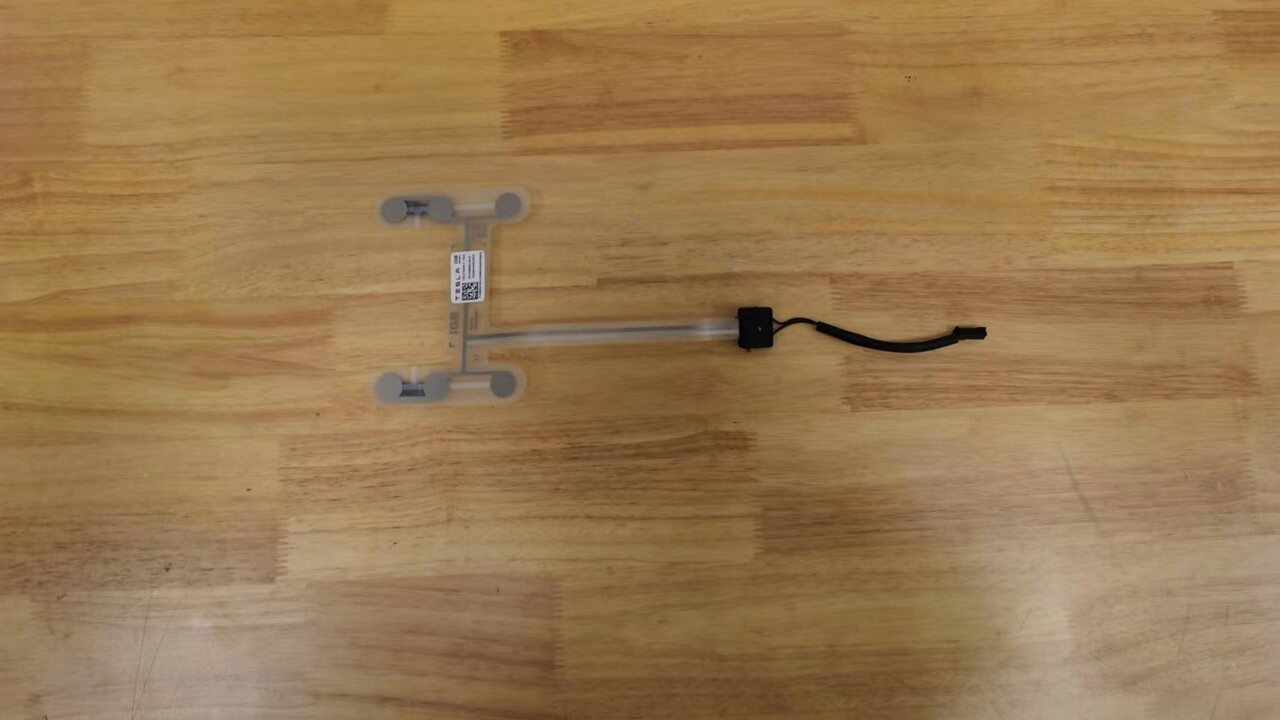

  7. Remove the 2nd row seat cushion RH occupancy sensor.
    Note
    Remove from the bottom of heating wire and be careful not to damage foam when removing wiring harness.

Install

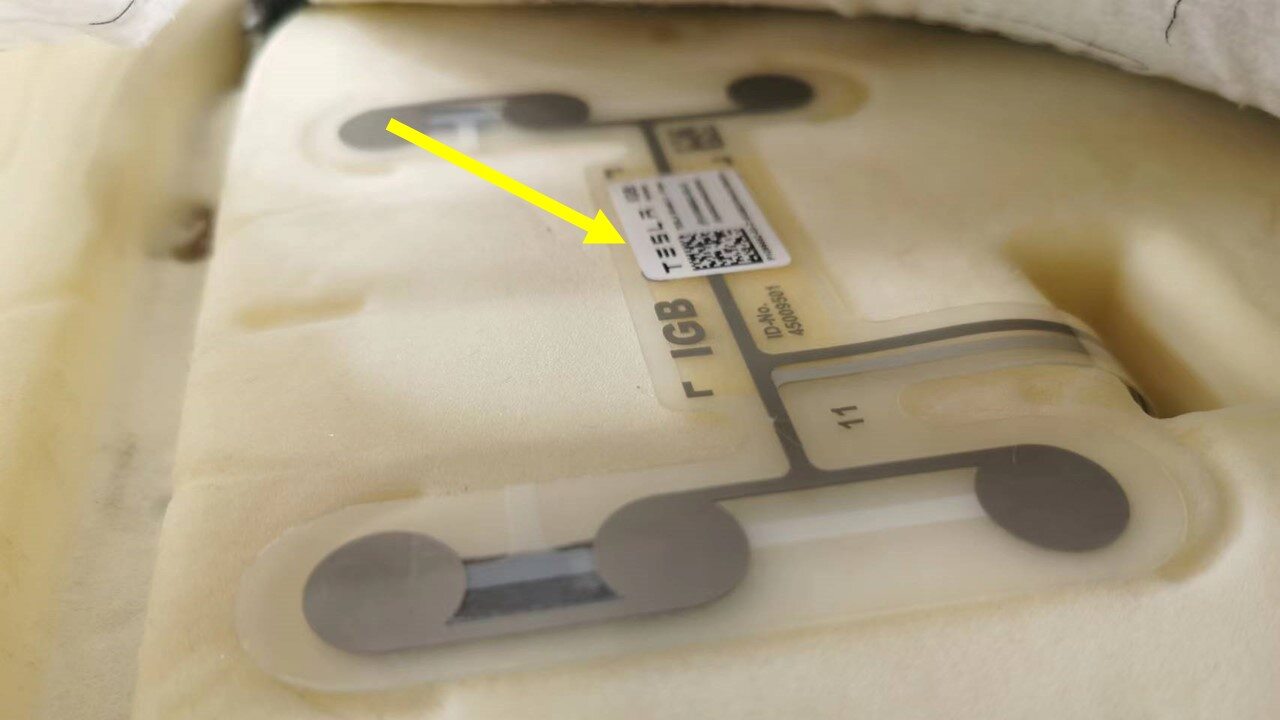

  1. Install the 2nd row RH seat cushion occupancy sensor
    Note
    Remove the protective pad of the resistance sensor and expose the adhesive to install the sensor on the top of the foam, and return the seat cushion heating wire to its original position.

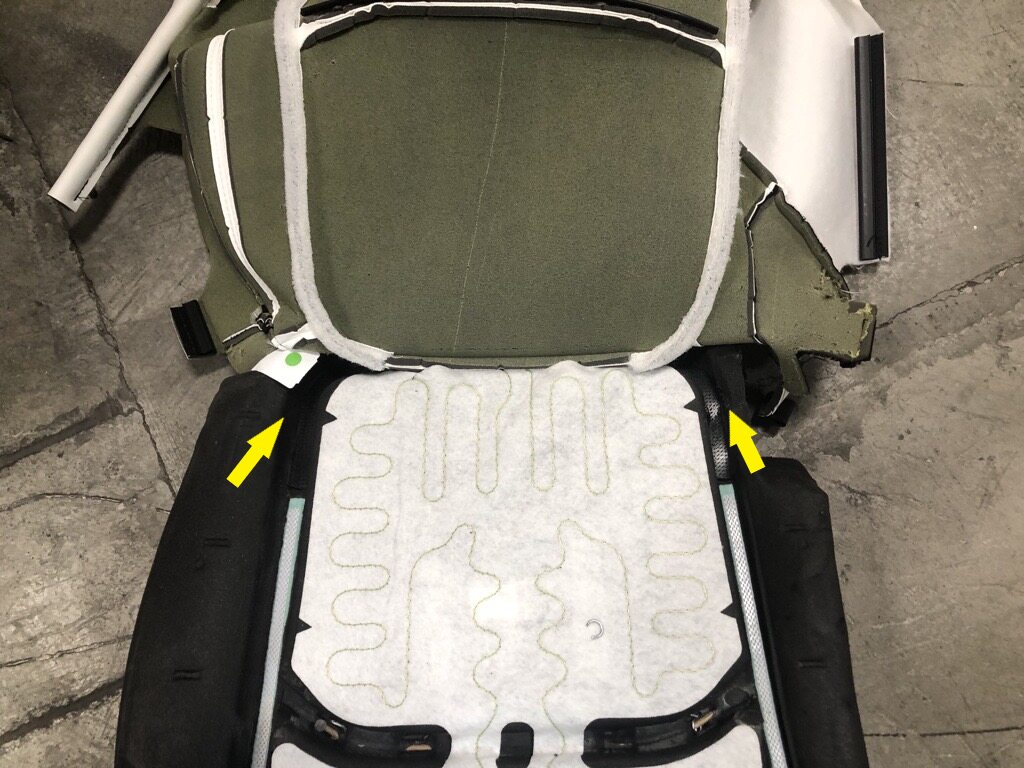

  2. Position RH seat cushion trim cover to foam pad and install rear hog rings securing RH seat cushion trim cover to foam pad.
  3. Install velcro securing RH seat cushion trim cover to foam pad.
    Note
    Install velcro approximately 21 cm.
  4. Install front hooks securing RH seat cushion trim cover to foam pad.
  5. Install remain velcro securing RH seat cushion trim cover to foam pad.
  6. Install the 2nd row RH seat cushion trim cover assembly. See Trim Cover - Cushion - 2nd Row Seat - RH (7-Seat) (Remove and Replace).
  7. Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)
  8. Run ODIN routine
  9. Run ODIN routine PROC_VCLEFT_X_2R-SEAT-RECLINE-CALIBRATIONvia Service Mode:Low Voltage ➜ Second Row Seats ➜ Calibratevia Toolbox:(link)
  10. Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
  11. Close all four doors.
    Note
    Unlatch doors before closing if necessary.
