Armrest - Inner - Center Console (Model Y Standard) (Remove and Install)

Correction code 15190403101 15190403102 FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the rear end module. See Surround - Phone Dock - Center Console (Model Y Standard) (Remove and Install).

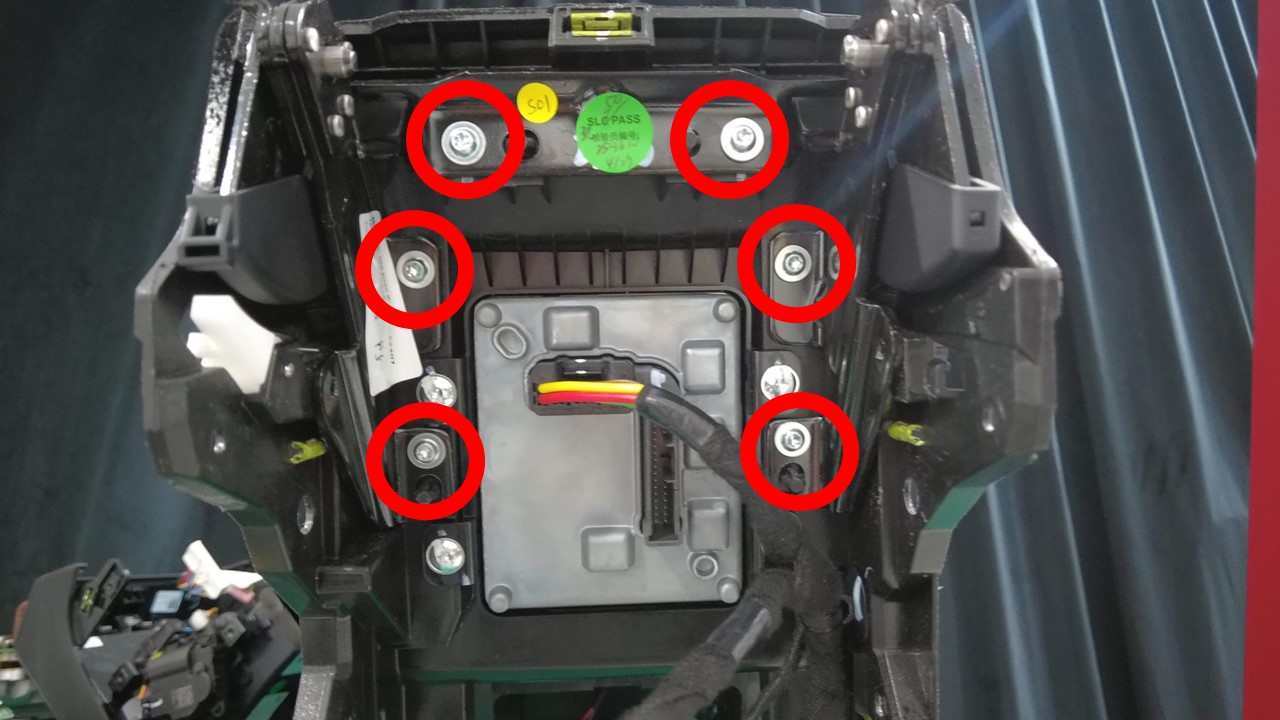

  2. Remove the screws (x8) that attach the armrest assembly to the center console.
    Note

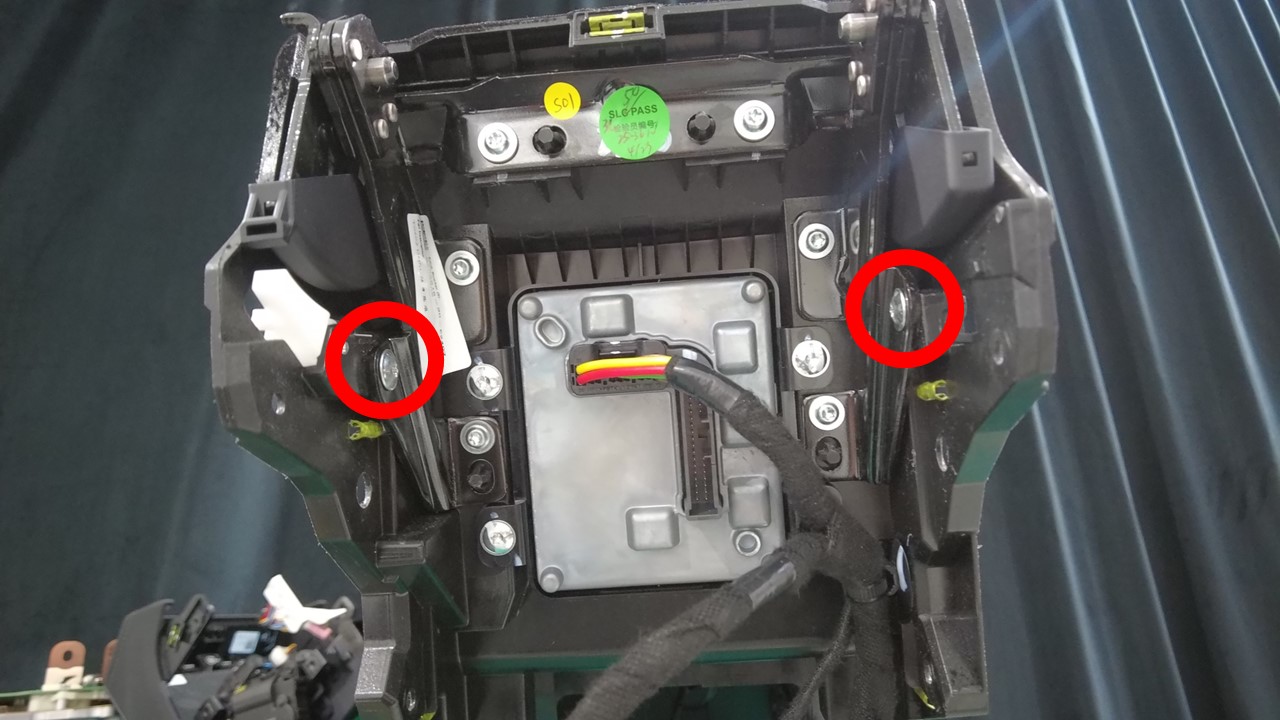

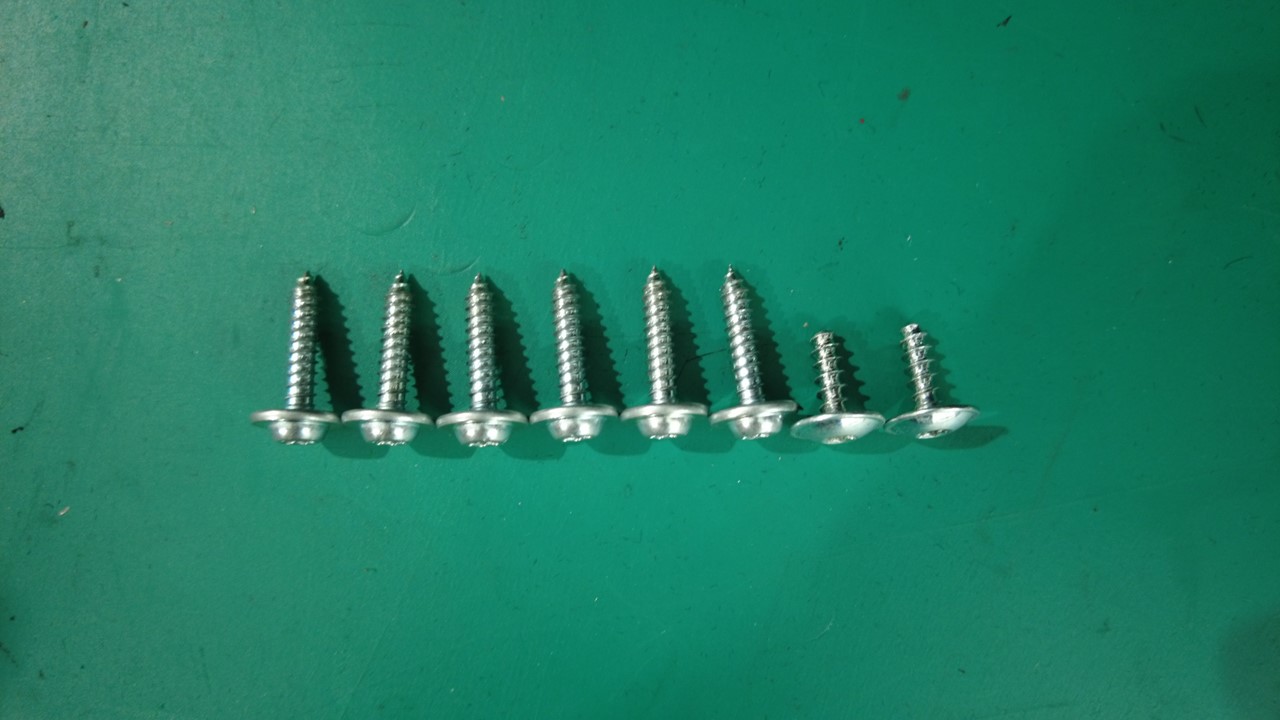

    The outer screws (x2) are shorter than the inner screws (x6).
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

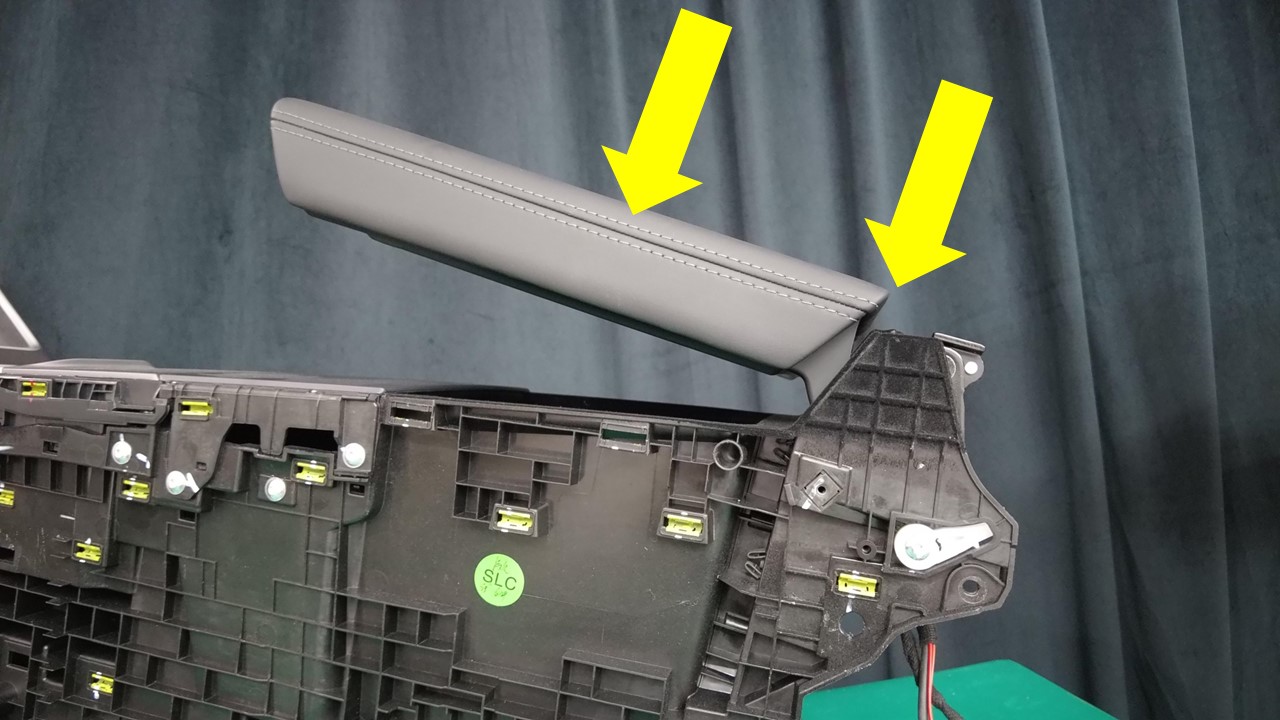

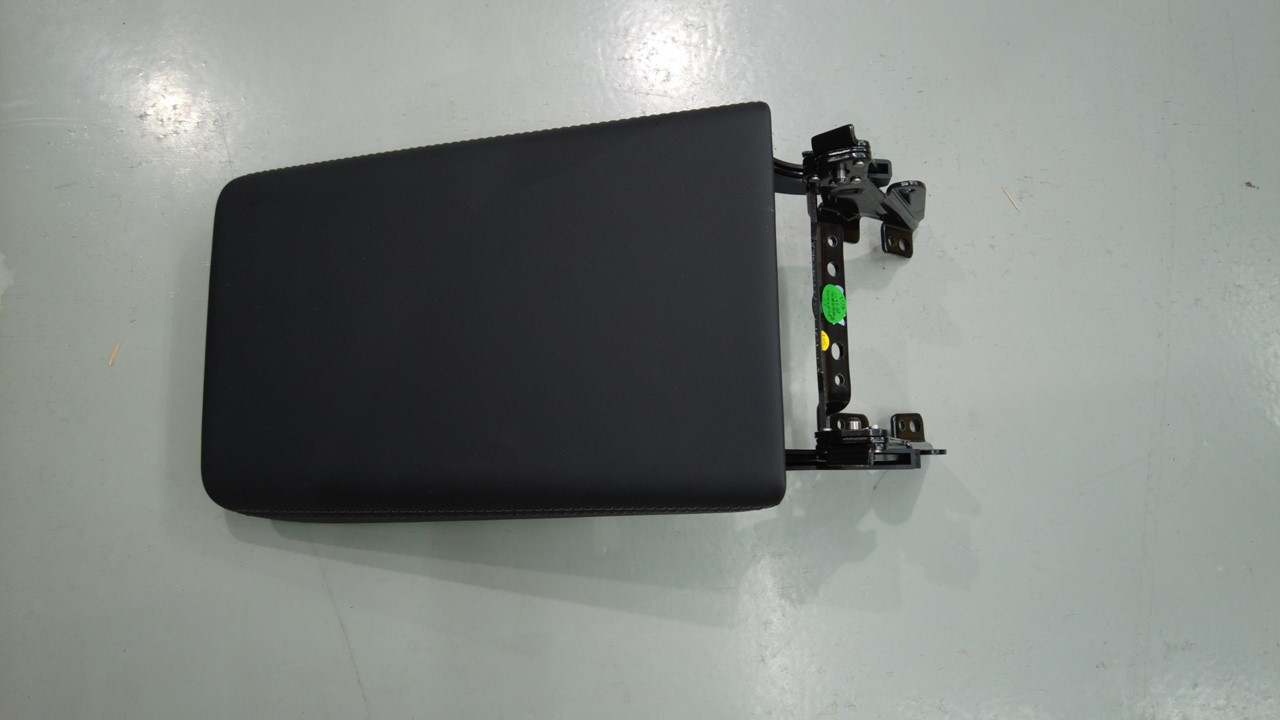

  3. Remove the armrest assembly from the center console assembly.

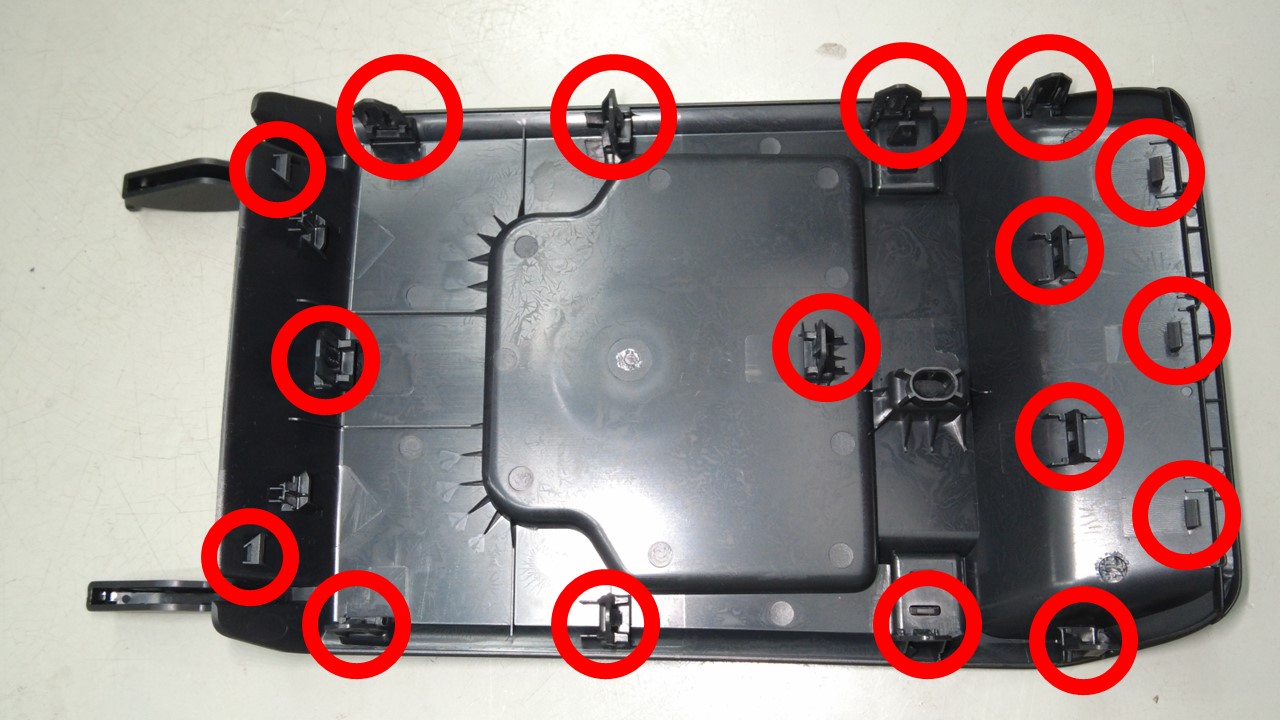

  4. Release the clips (x17) and datums (x5) that attach the inner armrest to the armrest assembly, and then remove the inner armrest.
    Note

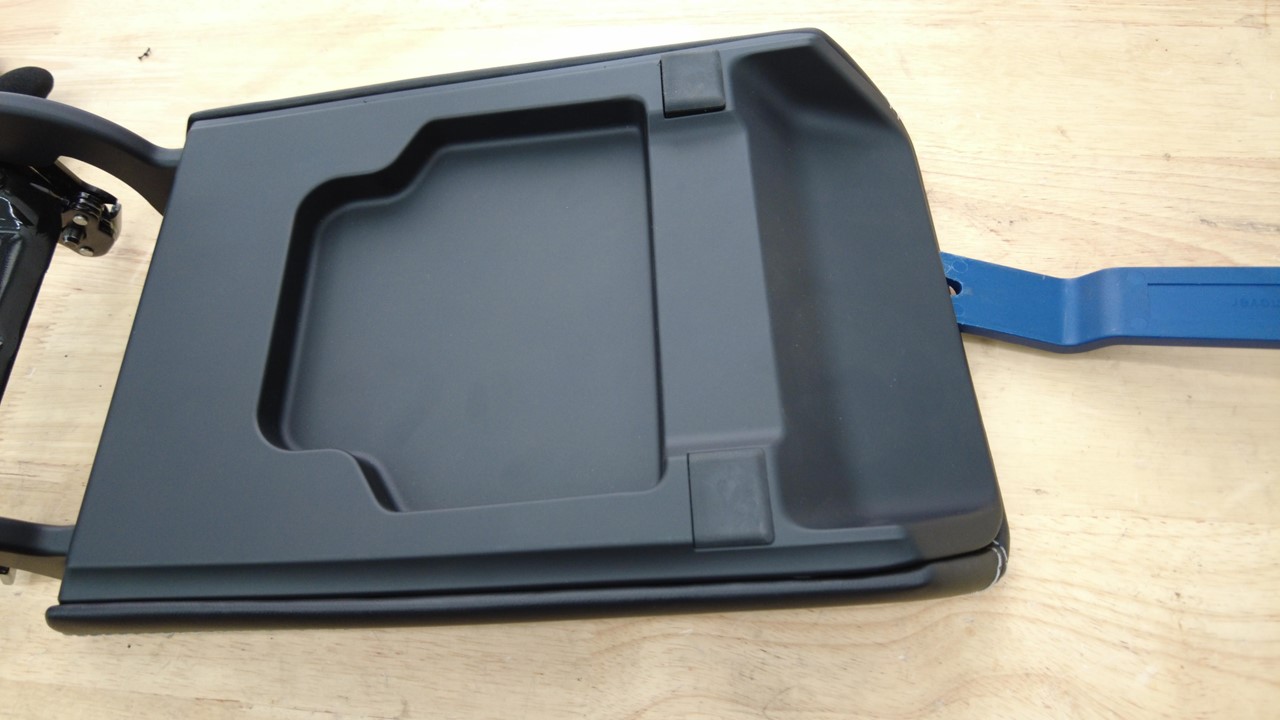

    Use a trim tool and start from the top of the armrest to release the clips, then work towards the bottom.
    Note
    Use caution when releasing clips, and engage the trim tool as close to the clip as possible. Discard the component if any damage occurs during removal.

Install

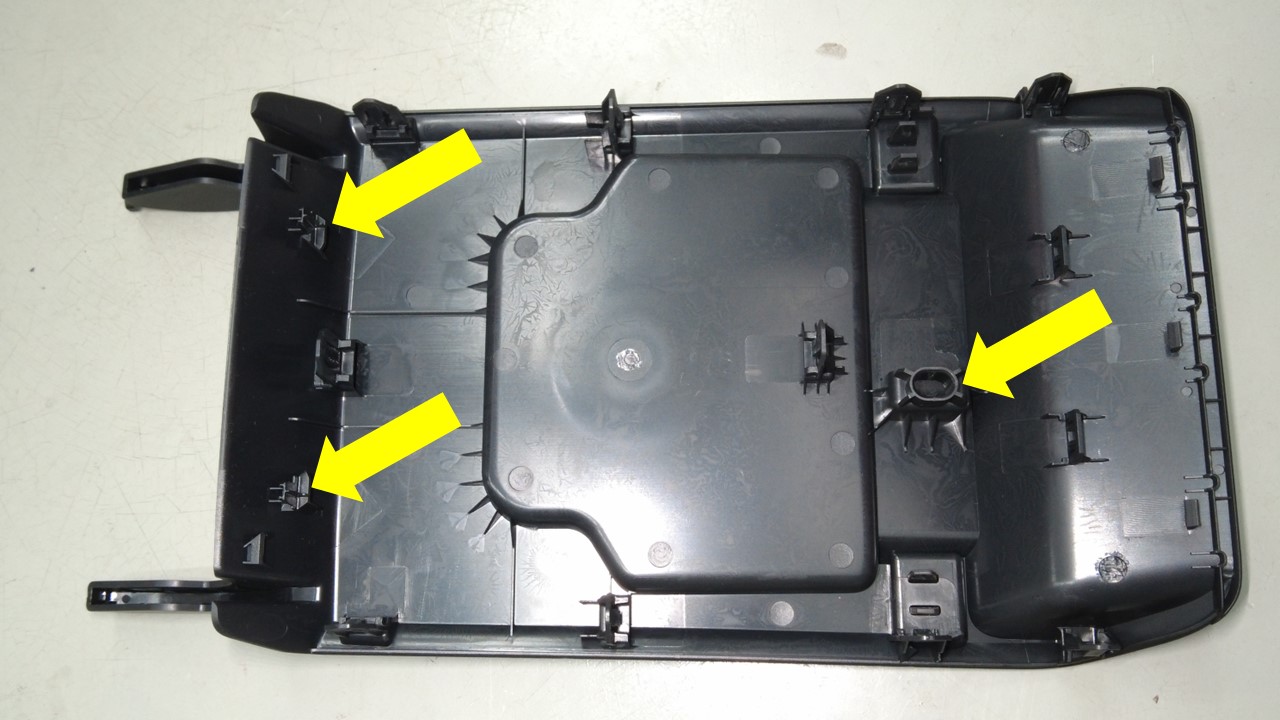

  1. Align the locator datums (x5), and then engage the clips (x17) that attach the inner armrest to the armrest assembly.
    Note
    Ensure all the clips (x17) are fully engaged.
    Note
    Install a new component if any damage is found.
  2. Install the armrest assembly into the center console assembly.
  3. Install the screws (x8) that attach the armrest assembly to the center console.
    1.2 Nm (.9 lbs-ft)
    Note
    The outer screws (x2) are shorter than the inner screws (x6).
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  4. Install the rear end module. See Surround - Phone Dock - Center Console (Model Y Standard) (Remove and Install).
