HVAC Blower Motor - Cabin HVAC (Remove and Install)
Correction code
1810011101
FRT
2.82
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
- 2026-11-04: Updated the whole procedure to remove the blower motor by moving the instrument panel and HVAC module assembly rearward.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Bolts (x4) that attach the LH and RH cross car beam to the A-pillar |
![]() 29 Nm (21.4 lbs-ft) |
|
Reuse | |
| Bolt that attaches the cross car beam to the upper cowl |
![]() 25 Nm (18.4 lbs-ft) |
|
Reuse | |
| Bolts (x2) that attach the cross car beam to the body |
![]() 25 Nm (18.4 lbs-ft) |
|
Reuse | |
| Bolt securing HVAC assembly to RH side of bulkhead |
![]() 5.5 Nm (4.1 lbs-ft) |
|
Reuse | |
| Bolts (x3) that attach the HVAC blower motor to the HVAC module |
![]() 1 Nm (.7 lbs-ft) |
|
Reuse |
Remove
- Open all the doors and lower all the windows.
- On the vehicle touchscreen, touch and use the left steering wheel scroll wheel to adjust the steering column fully outward and downward.
- Remove the center console rear end panel. See Console - End Panel (Remove and Replace).
- Remove the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace).
- Remove the LH and RH lower A-pillar trims. See Trim - A-Pillar - Lower - LH (Remove and Replace).
- Disconnect the LV power. See LV Power (Disconnect and Connect) (Modify).
- Remove the cowl screen panel. See Cowl Screen (Remove and Replace).
- Remove the cabin air intake duct. See Duct - Air Intake (Remove and Replace)
- Remove the instrument panel lower assembly. See Assembly - Instrument Panel - Lower (Remove and Replace).
- Remove the passenger footwell duct. See Footwell Duct - Passenger (Remove and Replace).
-
Remove the RH air wave duct. See Instrument Panel - Air Wave Duct - RH (Remove and Install).
NoteDuring removal, certain steps require extra care. See the animation(s) for detailed guidance.
- Remove the center console assembly from the vehicle. See Center Console (Remove and Install).
- Remove the steering wheel. See Steering Wheel (Remove and Install).
- Remove the steering wheel control module. See Steering Column Control Module (Remove and Install).
- Remove the steering column lower gap hider. See Gap Hider - Steering Column - Lower (Remove and Replace).
- Remove the touchscreen and its neck. See Center Screen - Neck (Remove and Replace).
-
Remove the wrap around assembly. See
Speaker Grille - Instrument Panel (Remove and Install).
NoteDuring removal, certain steps require extra care. See the animation(s) for detailed guidance.
- Remove the LH and RH instrument panel speakers. See Audio Speakers - Audio Speaker - Full Range - 100mm (Remove and Replace).
- Remove the center instrument panel speaker. See Audio Speakers - Audio Speaker Full Range 100MM - Center (Remove and Replace).
- Remove the instrument panel upper carrier from the vehicle. See Assembly - Instrument Panel - Upper (Remove and Install).
- Remove the LH instrument panel air wave duct. See Instrument Panel - Air Wave Duct - LH (Remove and Replace).
- Remove the cowl top foam. See Cowl Top Foam - Instrument Panel (Remove and Replace).
- Remove the LH instrument panel riser bracket. See Instrument Panel Riser - LH (Remove and Replace).
- Remove the RH instrument panel riser bracket. See Instrument Panel Riser - RH (Remove and Replace).
-
Remove the headliner harness clips (x4) on the LH and RH lower A-pillars.
-
Disconnect the blower motor connector and clip.
-
Remove the bolts (x4) that attach the
LH and RH cross car beam to the A-pillar.
TipUse of the following tool(s) is recommended:
- 13 mm deep socket
-
Loosen the bolt that attaches the
cross car beam to the upper cowl.
NoteNo need to remove the bolt.TipUse of the following tool(s) is recommended:
- Combination Wrench 12pt 13mm
- 3/8in Dr. Open Crowfoot Socket x 13mm
-

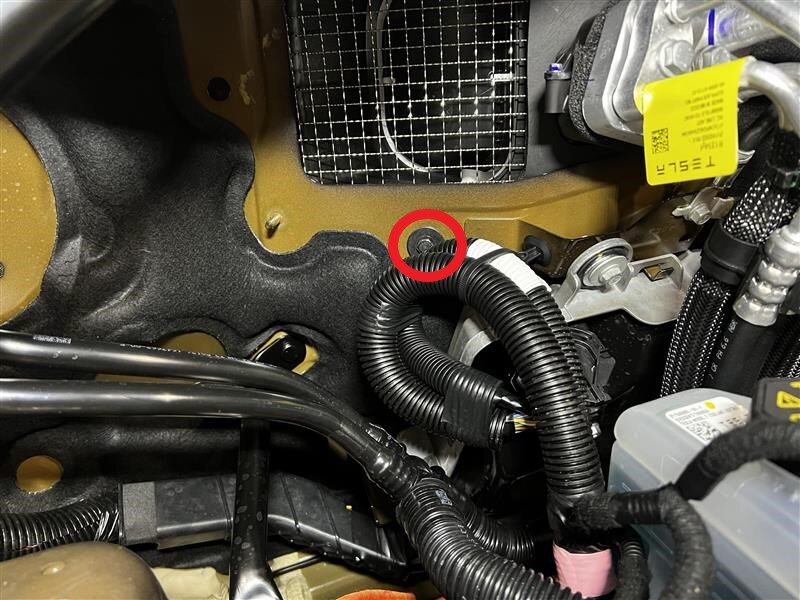

Remove bolt securing HVAC assembly to RH side of bulkhead.
TipUse of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm deep socket
-
Remove the bolts (x2) that attach the
cross car beam to the body.
TipUse of the following tool(s) is recommended:
- 13 mm deep socket
-
Move the instrument panel frame and HVAC module rearward.
-

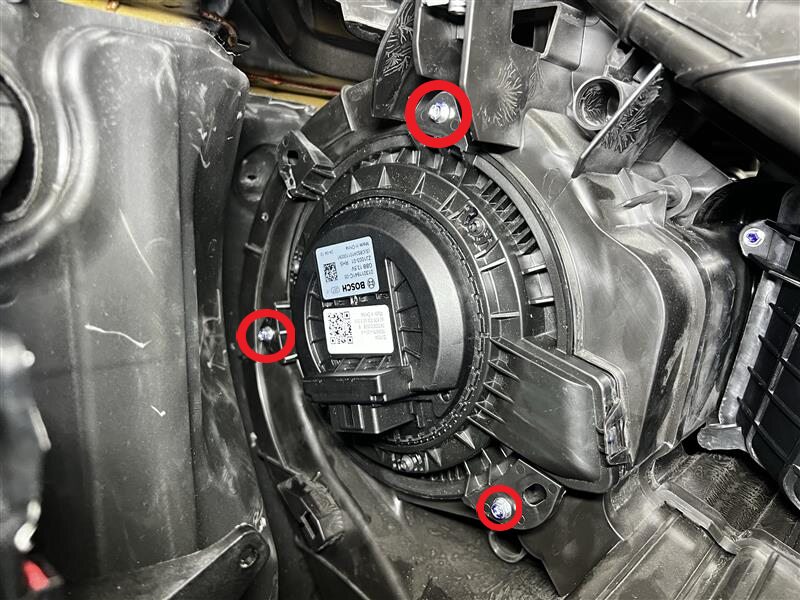

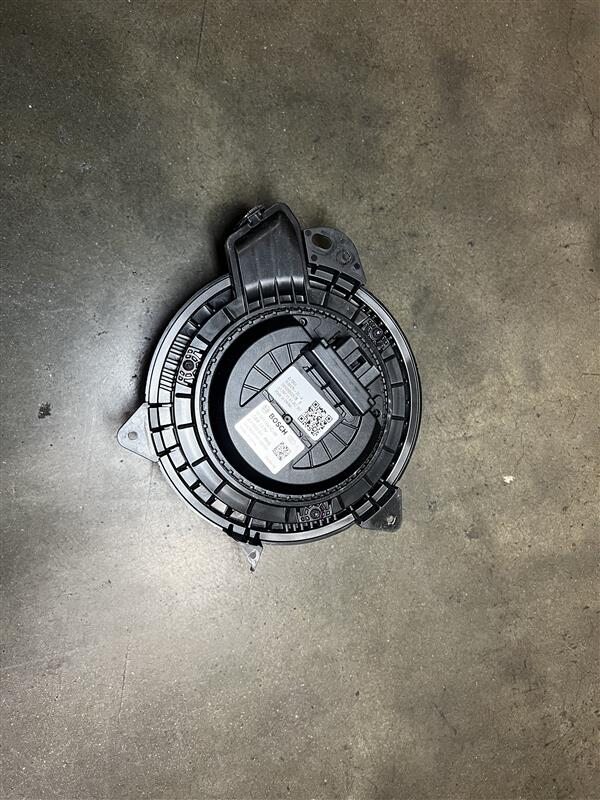

Remove the bolts (x3) that attach the
HVAC blower motor to the HVAC module, and then remove the blower motor from the
vehicle.
TipUse of the following tool(s) is recommended:
- Ratchet/torque wrench
- Hex Stubby 1/4in Dr x 6mm
Install
-
Install the bolts (x3) that attach the
HVAC blower motor to the HVAC module, and then install the blower motor from the
vehicle.
1 Nm (.7 lbs-ft)TipUse of the following tool(s) is recommended:- Ratchet/torque wrench
- Hex Stubby 1/4in Dr x 6mm
-
Move the instrument panel frame and HVAC module forward.
-
Install the bolts (x4) that attach the
LH and RH cross car beam to the A-pillar.
29 Nm (21.4 lbs-ft)TipUse of the following tool(s) is recommended:- 13 mm deep socket
-
Install bolt securing HVAC assembly to RH side of bulkhead.
5.5 Nm (4.1 lbs-ft)TipUse of the following tool(s) is recommended:- Cordless Ratchet/Impact Driver
- 10 mm deep socket
-
Install the bolts (x2) that attach the
cross car beam to the body.
25 Nm (18.4 lbs-ft)TipUse of the following tool(s) is recommended:- 13 mm deep socket
-
Torque the bolt that attaches the
cross car beam to the upper cowl.
25 Nm (18.4 lbs-ft)TipUse of the following tool(s) is recommended:- Combination Wrench 12pt 13mm
- 3/8in Dr. Open Crowfoot Socket x 13mm
- Install the RH instrument panel riser bracket. See Instrument Panel Riser - RH (Remove and Replace).
- Install the LH instrument panel riser bracket. See Instrument Panel Riser - LH (Remove and Replace).
-
Connect the blower motor connector and clip.
-
Install the headliner harness clips (x4) on the LH and RH lower A-pillars.
- Install the LH instrument panel air wave duct. See Instrument Panel - Air Wave Duct - LH (Remove and Replace).
- Install the cowl top foam. See Cowl Top Foam - Instrument Panel (Remove and Replace).
- Install the instrument panel upper carrier to the vehicle. See Assembly - Instrument Panel - Upper (Remove and Install).
- Install the center instrument panel speaker. See Audio Speakers - Audio Speaker Full Range 100MM - Center (Remove and Replace).
- Install the LH and RH instrument panel speakers. See Audio Speakers - Audio Speaker - Full Range - 100mm (Remove and Replace).
- Install the wrap around assembly. See Speaker Grille - Instrument Panel (Remove and Install).
- Install the touchscreen and its neck. See Center Screen - Neck (Remove and Replace).
- Install the steering column lower gap hider. See Gap Hider - Steering Column - Lower (Remove and Replace).
- Install the steering wheel control module. See Steering Column Control Module (Remove and Install).
- Install the steering wheel. See Steering Wheel (Remove and Install).
- Install the center console assembly from the vehicle. See Center Console (Remove and Install).
- Install the RH air wave duct. See Instrument Panel - Air Wave Duct - RH (Remove and Install).
- Install the passenger footwell duct. See Footwell Duct - Passenger (Remove and Replace).
- Install the instrument panel lower assembly. See Assembly - Instrument Panel - Lower (Remove and Replace).
- Connect the LV power. See LV Power (Disconnect and Connect) (Modify).
- Install the cabin air intake duct. See Duct - Air Intake (Remove and Replace)
- Install the cowl screen panel. See Cowl Screen (Remove and Replace).
- Install the LH and RH lower A-pillar trims. See Trim - A-Pillar - Lower - LH (Remove and Replace).
- Install the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace).
- Install the center console rear end panel. See Console - End Panel (Remove and Replace).
- Install the HEPA filter assembly. See HEPA Filter Assembly (Remove and Replace).
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace)
- Adjust the steering column back to the original position.
- Raise all the windows and close all the doors.
