Module - Rear End - Center Console (Model Y Standard) (Remove and Install)

Correction code 15190404501 15190404502 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Module - Rear End - Center Console (Model Y Standard) (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x10) attach the center console rear floor bin to center console
1.2 Nm (.9 lbs-ft)
  • Torx T20 socket
  • Cordless 1/4in Dr Ratchet
  • SET, RATCHETING SCREWDRIVER, 55PC for installation only
 Reuse

Remove

  1. Remove the rear RH side panel. See Rear Floor Bin - Center Console (Model Y Standard) (Remove and Install).

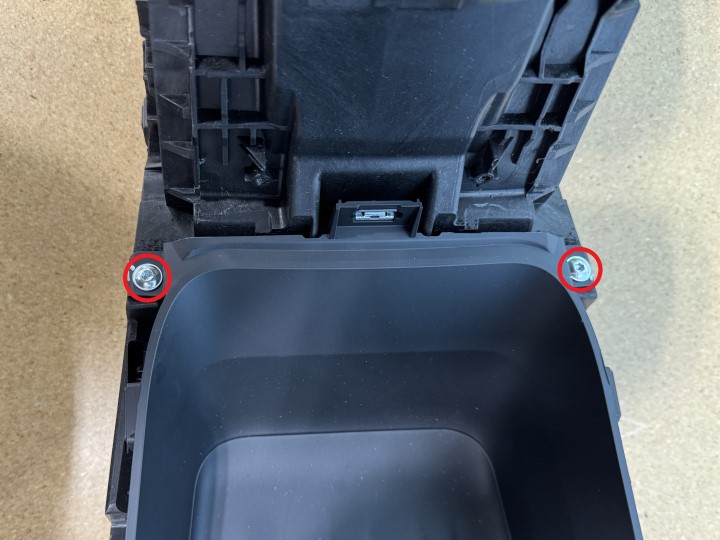

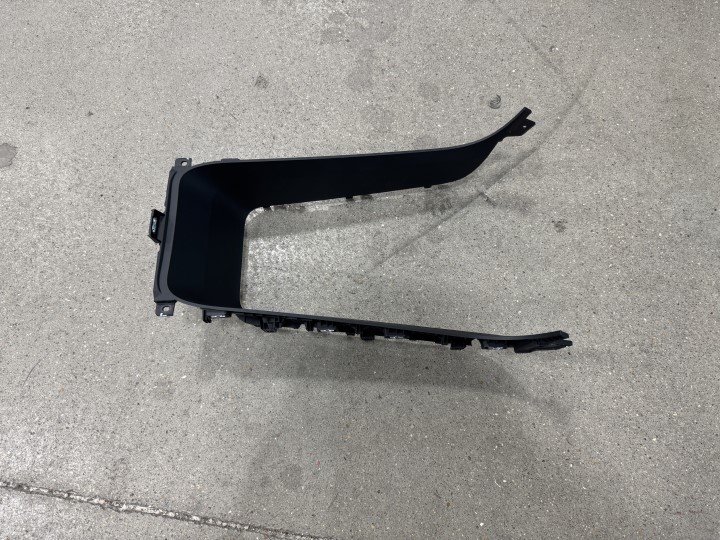

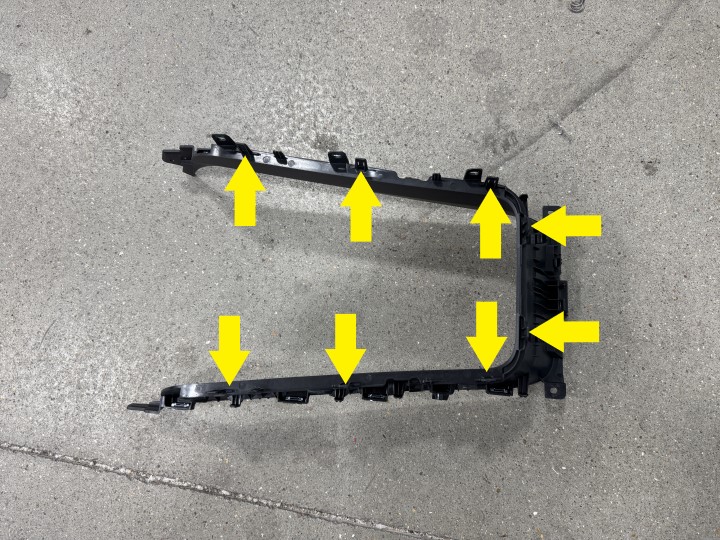

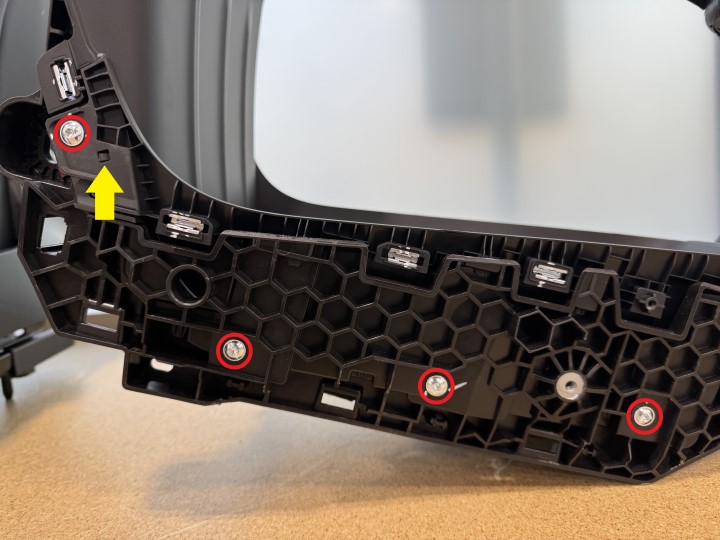

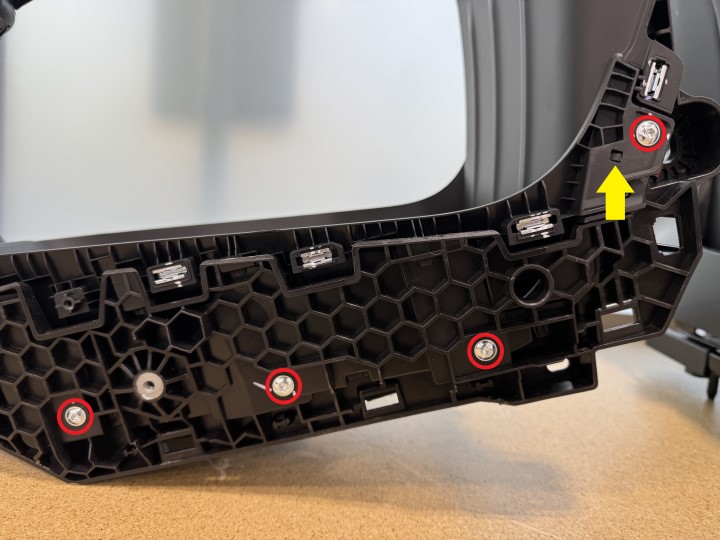

  2. Remove the screws (x10) and clips (x8) and tabs (x2) that attach the center console rear floor bin to the center console.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Cordless 1/4in Dr Ratchet
    • SET, RATCHETING SCREWDRIVER, 55PC for installation only

Install

  1. Install the screws (x10) and clips (x8) and tabs (x2) that attach the center console rear floor bin to the center console.
    1.2 Nm (.9 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Cordless 1/4in Dr Ratchet
    • SET, RATCHETING SCREWDRIVER, 55PC for installation only
  2. Install the rear RH side panel. See Rear Floor Bin - Center Console (Model Y Standard) (Remove and Install).
