Seat Assembly - 2nd Row - LH (Model YL) (Remove and Install)

Correction code 13050400101 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH doors and lower the LH windows.
  2. Move the driver seat forward.
    Note
    Adjust the seat back if needed and avoid contacting the headliner.
  3. Move the LH 2nd row seat rearward.
    Note
    Adjust the seat back if needed and avoid contacting the headliner.

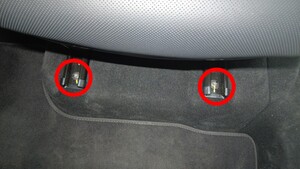

  4. Remove and discard the bolts (x2) that attach the front of the LH 2nd row seat to the body.
    CAUTION
    Use only the Torx Plus T45 bit to remove the seat bolts.
    Tip
    Use of the following tool(s) is recommended:
    • Torx Plus TP45 Bit Socket
    Note
    Use the torchless heat induction tool to ease the removal of patch bolts, if necessary.

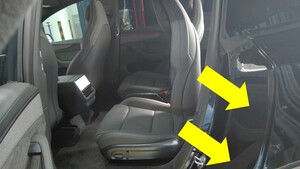

  5. Move the LH 2nd row seat forward.
    Note
    Adjust the seat back if needed.

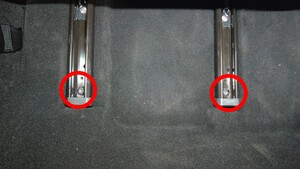

  6. Remove and discard the bolts (x2) that attach the rear of the LH 2nd row seat to the body.
    CAUTION
    Use only the Torx Plus T45 bit to remove the seat bolts.
    Tip
    Use of the following tool(s) is recommended:
    • Torx Plus TP45 Bit Socket
    Note
    Use the torchless heat induction tool to ease the removal of patch bolts, if necessary.

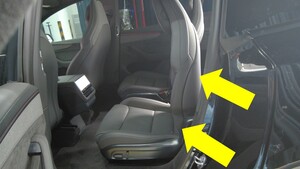

  7. Adjust the LH 2nd row seat to the middle of the seat track.
    Note
    Performing this step will aide in removing the seat and avoid damaging other components.
  8. Disconnect the LV power. See LV Power (Disconnect and Connect) (Modify).

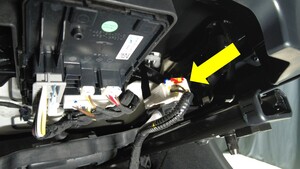

  9. Partially lift the seat assembly, and then disconnect the LH 2nd row seat connector.

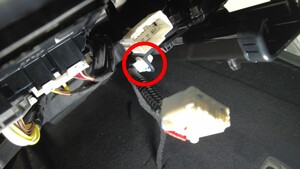

  10. Release the clip that attaches the electrical harness to the LH 2nd row seat.

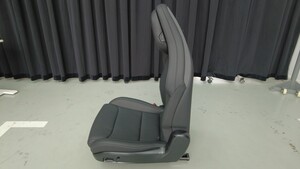

  11. With assistance, remove the LH 2nd row seat from the vehicle.
    CAUTION
    Take care not to damage the upholstery or trim while removing the seat.

Install

  1. With assistance, install the LH 2nd row seat to the vehicle.
    CAUTION
    Take care not to damage the upholstery or trim while positioning the seat.
  2. Partially lift the seat assembly, and then connect the LH 2nd row seat connector.
  3. Install the clip that attaches the electrical harness to the LH 2nd row seat.
  4. Connect the LV power. See LV Power (Disconnect and Connect) (Modify).
  5. Move the LH 2nd row seat rearward.
    Note
    Adjust the seat back if needed and avoid contacting other components.
  6. Install new bolts (x2) that attach the front of the LH 2nd row seat to the body.
    33.5 Nm (24.7 lbs-ft)
    CAUTION
    Use only the Torx Plus T45 bit to install the seat bolts.
    Tip
    Use of the following tool(s) is recommended:
    • Torx Plus TP45 Bit Socket
  7. Move the LH 2nd row seat forward.
    Note
    Adjust the seat back if needed.
  8. Install new bolts (x2) that attach the rear of the LH 2nd row seat to the body.
    33.5 Nm (24.7 lbs-ft)
    CAUTION
    Use only the Torx Plus T45 bit to install the seat bolts.
    Tip
    Use of the following tool(s) is recommended:
    • Torx Plus TP45 Bit Socket
  9. Move the LH 2nd row seat back and driver seat to their original positions.
  10. Raise the LH windows and close the LH doors.
