Trunk Side Trim LH - Rear Under Body (Remove and Replace)
Correction code
1530051402
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Open all doors and lower all windows.
- Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (5-Seat) (Remove and Replace).
- Remove the LH trunk pocket bracket. See Pocket Bracket - LH (Remove and Replace).
-

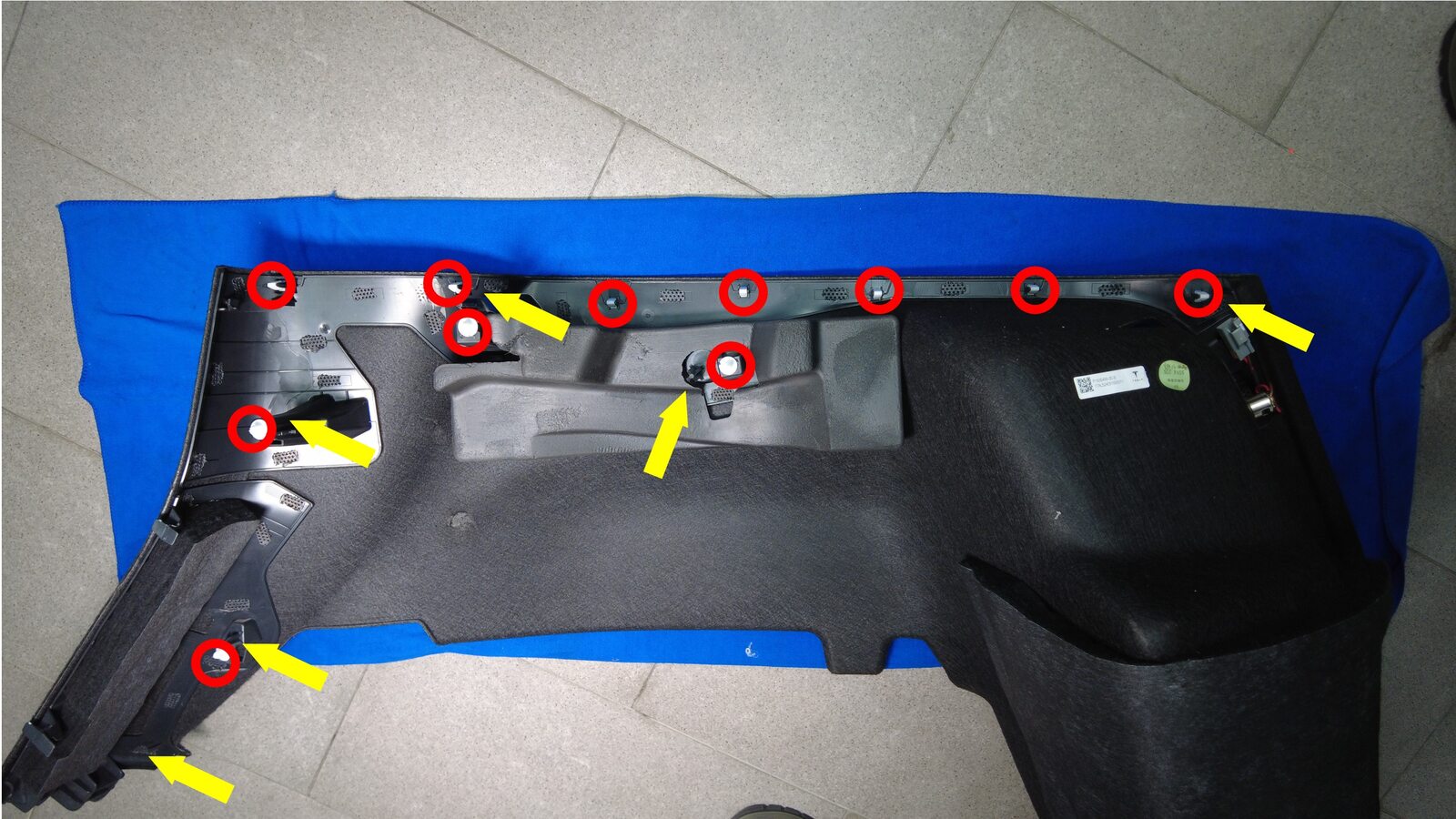

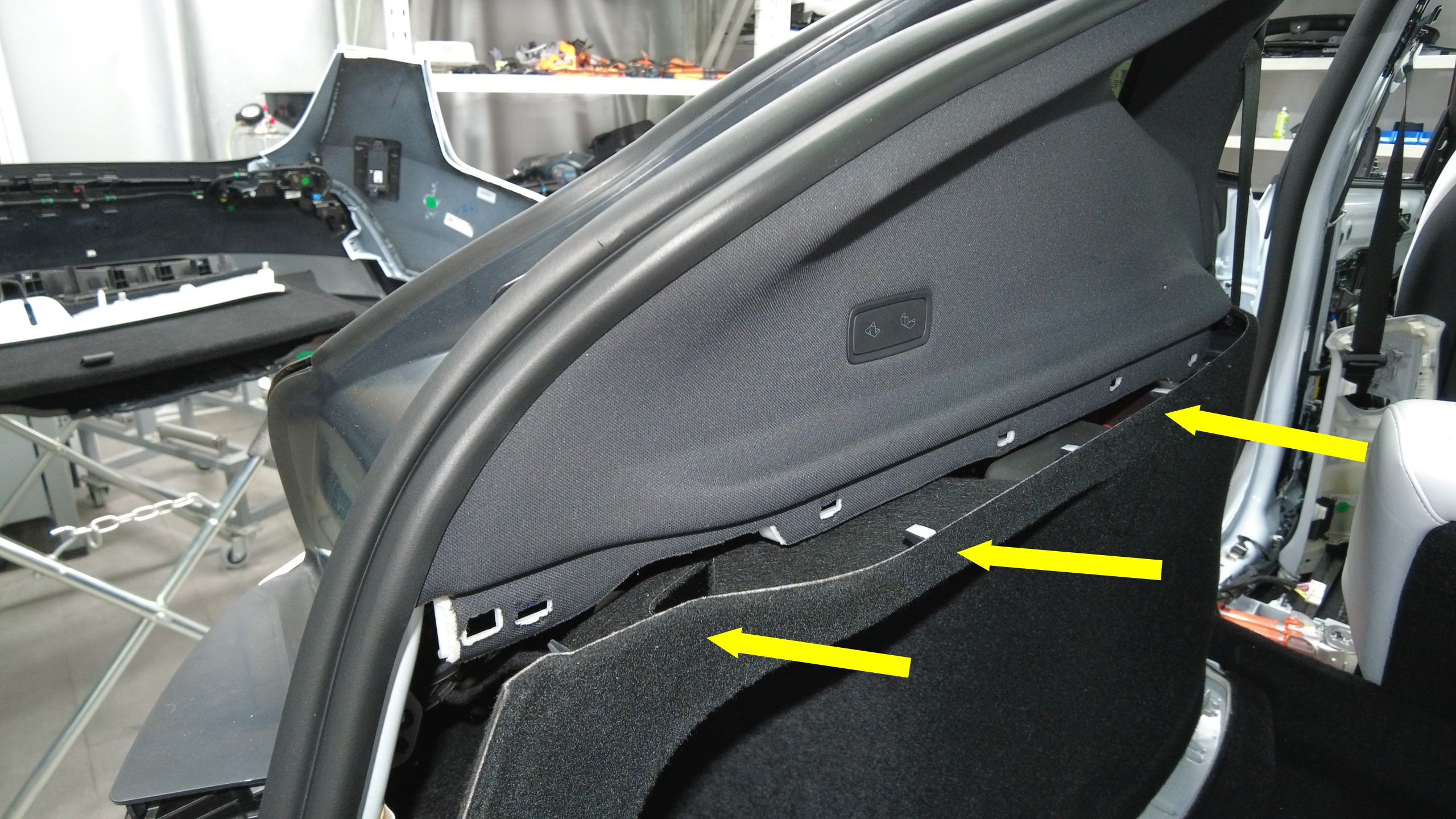

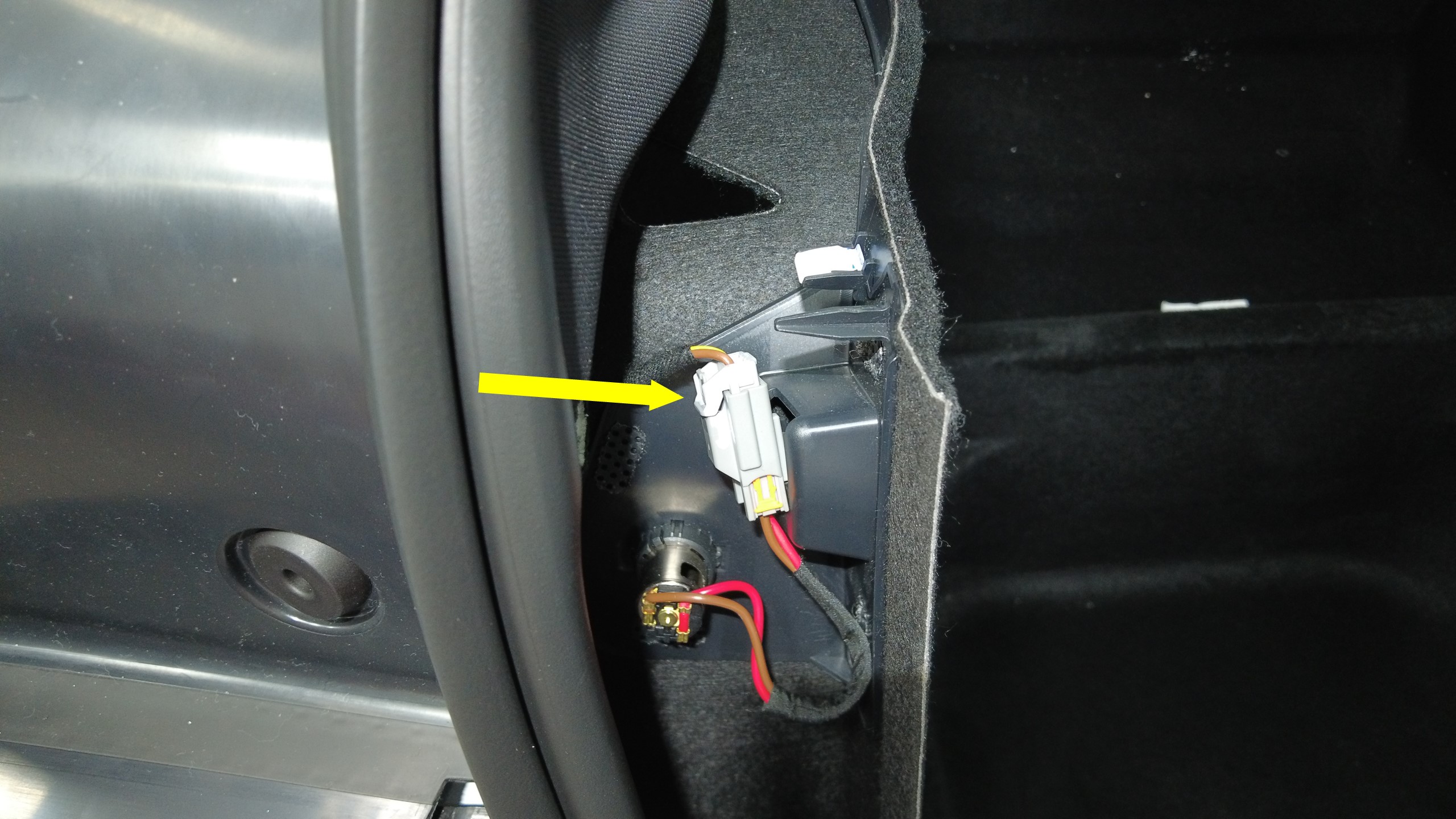

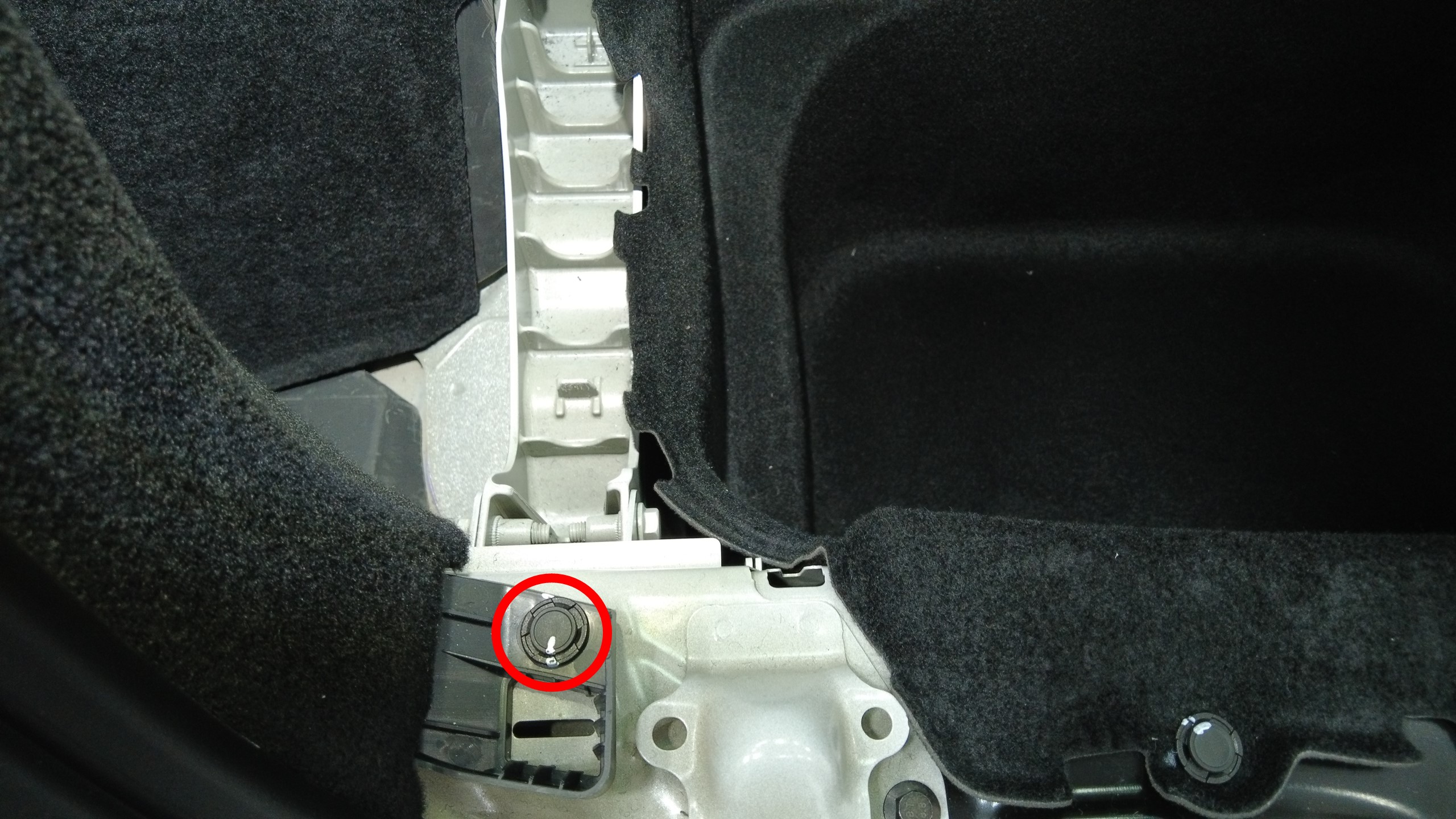

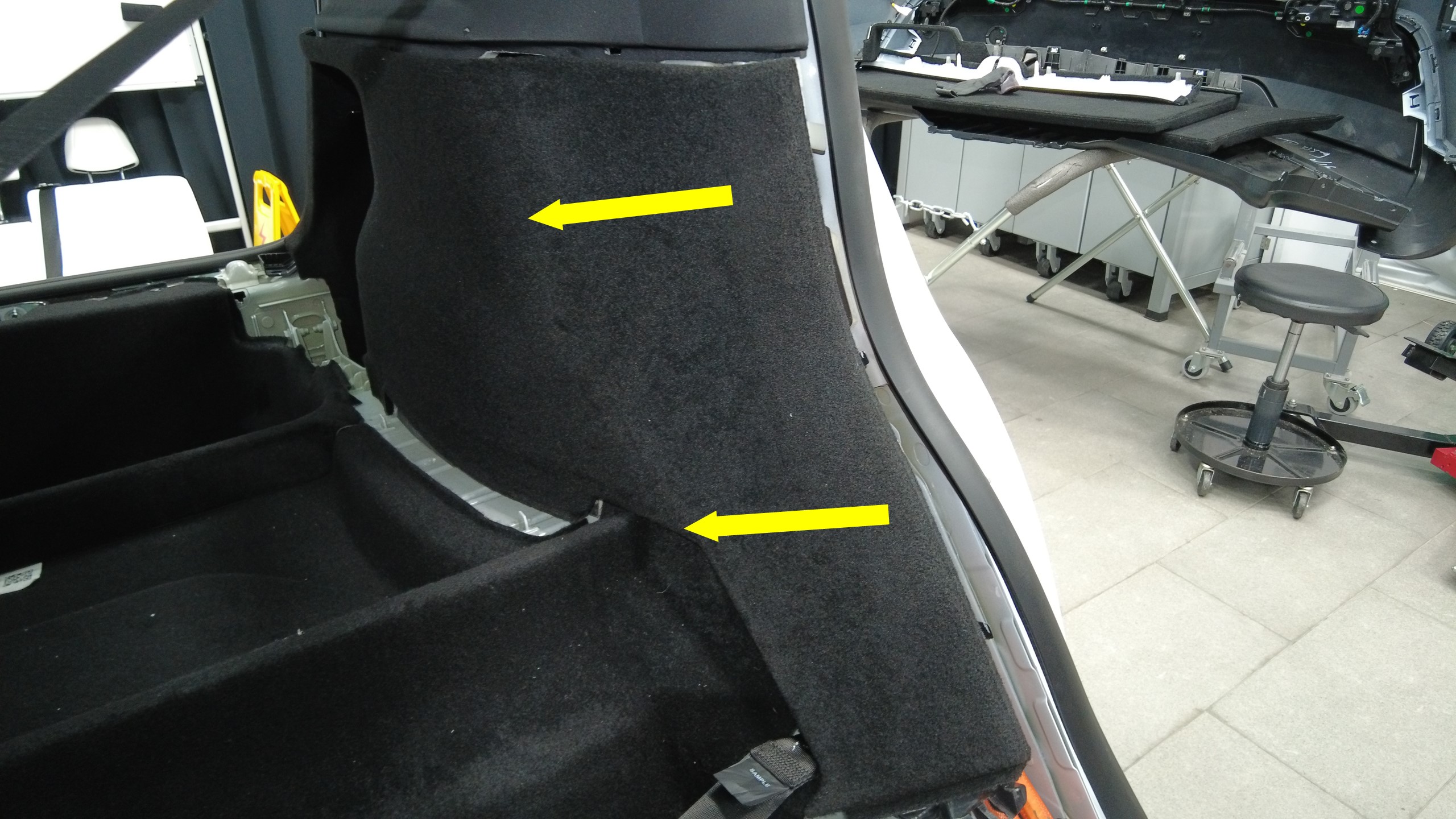

Release the clips, location pins and tabs that attach the LH trunk side trim to the
body, and disconnect the electrical connector to remove the LH trunk side trim.
Note
- The trim part and the number of clips may slightly differ by vehicle build date and location.

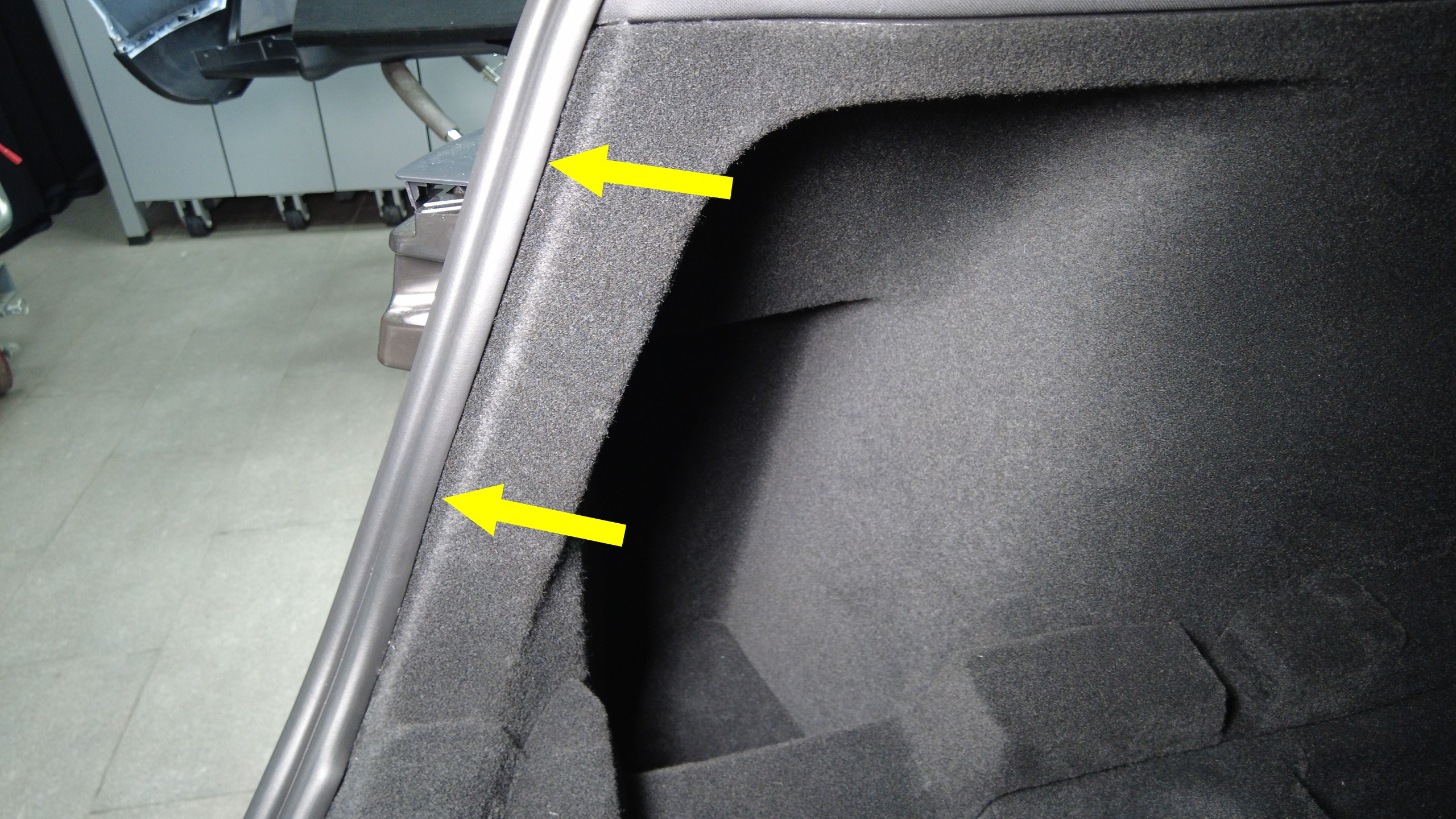

- Guide the front clip stanchions around the LH C-pillar; adjust the seat backrest as needed.
Install
-

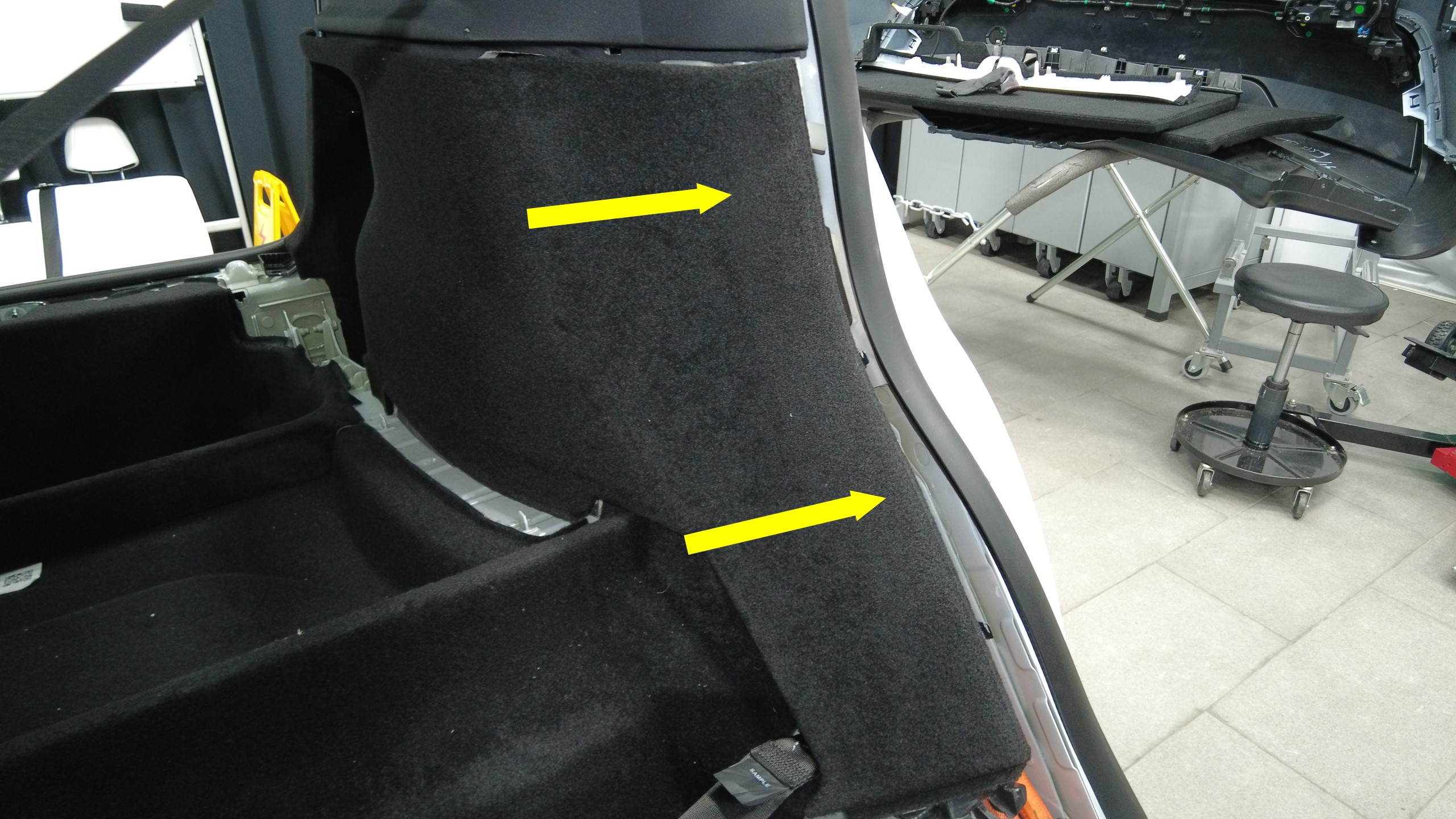

Secure the clips, location pins and tabs that attach the LH trunk side trim to the
body, and connect the electrical connector to install the LH trunk side trim.
- Install the LH trunk pocket bracket. See Pocket Bracket - LH (Remove and Replace).
- Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (5-Seat) (Remove and Replace).
- Raise all windows and close all doors.
