Fender Garnish - Front - RH (Remove and Replace)

Correction code 1220020202 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Fender Garnish - Front - RH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screw that attaches the RH fender garnish to the vehicle
2 Nm (1.5 lbs-ft)
  • Torx T30 socket
  • Torque wrench with angle measurement
 Reuse

Remove

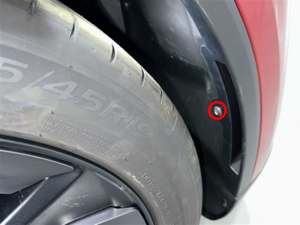

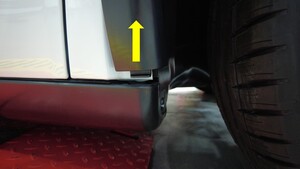

  1. Remove the screw that attaches the RH fender garnish to the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    • Torque wrench with angle measurement

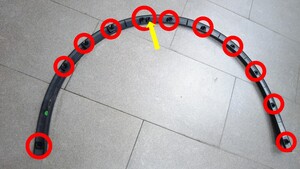

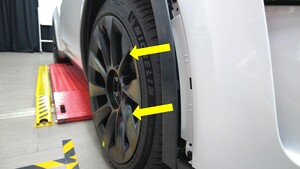

  2. Work from the front end to the rear end, release the clips (x11) and the tab that secure the fender garnish, and then remove the garnish from the vehicle.

Install

  1. Work from the rear end to the front end, install the clips (x11) and the tab that secure the fender garnish.
  2. Install the screw that attaches the RH fender garnish to the vehicle.
    2 Nm (1.5 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    • Torque wrench with angle measurement
