Launcher Bracket - LH (LHD) (Remove and Replace)
Correction code
1010102402
FRT
0.42
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Bolts (x2) that attach the launcher bracket to the body |
 9 Nm (6.6 lbs-ft) |
|
Reuse |
Remove
- Remove the wiper module. See Wiper Module - LHD (Remove and Replace).
- Remove the LH pedestrian protection actuator. See Actuator - Pedestrian Protection - Active Hood - LH (Remove and Replace).
-

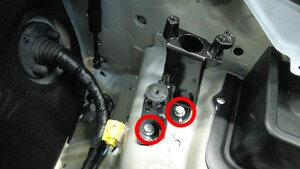

Remove the bolts (x2) that
attach the LH launcher bracket to the body.
NoteUse of the following tool(s) is recommended:
- 10 mm socket
-
Remove the LH launcher
bracket from the vehicle.
Install
-

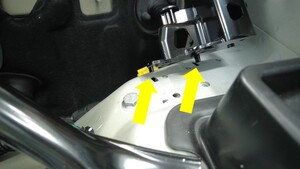

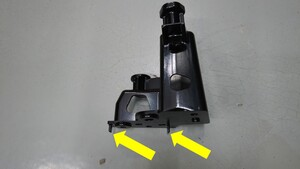

Align the guide tabs (x2)
and position the LH launcher bracket to the body.
-
Install the bolts (x2) that attach the LH launcher bracket to the
body.9 Nm (6.6 lbs-ft)NoteUse of the following tool(s) is recommended:
- 10 mm socket
- Install the LH pedestrian protection actuator. See Actuator - Pedestrian Protection - Active Hood - LH (Remove and Replace).
- Install the wiper module. See Wiper Module - LHD (Remove and Replace).
