Busbar - Fast Charge Contactor to DC Bus - Negative - PN Prefixed with 2xx (Remove and Replace)

Correction code 1630021902 FRT 1.50 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-11-10: Updated torque figure and added Hioki resistance test.

Torque Specifications

Table 1. Torque Specifications:Busbar Fast Charge - Input - Negative - PN Prefixed with 2xx (Remove and Replace) / Busbar Fast Charge - Input - Positive - PN Prefixed with 2xx (Remove and Replace) / Busbar - Fast Charge Contactor to DC Bus - Positive - PN Prefixed with 2xx (Remove and Replace) / Busbar - Fast Charge Contactor to DC Bus - Negative - PN Prefixed with 2xx (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Patch bolt that attaches the input fast charge busbar / DC link busbar to the fast charge contactor
10 Nm (7.4 lbs-ft) - 180 degrees
10 Nm (7.4 lbs-ft)
  • SKT, 1/4" SQ DR, 13MM, HV INSULATED
Replace 1104475-00-F
Note
Tighten the bolt to 10 Nm, back off 180 degrees, then torque to 10 Nm.

Remove

  1. Remove the fast charge cover from the fast charge contactor assembly. Cover - Fast Charge - PN Prefixed with 2xx (Remove and Replace).

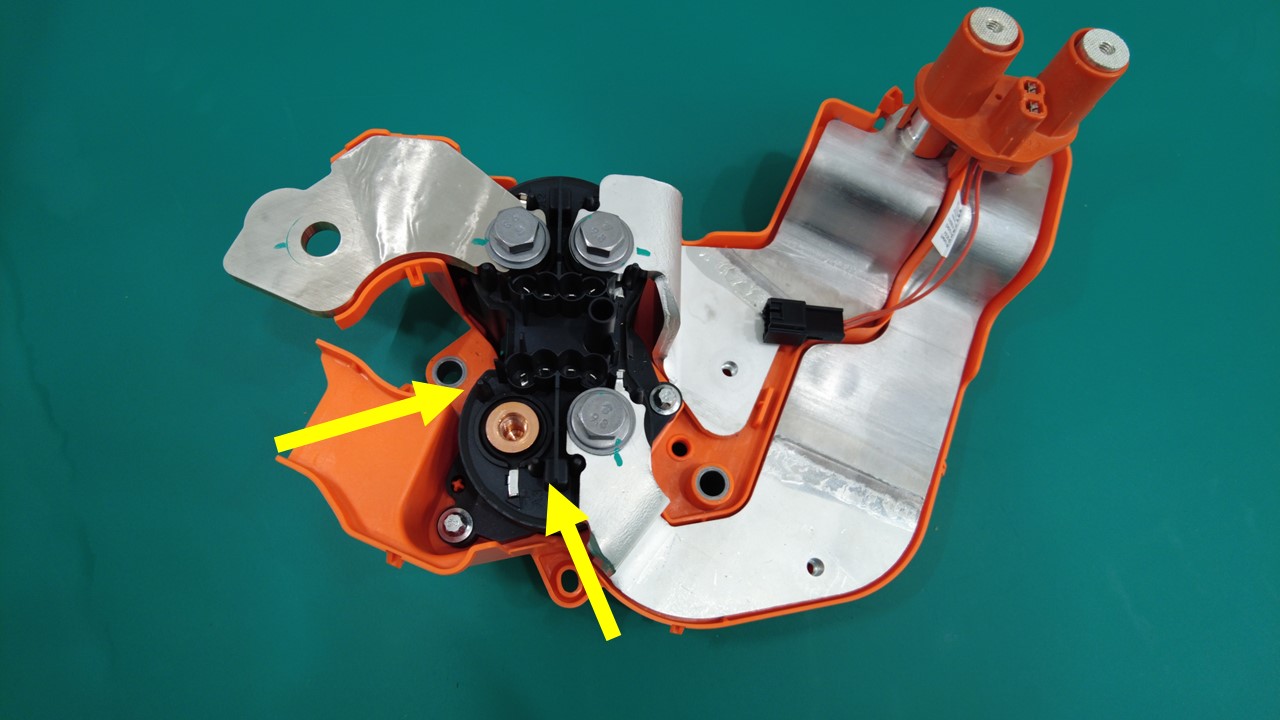

  2. Release the location pins (x2), then remove and discard the patch bolt that attaches the DC link negative busbar to the fast charge contactor.
    Tip
    Use of the following tool(s) is recommended:
    • SKT, 1/4" SQ DR, 13MM, HV INSULATED

Install

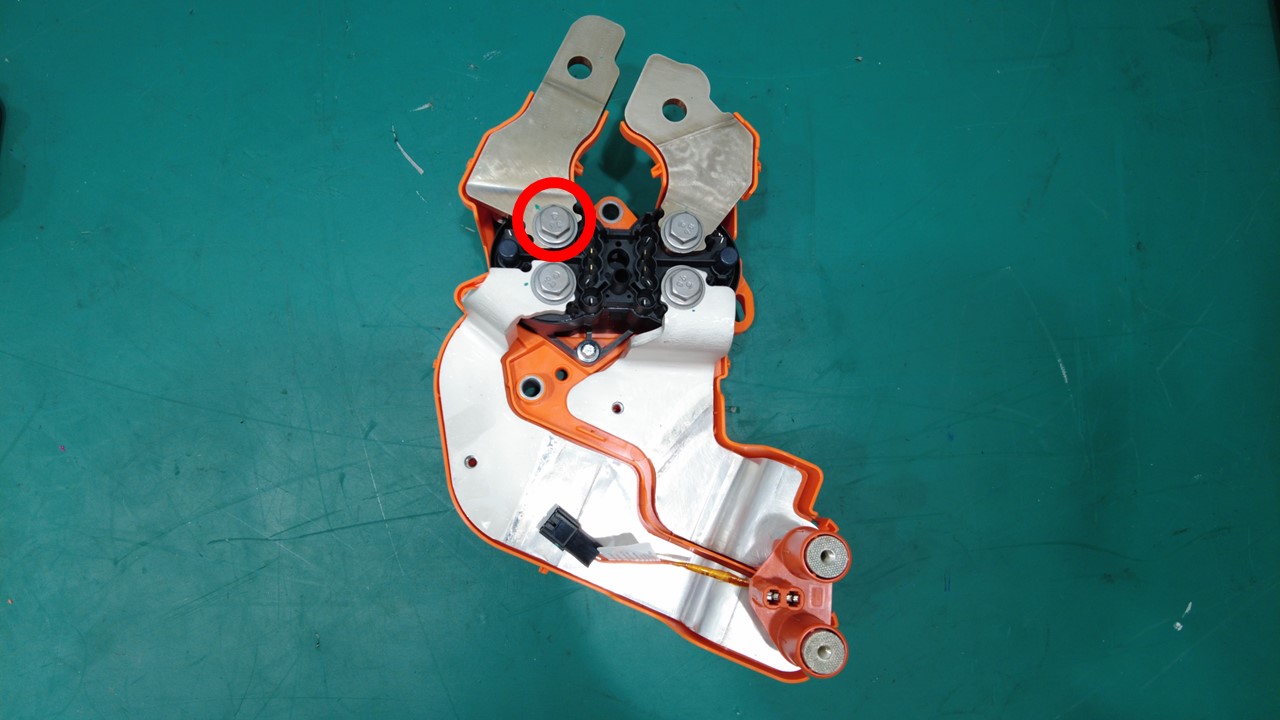

  1. Secure the location pins (x2), then install a new patch bolt that attaches the DC link negative busbar to the fast charge contactor.
    -
    • Torque the bolt(s) to 10 Nm
    • Loosen the bolt(s) by 180 degrees
    • Re-torque the bolt(s) to 10 Nm
    Tip
    Use of the following tool(s) is recommended:
    • Insulated Ratchet/torque wrench
    • Insulated 13 mm socket
    • Insulated Torque wrench with angle measurement
  2. Perform a zere adjust of the Hioki resistance meter. See Resistance Meter (Zero Adjust).
  3. Perform a Hioki impedance test at the negative HV joints of the fastcharge contactor and the DC link busbar.
    Note
    The maximum resistance is 40 𝜇Ω or less.
  4. Install the fast charge cover to the fast charge contactor assembly. Cover - Fast Charge - PN Prefixed with 2xx (Remove and Replace).
