Cap - Reservoir - Windshield Washer (Remove and Replace)

Correction code 17501202 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the hood.
  3. Open the washer bottle cap.

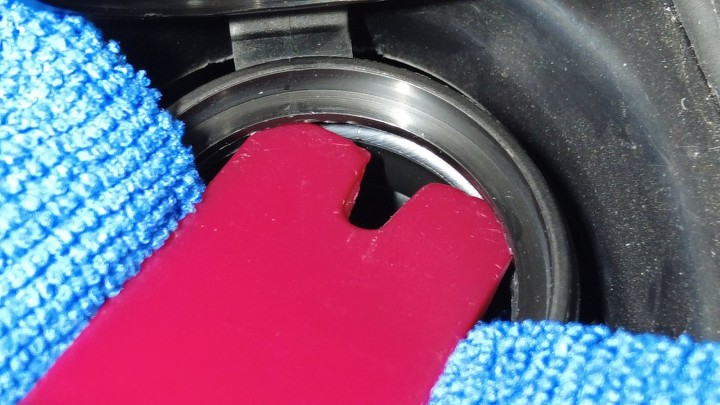

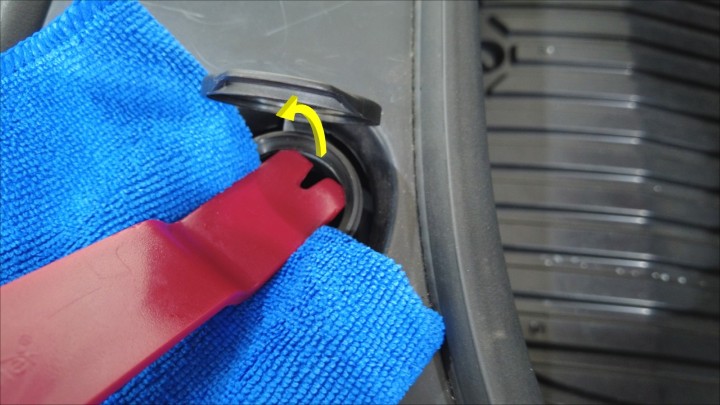

  4. Put a towel to protect the vehicle, and then use a plastic trim tool to pry the cap upwards along the groove on the inner edge to remove it from the windshield washer reservoir filler neck.
    Note

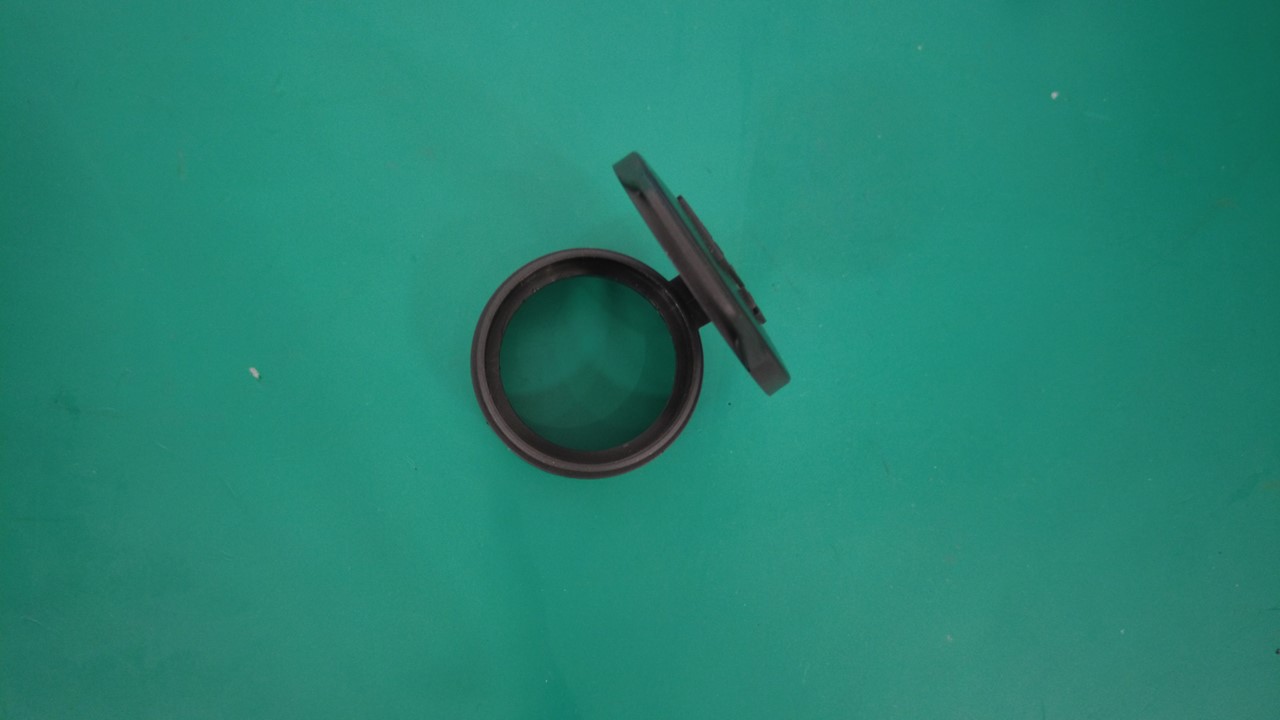

    The cap and the retaining collar are a single piece.

Install

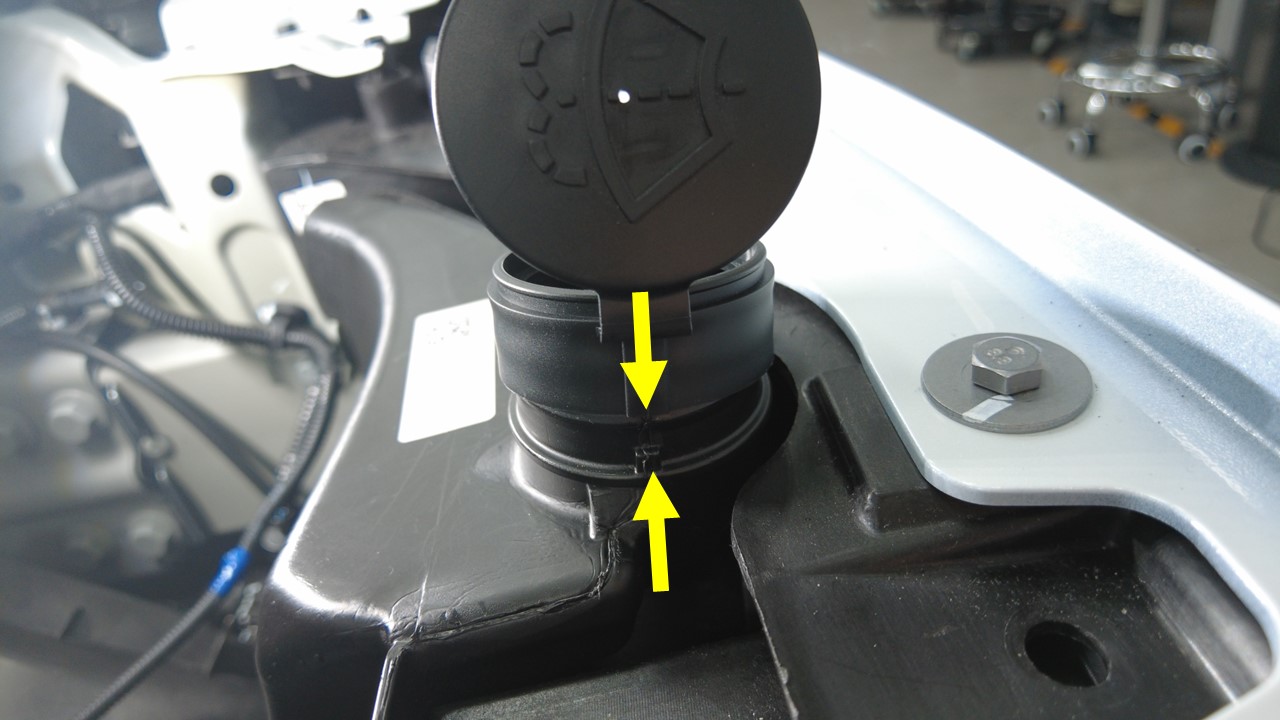

  1. Align the locating slot on the cap with the locating tab on the filler neck, and then fully seat the cap onto the filler neck.
  2. Close the washer bottle cap.
  3. Close the hood.
  4. Raise the LH front window and close the LH front door.
