Gap Hider - Upper - Steering Column (Model Y Standard) (Remove and Replace)

Correction code 32050200502 FRT 0.6 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the steering column lower gap hider. See Gap Hider - Lower - Steering Column (Model Y Standard) (Remove and Replace).

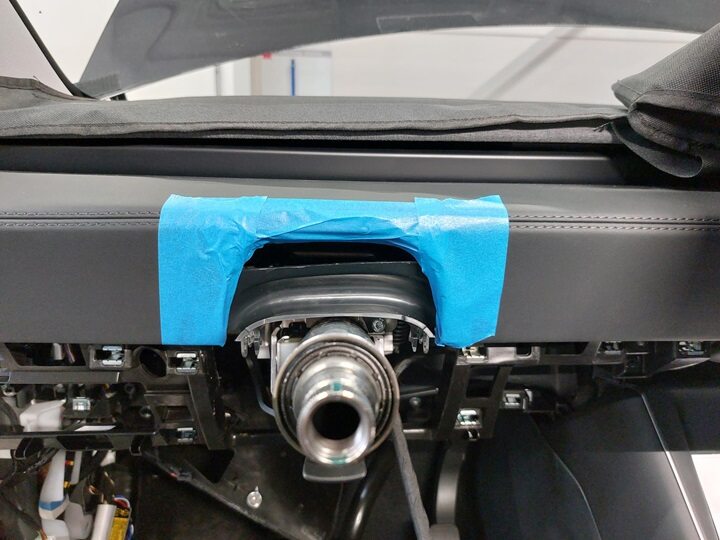

  2. Apply tape on the IP pillar.

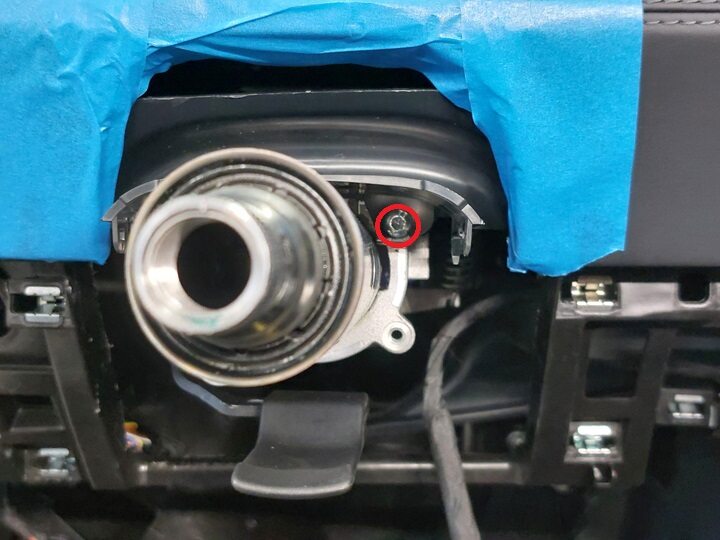

  3. Remove the bolt that attaches the upper gap hider to the steering column.
    Note
    1x bolt, 1x datum

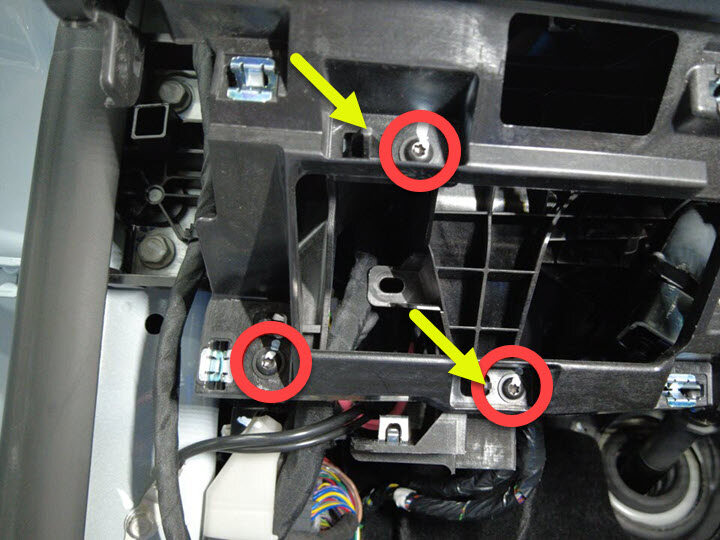

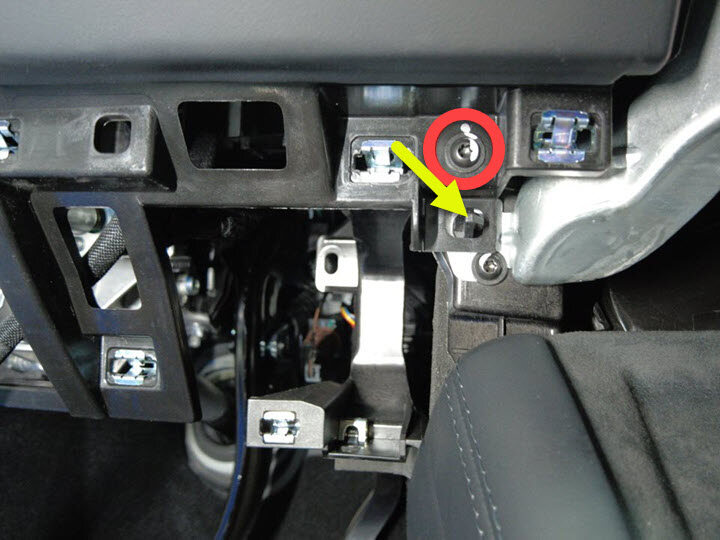

  4. Remove the screws that attach the instrument panel assembly to the cross car beam on the lower LH side.
    Note
    4x screws, 3x datums

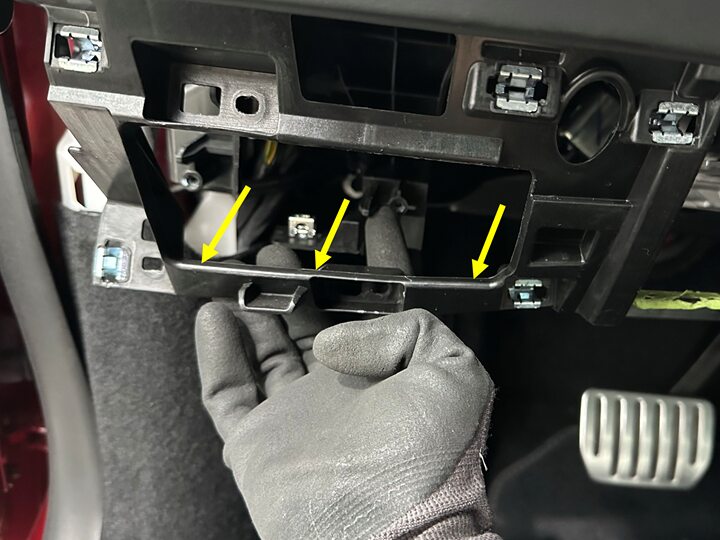

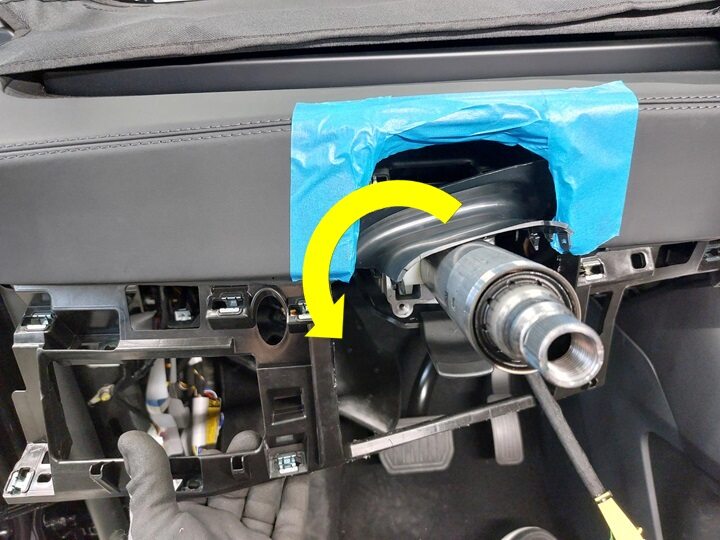

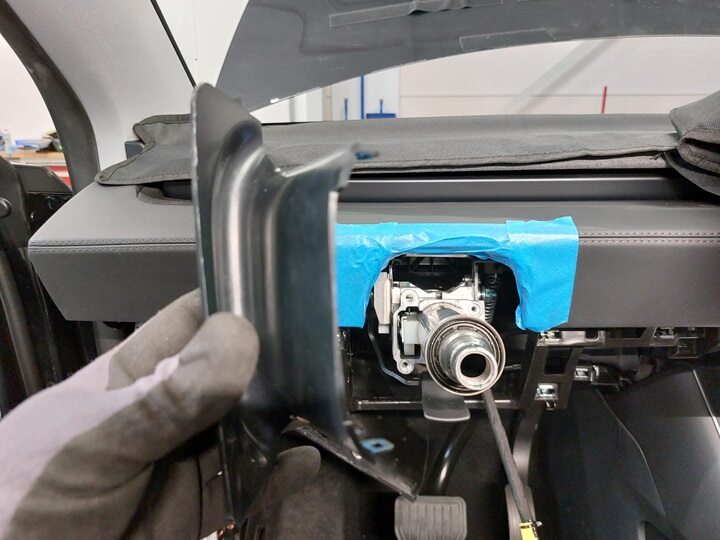

  5. Remove the upper gap hider.
    Note
    Slightly pull the instrument panel outward to give more access to remove the upper gap hider.

Install

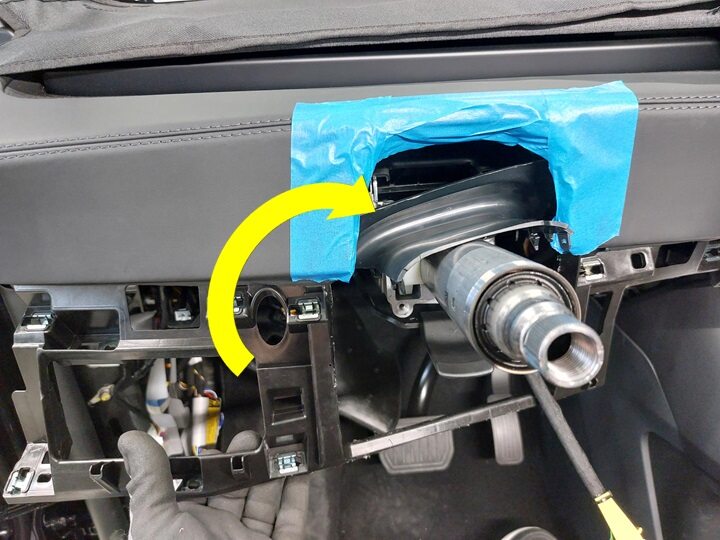

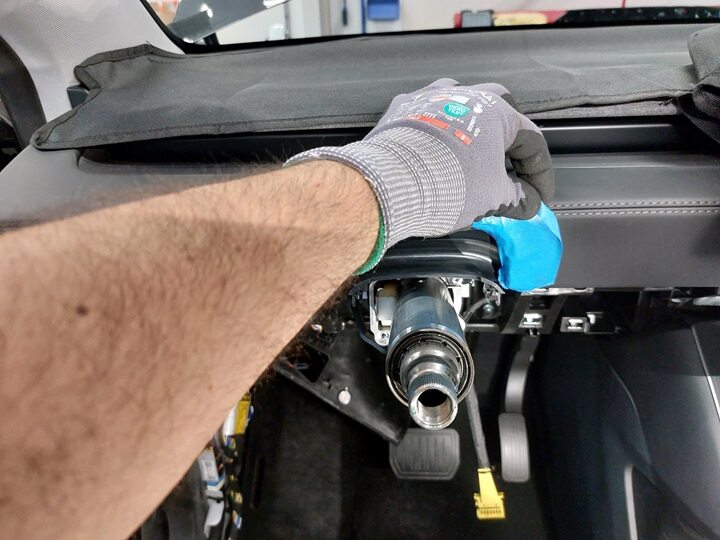

  1. Install the upper gap hider.
    Note
    Slightly pull the instrument panel outward to give more access to install the upper gap hider.
  2. Install the bolt and datum that attaches the upper gap hider to the steering column.
    1.2 Nm (.9 lbs-ft)
  3. Remove the masking tape from the instrument panel.
  4. Install the steering column lower gap hider. See Gap Hider - Lower - Steering Column (Model Y Standard) (Remove and Replace).
