Rear USB (Remove and Replace)

Correction code 1303010202 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

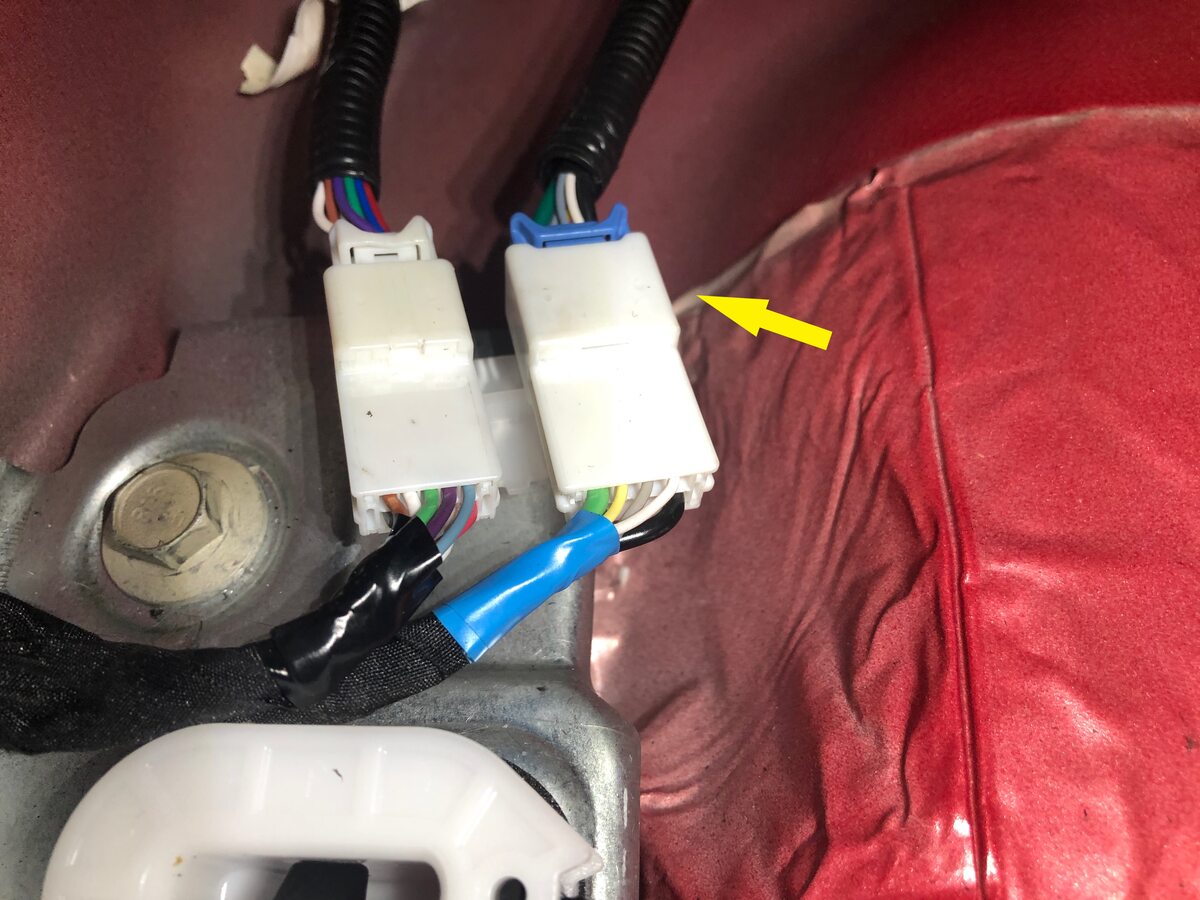

  1. Remove the 3rd row seat cushion and disconnect harness. See Seat Cushion - 3rd Row (7-Seat) (Remove and Replace).
  2. Disconnect USB-C power assembly from harness.
    Note

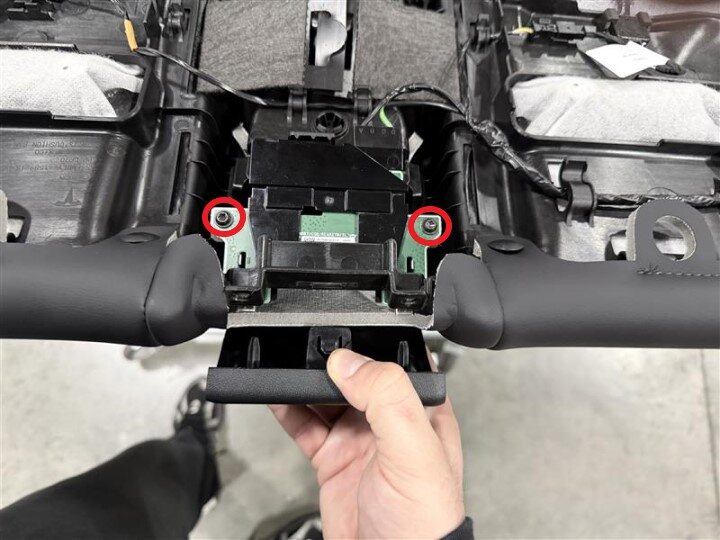

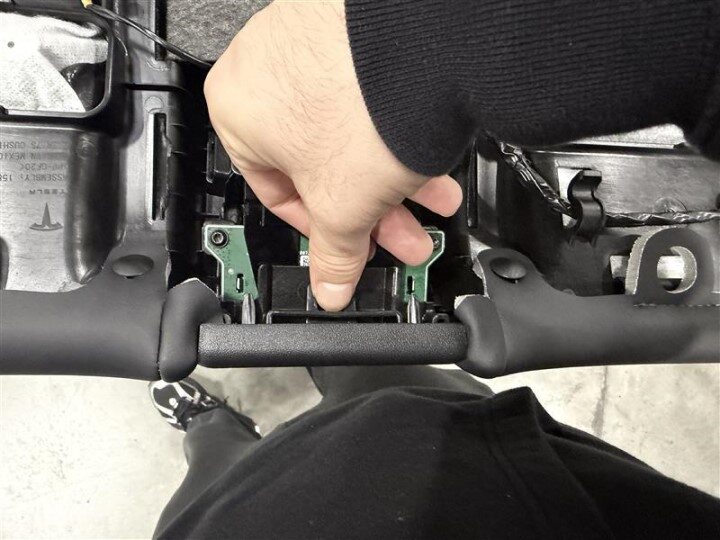

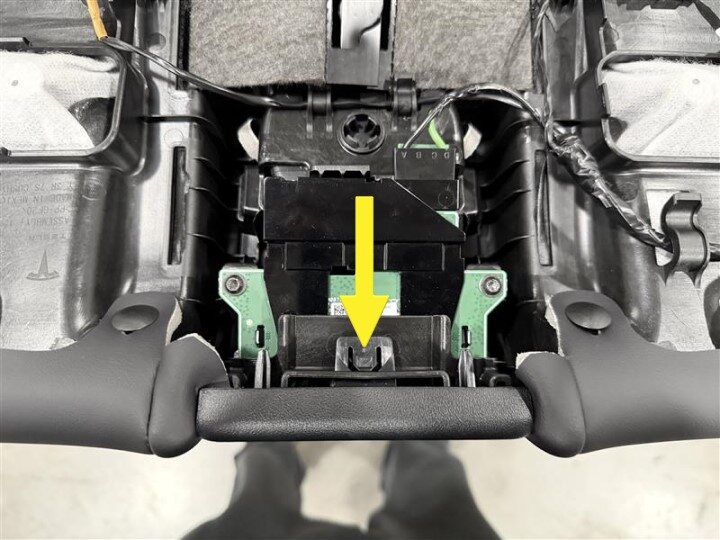

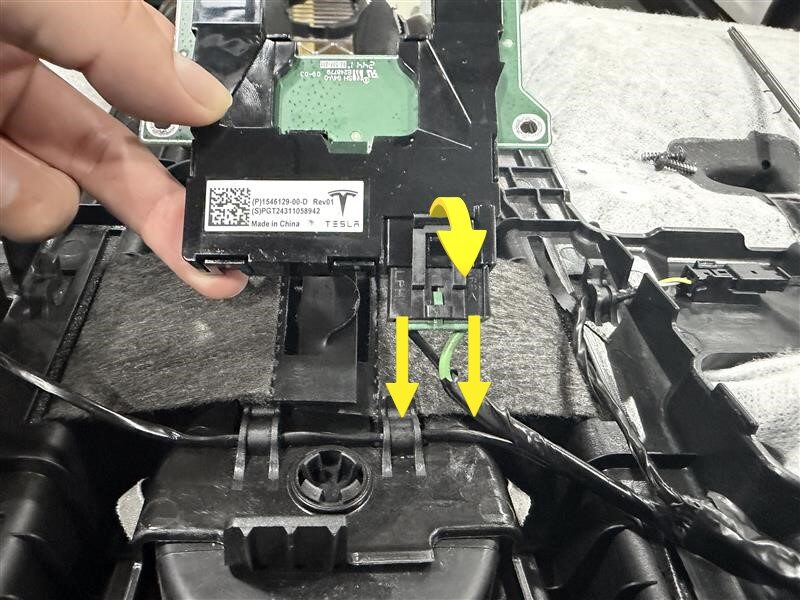

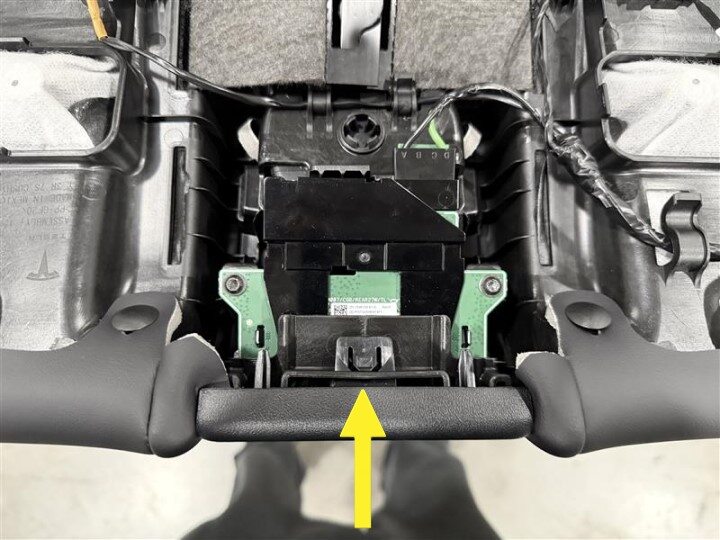

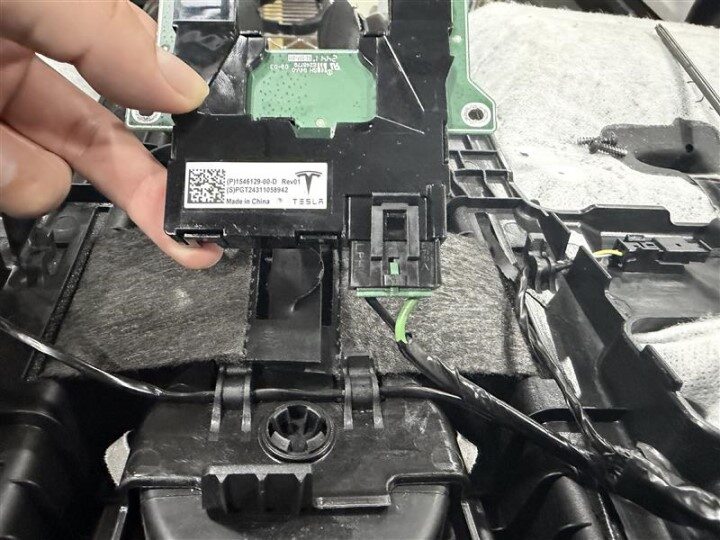

    Remove center cup holder by pressing tab and pushing. Unfasten USB-C power assembly and remove from position for easy removal of harness. Pull harness tab up to disengage connector without damaging.

Install

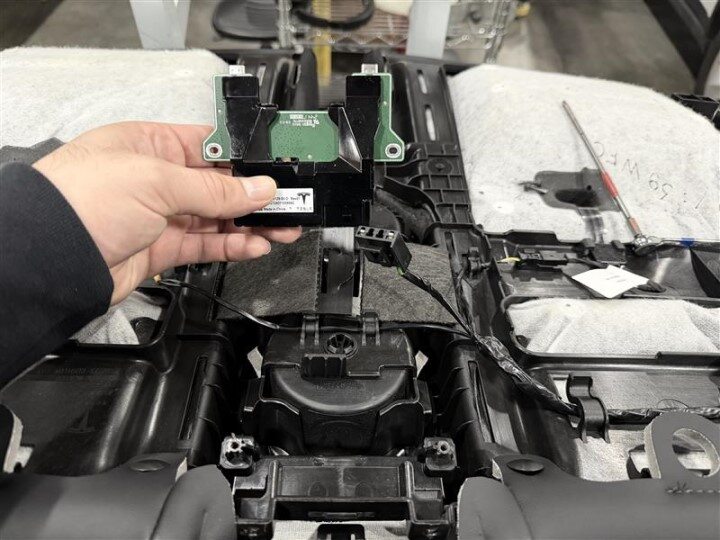

  1. Install and reconnect USB-C power assembly.
    Note

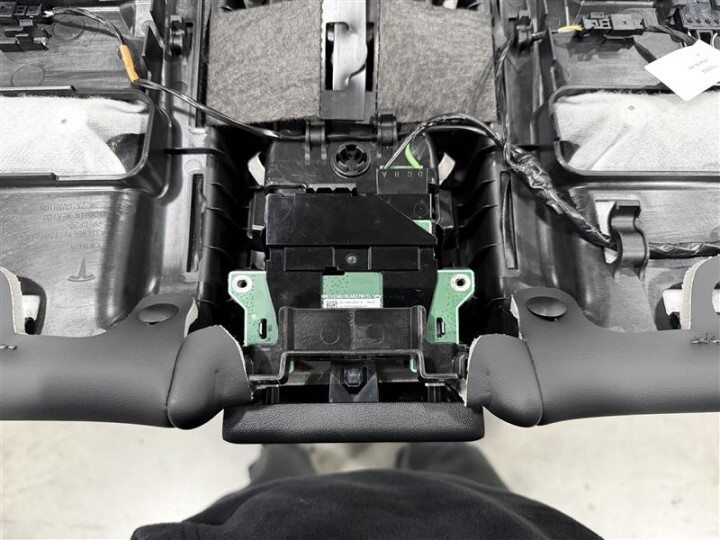

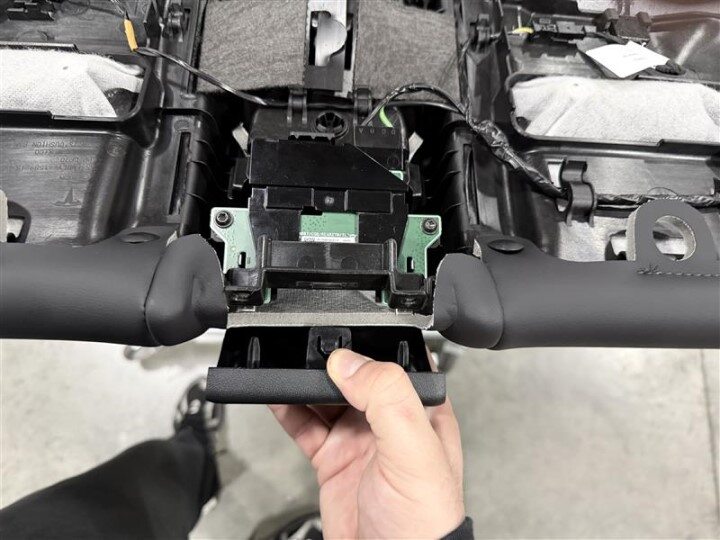

    Reconnect harness with a click sound to confirm tab has locked. Re-position assembly into proper place and fasten prior to re-engaging center cup holder fully back on.
  2. Install 3rd row seat cushion and connect harness. See Seat Cushion - 3rd Row (7-Seat) (Remove and Replace).
    Note

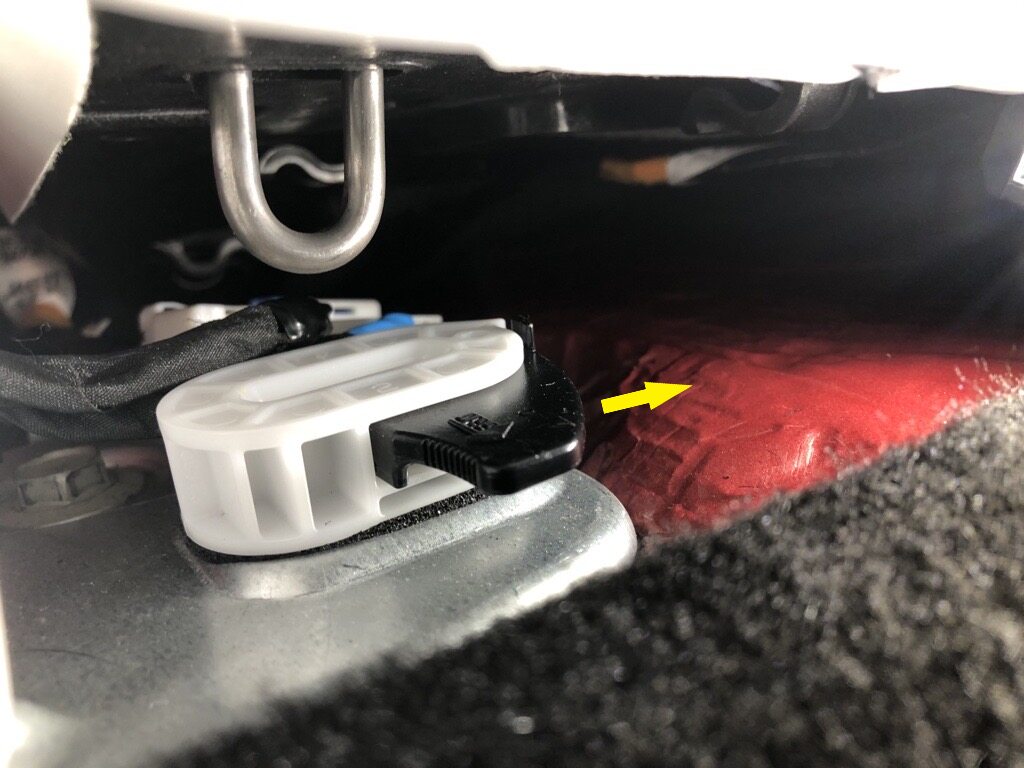

    Secure 3rd row seat cushion into RH and LH latches.
