Garnish - Fender - Rear - LH (Model YL) (Remove and Replace)

Correction code 12201100102 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

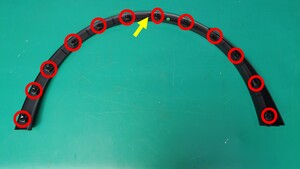

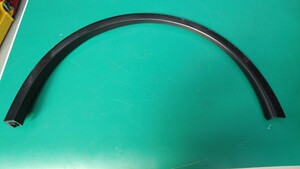

  1. Release the clips (x12) and locator pin that attach the LH rear fender garnish to the vehicle, and then remove the garnish from the vehicle.
    Tip

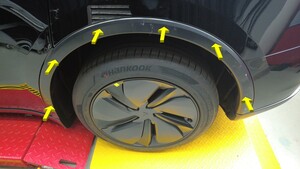

    Starting from the center of the LH rear fender garnish, carefully pull the garnish away from the vehicle and work outward.
    CAUTION
    Be careful not to bend the tabs that attach the rear of the garnish to the rear fascia.

Install

  1. Position the LH rear fender garnish onto the vehicle, and then secure the clips (x12) and locator pin that attach the garnish to the vehicle.
    Note
    Starting from the end of the LH rear fender garnish, work your way from the rear towards the front of garnish.
