Surround - Phone Dock - Center Console (Remove and Replace)

Correction code 1519040002 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.

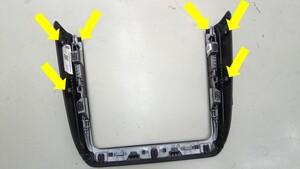

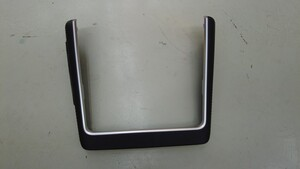

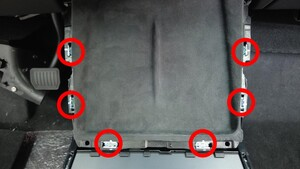

  2. Release the clips (x6) and tabs (x6) that attach the phone dock surround to the phone dock, and then remove the phone dock surround from the vehicle.
    CAUTION
    Take care of not damaging the sliding door cover panel.
    Note
    Use a plastic trim tool to release the bottom of the phone dock surround first.

Install

  1. Position the phone dock surround to the vehicle, and then install the clips (x6) and tabs (x6) that attach the phone dock surround to the phone dock.
  2. Lower the LH front window and close the LH front door.
