Felts - Center Console (Model YL) (Remove and Replace)

Correction code 15190200402 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the center console. See Center Console (Model Y L) (Remove and Install).
    Note
    During removal, certain steps require extra care. See the animation(s) for detailed guidance.

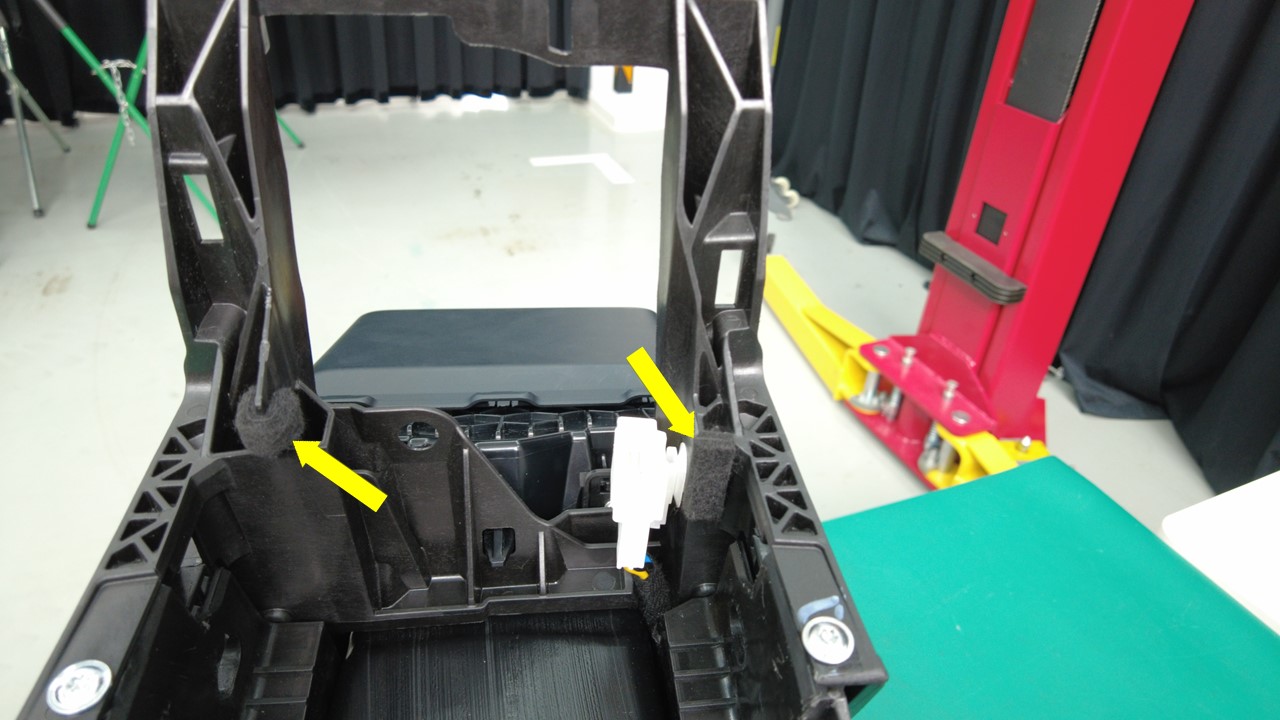

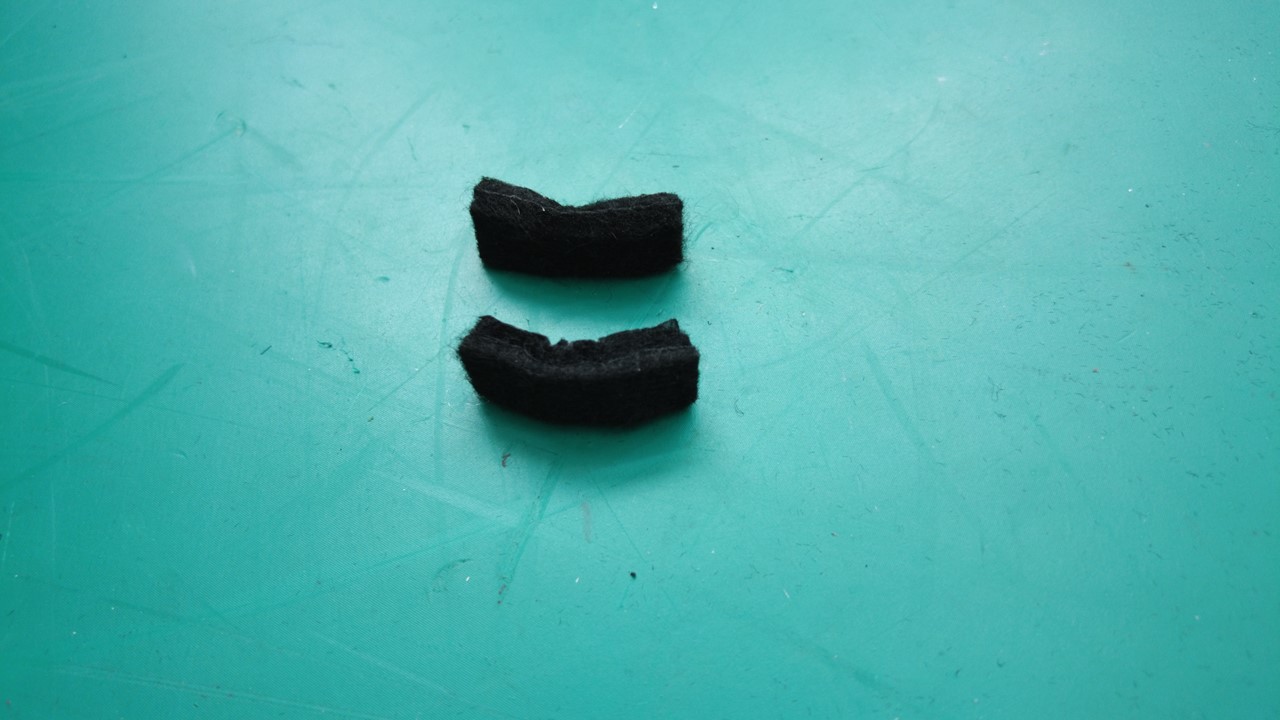

  2. Remove and discard the felts (x2) from the lower support bracket for speaker.

Install

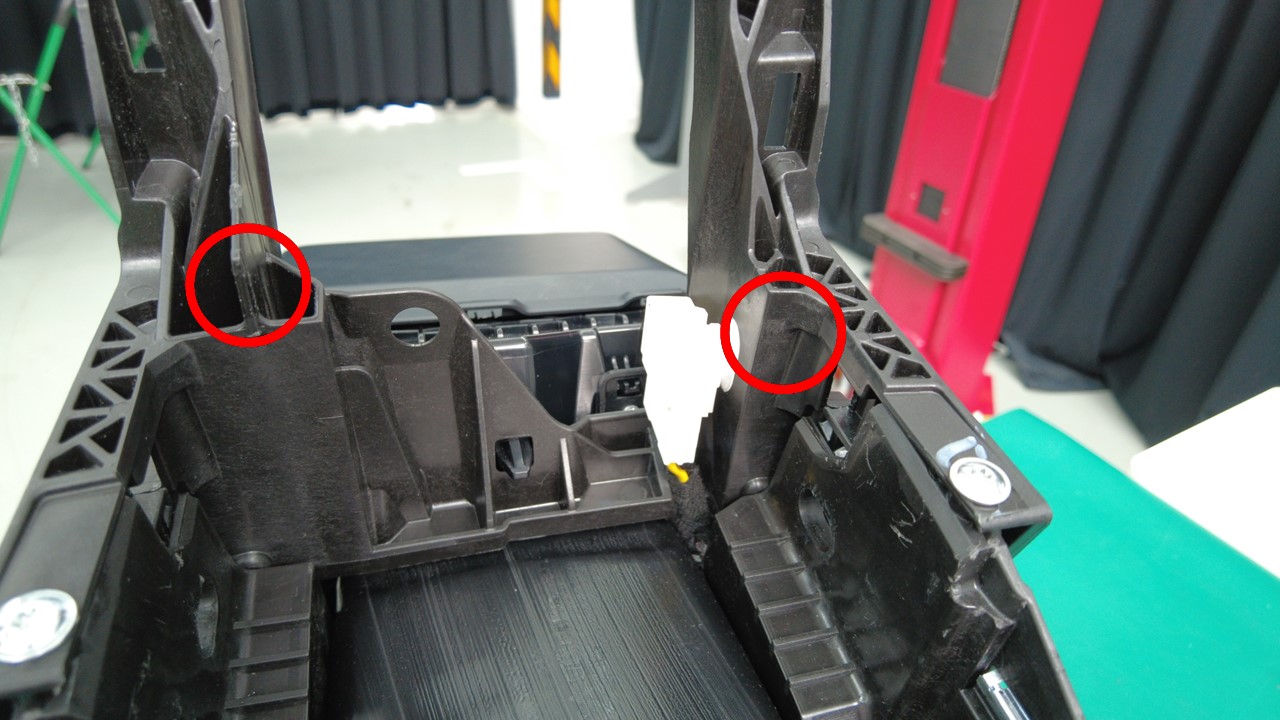

  1. Use IPA wipes to clean the positions to be pasted, and wait for 1 minute dry time.
  2. Install new felts (x2) to the lower support bracket for speaker.
  3. Install the center console. See Center Console (Model Y L) (Remove and Install).
