Check Strap - Rear (Remove and Replace)

Correction code 1133060902 FRT 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Check Strap - Rear (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the LH rear door check strap to the body
24 Nm (17.7 lbs-ft)
  • Torx T40 socket
  • 4 in extension
  • Ratchet/torque wrench
 Reuse
Nuts (x2) that attach the LH rear door check strap to the LH rear door
10 Nm (7.4 lbs-ft)
  • Ratchet/torque wrench
  • 10 mm deep socket
 Reuse

Remove

  1. Remove the LH rear window regulator closeout panel. See Window Regulator Closeout - Rear Door - LH (Remove and Replace).
    Note
    Discontinue the referenced procedure after removing the closeout panel from the door. Do not remove the window regulator from the closeout panel.
  2. Use tape to mark the position of the LH rear door check strap.
  3. Remove the bolt that attaches the LH rear door check strap to the body.
    Note
    Unbolting the door check allows the door to swing freely beyond opening limits.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T40 socket
    • 4 in extension
    • Ratchet/torque wrench

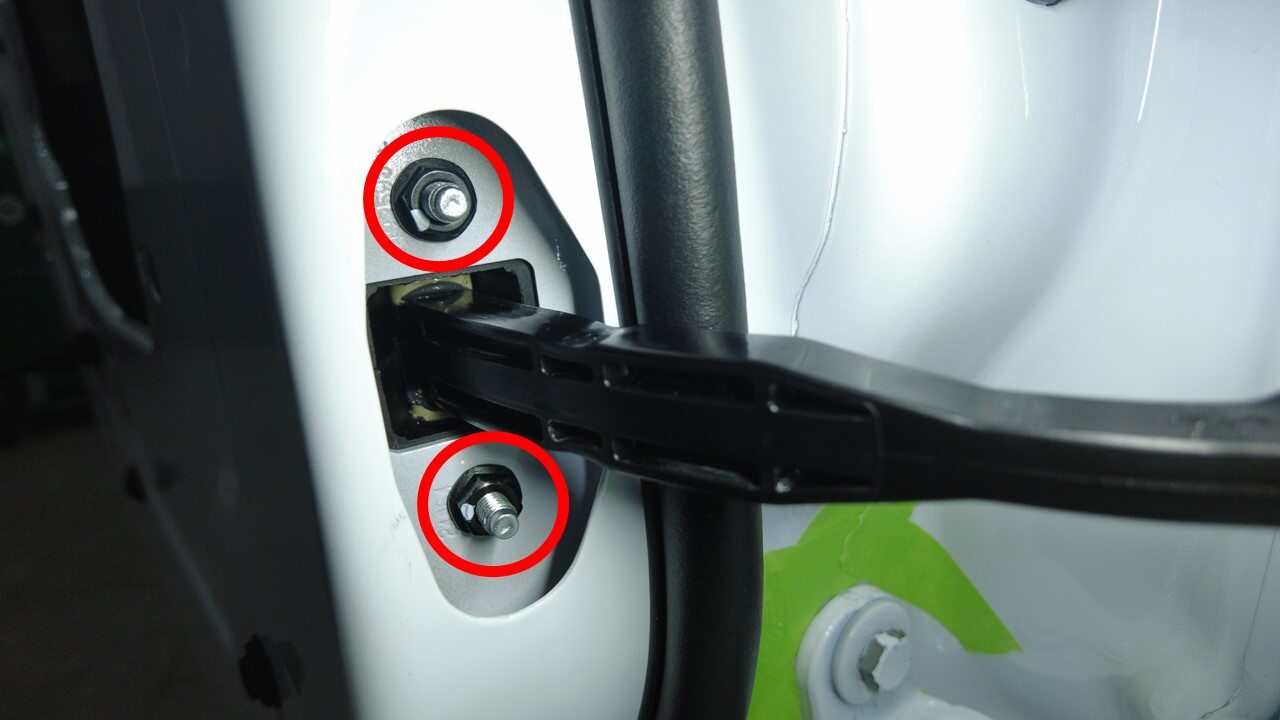

  4. Remove the nuts (x2) that attach the LH rear door check strap to the LH rear door.
    Tip
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • 10 mm deep socket

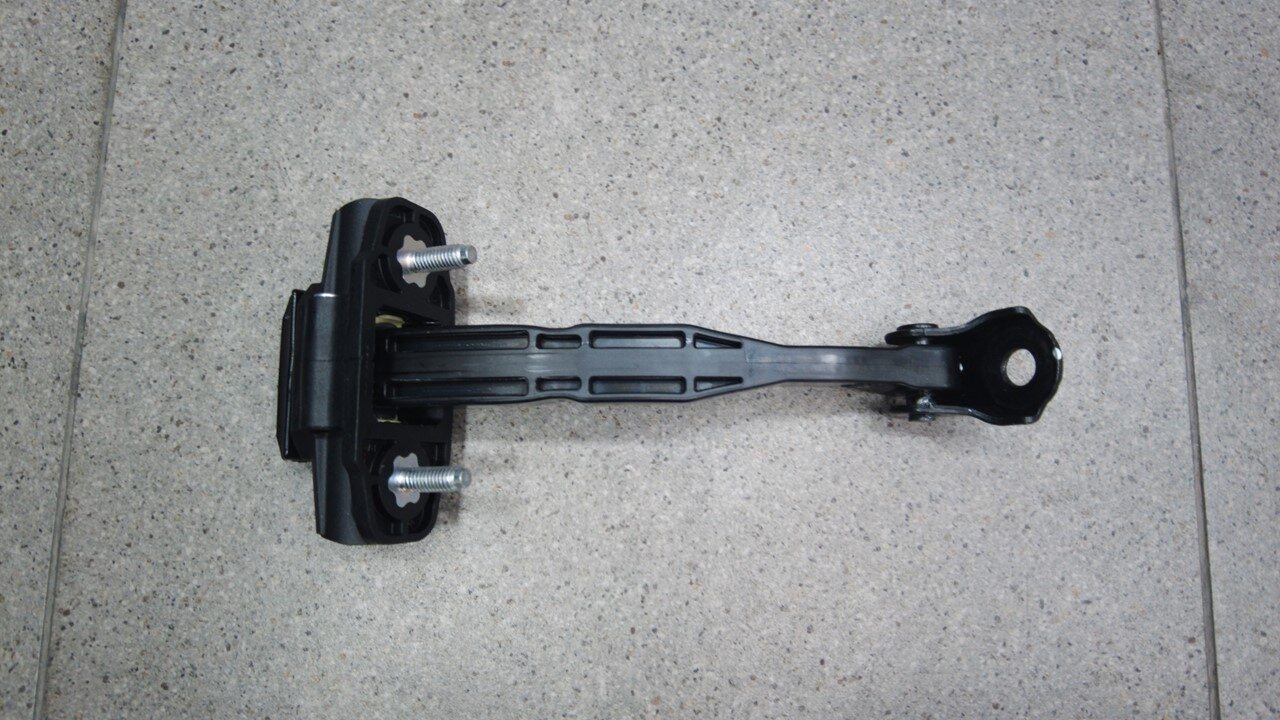

  5. Reach inside the door opening and remove the check strap from the door.

Install

  1. Position the check strap through the door opening.
  2. Install the nuts (x2) that attach the LH rear door check strap to the LH rear door.
    10 Nm (7.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • 10 mm deep socket
  3. Install the bolt that attaches the LH rear door check strap to the body.
    24 Nm (17.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T40 socket
    • 4 in extension
    • Ratchet/torque wrench
  4. Remove the masking tapes.
  5. Install the LH rear window regulator closeout panel. See Window Regulator Closeout - Rear Door - LH (Remove and Replace).
