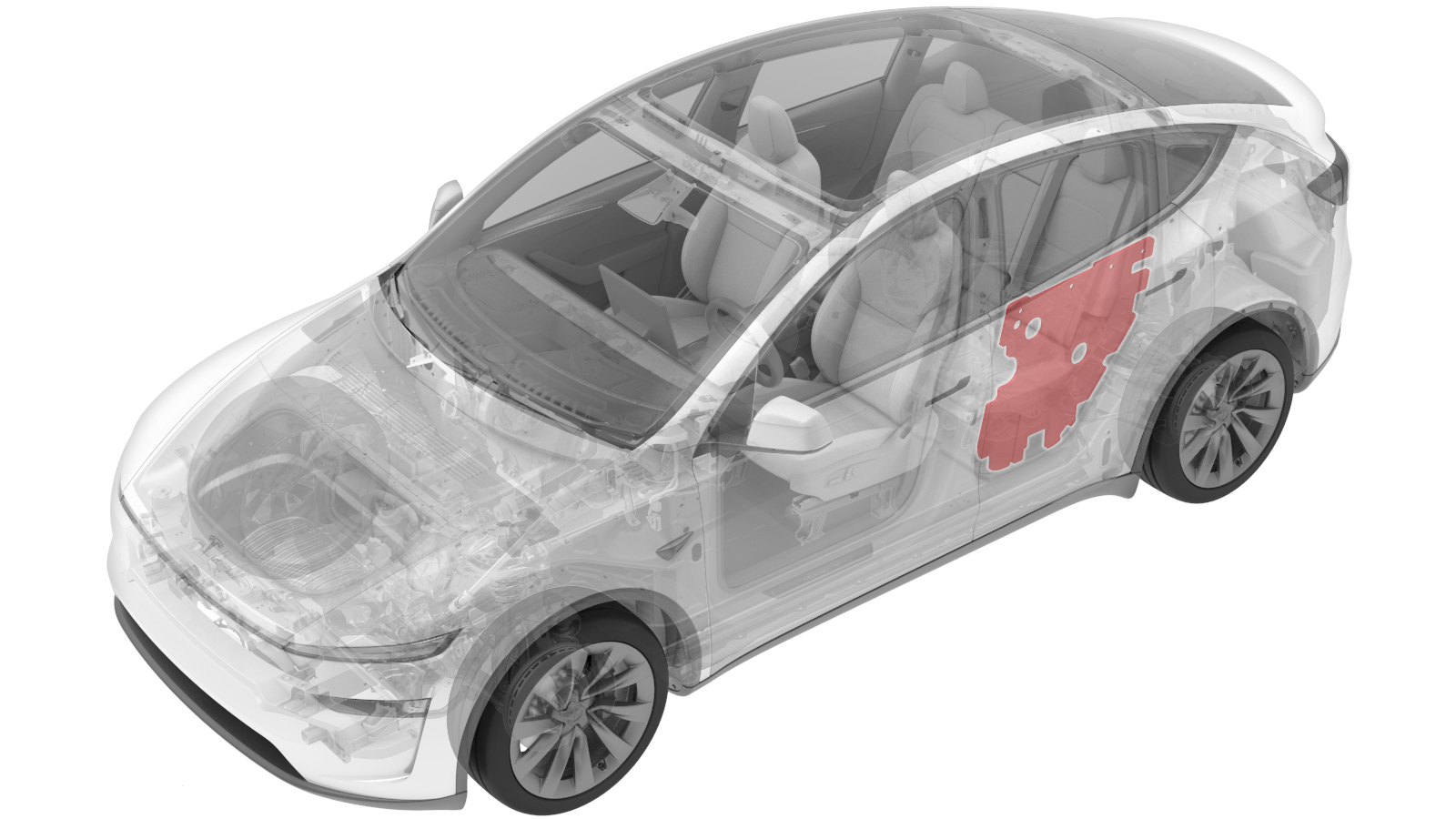

Door Noise Vibration Harness Pad - Rear LH (Remove and Replace)
Correction code
1513020302
FRT
0.10
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
-
Remove the LH rear door trim panel
assembly from the vehicle. See Door Trim - Rear - LH (Remove and Install).
NoteNo need to separate the harness from the panel.
-

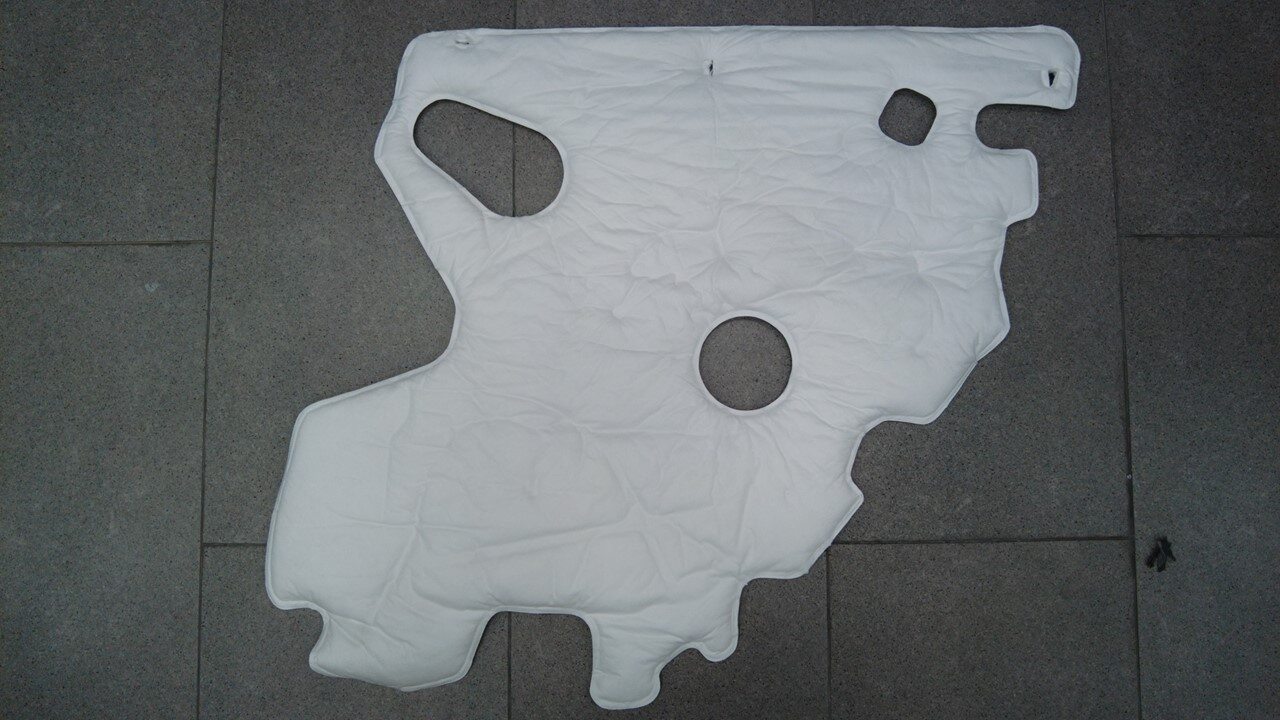

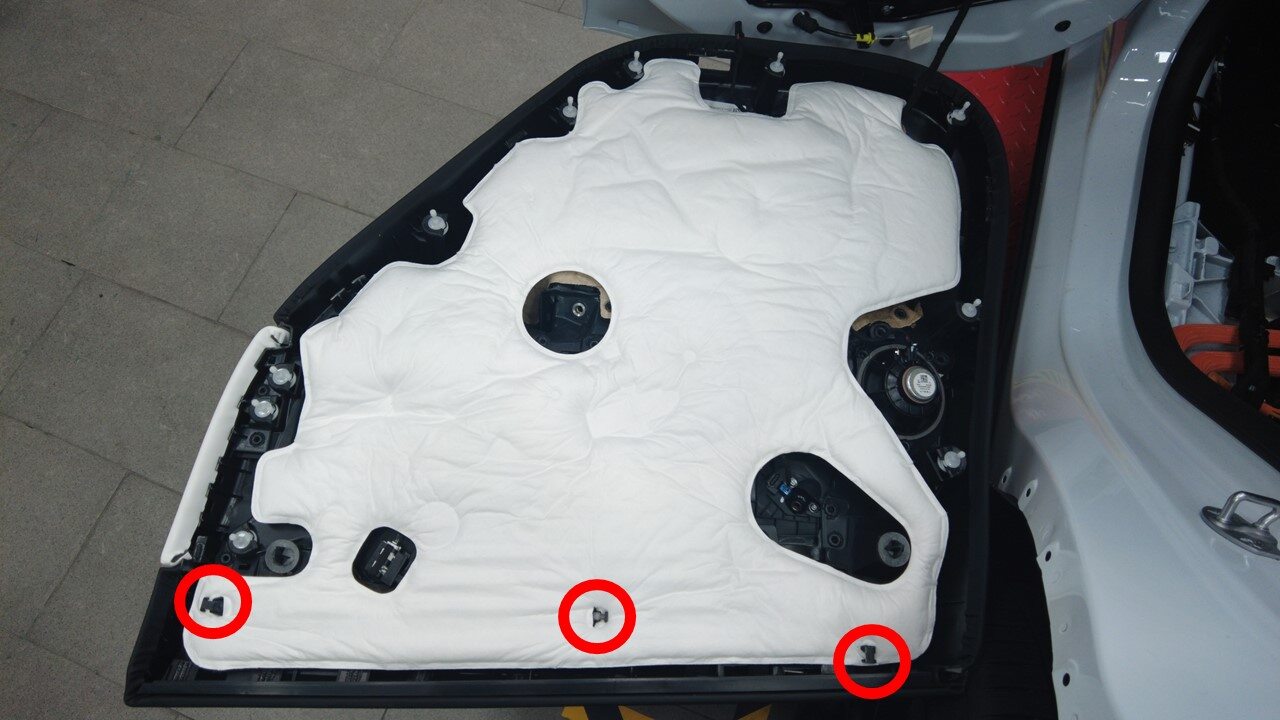

Release the LH rear door NVH
pad from the tabs (x3), and then remove it from the LH rear door trim
panel.
Install
-
Install the LH rear door NVH pad to the LH rear door trim panel.
- Install the LH rear door trim panel assembly to the vehicle. See Door Trim - Rear - LH (Remove and Install).
