Shear Plate - Rear Subframe - LH (Remove and Replace)

Correction code 3001020202 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Shear Plate - Rear Subframe - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Smaller bolts that attach the LH shear plate to the HV battery
64 Nm (47.2 lbs-ft)
  • 13 mm socket
 Reuse
Larger bolt that attaches the LH shear plate and rear subframe to the body
125 Nm (92.2 lbs-ft)
  • 21 mm socket
 Replace 2086675-00-A

Remove

  1. Remove the mid aero shield panel. See Aero Shield - Rear (Remove and Replace).

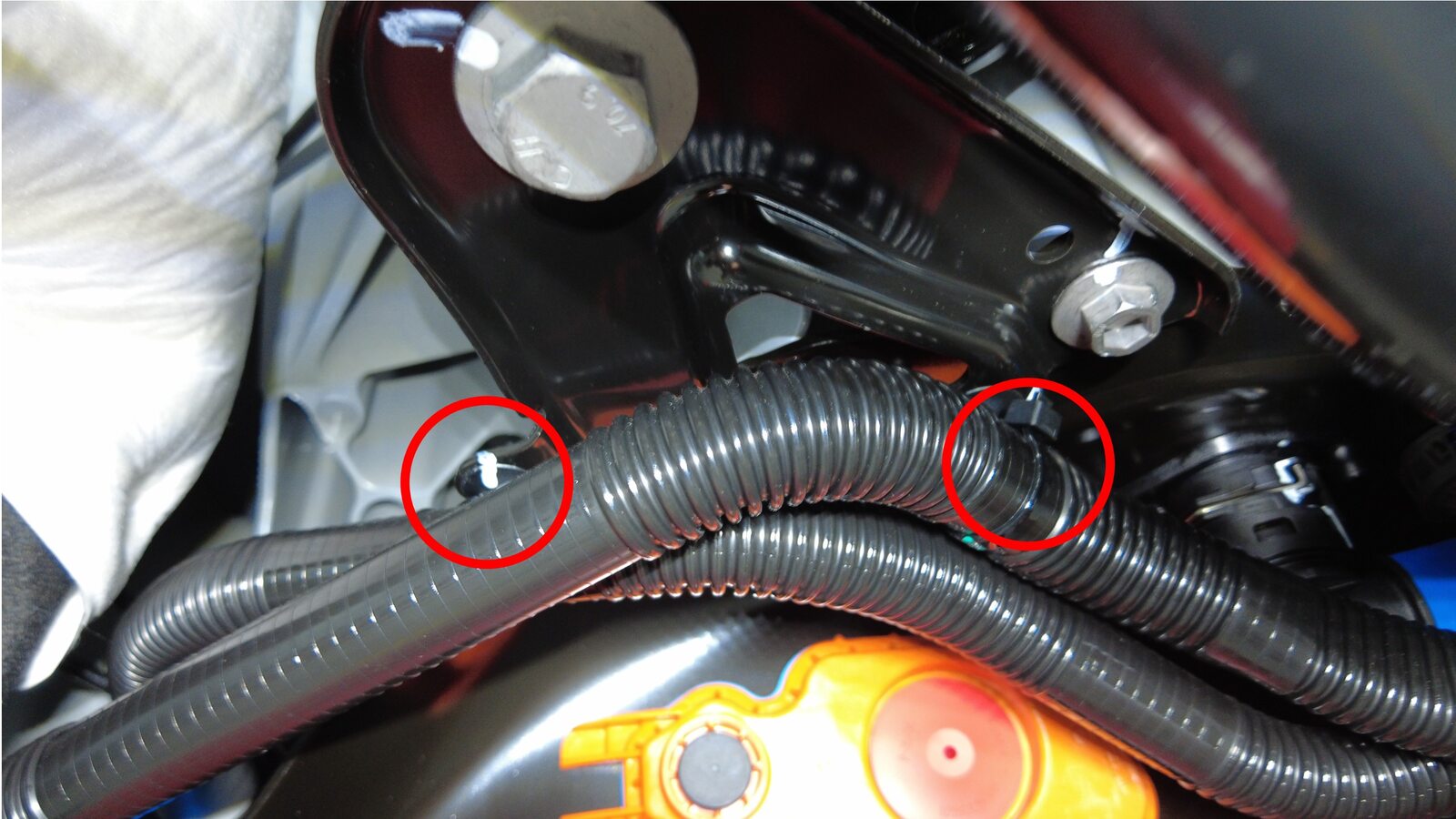

  2. Release the fir tree clips (x2) that attach the coolant hoses to the LH shear plate.
  3. Remove the smaller bolts (x2) that attach the LH shear plate to the HV battery.
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket

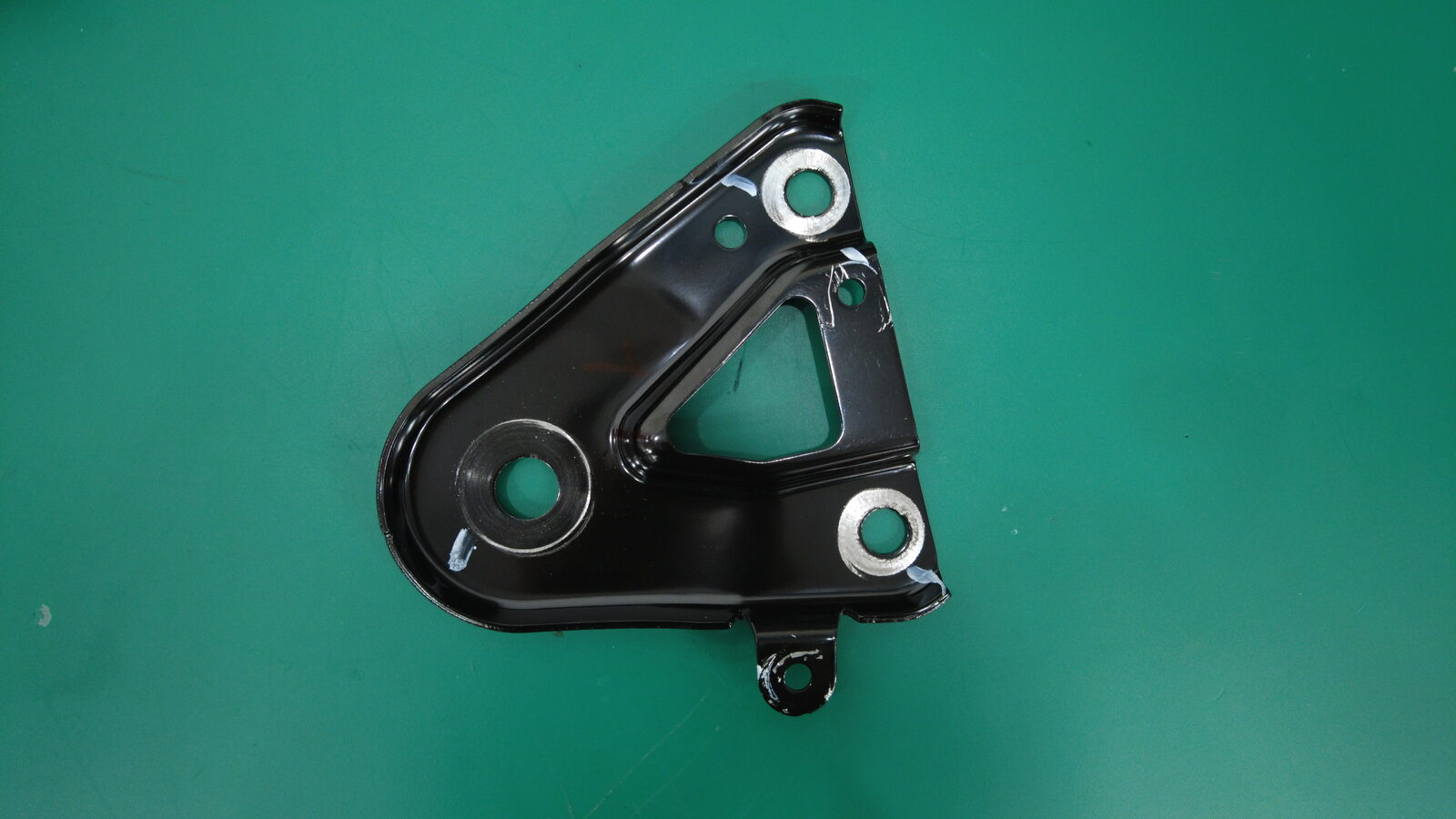

  4. Remove and discard the larger bolt that attaches the LH shear plate and rear subframe to the body, and then remove the LH shear plate.
    Tip
    Use of the following tool(s) is recommended:
    • 21 mm socket

Install

  1. Install the LH shear plate to the rear subframe and HV battery, and then hand-tighten a new large bolt to attach the shear plate to the subframe.
  2. Hand-tighten the smaller bolts that attach the LH shear plate to the HV battery.
  3. Torque the larger bolt that attaches the LH shear plate to the vehicle, and then mark the bolt with a paint pen after torquing.
    125 Nm (92.2 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 21 mm socket
  4. Torque the smaller bolts that attach the LH shear plate to the HV battery.
    64 Nm (47.2 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 13 mm socket
  5. Fasten the fir tree clips that attach the coolant hoses to the LH shear plate.
  6. Install the mid aero shield panel. See Aero Shield - Rear (Remove and Replace).
