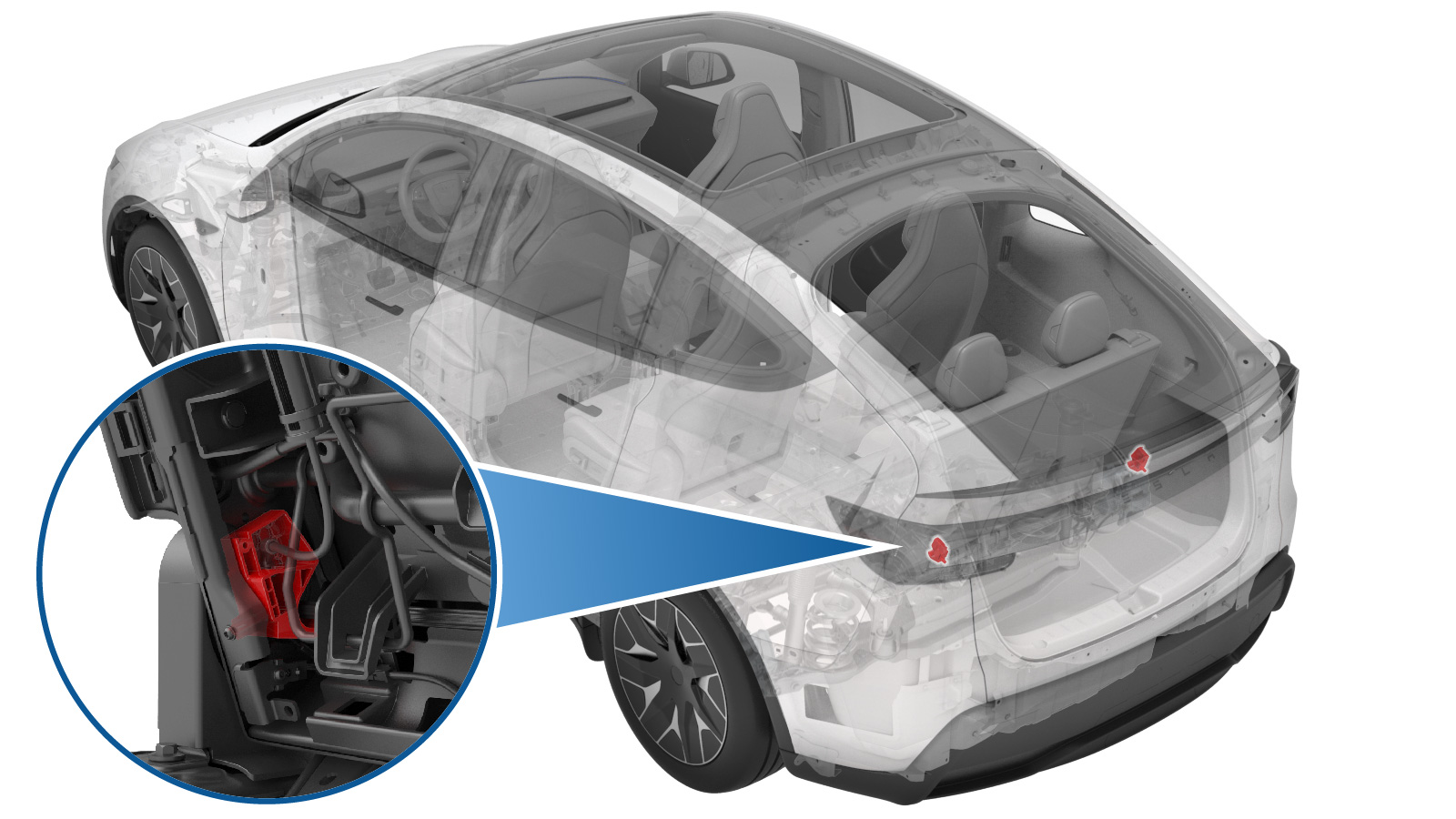

Cable Unlock Block - Headrest - 3rd Row - LH (Model YL) (Remove and Replace)

Correction code 13030100402 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the 3rd row LH seat back panel. See Panel - Seat Back - 3rd Row Seat - LH (Model YL) (Remove and Replace).
  2. Release the hooks (x3) that attach the 3rd row LH seat headrest cable to the seat back shell.
  3. Release the clips (x2) that attach the 3rd row LH seat headrest cable to the cable lock.

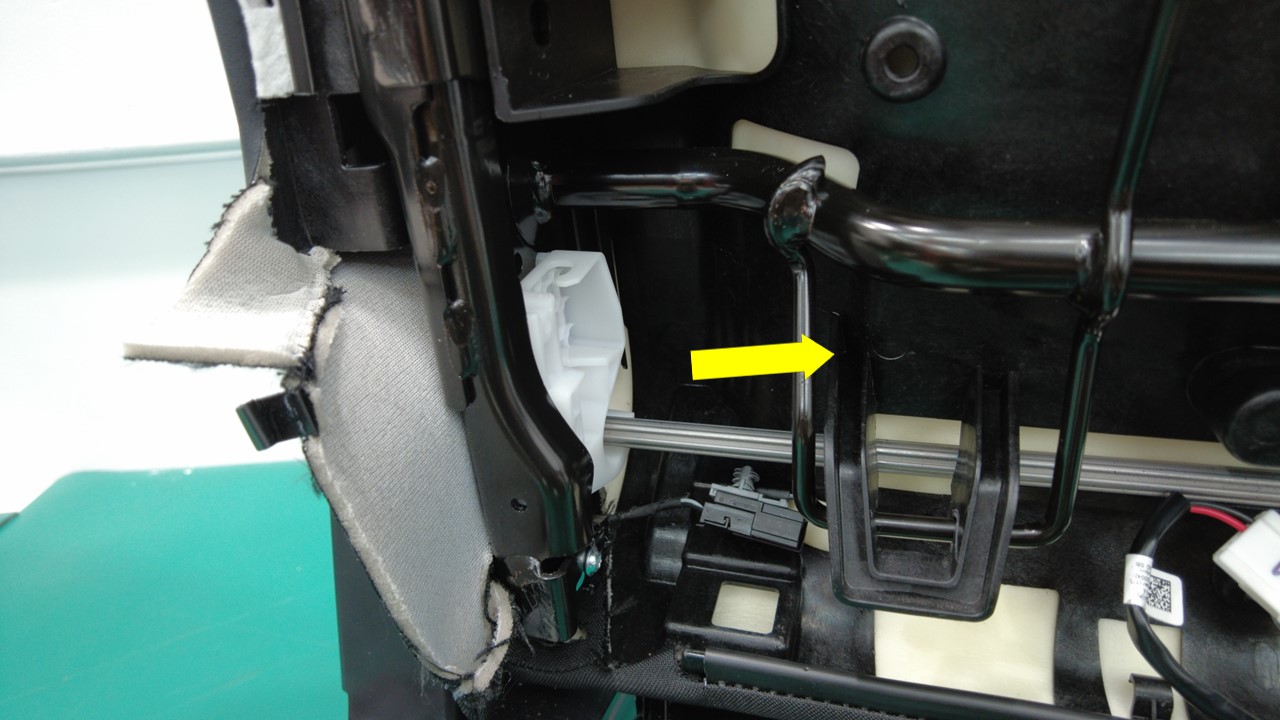

  4. Use long needle nose pliers (1082478-03-A) to locate the clip on the outboard recliner stopper of the 3rd row LH seat, rotate it counterclockwise, then pull the headrest cable outward to release it.

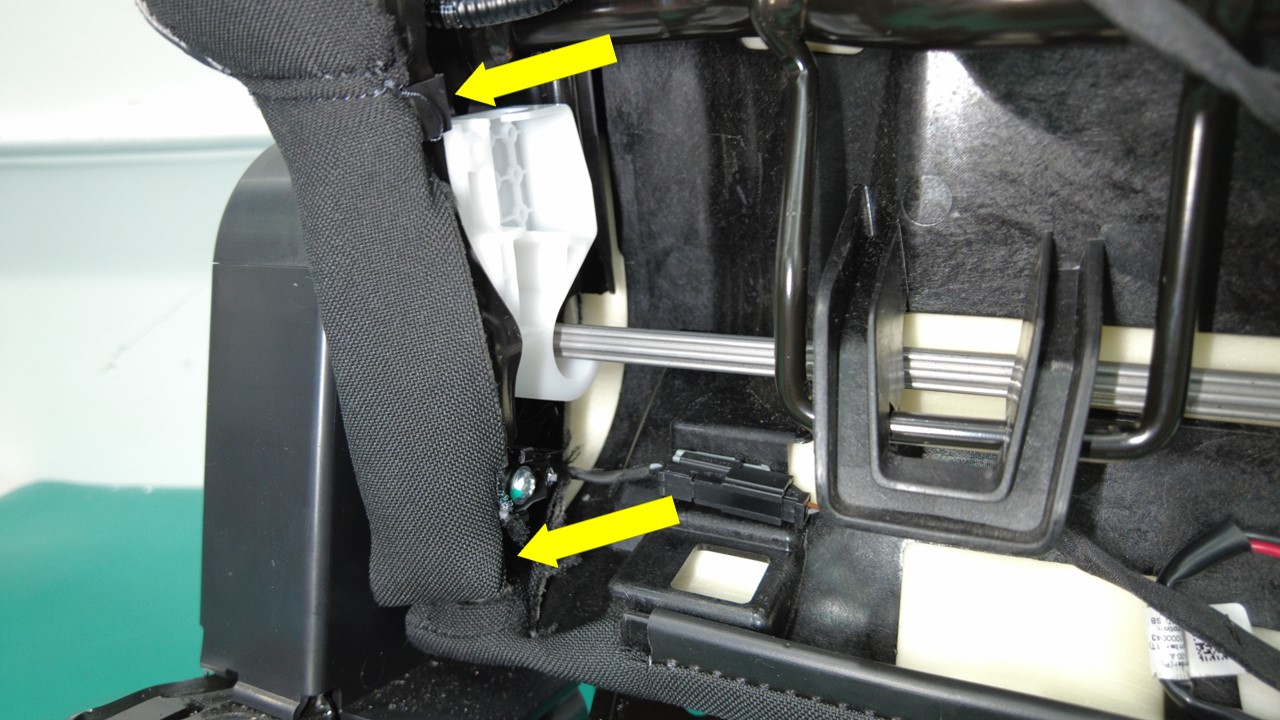

  5. Partially release the 3rd row LH seat back trim retainers (x2) from the seat back frame.

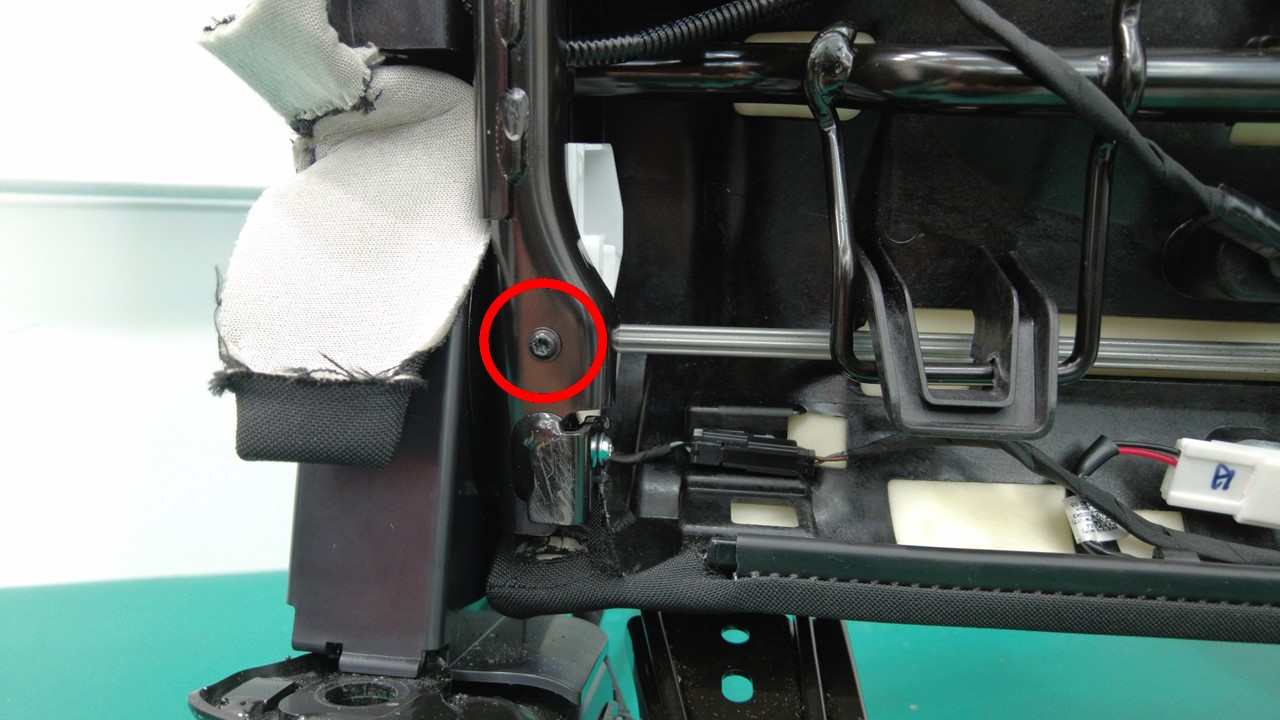

  6. Remove the screw that attaches the 3rd row LH seat head rest cable unlock block to the seat back frame.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

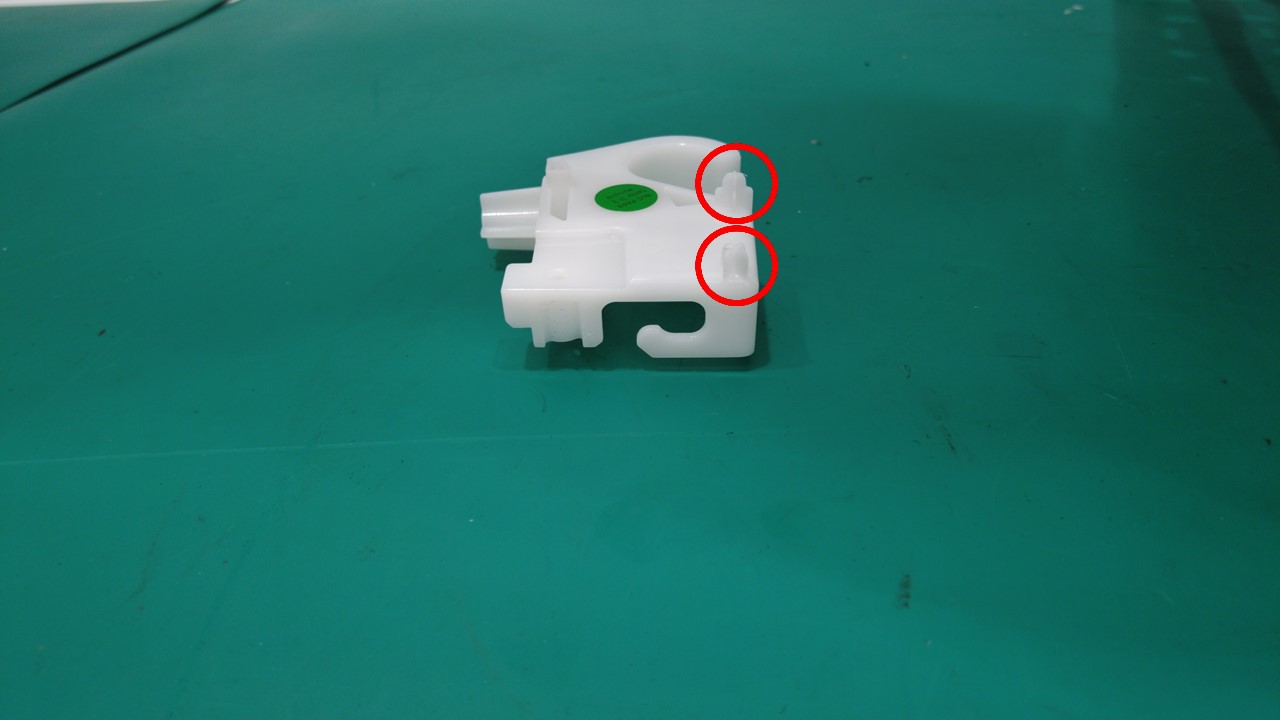

  7. Release the tabs (x2) to remove the 3rd row LH seat head rest cable unlock block.

Install

  1. Secure the tabs (x2) to install the 3rd row LH seat head rest cable unlock block.
  2. Install the screw that attaches the 3rd row LH seat head rest cable unlock block to the seat back frame.
    0.8 Nm (7 lbs-in)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  3. Install the 3rd row LH seat back trim retainers (x2) to the seat back frame.

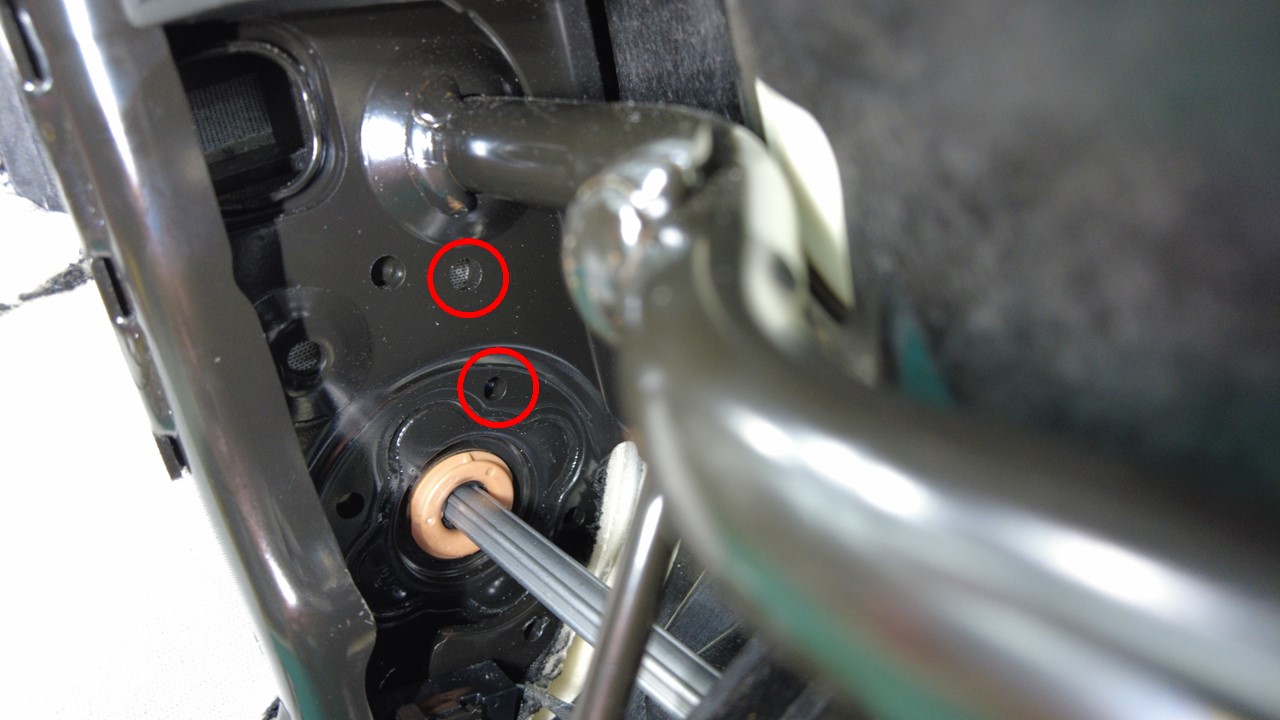

  4. Align the 3rd row LH seat headrest cable with the slot, insert it using long needle nose pliers, then rotate it clockwise to secure and install it to the outboard recliner stopper.
  5. Install the clips (x2) that attach the 3rd row LH seat headrest cable to the cable lock.
  6. Install the hooks (x3) that attach the 3rd row LH seat headrest cable to the seat back shell.
  7. Install the 3rd row LH seat back panel. See Panel - Seat Back - 3rd Row Seat - LH (Model YL) (Remove and Replace).
