Extension Harness Assembly - Center Console - Premium (Model YL) (Remove and Replace)
Correction code
17100900102
FRT
0.60
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
-
Remove the rear end module assembly.
See Rear End Module - Center Console (Model YL) (Remove and Install).
NoteDuring removal, certain steps require extra care. See the animation(s) for detailed guidance.
-

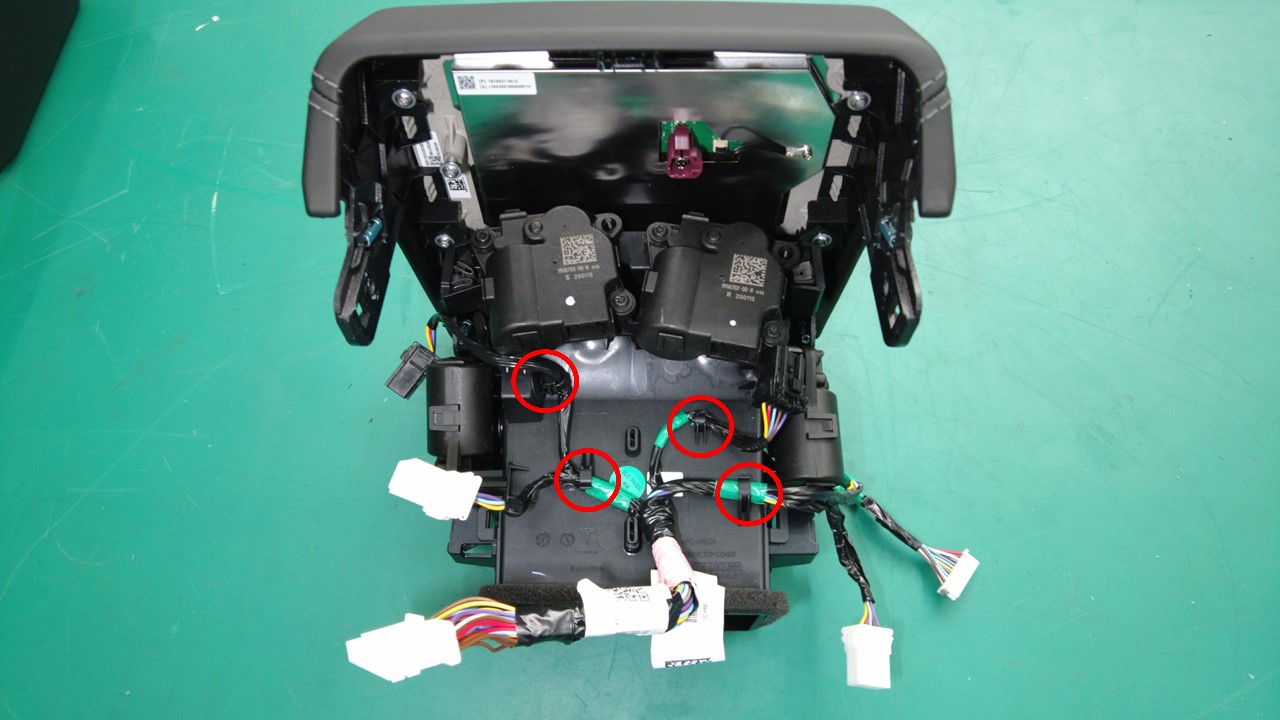

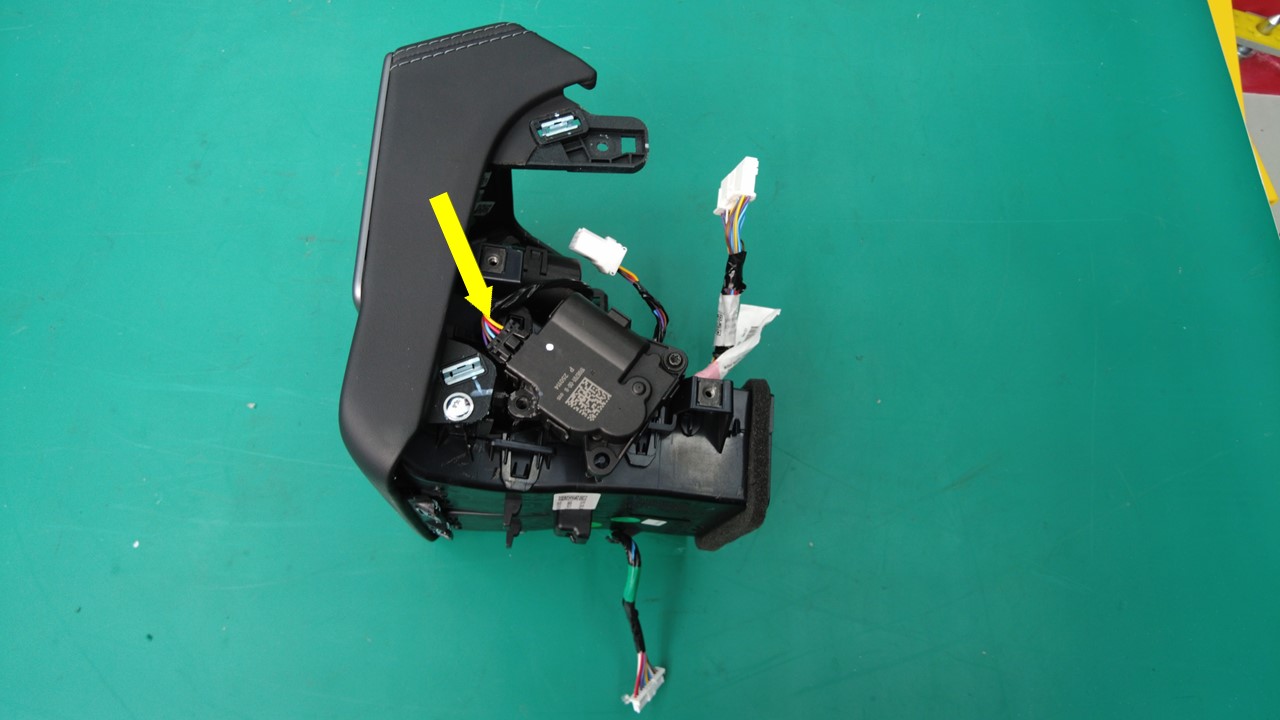

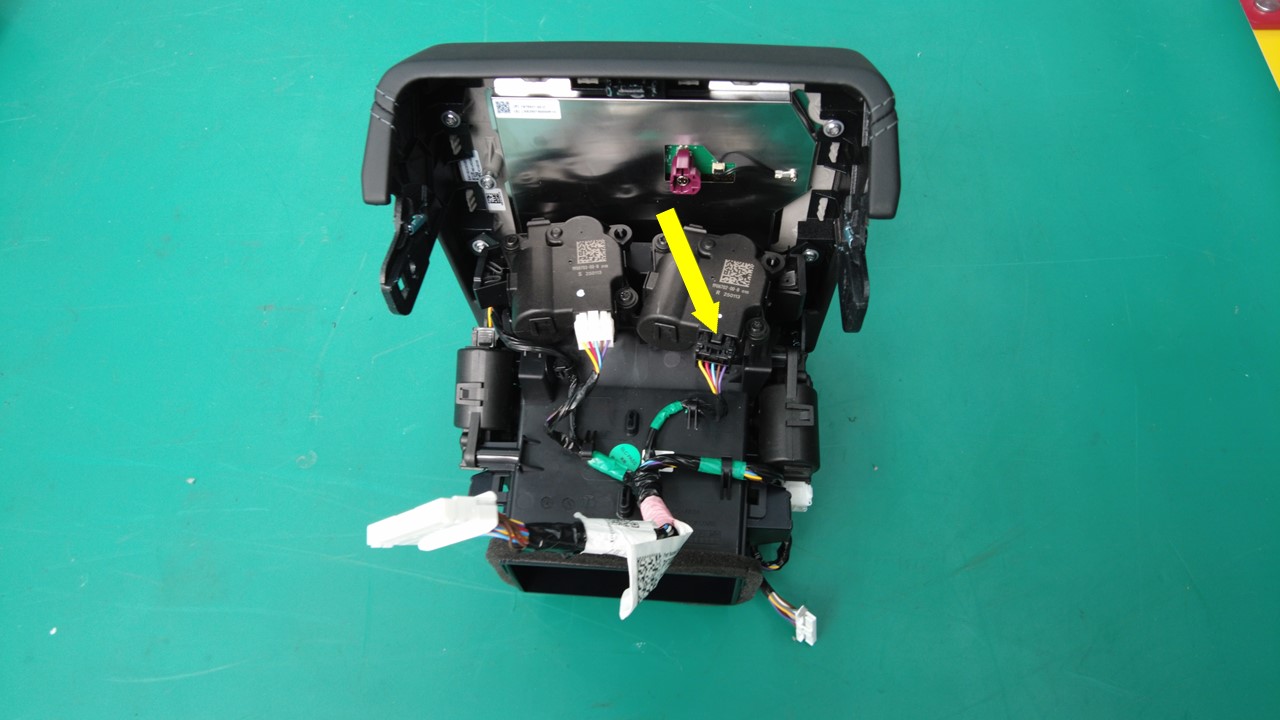

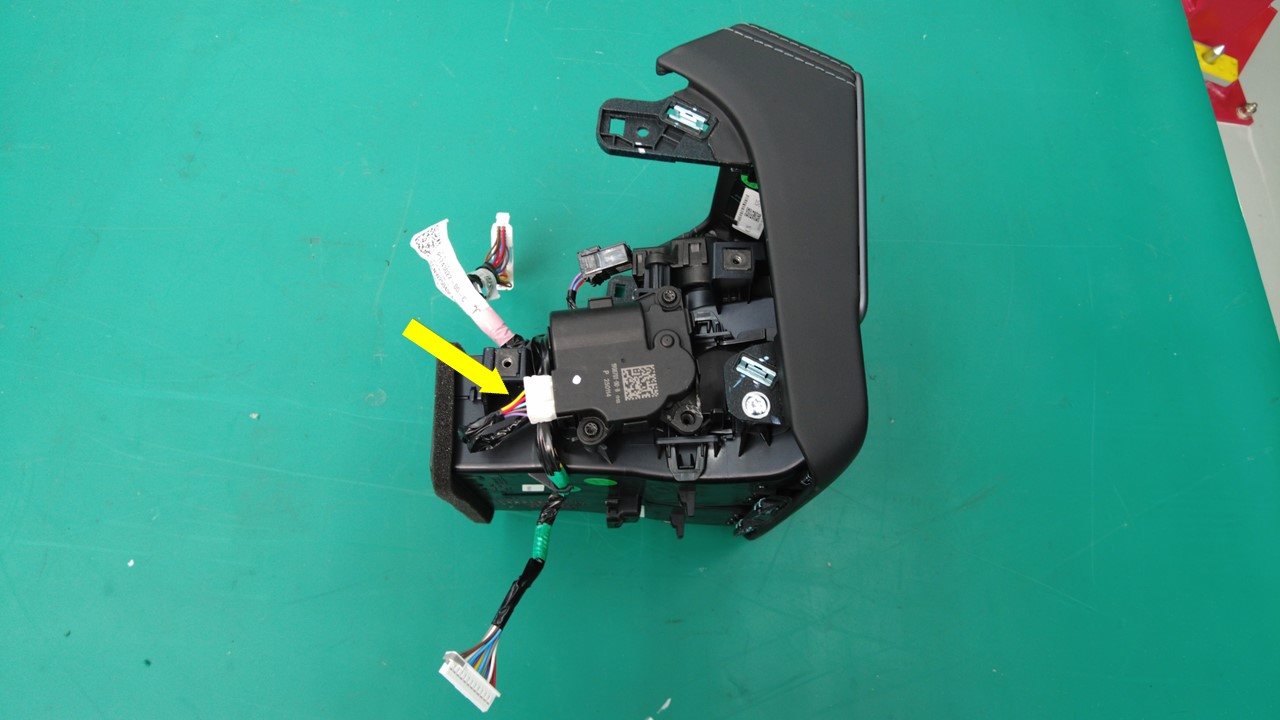

Disconnect the airwave actuator
connectors (x4).
-

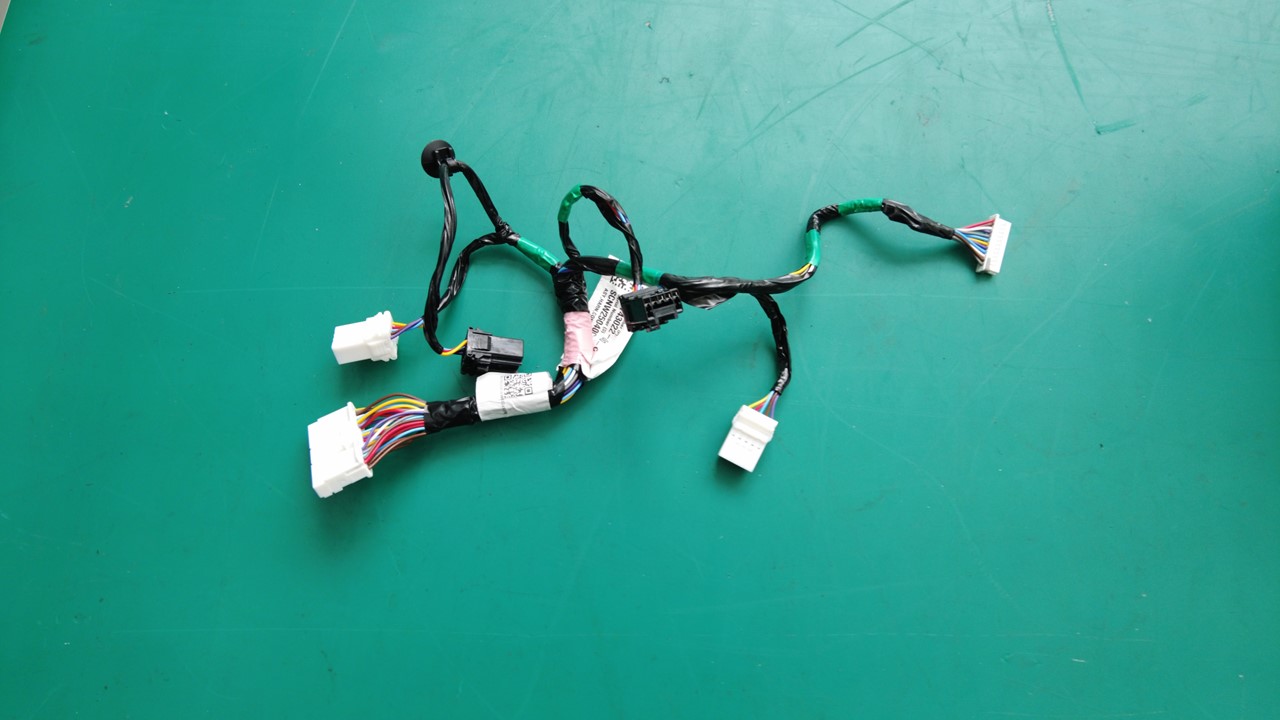

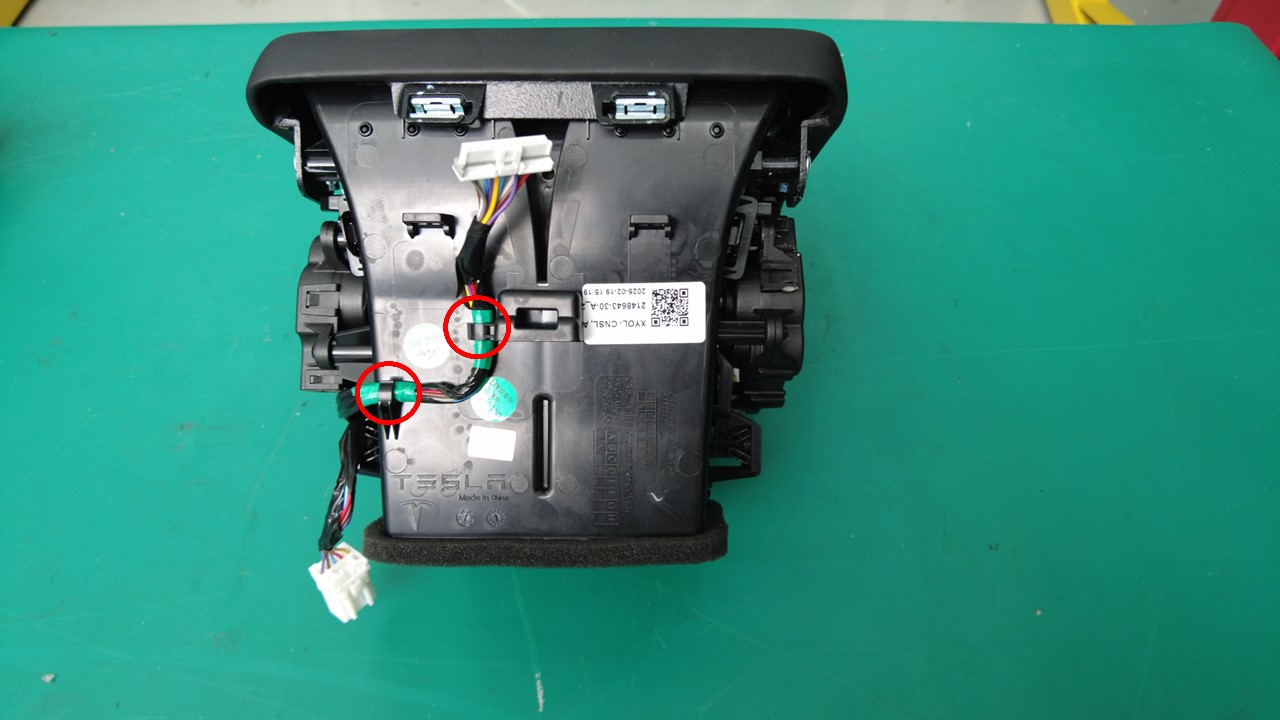

Remove the console extension harness
from the rear end module assembly.
Install
-
Install the console extension harness
to the rear end module assembly.
-
Connect the airwave actuator
connectors (x4).
- Install the rear end module assembly. See Rear End Module - Center Console (Model YL) (Remove and Install).
