Rocker Carrier - LH (Model YL) (Remove and Replace)

Correction code 12201100502 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Rocker Carrier - LH (Model YL) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the LH rocker carrier to the body
9 Nm (6.6 lbs-ft)
  • 10 mm socket
 Reuse

Remove

  1. Open the LH doors and lower the LH windows.

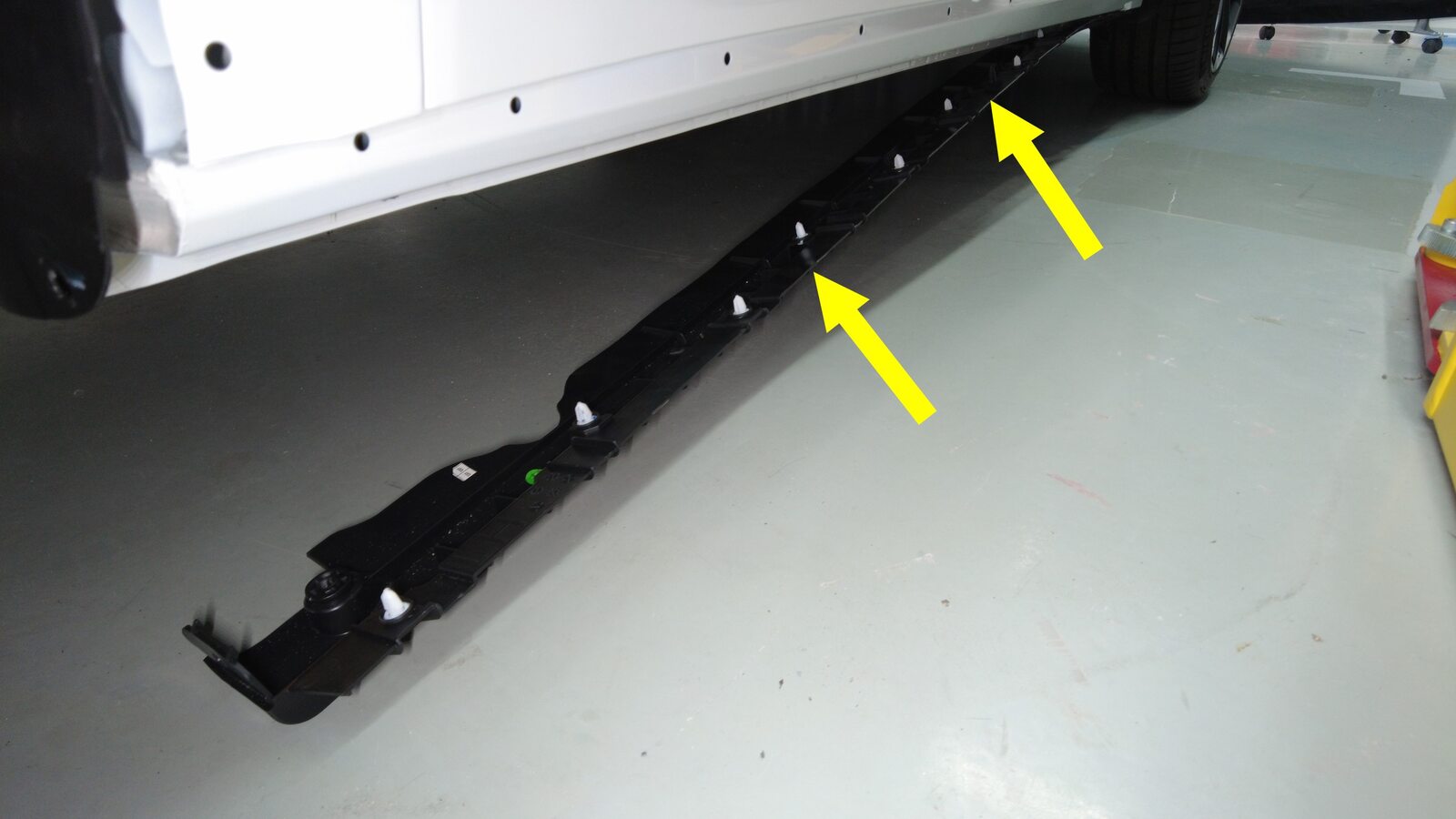

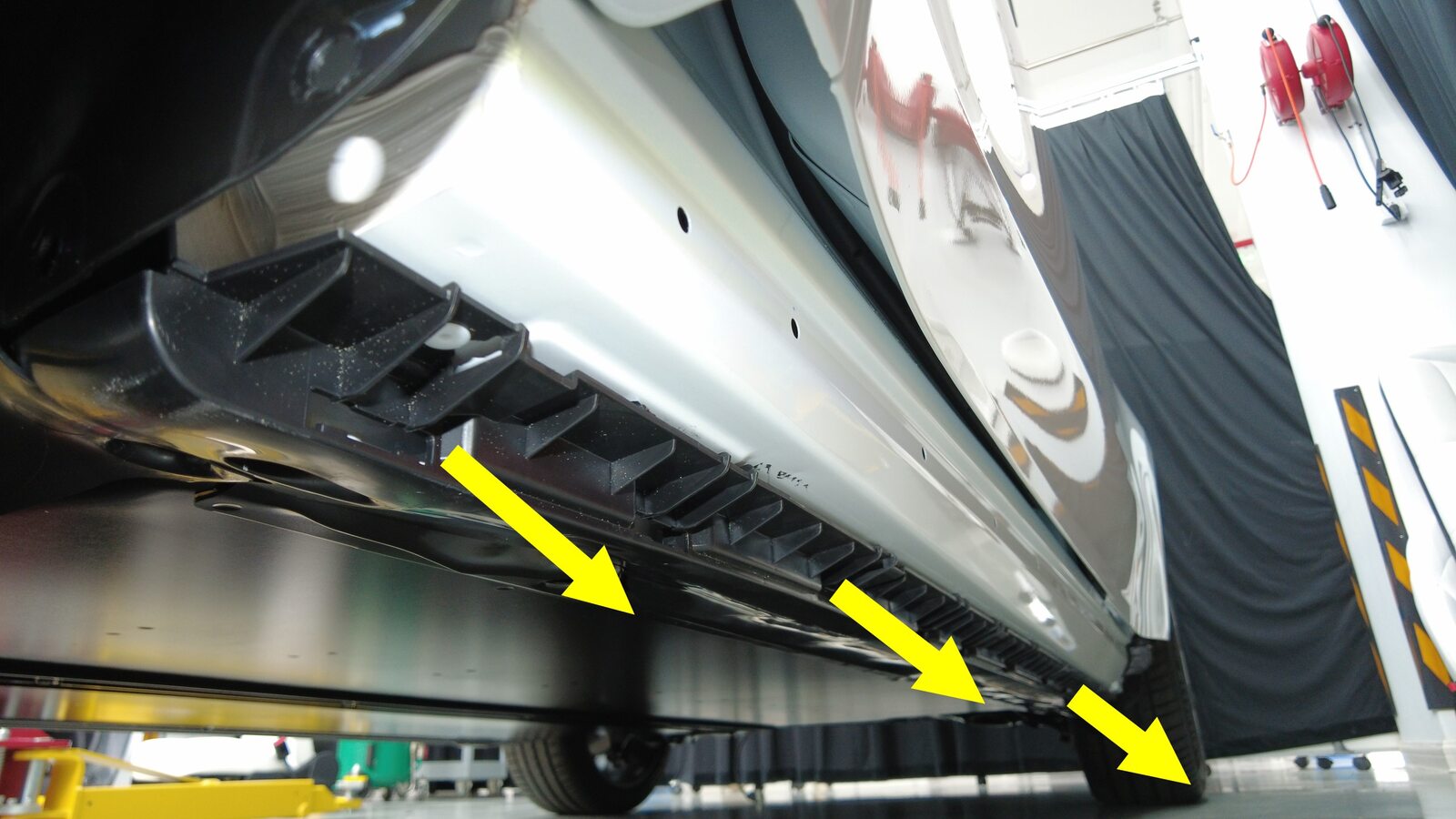

  2. Release the clips (x4) that attach the LH rocker cover and rocker carrier to the front and rear wheel arch liners.
  3. Remove the LH rocker cover from the rocker carrier. See Rocker Cover - LH (Model YL) (Remove and Replace)

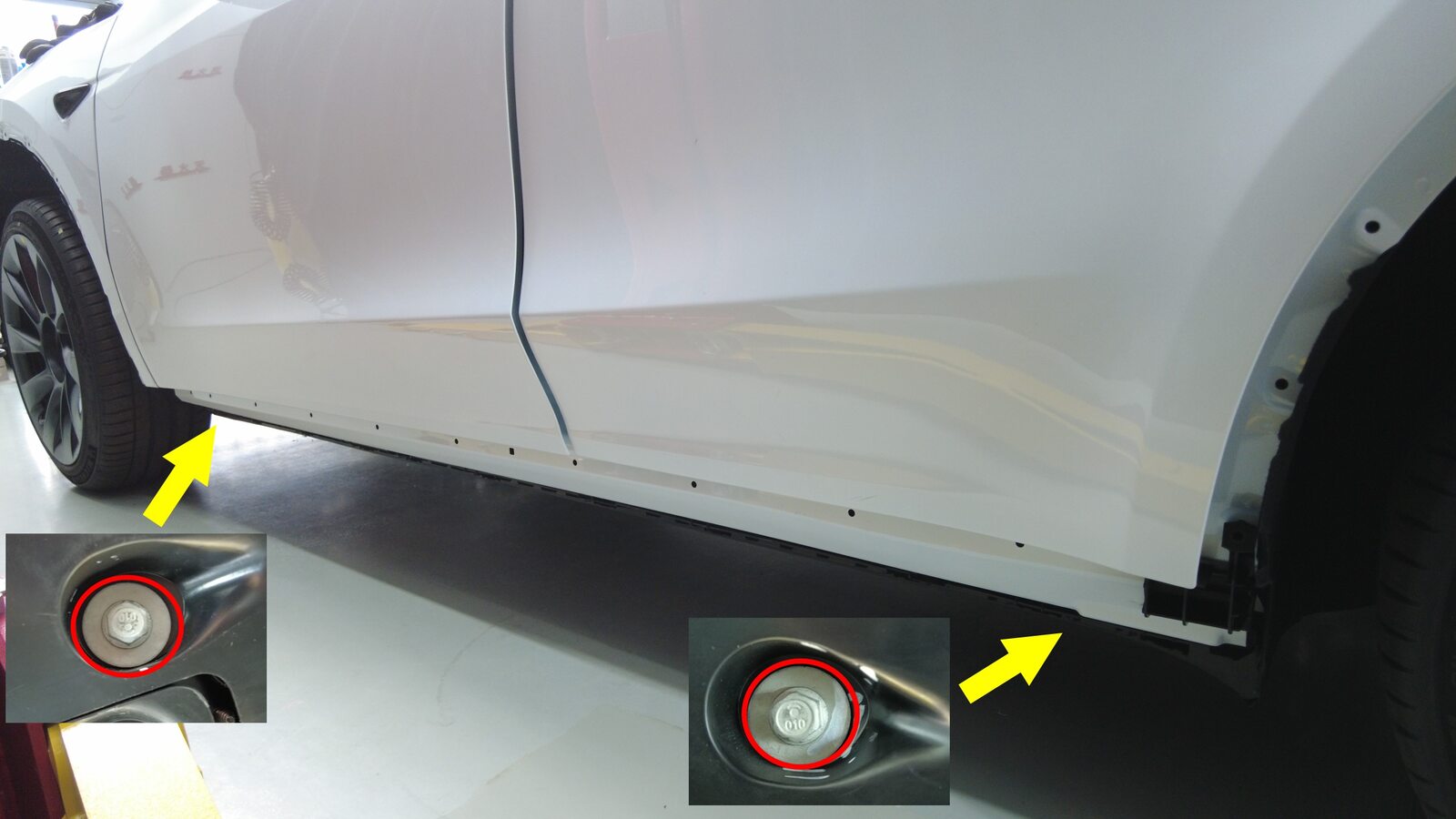

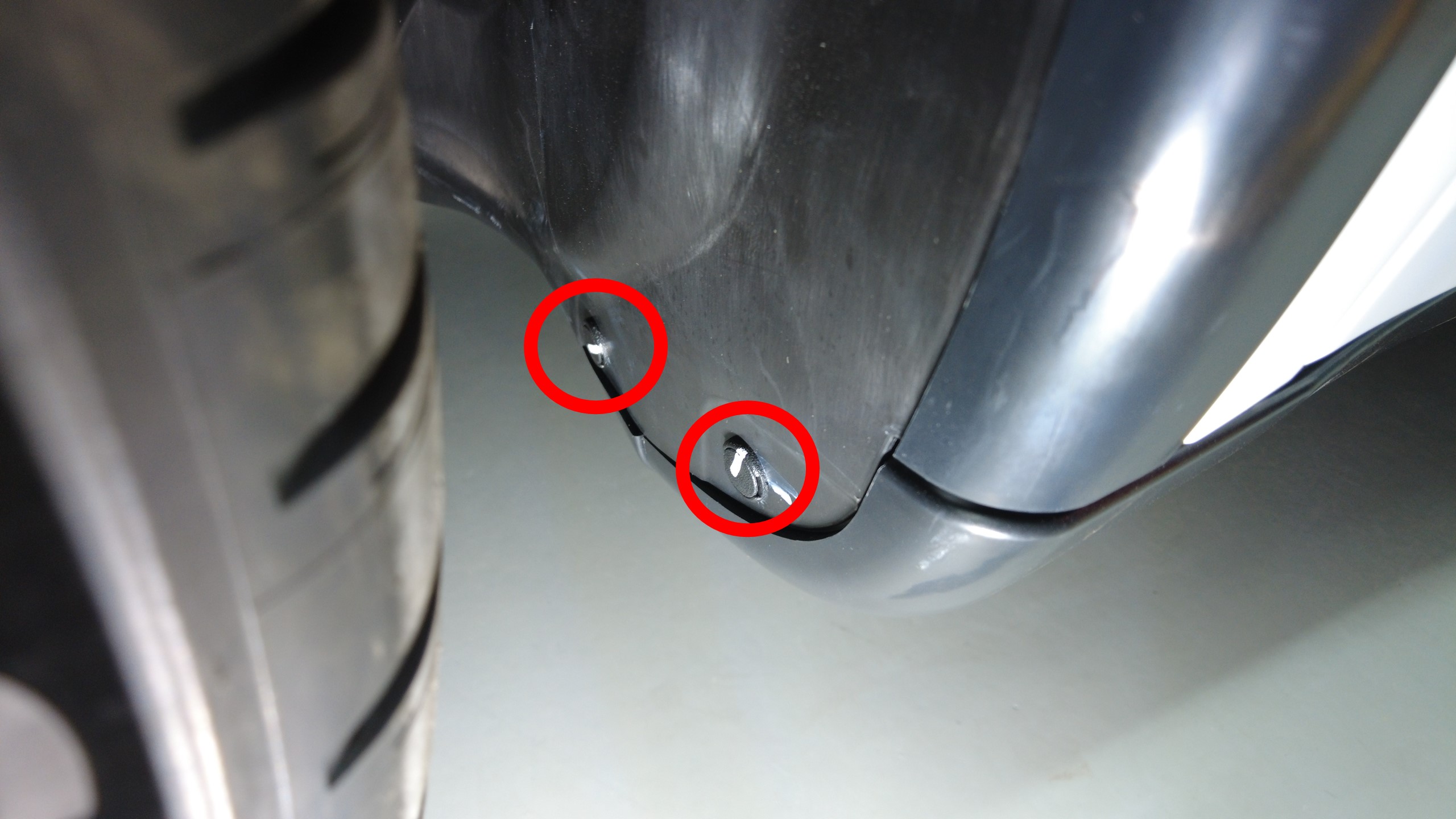

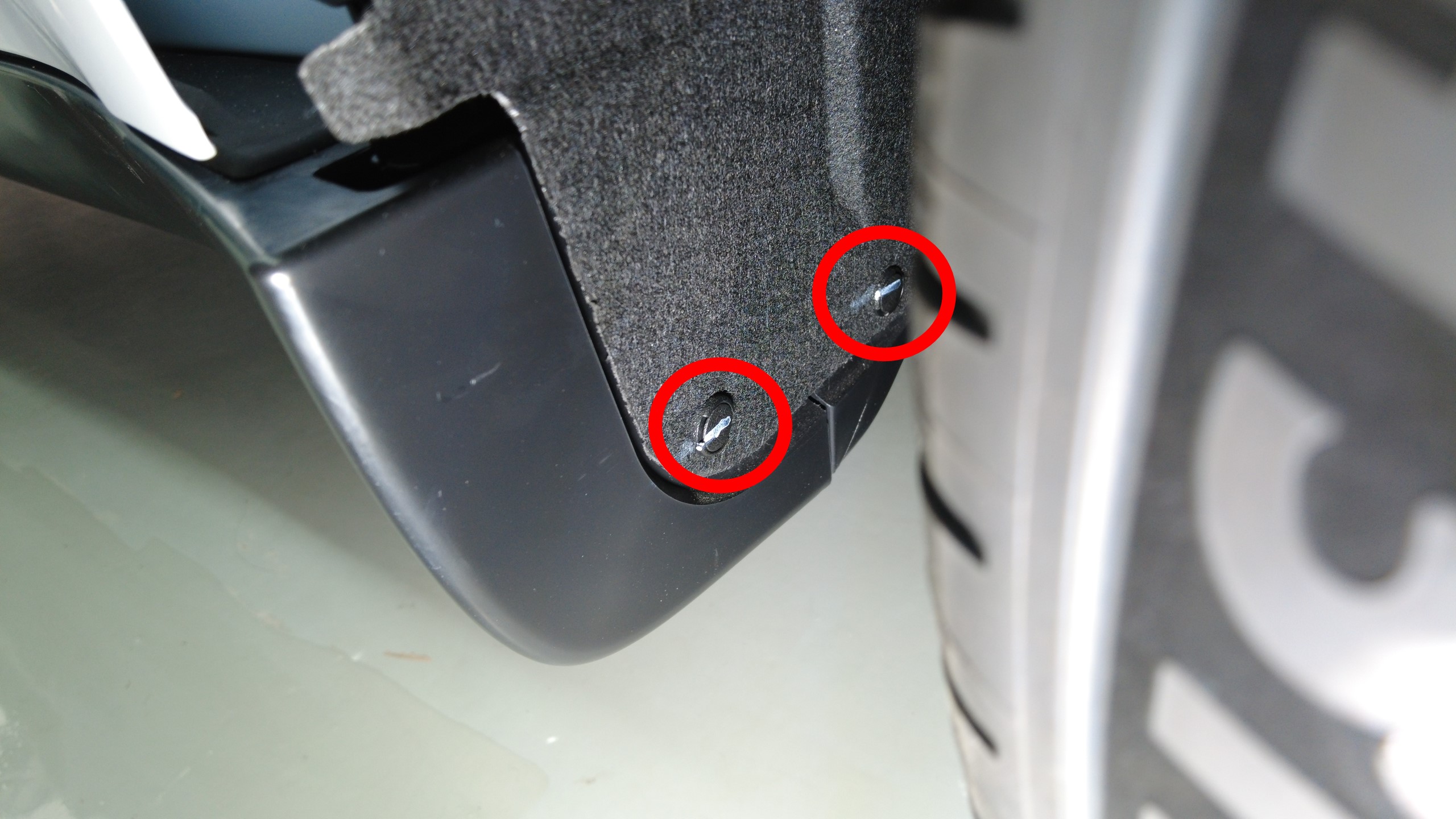

  4. Remove the bolts (x2) that attach the LH rocker carrier to the body.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket

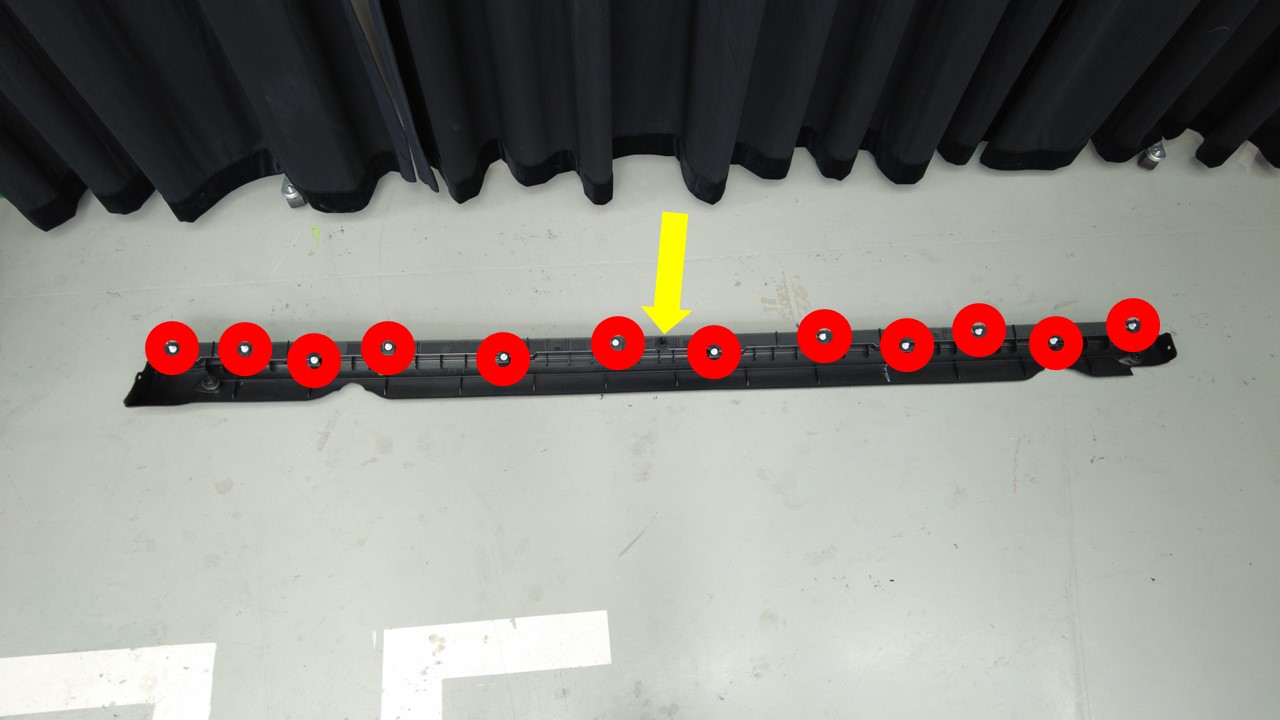

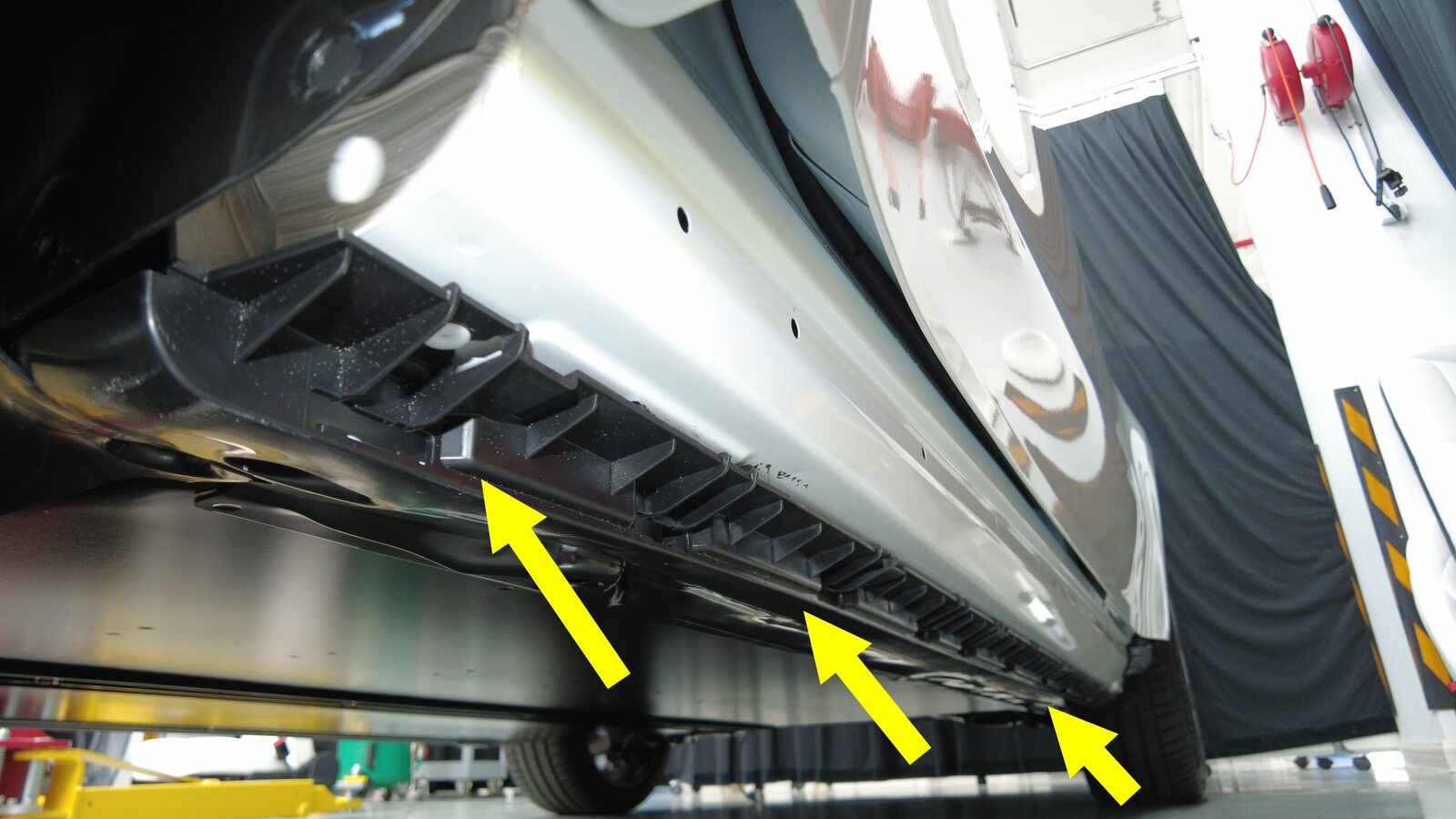

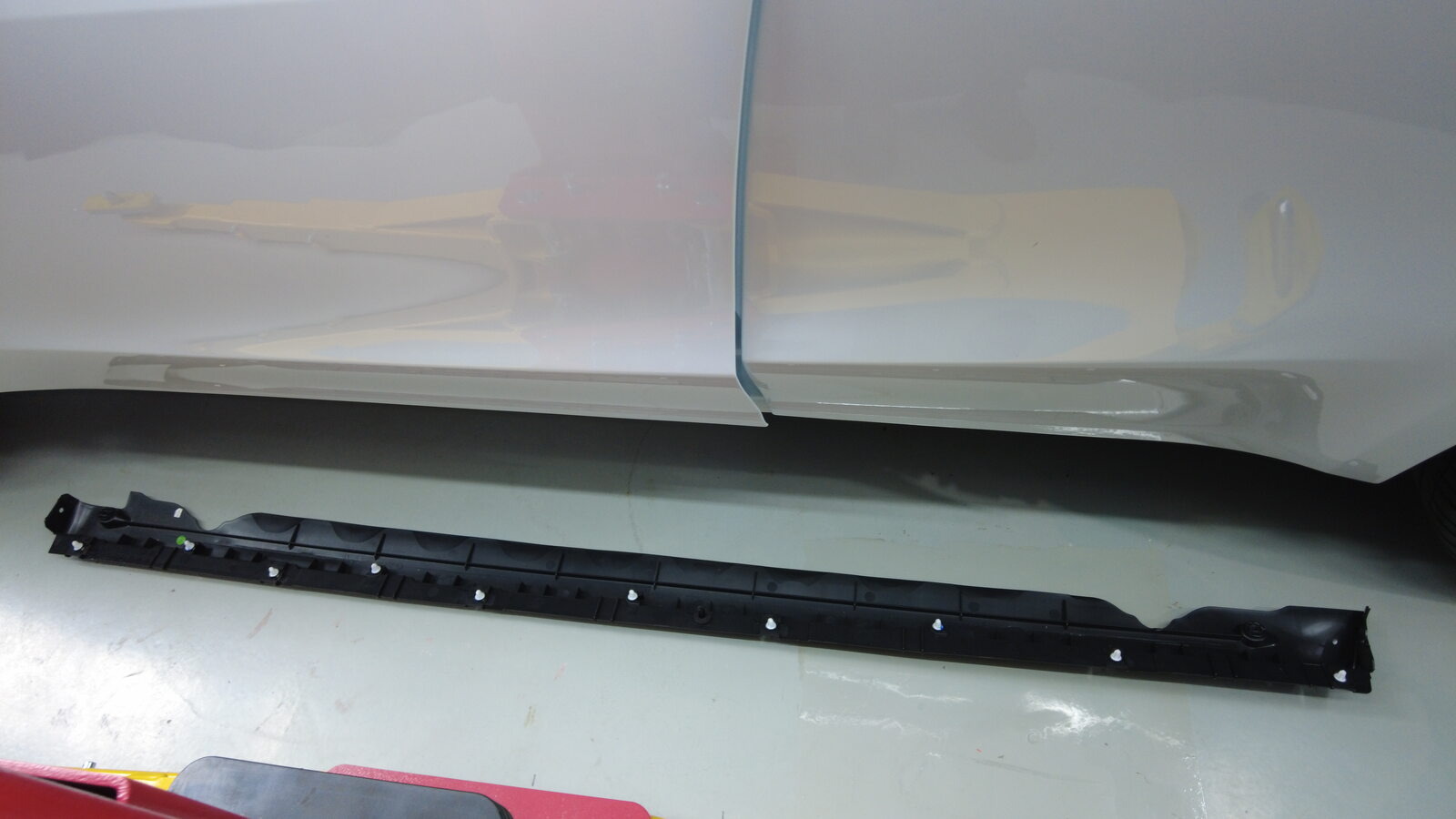

  5. Release the clips that attach the LH rocker carrier to the body, and then remove the carrier from the body.

Install

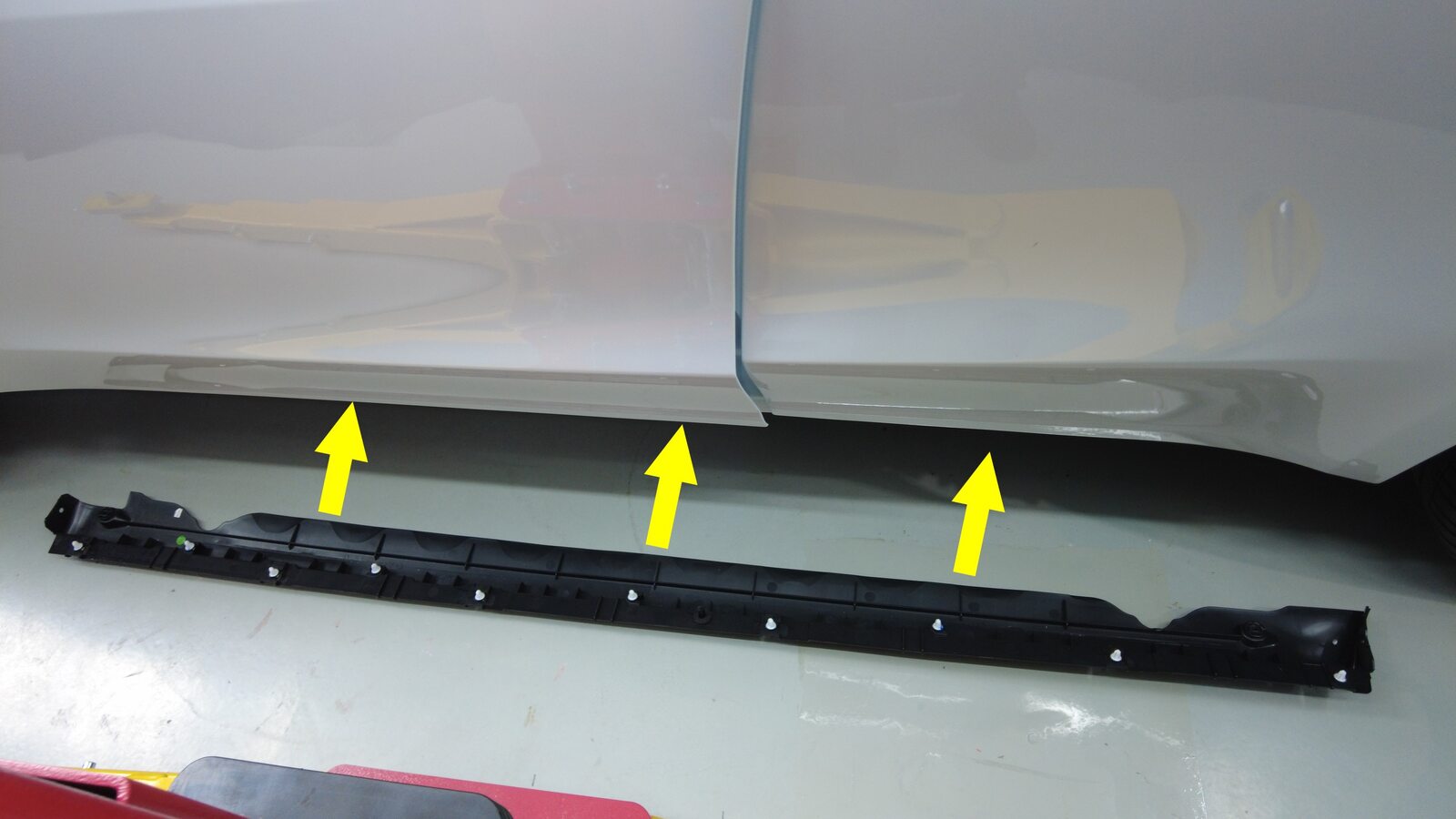

  1. Install the clips that attach the LH rocker carrier to the body.
  2. Install the bolts (x2) that attach the LH rocker carrier to the body.
    9 Nm (6.6 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket
  3. Install the LH rocker cover to the rocker carrier. See Rocker Cover - LH (Model YL) (Remove and Replace)
  4. Install the clips (x4) that attach the LH rocker cover and rocker carrier to the front and rear wheel arch liners.
  5. Raise the LH windows and close the LH doors.
