Cover - Left Terminals - Ancillary Bay (Model YL) (Remove and Replace)
Correction code
16300500402
FRT
1.50
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the ancillary bay cover. See Cover - Ancillary Bay (Model YL) (Remove and Install).
-
Install the high voltage controller
(HVC) logic cap.
- Remove the pyro disconnect. See Pyro Disconnect - HV Battery (Remove and Replace).
-

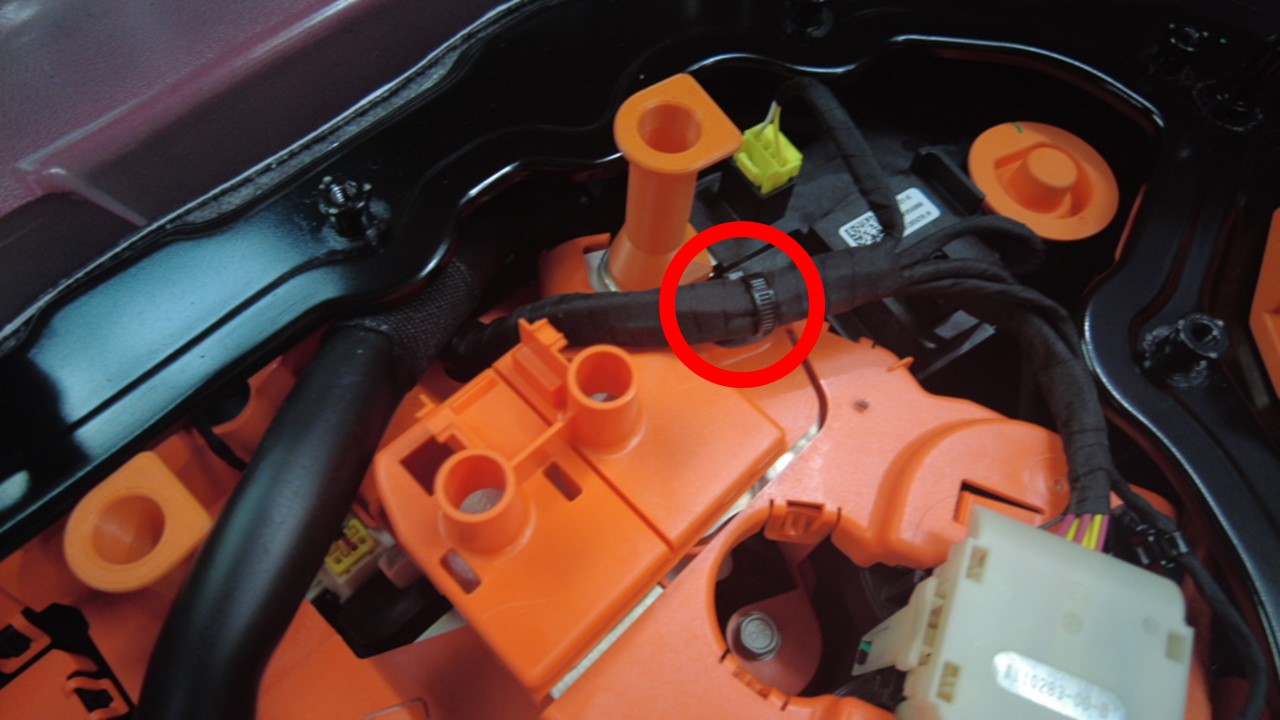

Remove the harness clip from the left
terminals cover.
-

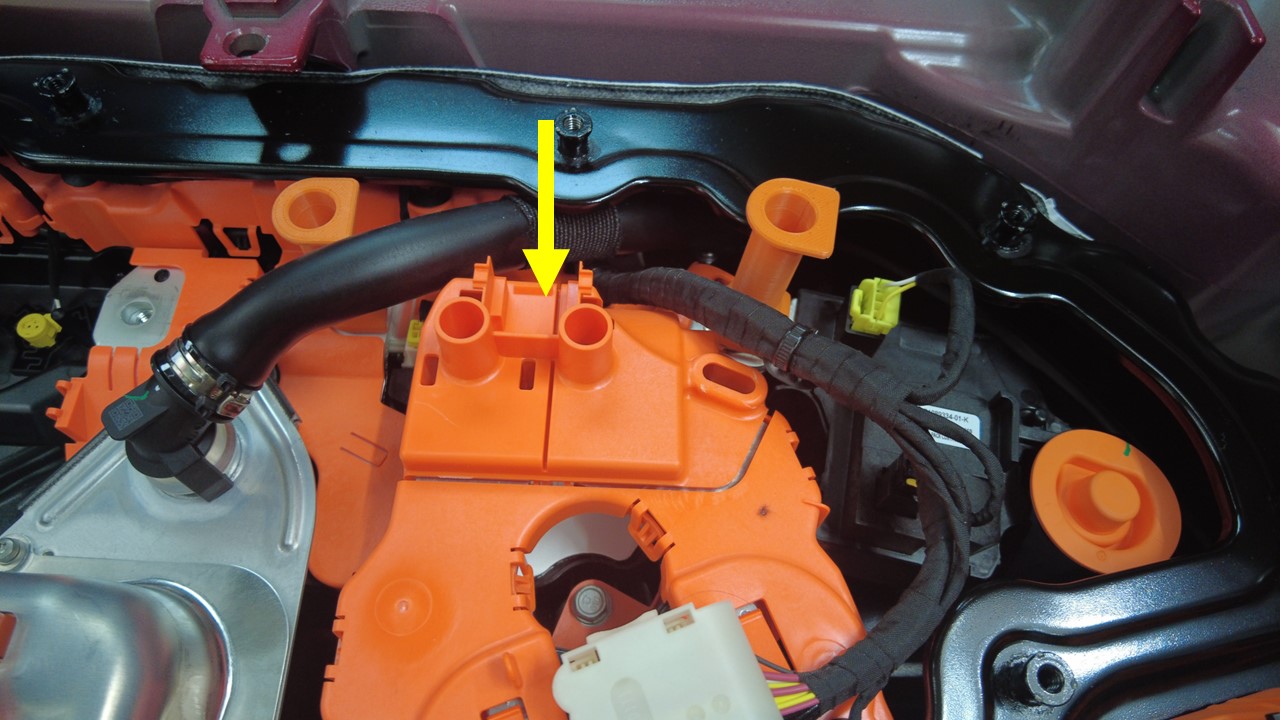

Release the tabs (x2) and datum to
remove the left terminals cover.
Replace
-

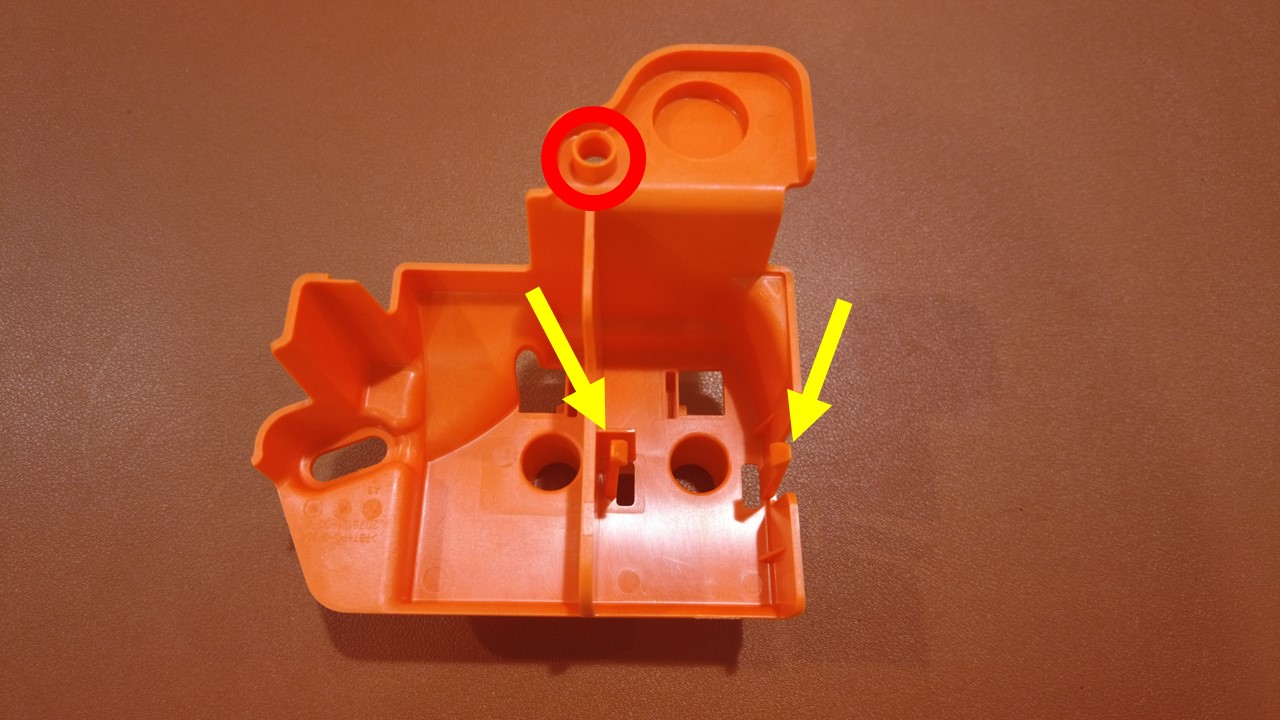

Align the tabs (x2) and datum, then install the left terminals cover.
-
Install the harness clip to the left terminals cover.
- Install the pyro disconnect. See Pyro Disconnect - HV Battery (Remove and Replace).
-
Remove the HVC logic cap.
- Install the ancillary bay cover. See Cover - Ancillary Bay (Model YL) (Remove and Install).
