Track Cover - Outboard - 2nd Row Seat - LH (7-Seat) (Remove and Replace)

Correction code 1302010301 1302010302 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH rear door and lower the LH rear window.

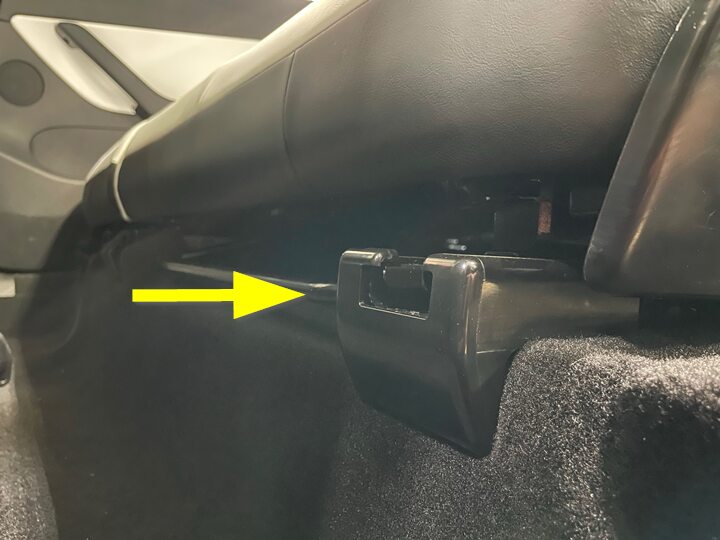

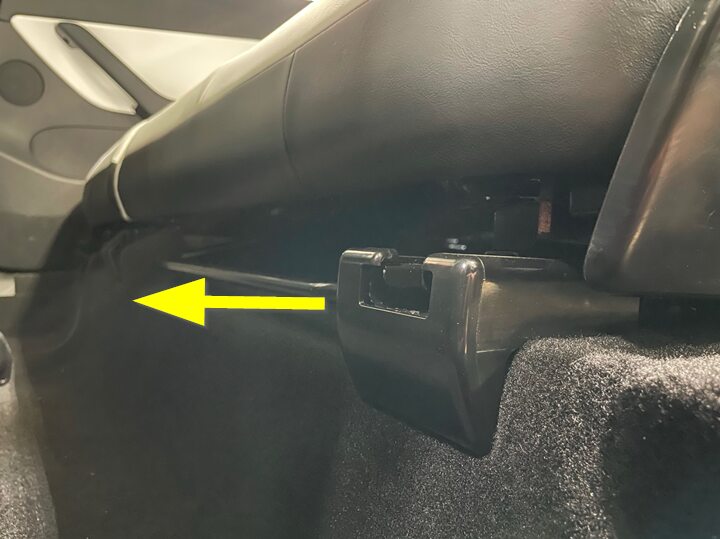

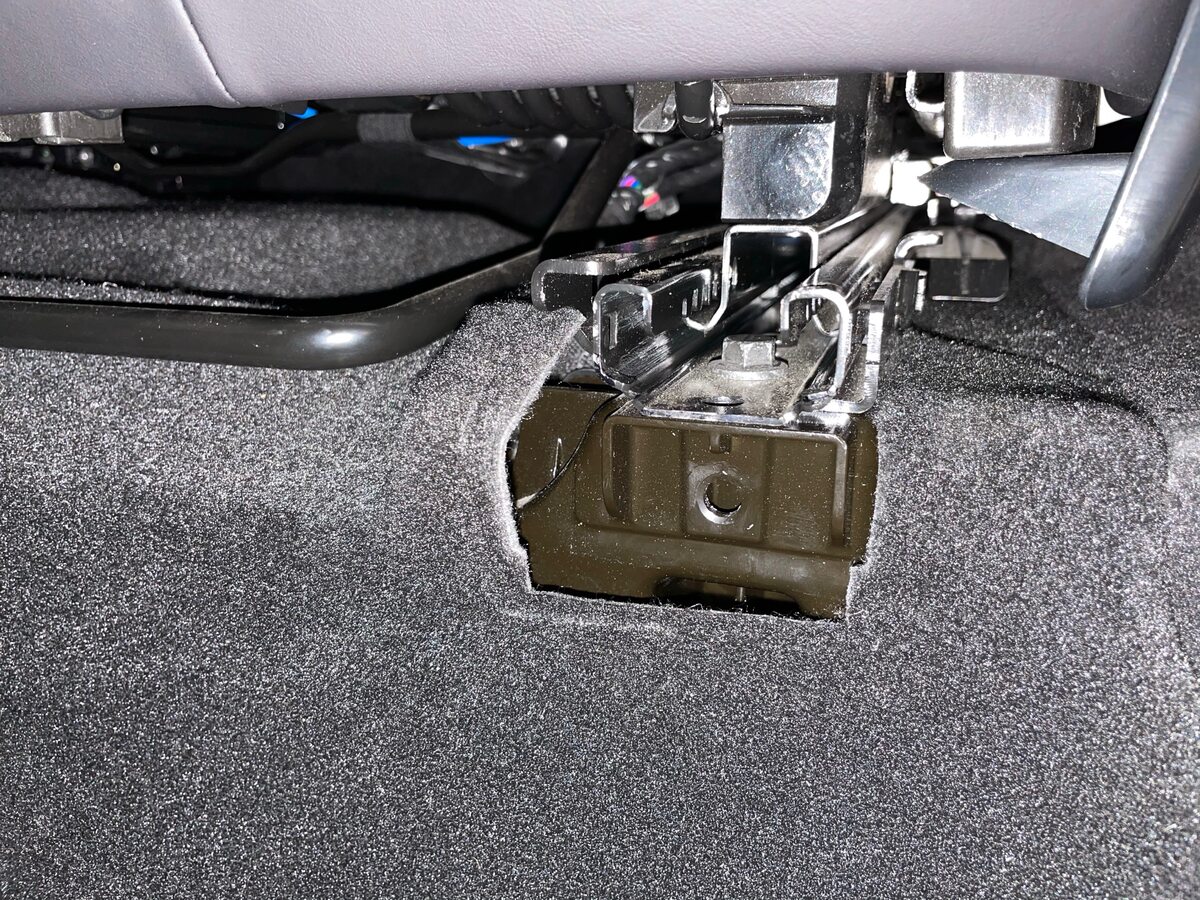

  2. Slide the the 2nd row LH seat outboard track cover forward to release it from the vehicle.

Install

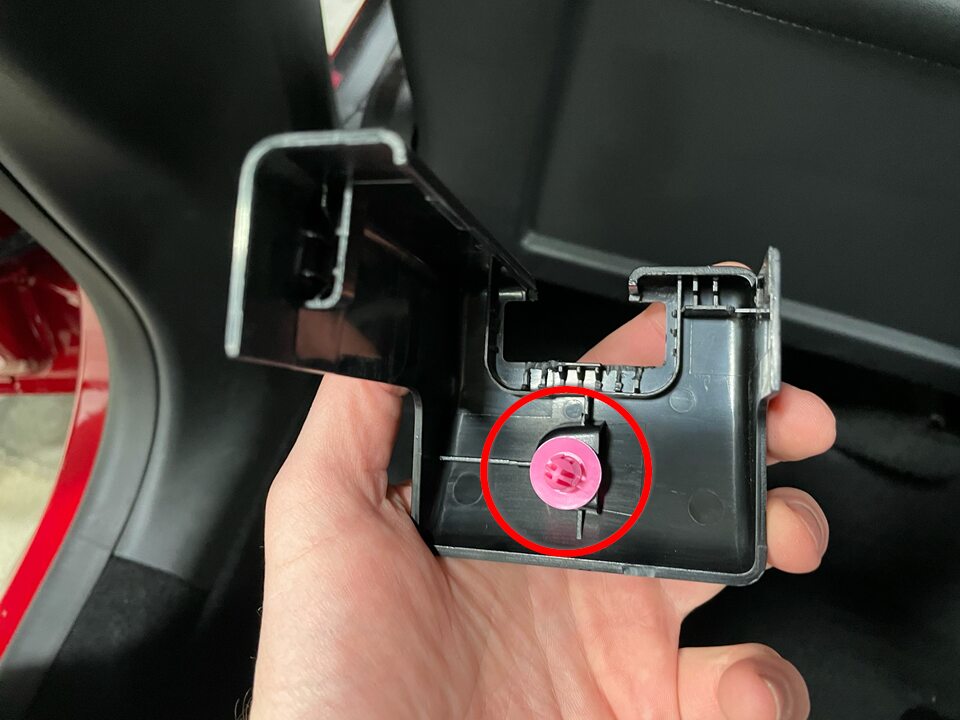

  1. Install the 2nd row LH seat outboard track cover and secure the clip.
  2. Raise the LH rear window and close the LH rear door.
