Tail Lamp - Liftgate (Remove and Replace)

Correction code 1740021002 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-06-09: Release new procedure.

Torque Specifications

Table 1. Torque Specifications: Tail Lamp - Liftgate (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (X4) that attach the liftgate applique to the tail lamp
1.5 Nm (1.1 lbs-ft)
  • Torx T10 bit
 Reuse
Note
Bolts and clips may vary by regions.
Bolts that attach the liftgate switch cover to the tail lamp assembly
1.5 Nm (1.1 lbs-ft)
  • Torx T20 bit
 Reuse
Note
The number of bolts may vary by region.
Note
Make sure the liftgate is closed during the process.

Remove

  1. Remove the liftgate tail lamp assembly. See Assembly - Tail Lamp - Liftgate (Remove and Install).
  2. Remove the bolts that attach the liftgate switch cover to the tail lamp assembly.
    Note
    The number of bolts may vary by region.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit

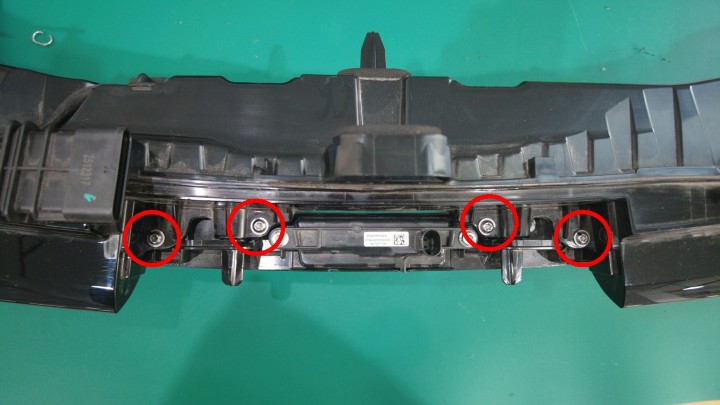

    Figure 1. 2 Bolts

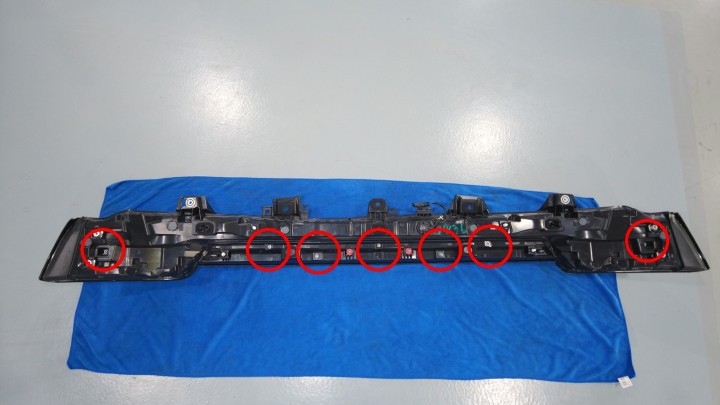

    Figure 2. 4 Bolts

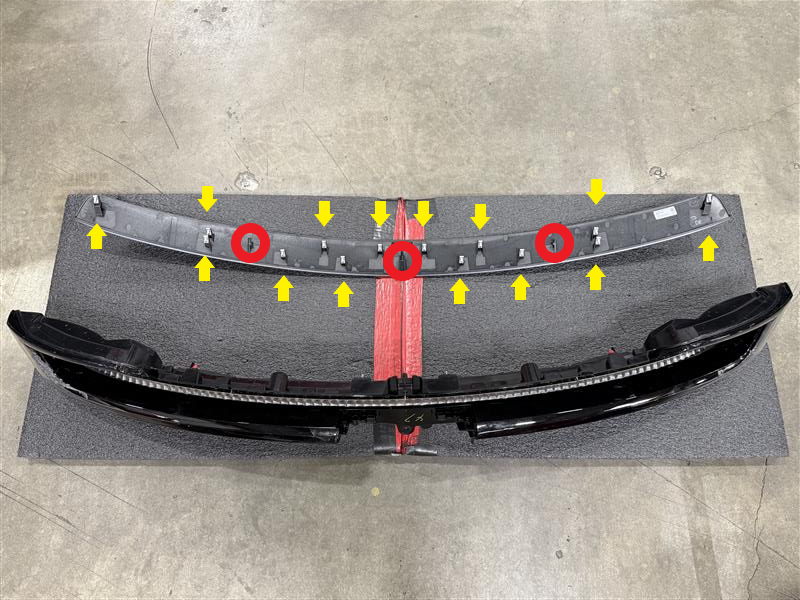

  3. Remove the bolts (x4) and clips (x14) that attach the liftgate applique to the tail lamp.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit

Install

  1. Install the bolts (x4) and clips (x14) that attach the liftgate applique to the tail lamp.
    1.5 Nm (1.1 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T10 bit
  2. Install the bolts that attach the liftgate switch cover to the tail lamp assembly.
    1.5 Nm (1.1 lbs-ft)
    Note
    The number of bolts may vary by region.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit

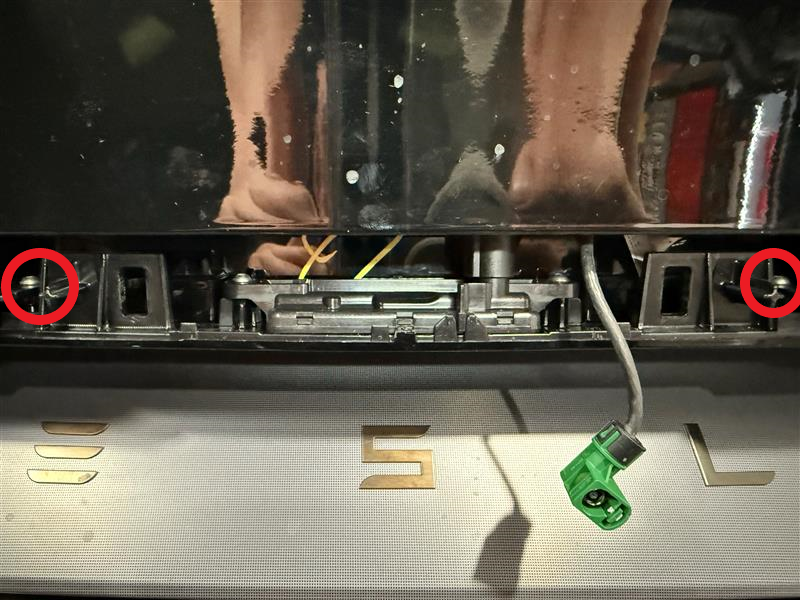

    Figure 3. 2 Bolts

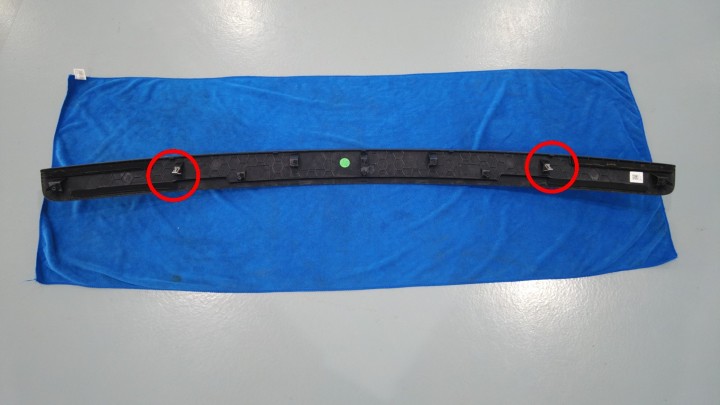

    Figure 4. 4 Bolts
  3. Install the liftgate tail lamp assembly. See Assembly - Tail Lamp - Liftgate (Remove and Install).
  4. Place the vehicle in Service Mode by using the touchscreen. See Service Mode.
  5. Unlock the vehicle gateway. See Gateway (Unlock).
  6. On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Driver Assist > Cameras > Clear Camera Calibration, select RearView in the Camera Selection drop list, click Run, and allow the routine to complete.
  7. Exit Service Mode. See Service Mode.
  8. Raise the LH front window and close the LH front door.
