Instrument Panel - Passenger Footwell Duct - RHD (Remove and Replace)
Correction code
1405031002
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Screw that attaches the glove box assembly to the IP carrier |
 2.3 Nm (1.7 lbs-ft) |
|
Reuse |
Remove
- Remove the passenger footwell cover. See Hush Panel - Footwell - Front Passenger (RHD) (Remove and Replace).
-

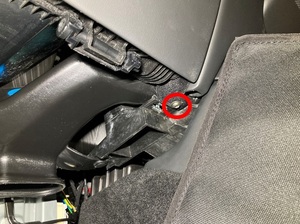

Remove the screw that attaches the
glove box assembly to the IP carrier.
TipUse of the following tool(s) is recommended:
- Torx T20 socket
-

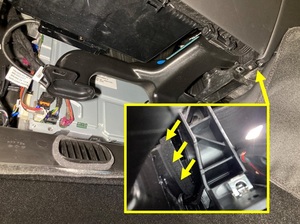

Release the clip that attaches the passenger footwell duct to the vehicle.
-

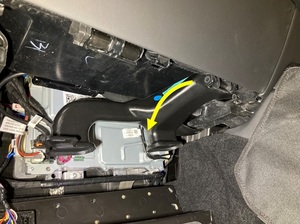

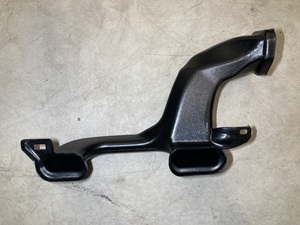

Maneuver the passenger footwell duct
out from between the IP carrier and the glove box.
Install
-
Maneuver the passenger footwell duct
into position between the IP carrier and the glove box, and then install the duct onto
the HVAC assembly.
-
Install the clip that attaches the passenger footwell duct to the vehicle.
-
Install the screw that attaches the glove box assembly to the IP carrier.2.3 Nm (1.7 lbs-ft)TipUse of the following tool(s) is recommended:
- Torx T20 socket
- Install the passenger footwell cover. See Hush Panel - Footwell - Front Passenger (RHD) (Remove and Replace).
