Glass Run Seal - Front Door - LH (Remove and Replace)
Correction code
1150010102
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
-

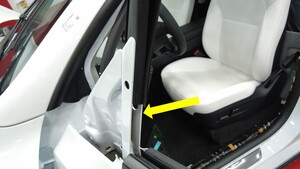

Remove the LH front exterior mirror assembly. See Exterior Mirror - LH (Remove and Replace).
NoteIt is not necessary to separate the LH door mirror glass and skull cap from the LH front exterior mirror assembly.
-

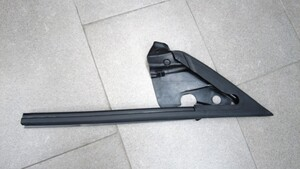

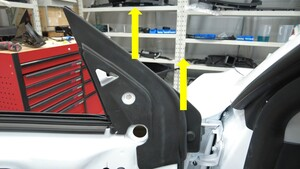

Pull upwards to remove the LH front door glass run seal from the LH front door.
Install
-
Position the LH front door glass run seal on the LH front door.
NoteApply a small amount of P80 lubricant on the length of the seal to aid installation.
- Install the LH front exterior mirror assembly. See Exterior Mirror - LH (Remove and Replace).
