USB Hub - 3rd Row Seat (Model YL) (Remove and Replace)
Correction code
13090101902
FRT
0.18
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the 3rd row seat charge port cover. See Cover - Charging Port - 3rd Row Seat - LH (Model YL) (Remove and Replace).
-

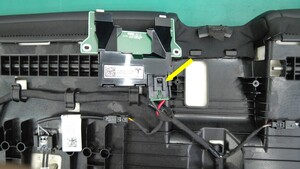

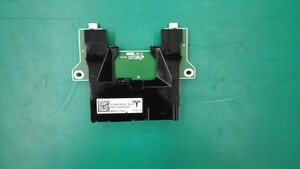

Disconnect the 3rd row seat USB hub connector, and then remove the USB hub from the
cushion assembly.
Install
-
Connect the 3rd row seat USB hub connector.
- Install the 3rd row seat charge port cover. See Cover - Charging Port - 3rd Row Seat - LH (Model YL) (Remove and Replace).
