Door Trim - Rear - LH (Remove and Install)

Correction code 1513020701 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Door Trim - Rear - LH (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the LH rear door trim panel to the door
6 Nm (4.4 lbs-ft)
  • Torx T30 socket
 Reuse

Remove

  1. Open the LH rear door and lower the LH rear window.
  2. Remove the bolts (x2) that attach the LH rear door trim panel to the door.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  3. Position an inflatable air bag in the gap between the door trim and the door.

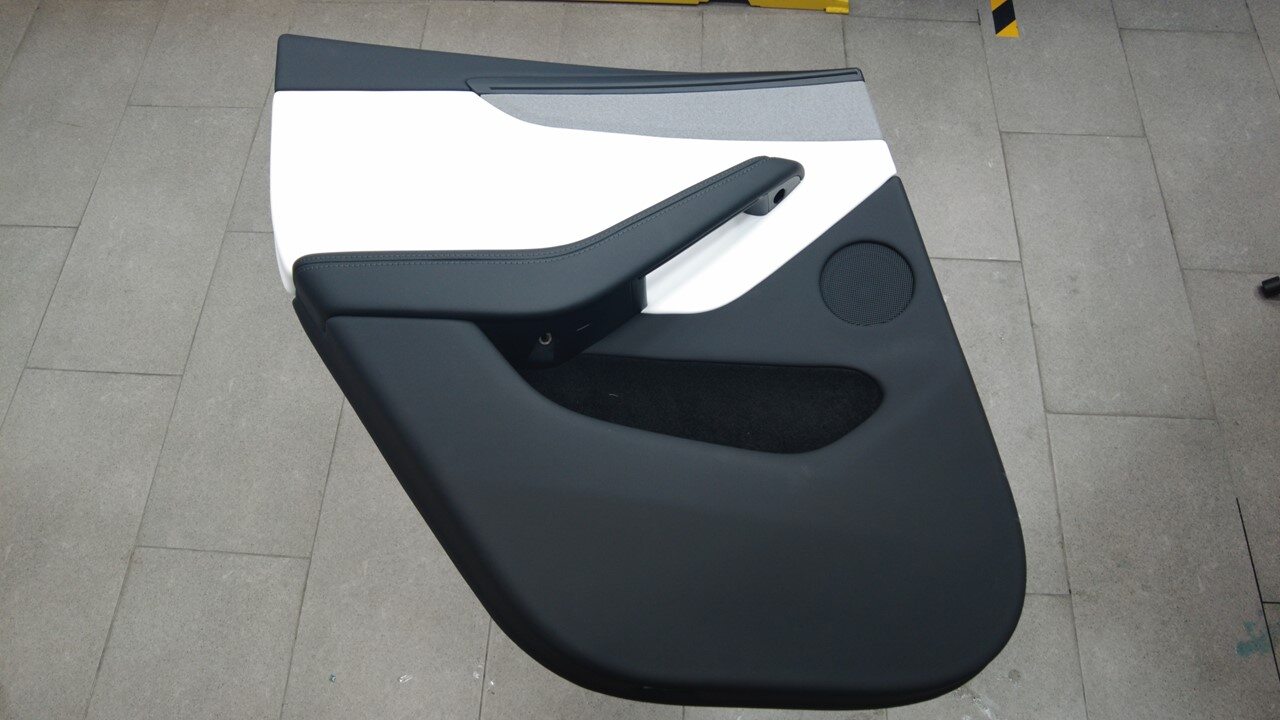

  4. Inflate the airbag to release the clips (x10) that attach the door trim panel to the door from bottom up, and then remove the trim panel.

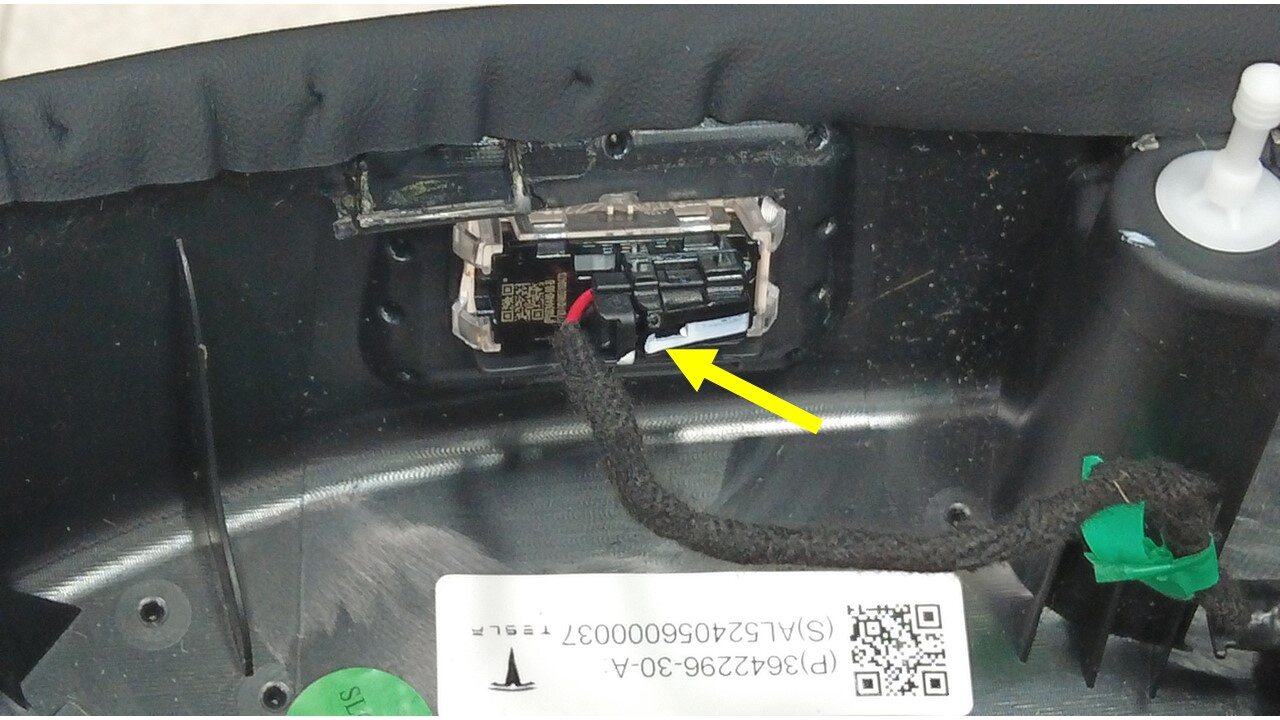

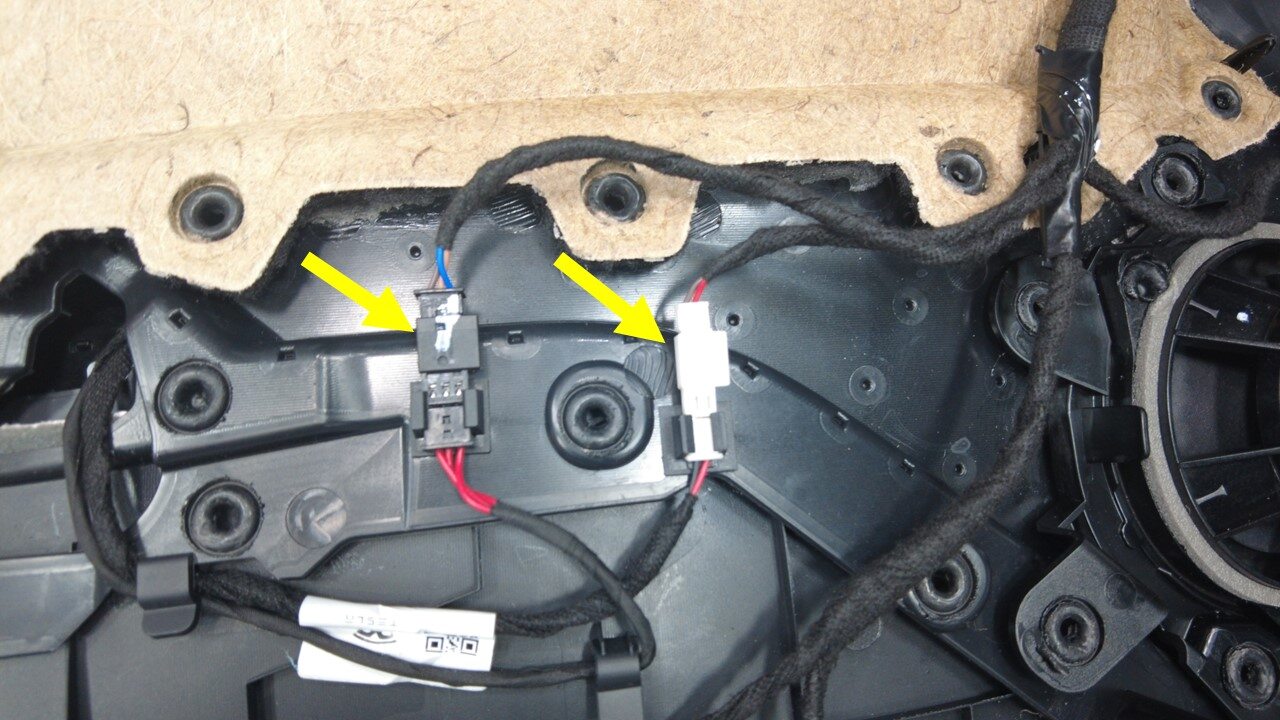

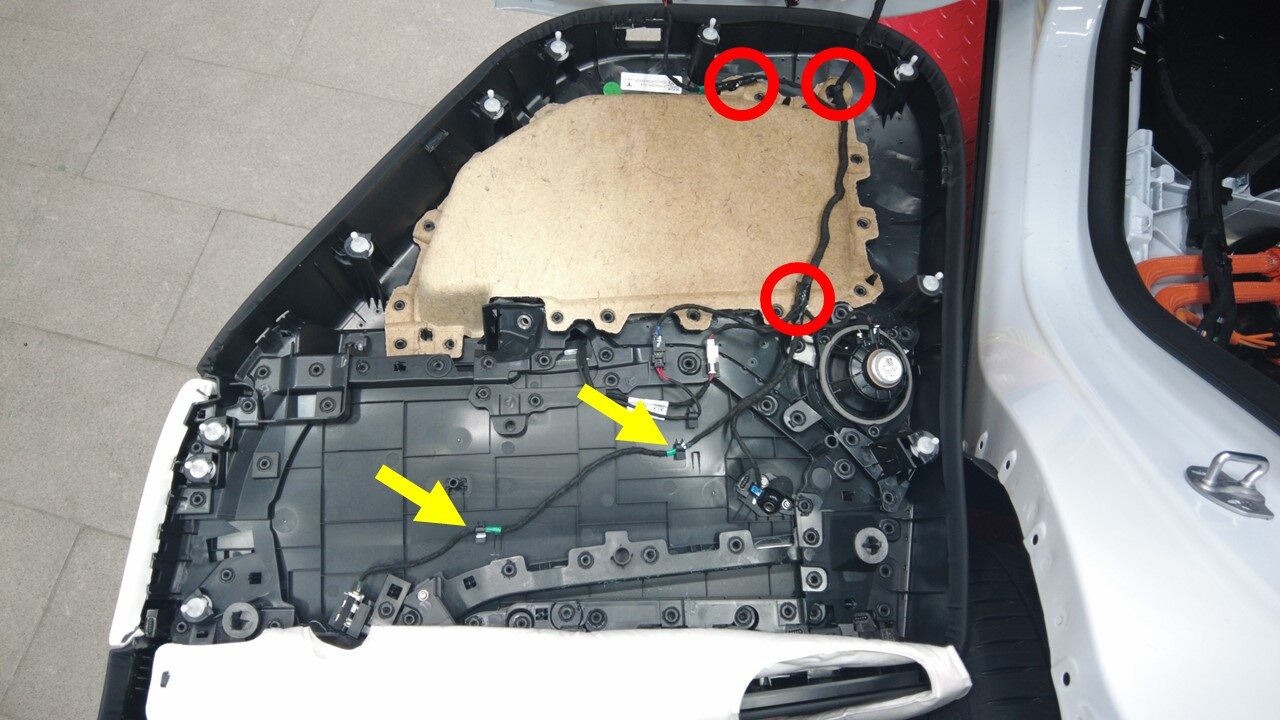

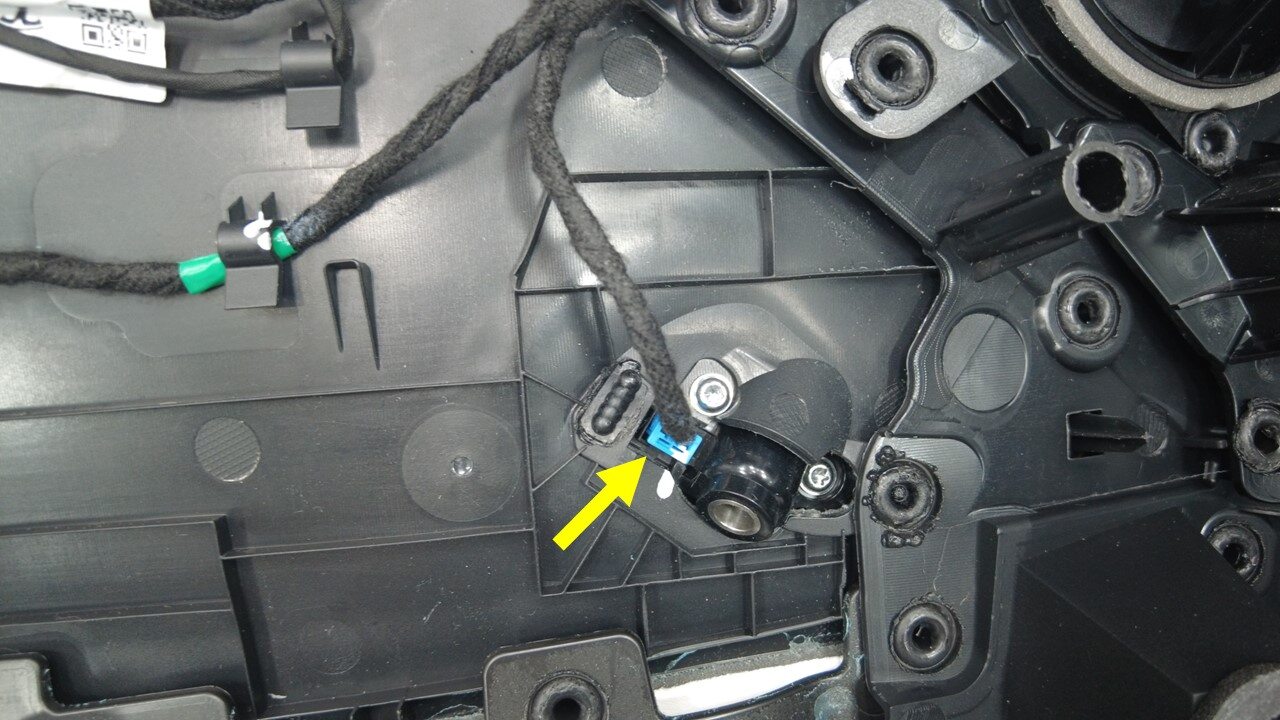

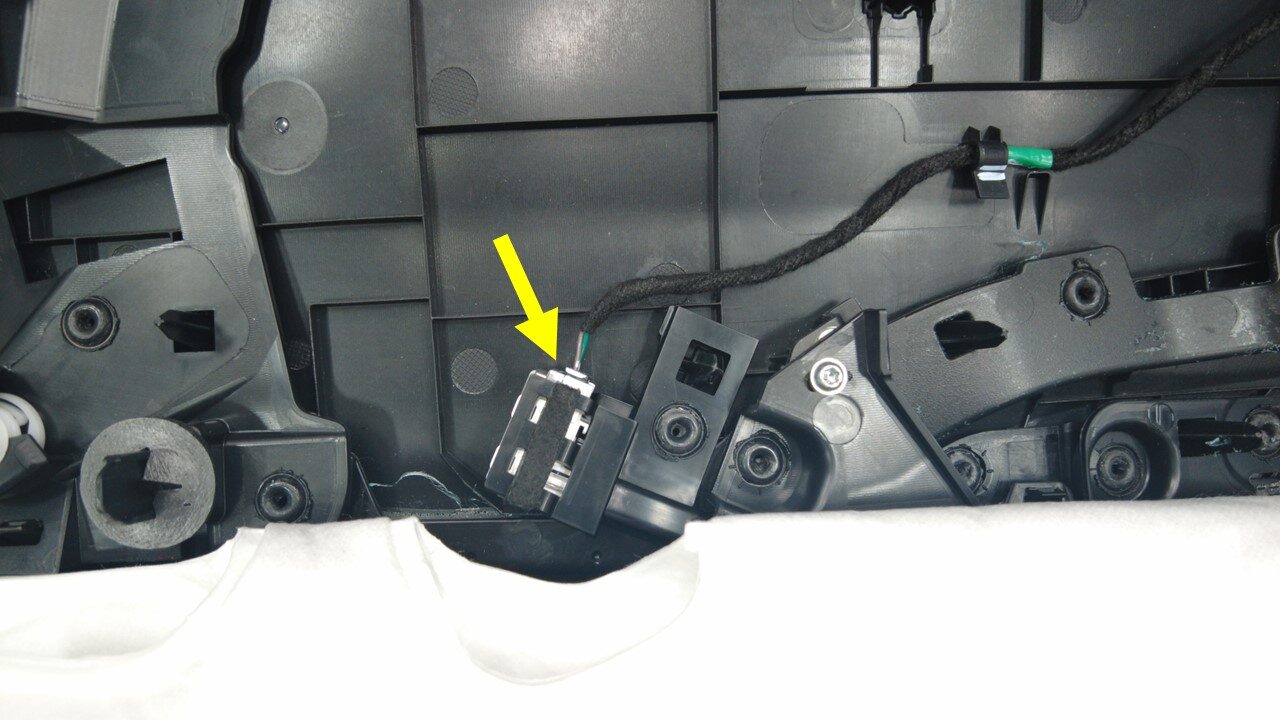

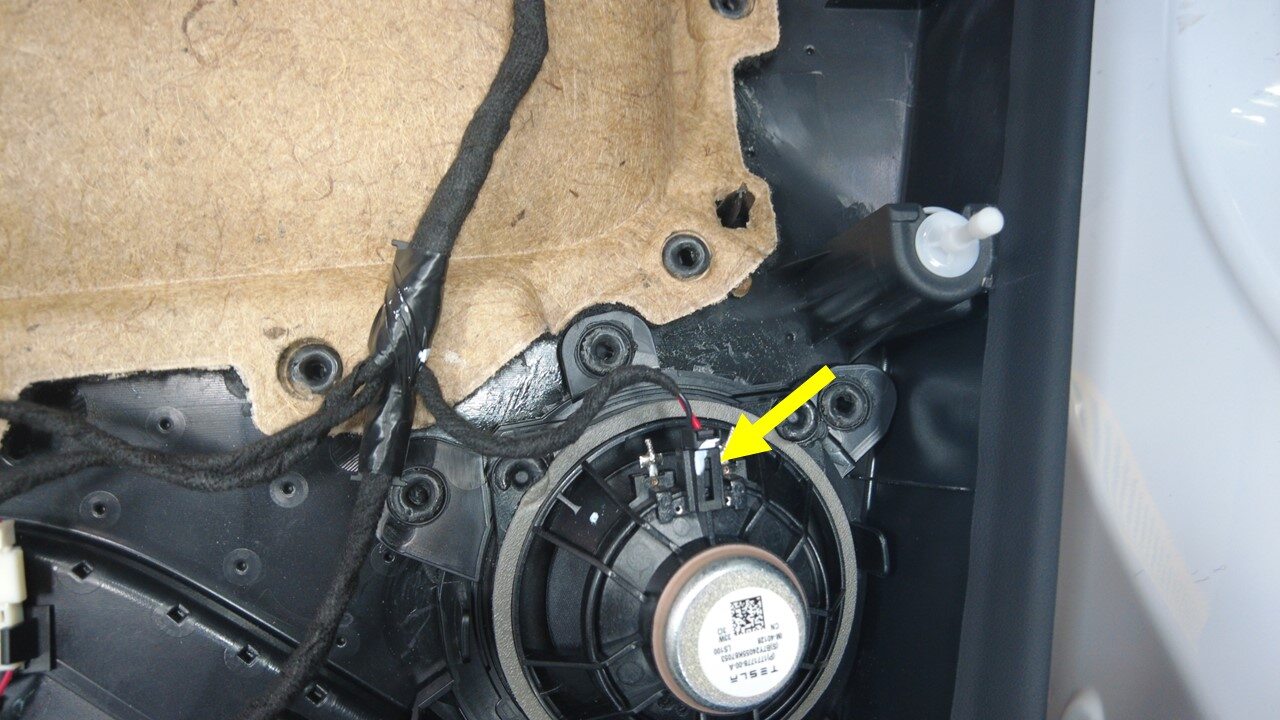

  5. Remove the harness from the LH rear door panel assembly.

Install

  1. Install the harness to the LH rear door panel assembly.
  2. Slide the top portion of door trim into the door seal, and then swing the bottom into position, then install the clips (x10) that attach the door trim panel to the door.
    Note
    Ensure all clips are seated. Replace any damaged clips.
  3. Install the bolts (x2) that attach the LH rear door trim panel to the door.
    6 Nm (4.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  4. Raise the LH rear window and close the LH rear door.
