Outer Seat Belt Buckle - 2nd Row - LH (7-Seat) (Remove and Replace)

Correction code 2005020502 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

CAUTION
Supplemental Restraint System (SRS) components can be hazardous if not serviced and handled correctly. See Airbag and Supplementary Restraint System (SRS) Precautions
CAUTION
In the event of an airbag or seatbelt pretensioner deployment, certain components must be replaced, and other components must be inspected for damage. Refer to the Collision Repair Manual for a specific list of items that must be inspected and replaced.

Remove

  1. Remove the 2nd row LH seatback assembly toe kick panel. See Cover - Toe Kick - 2nd Row - LH (7-Seat) (Remove and Replace).

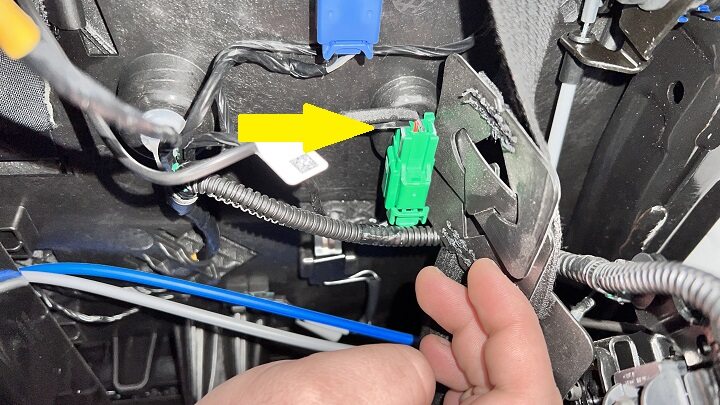

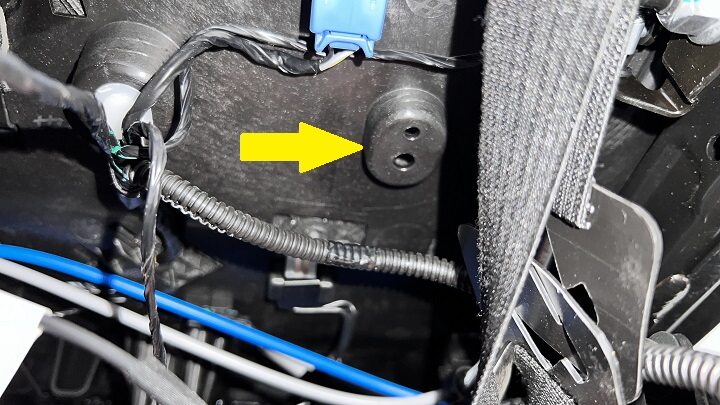

  2. Disconnect 2nd row LH seat belt buckle connector.
    Note
    Depress tab to release connector.

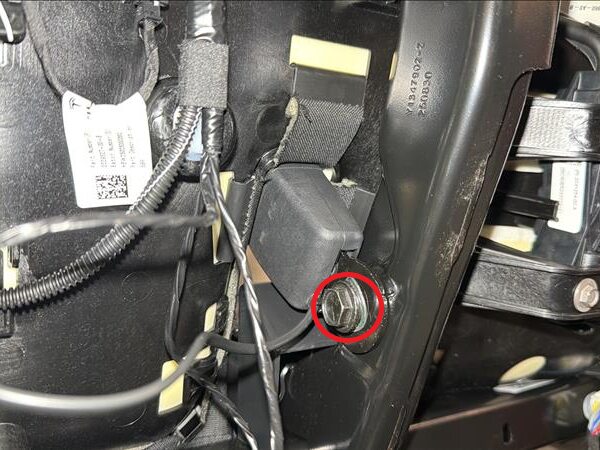

  3. Remove 2nd row LH outer seat belt buckle.
    Tip
    Use of the following tool(s) is recommended:
    • 15 mm deep socket
    Note
    Discard after removal.

Install

  1. Install 2nd row LH outer seat belt buckle。
    40 Nm (29.5 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 15 mm deep socket
    Note
    Install new patch bolt.

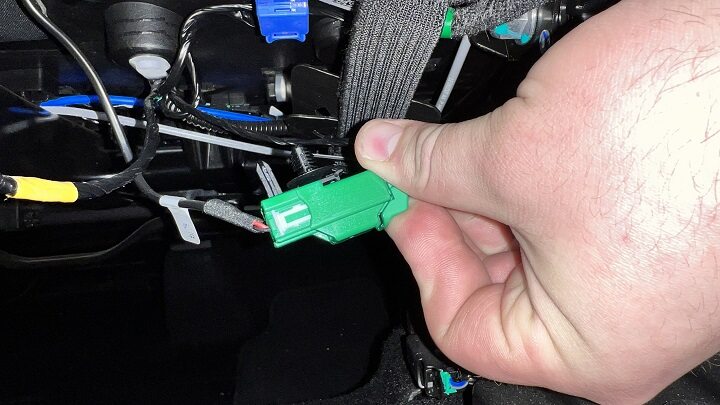

  2. Connect 2nd row LH seat belt buckle connector.
  3. Install the 2nd row LH seatback assembly toe kick panel. See Cover - Toe Kick - 2nd Row - LH (7-Seat) (Remove and Replace).
