Interior Radar (Model Y Standard) (Remove and Replace)

Correction code 1720010312 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-05-20: Released new procedure.

Torque Specifications

Table 1. Torque Specifications: Interior Radar (Model Y Standard) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the interior radar to the body
10 Nm (7.4 lbs-ft)
  • 10 mm deep socket

    or

  • Torx Plus EP30 socket
 Reuse Do not use regular Torx if the fastener is Torx Plus.

Remove

  1. Open the front doors and lower the windows.

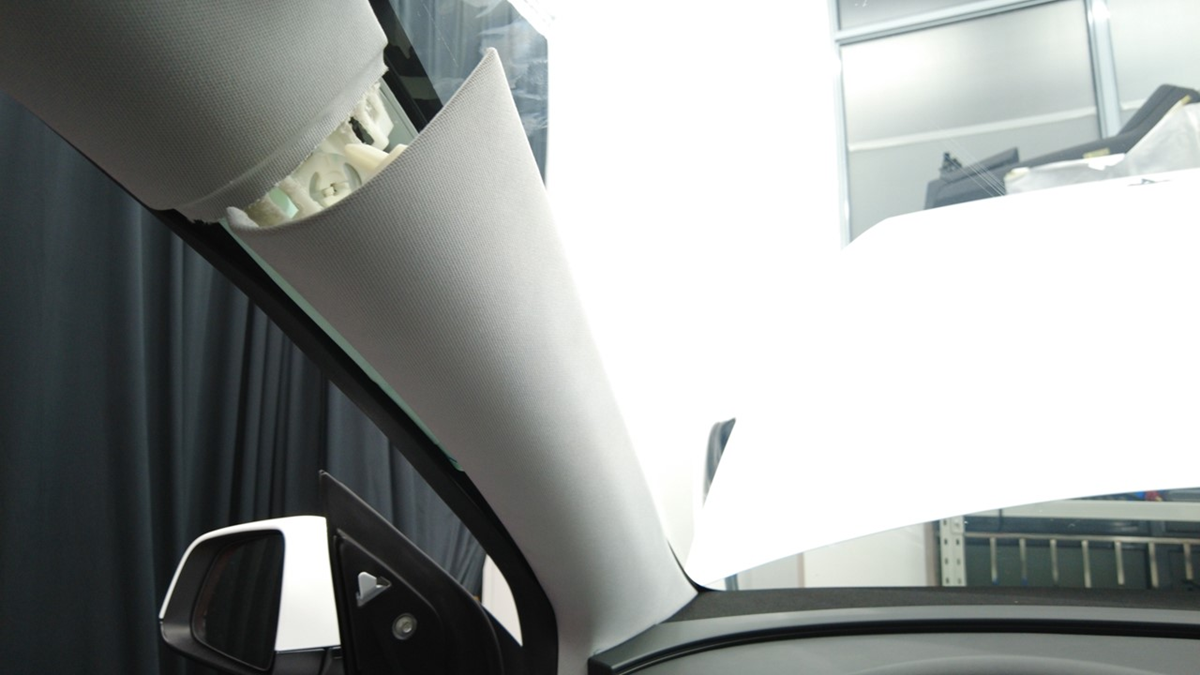

  2. Partially remove the LH A-pillar trim.
    Note
    4x clips, 1x datum. Pull inwards at upper section of trim to release. The trim does not need to be fully removed. Allow trim to hang it from the tether.
  3. Remove the LH sun visor. See Sun Visor - LH (Remove and Replace).

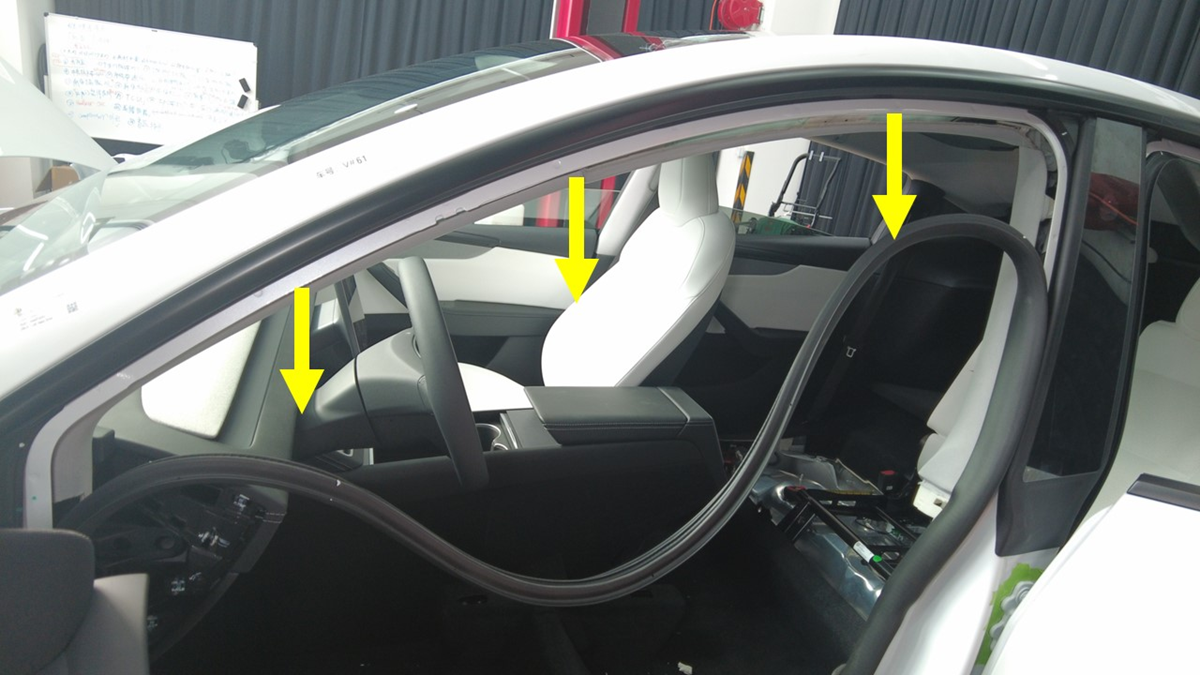

  4. Partially remove the LH front primary seal from the body.
    Note
    Start from the upper corner closest to upper B-pillar. Pull straight down along the length of the seal.
  5. Repeat steps 2 to 4 at the RH side of the vehicle.
  6. Release the clips (x5) that attach the front center of the headliner to the body to gain access to the interior radar.
    CAUTION
    Take care not to bend the headliner. Replace any damaged clips.

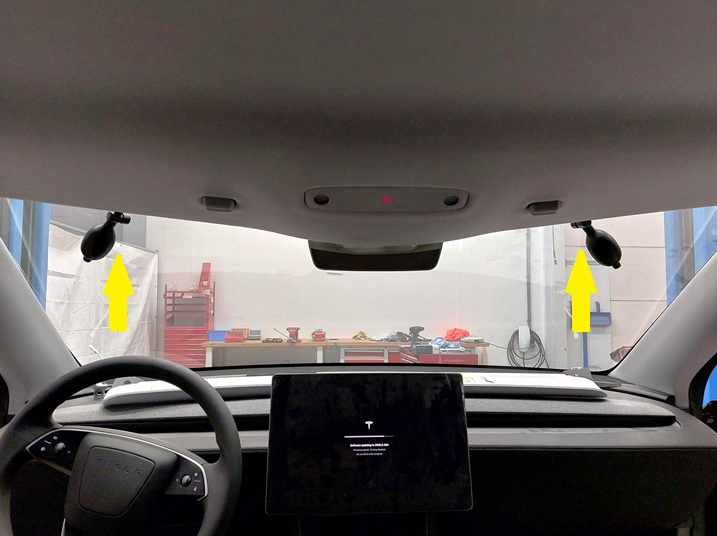

  7. Install inflatable airbags under the headliner.
  8. Disconnect the interior radar connector.
  9. Remove the bolt that attaches the interior radar to the body, then use a clip pry tool to release the clip, and then remove the interior radar from the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

      or

    • Torx Plus EP30 socket

Install

  1. Fasten the clip, and then install the bolt that attaches the interior radar to the body.
    10 Nm (7.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

      or

    • Torx Plus EP30 socket
  2. Connect the interior radar connector.

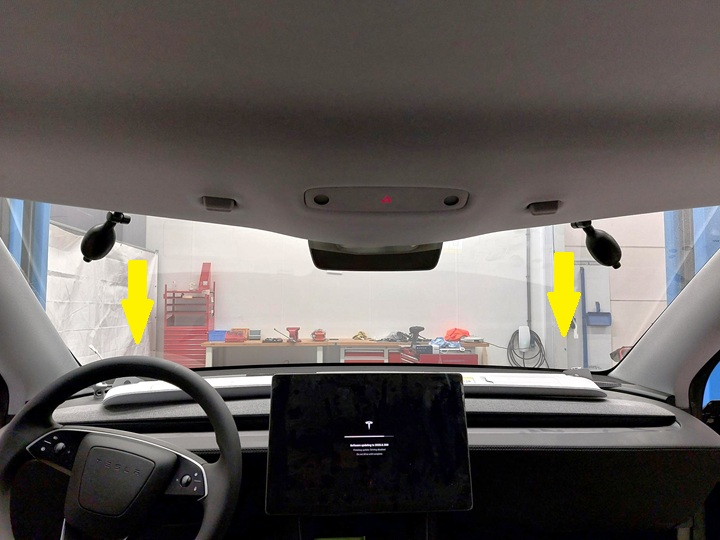

  3. Remove the inflatable airbags from in between the headliner.
  4. Install the clips that attach the front center of the headliner to the body.
    CAUTION
    Take care not to bend the headliner. Replace any damaged clips.
  5. Reinstall the LH sun visor. See Sun Visor - LH (Remove and Replace)
  6. Reinstall the LH A-pillar trim.
  7. Reinstall the LH front primary seal.
  8. Repeat steps 5 to 7 on the RH side of the vehicle.
  9. Reinstall the software. See Software Reinstall - Touchscreen.
  10. Raise the windows and close the doors.
