Mount - LH - 4DU (Remove and Install)

Correction code 4001010601 FRT 1.92 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Mount - LH - 4DU (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
LH mount bolt (X1) securing drive unit to subframe
80 Nm (59.0 lbs-ft)
  • 18 mm socket
  • Cordless Ratchet/Impact Driver
 Reuse Use a pry to aid as needed, do not damage drive unit casting
Bolts (X3) securing LH mount assembly to RDU
35 Nm (25.8 lbs-ft) +55 degree
  • External Torx E14
  • Cordless Ratchet/Impact Driver
 Replace

Remove

  1. Partially lower the rear subframe and drive unit assembly. See Rear Subframe (Remove and Replace)

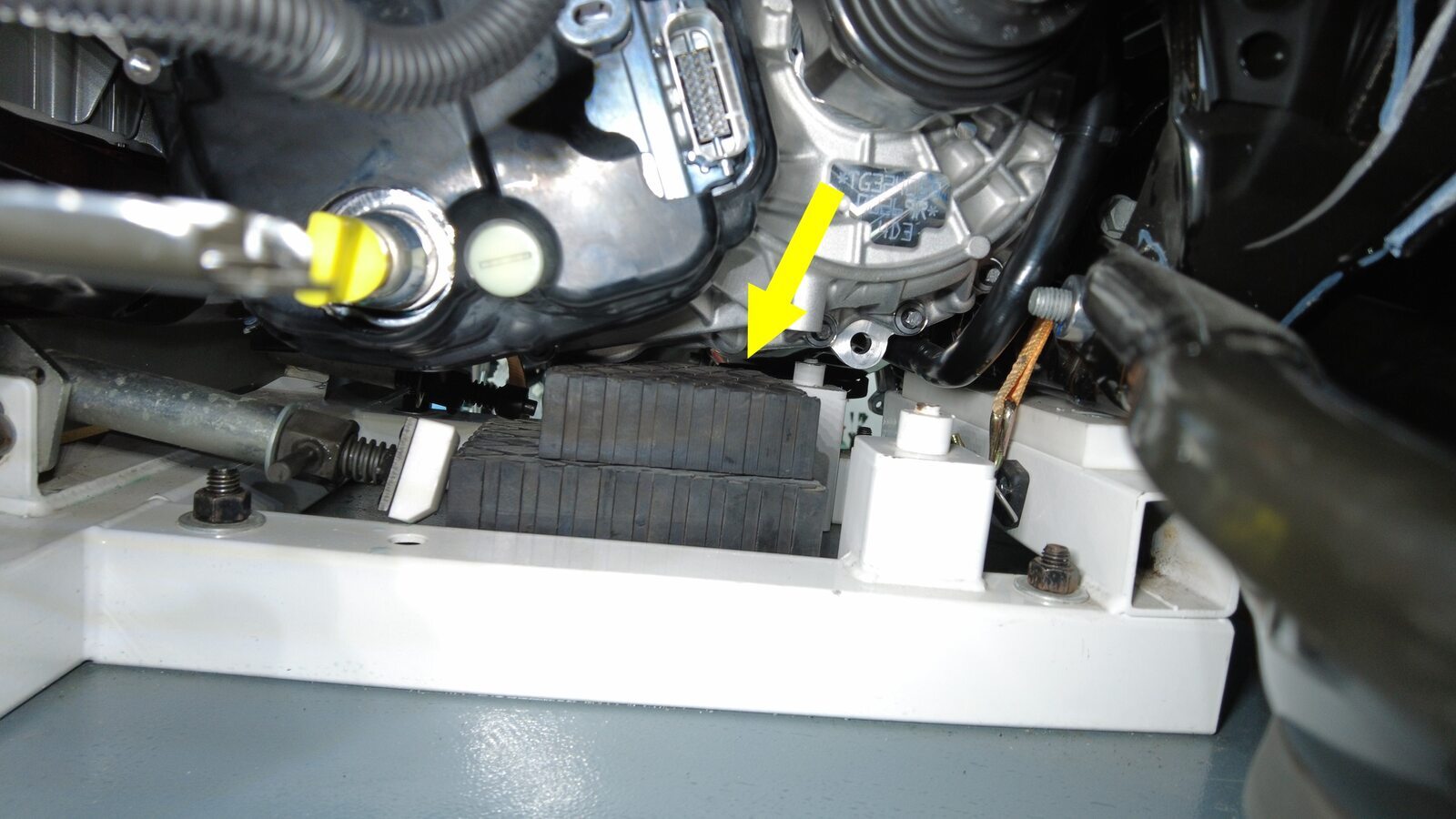

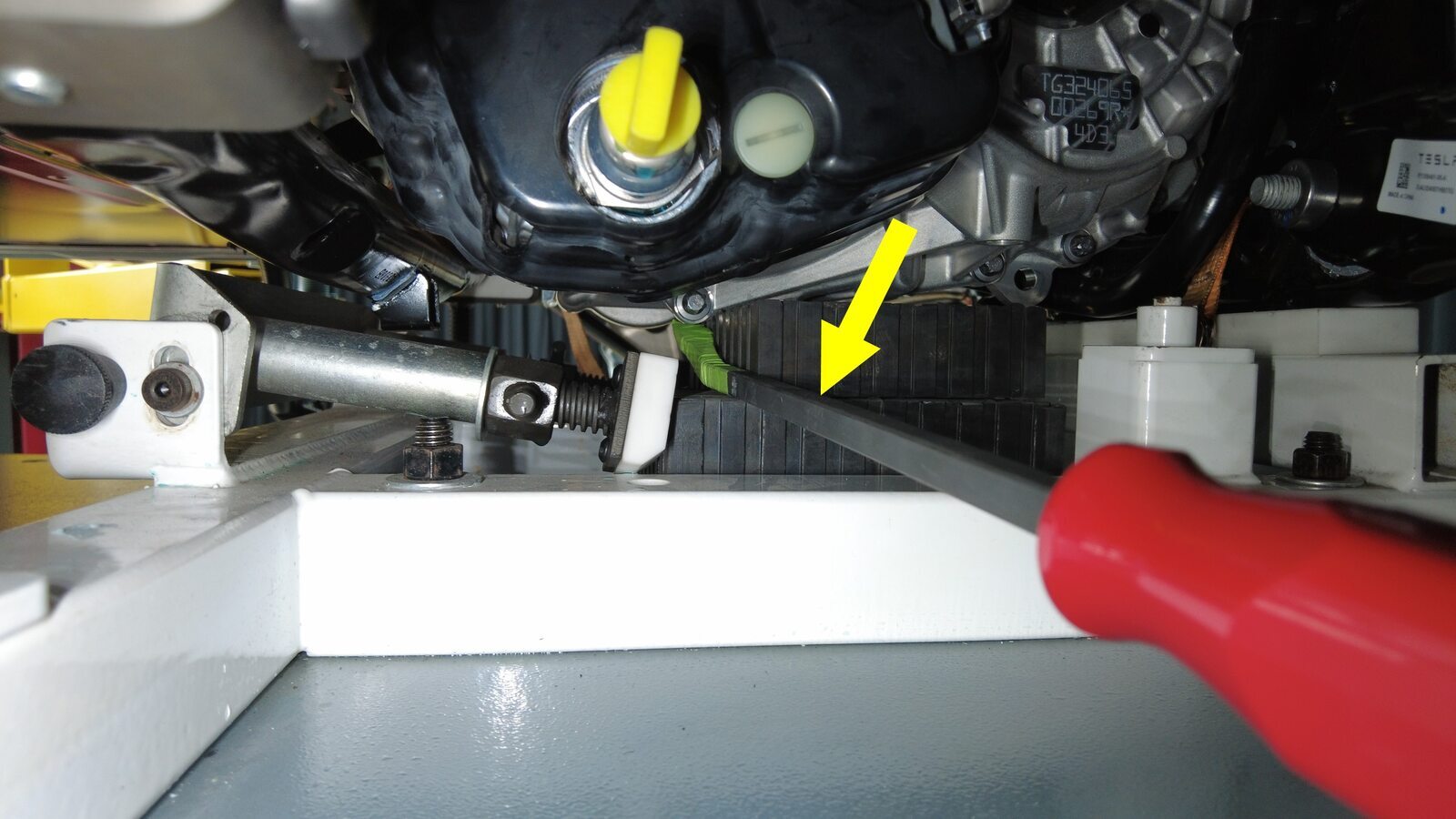

  2. Support center of the rear drive unit with protective block.

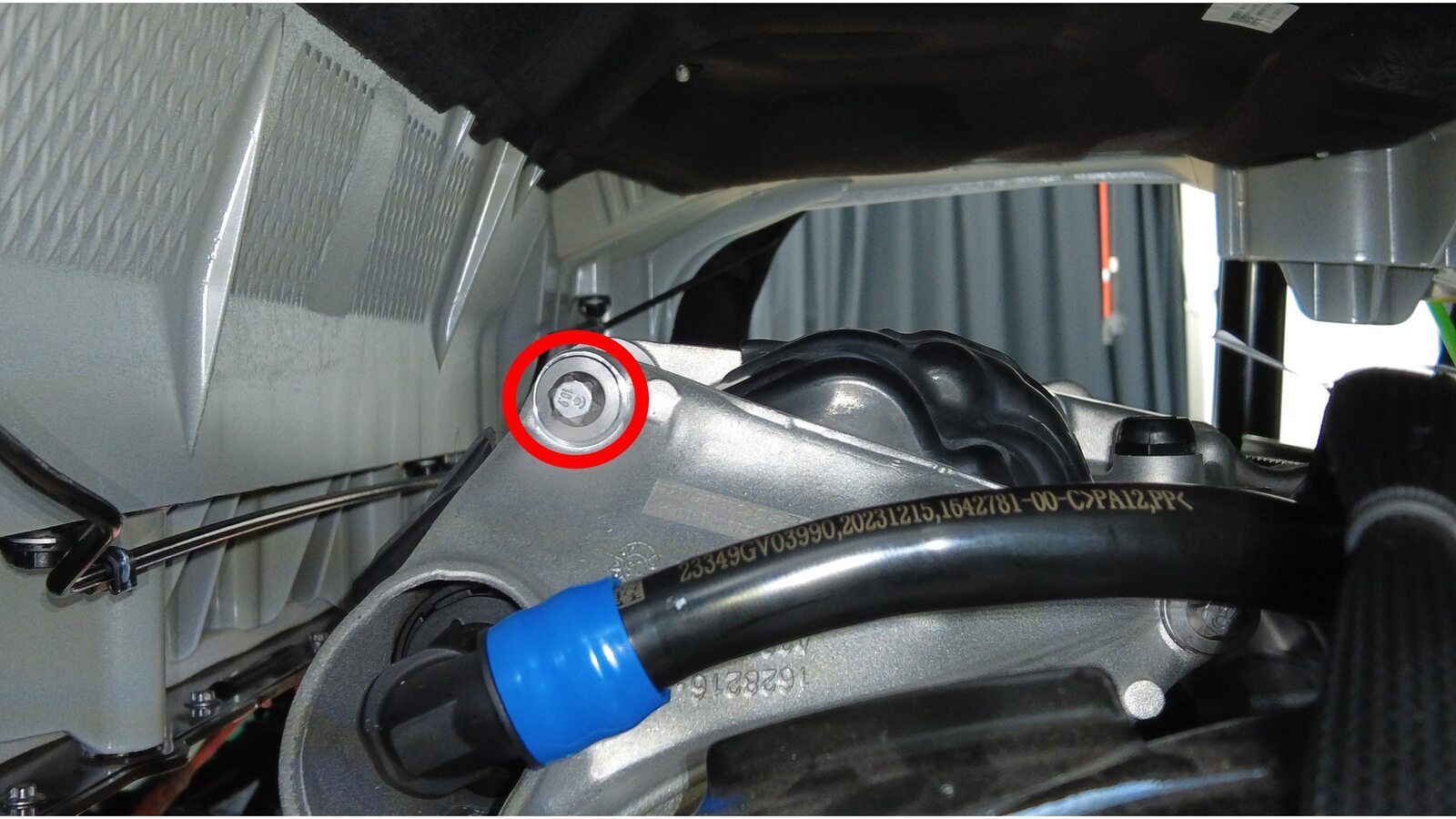

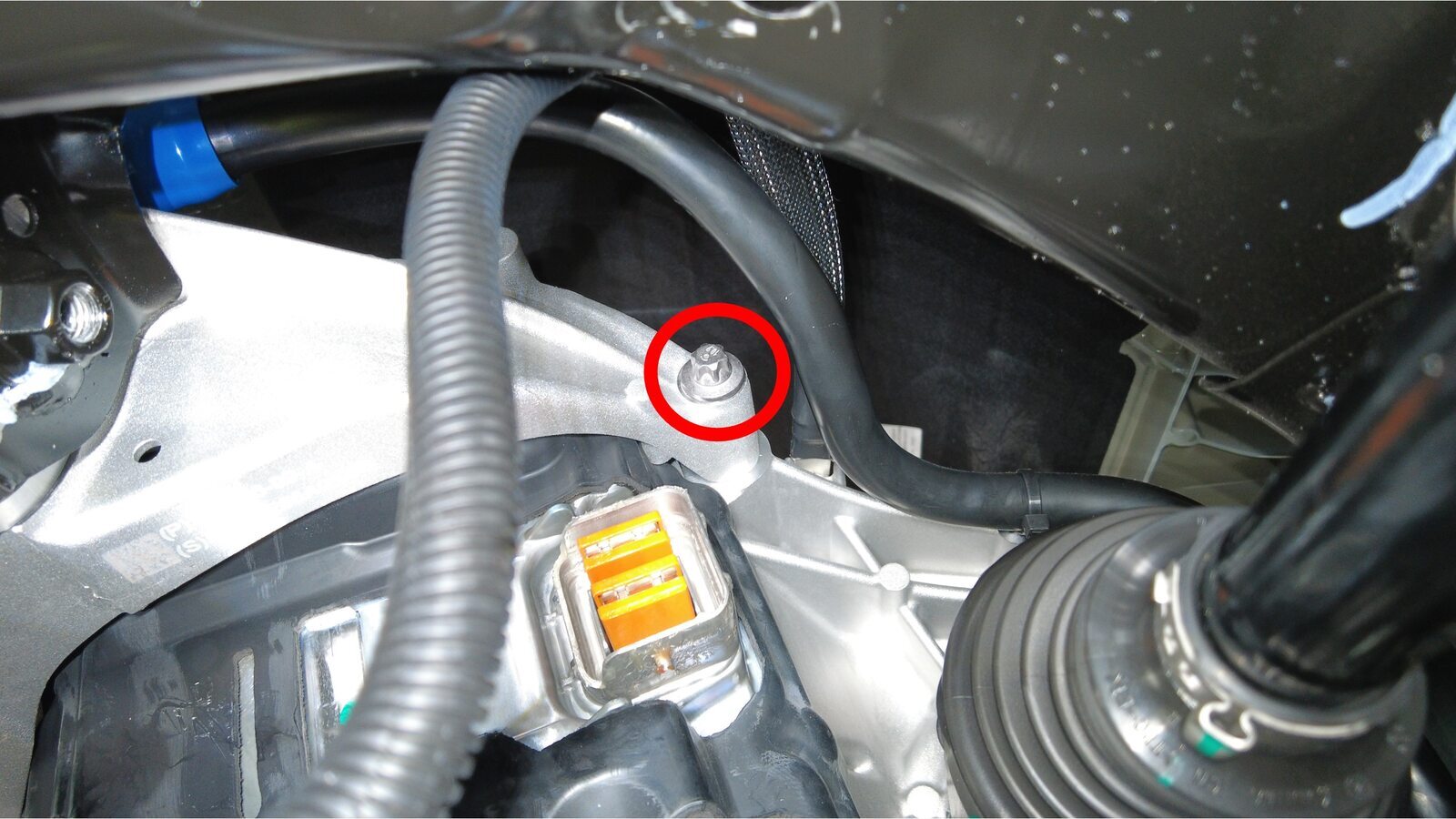

  3. Remove LH mount bolt securing drive unit to subframe.
    Tip
    Use of the following tool(s) is recommended:
    • 18 mm socket
    • Cordless Ratchet/Impact Driver

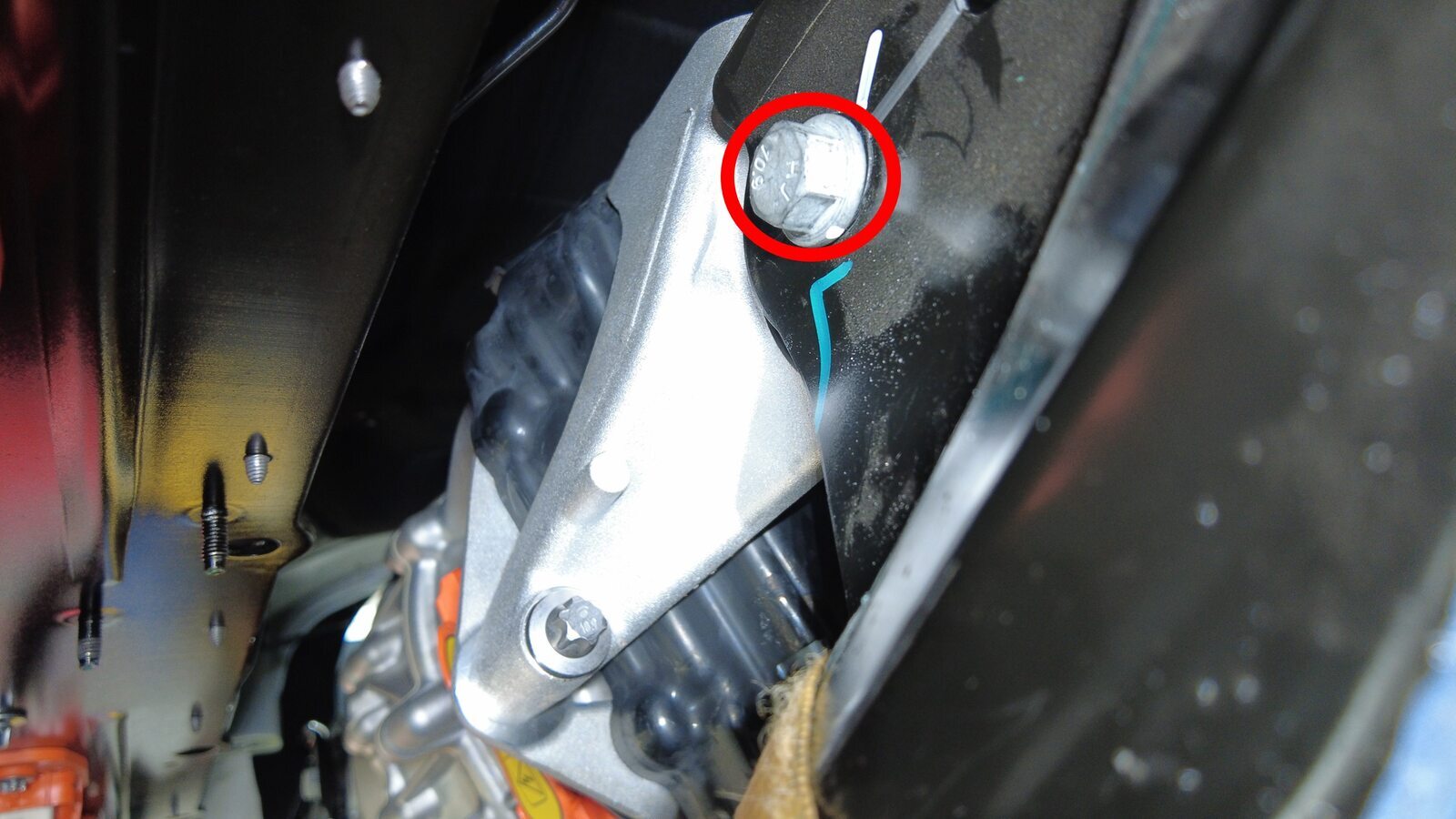

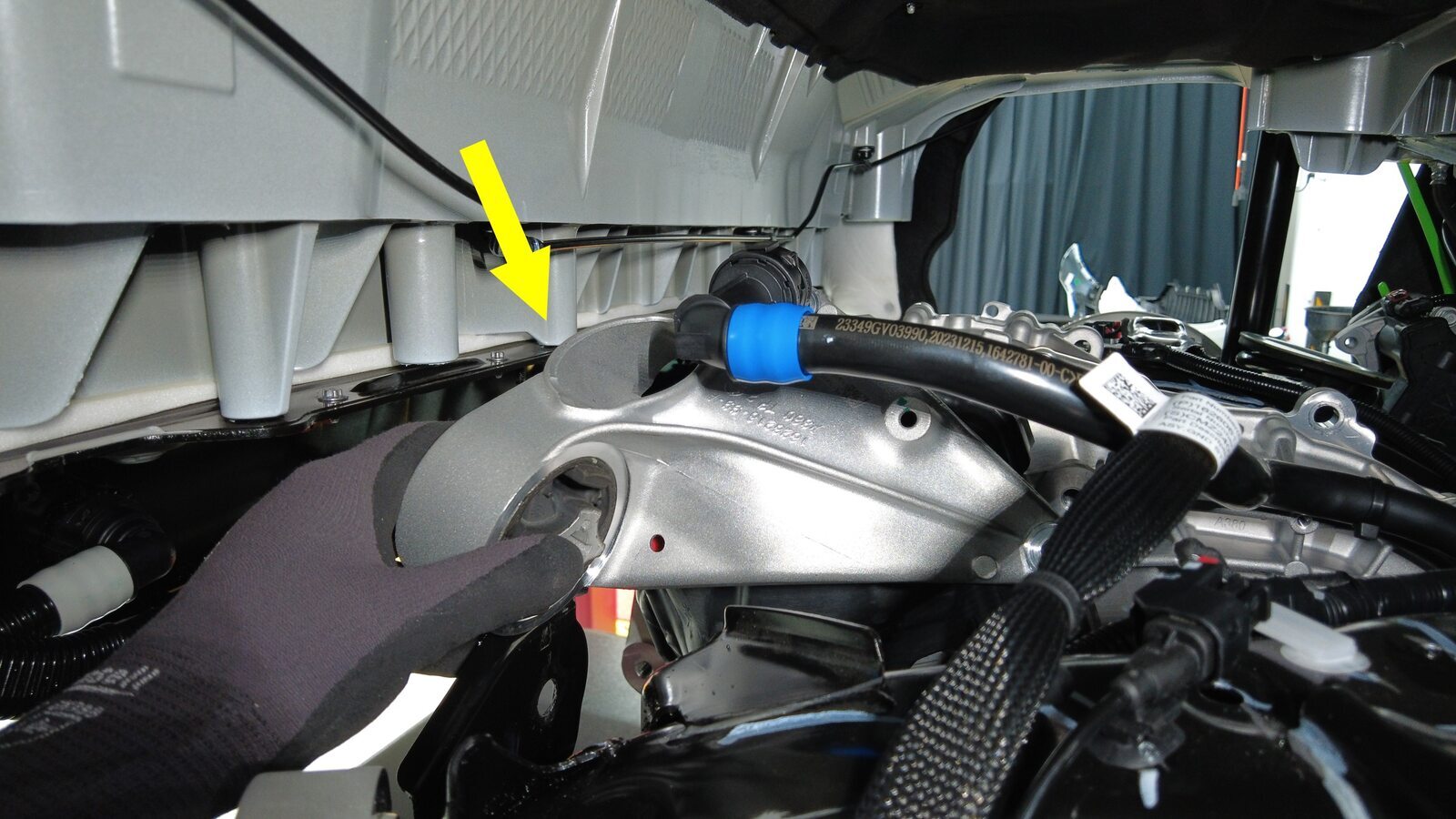

  4. Remove bolts securing LH mount assembly to rear drive unit.
    Tip
    Use of the following tool(s) is recommended:
    • External Torx E14
    • Cordless Ratchet/Impact Driver

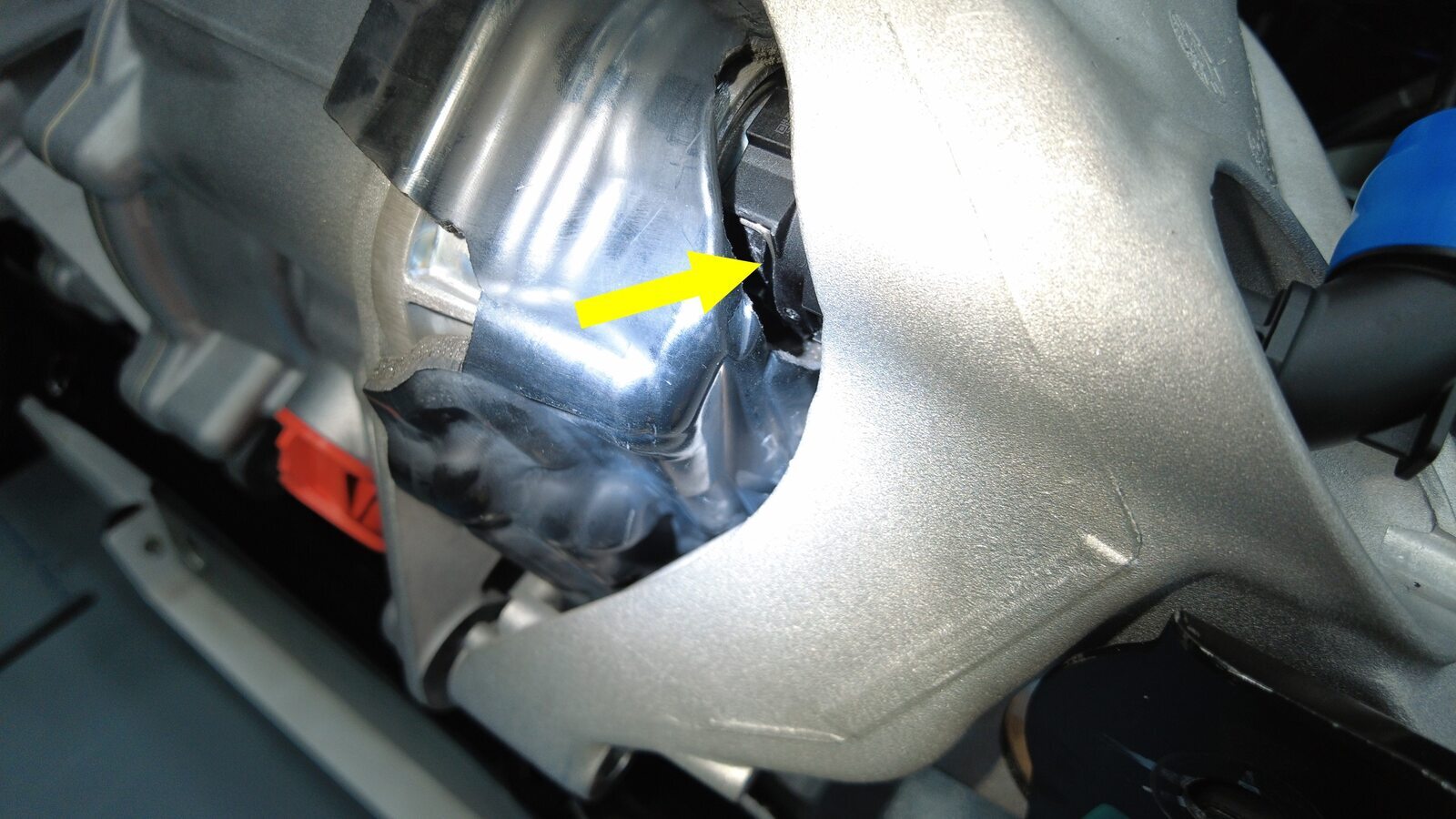

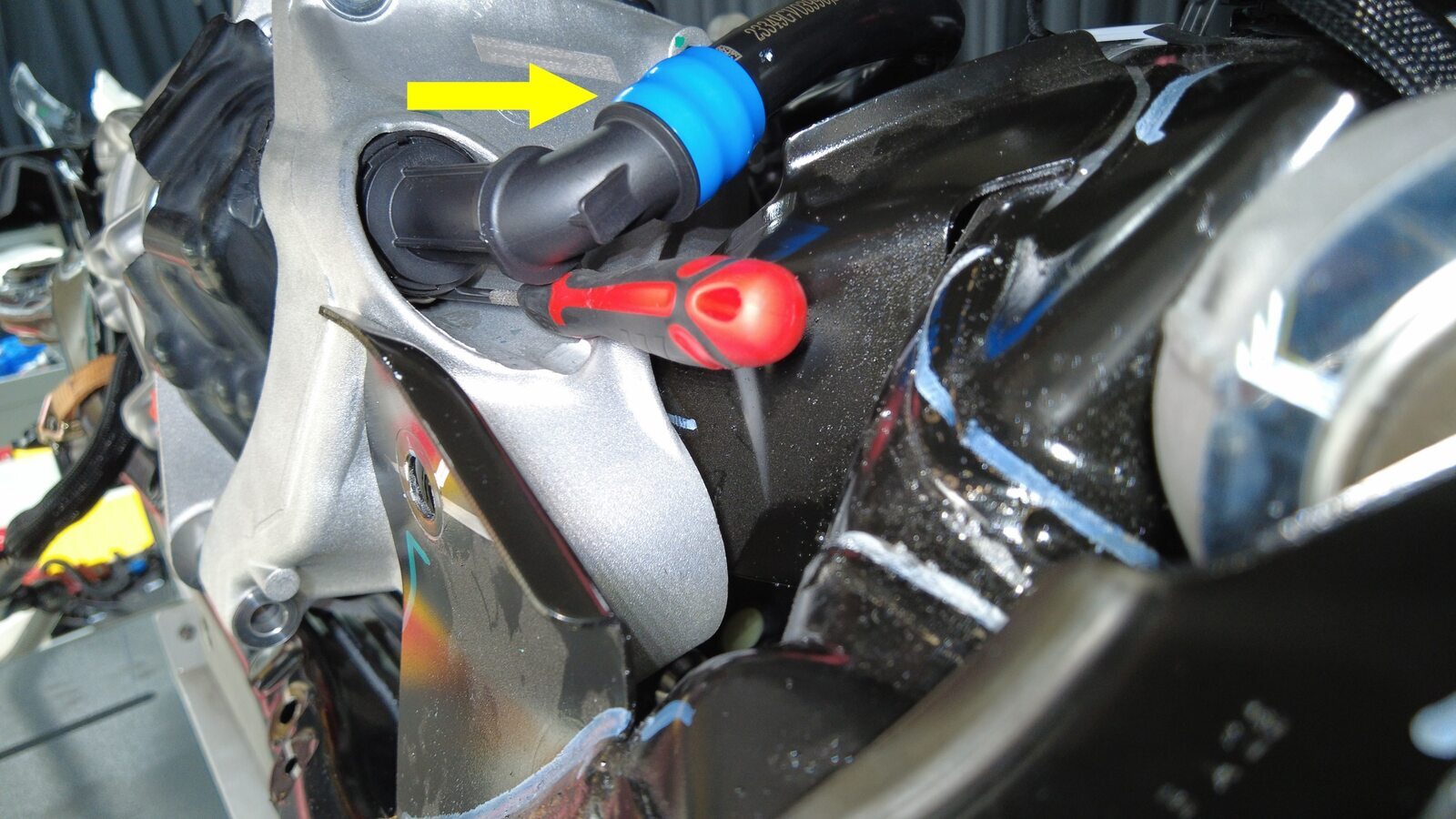

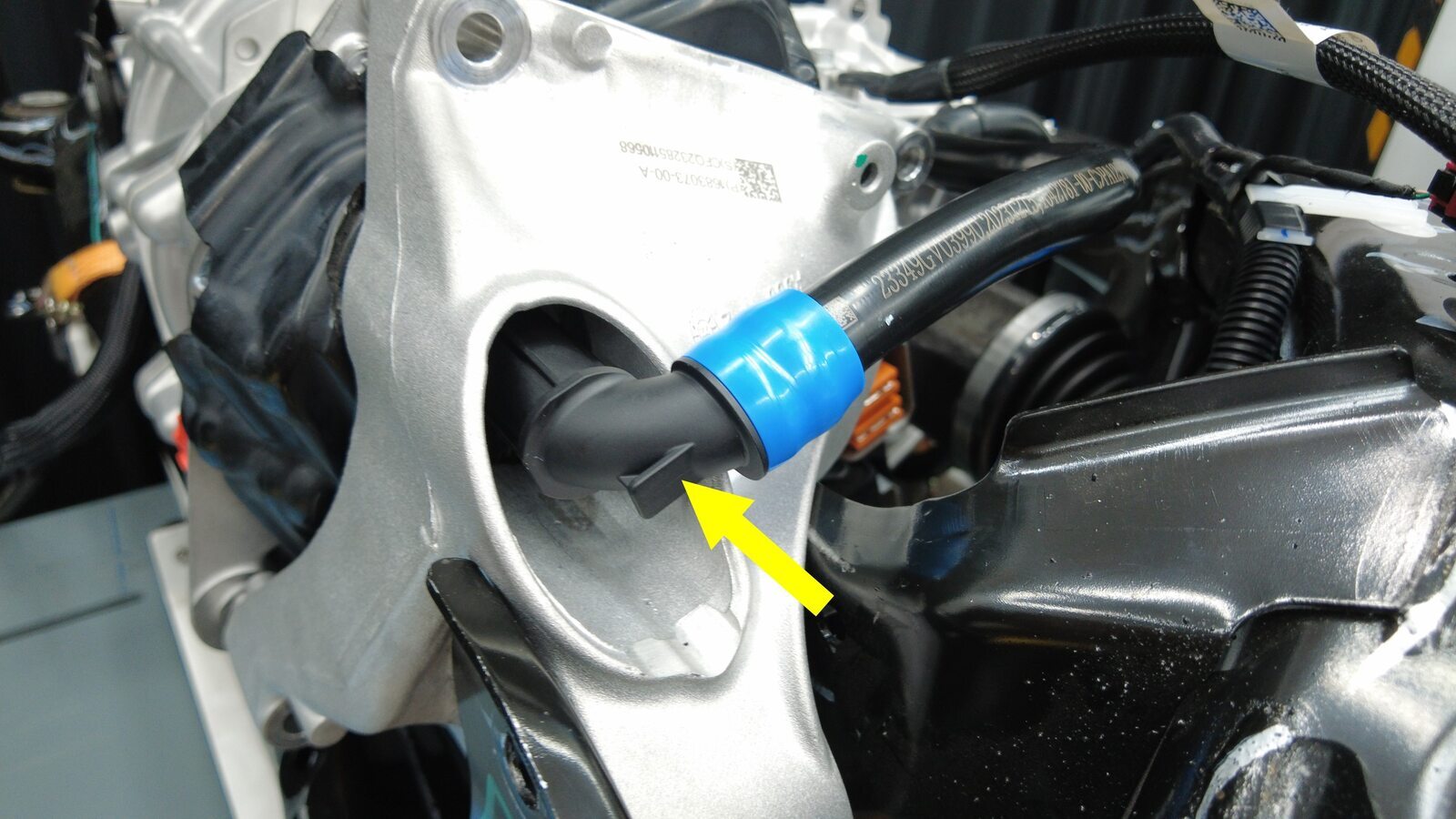

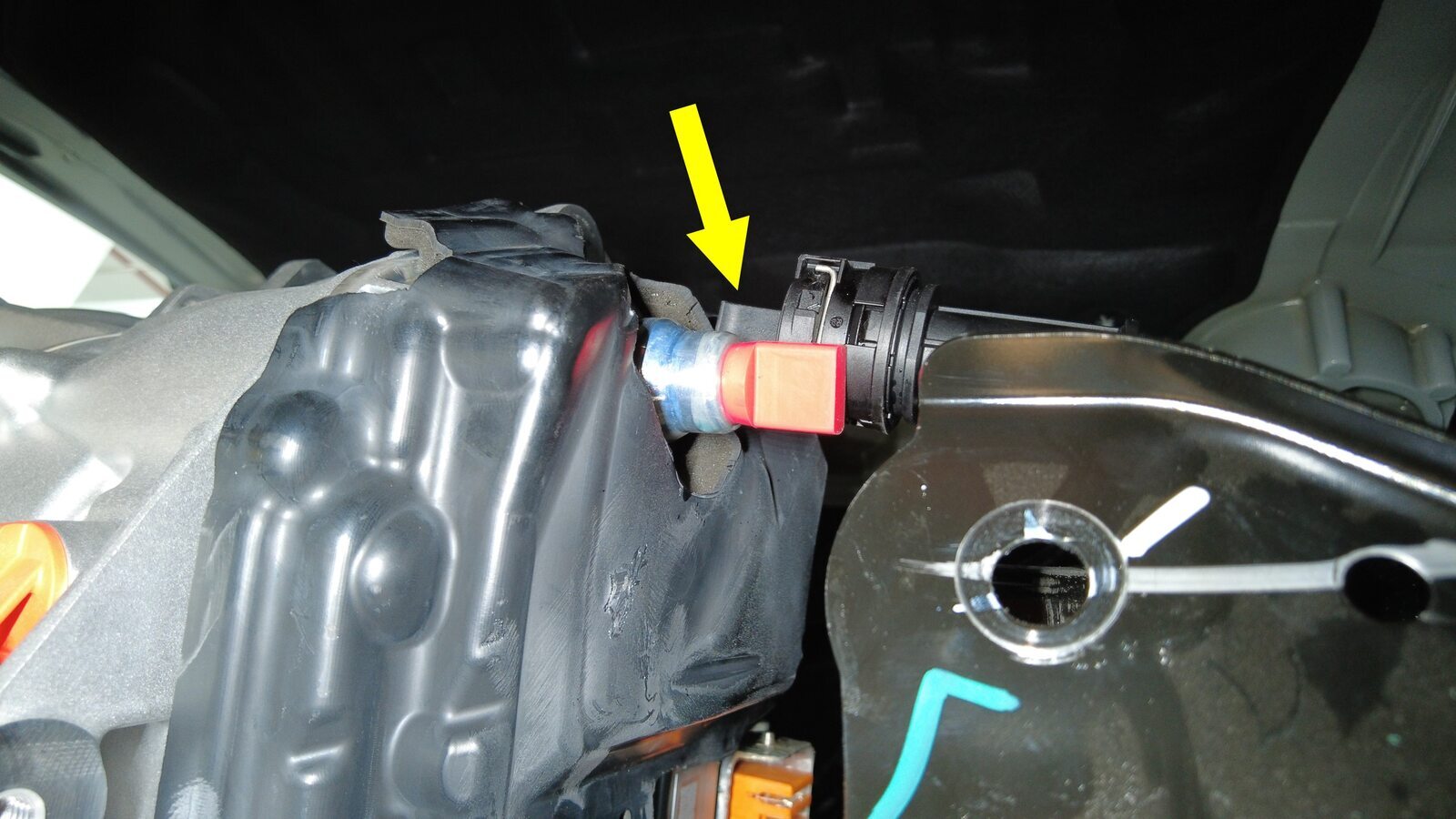

  5. Release inverter to oil cooler hose from in between LH motor mount.
    Note

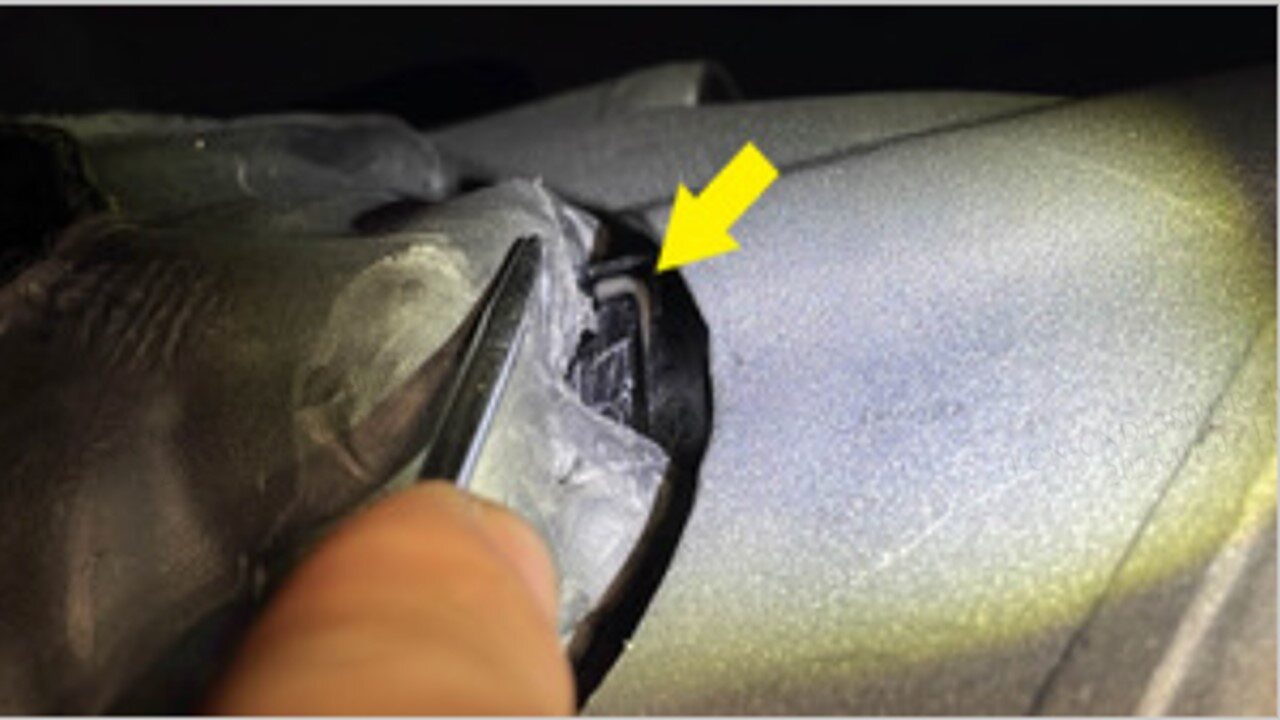

    Plugs ends as needed, release clip from in between mount and NVH cover, completely release the clip.

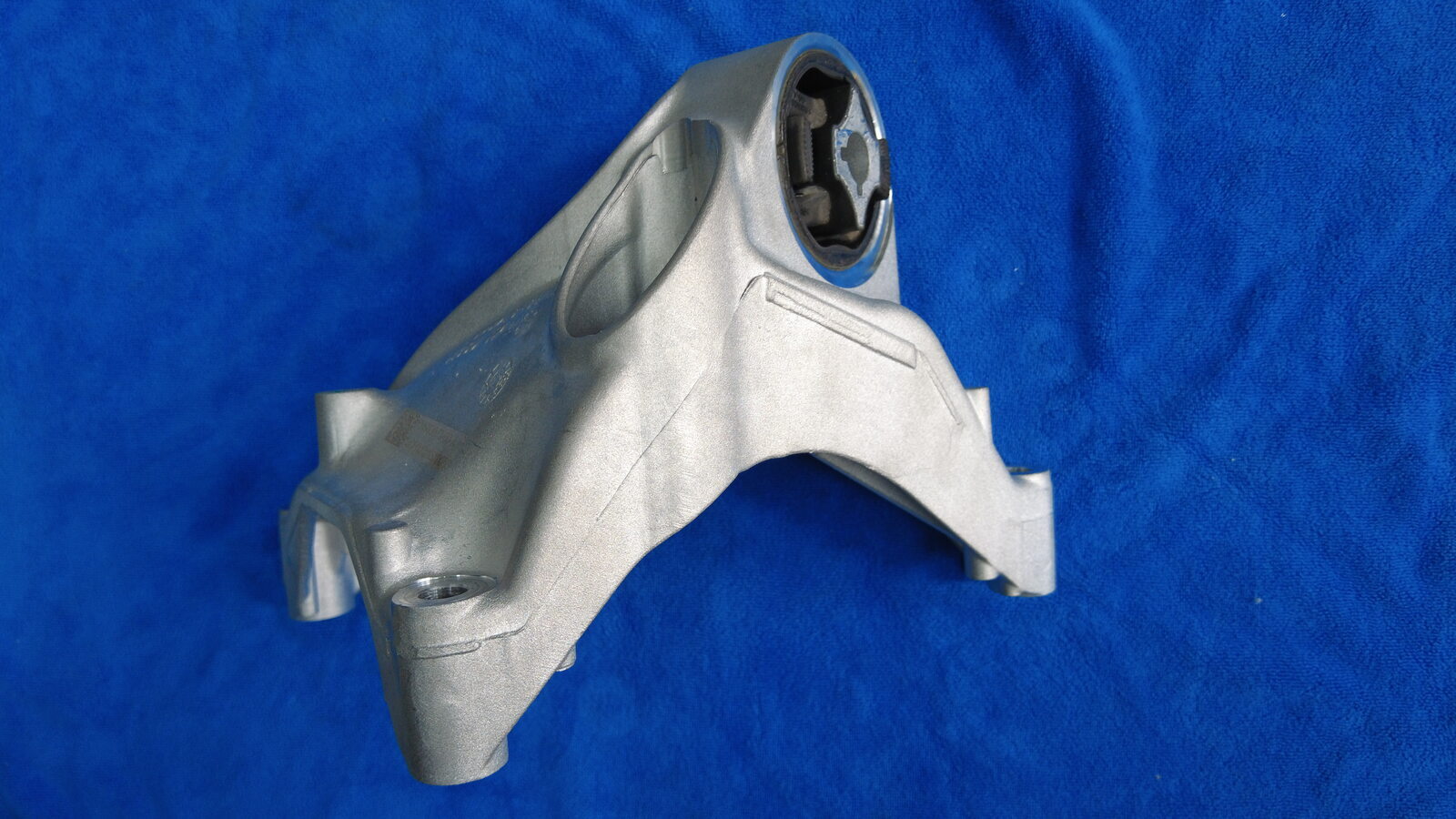

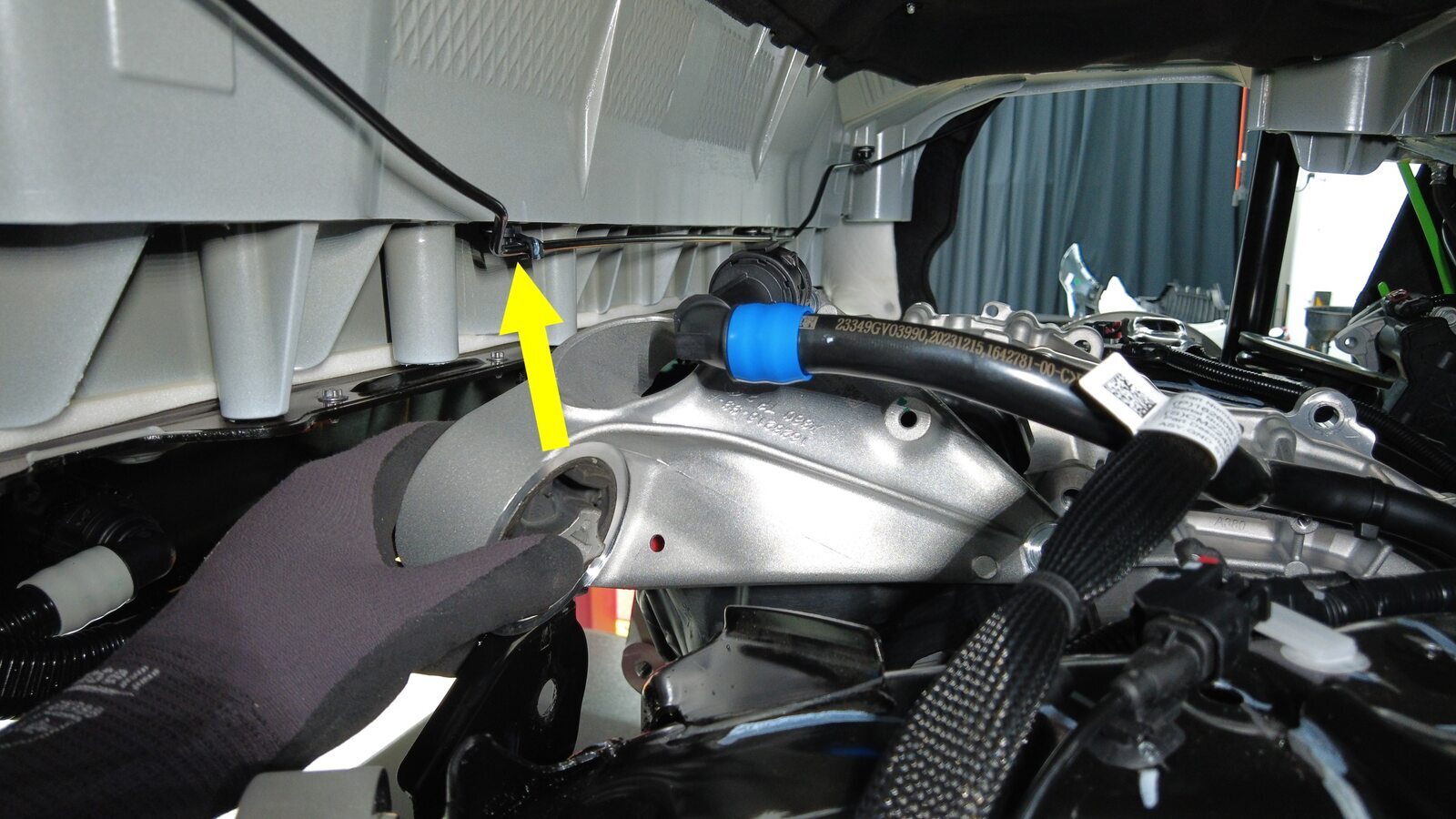

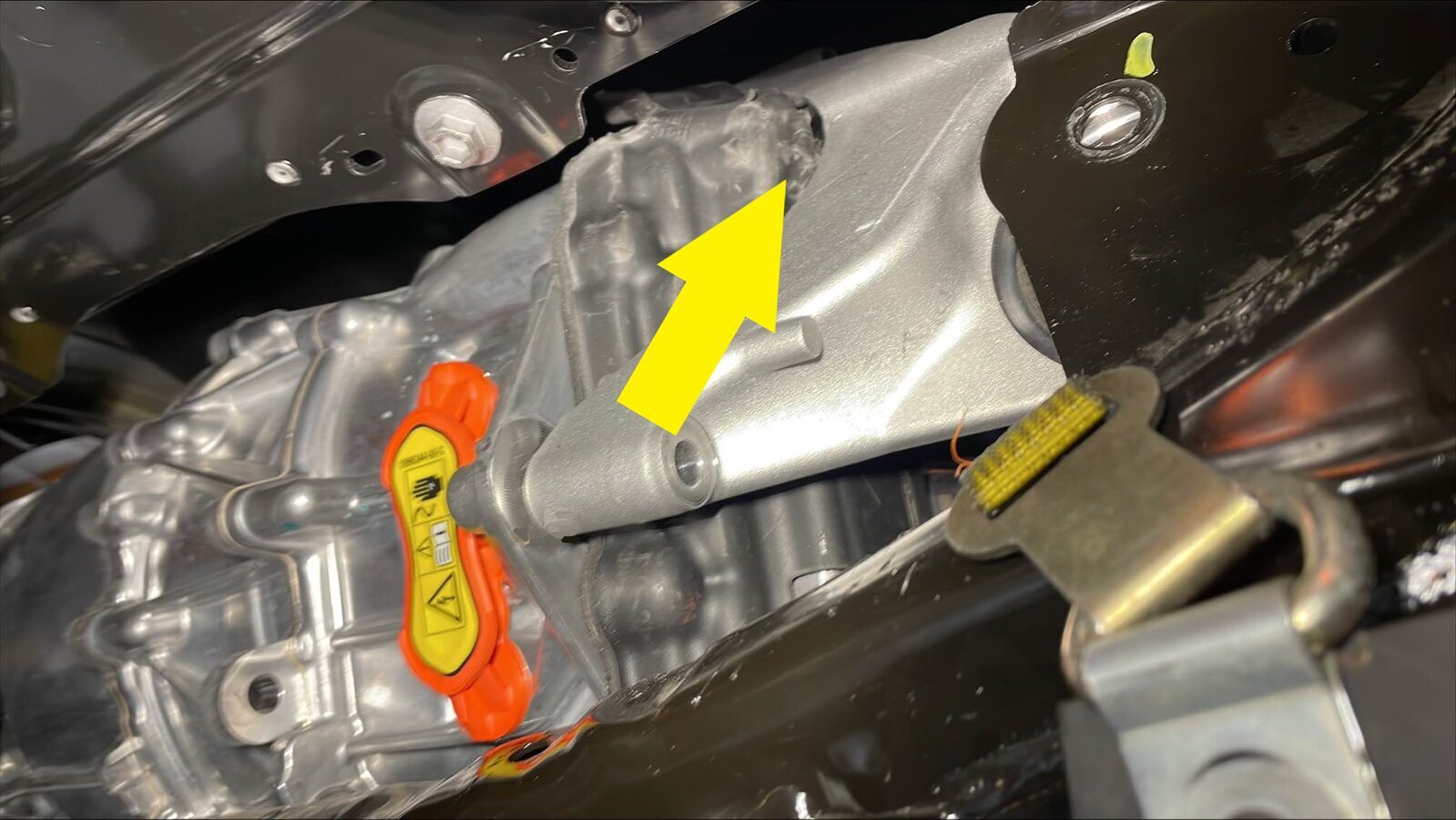

  6. Remove LH mount assembly from between rear drive unit and subframe.

Install

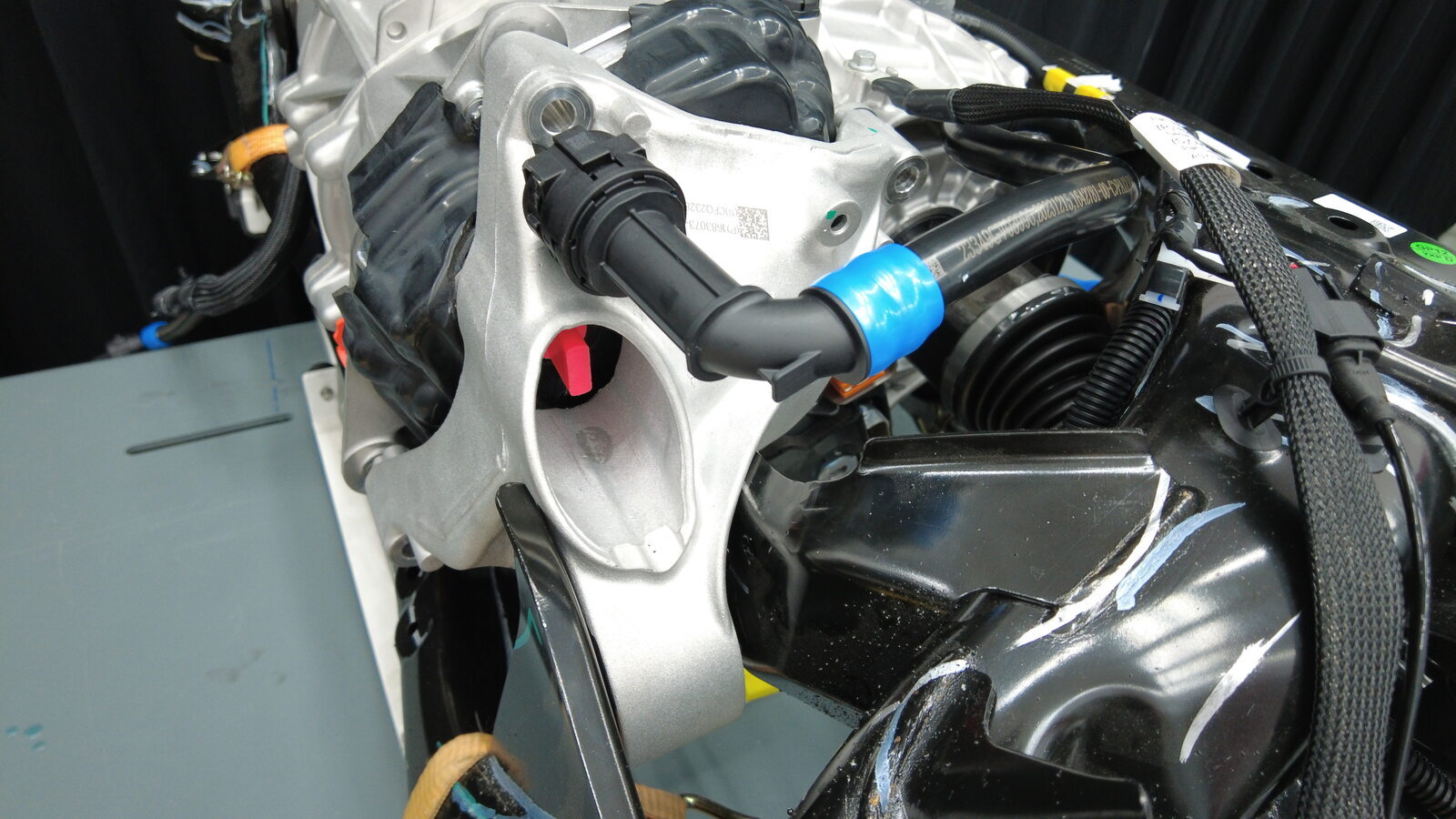

  1. Position LH mount assembly in between rear drive unit and subframe.
  2. Remove plugs and secure inverter to cooler hose to inverter.
  3. Install bolts securing LH mount assembly to rear drive unit.
    35 Nm (25.8 lbs-ft) +55 degree
    Tip
    Use of the following tool(s) is recommended:
    • External Torx E14
    • Cordless Ratchet/Impact Driver

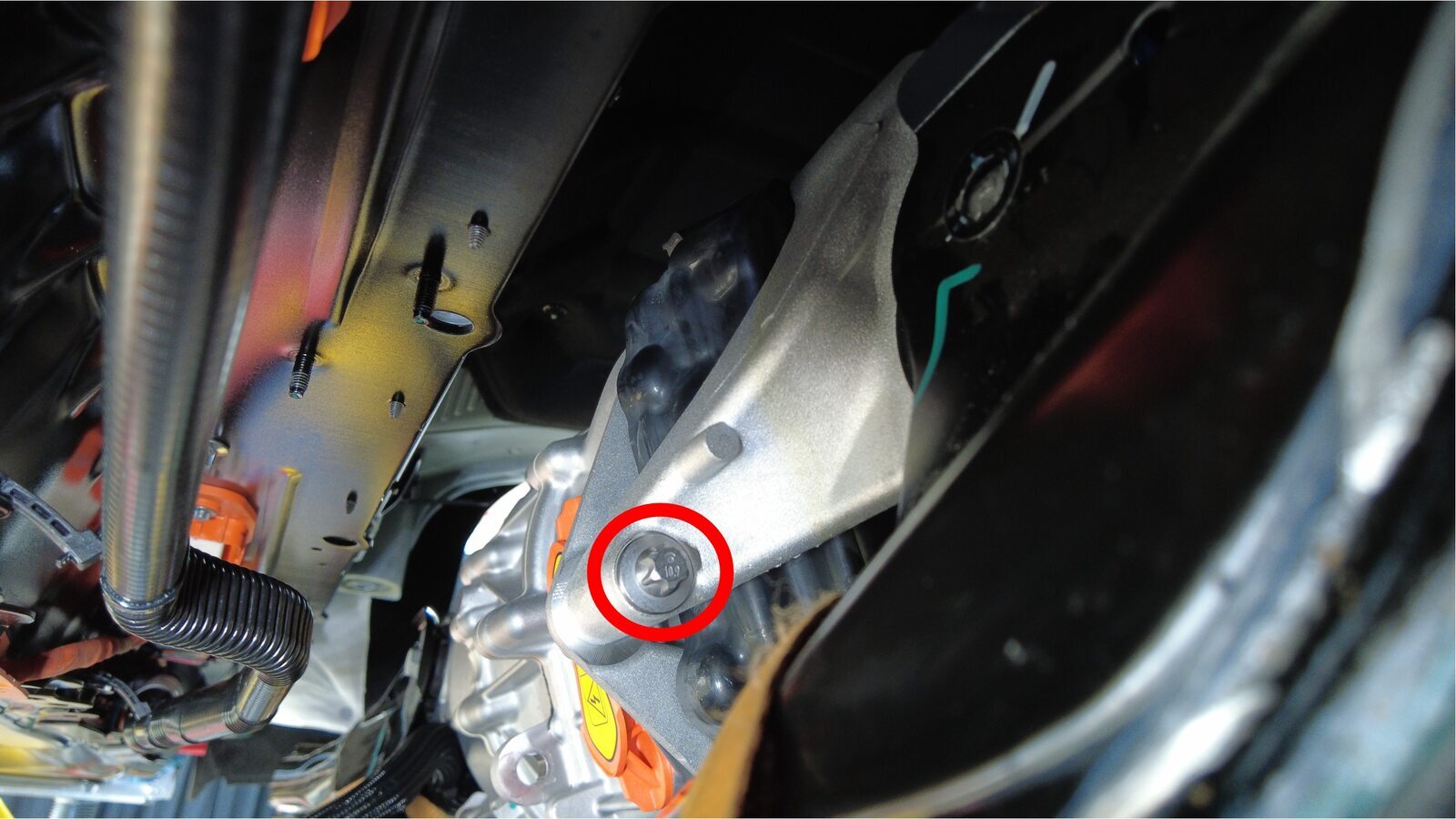

  4. Install LH bolt securing rear drive unit to subframe.
    80 Nm (59.0 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 18 mm socket
    • Cordless Ratchet/Impact Driver
  5. Remove center support from rear drive unit.
  6. Install the rear subframe and drive unit assembly. See Rear Subframe (Remove and Replace)
