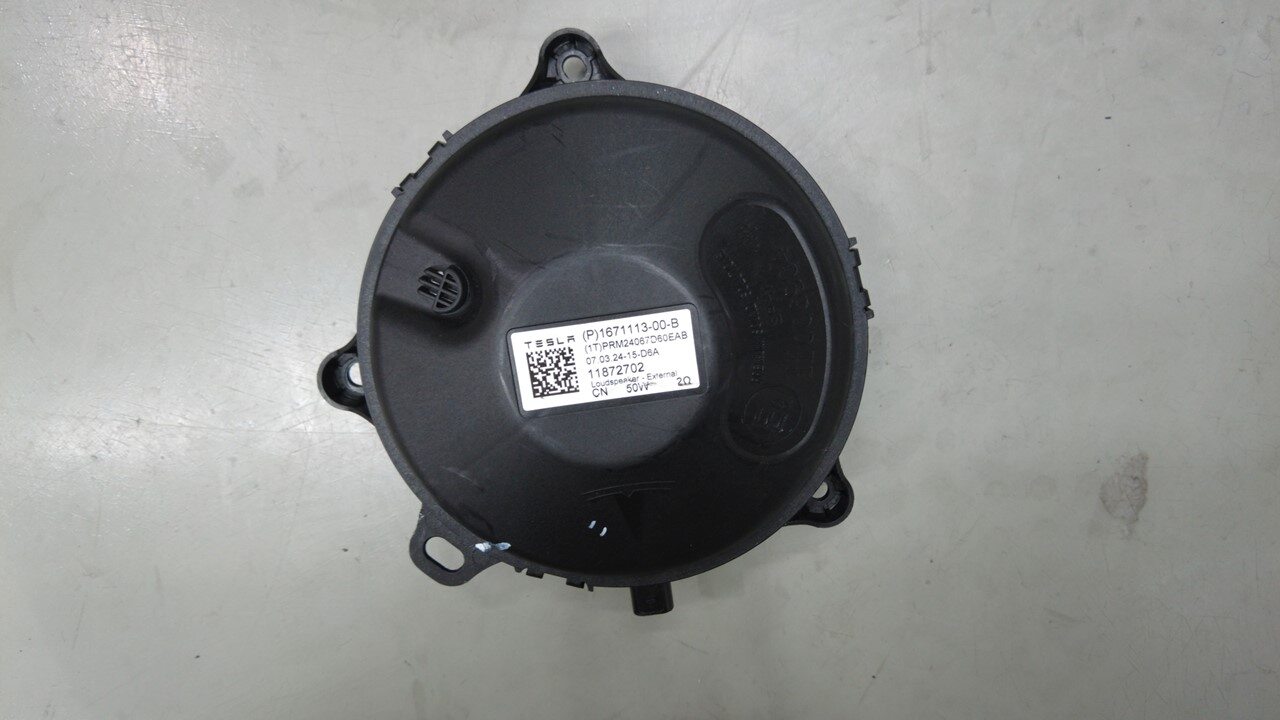

Audio Speaker Super Horn (Remove and Replace)
Correction code
1753010102
FRT
0.30
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Torque Specifications
| Description | Torque Value | Recommended Tools | Reuse/Replace | Notes |
|---|---|---|---|---|
| Screws (x3) that attach the super horn to the valance |
![]() 1.8 Nm (1.3 lbs-ft) |
|
Reuse | |
| Screws (x2) that attach the RH front wheel arch liner to the vehicle |
![]() 2 Nm (1.5 lbs-ft) |
|
Reuse |
Remove
- Remove the RH front wheel. See Wheel Assembly (Remove and Install).
- Remove the RH front fender garnish. See Fender Garnish - Front - LH (Remove and Replace).
-

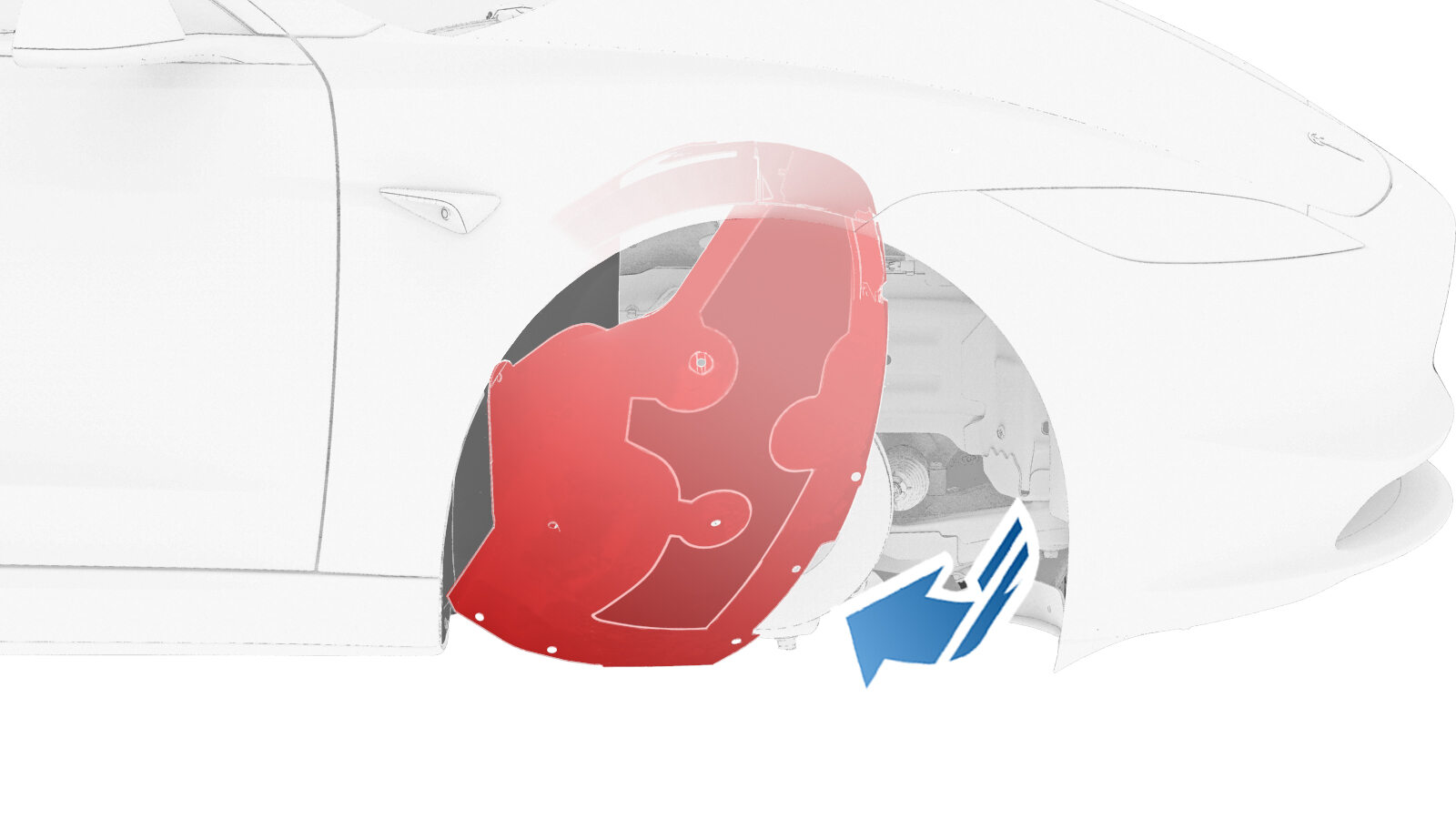

Release the push clips (x7) and screws
(x2) that attach the RH front wheel arch liner to the vehicle, and then partially remove
the RH front wheel arch liner.
TipUse of the following tool(s) is recommended:
- Torx T30 socket
-

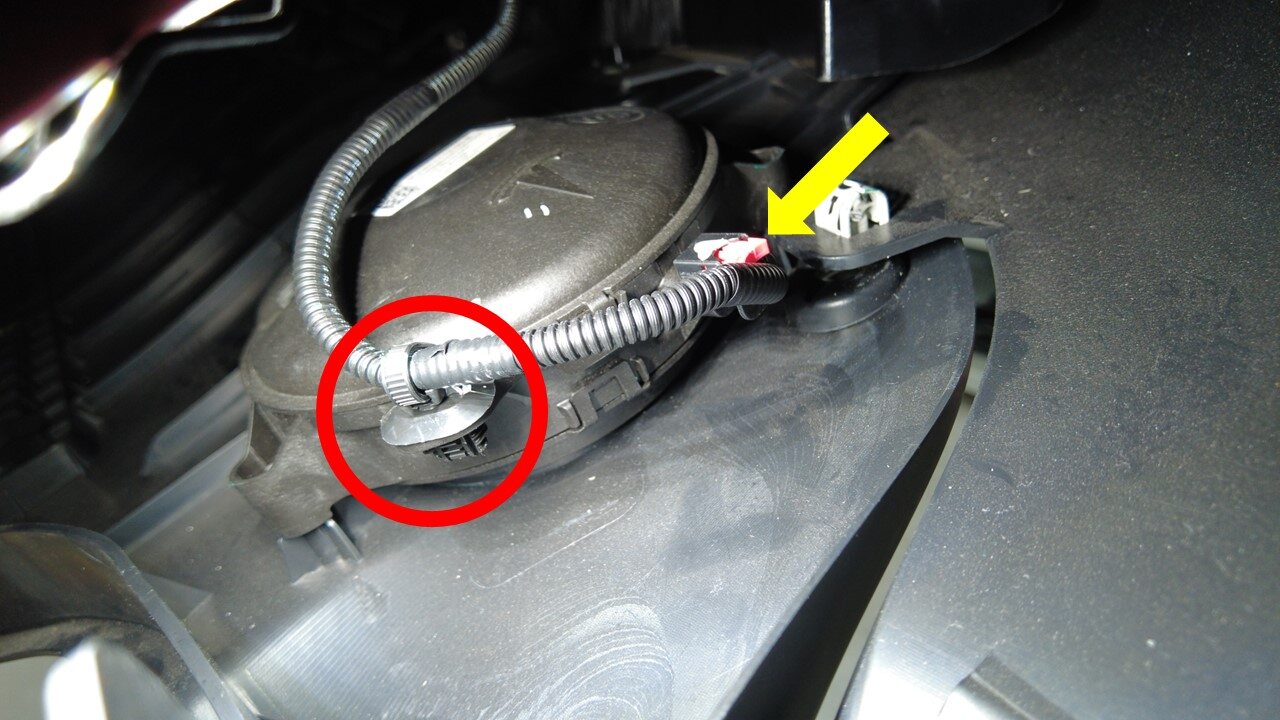

Release the speaker harness clip and disconnect the electrical
connector.
-
Remove the screws (x3) that
attach the super horn to the valance, and then remove the super horn from
the valance.
TipUse of the following tool(s) is recommended:
- Ratchet/torque wrench
- Torx T25 bit
- Digital Torque Screwdriver 0.10Nm - 2.0Nm
Install
-
Install the screws (x3) that attach the super horn to the valance.
1.8 Nm (1.3 lbs-ft)TipUse of the following tool(s) is recommended:- Ratchet/torque wrench
- Torx T25 bit
- Digital Torque Screwdriver 0.10Nm - 2.0Nm
-
Install the speaker harness clip and connect the electrical
connector.
-

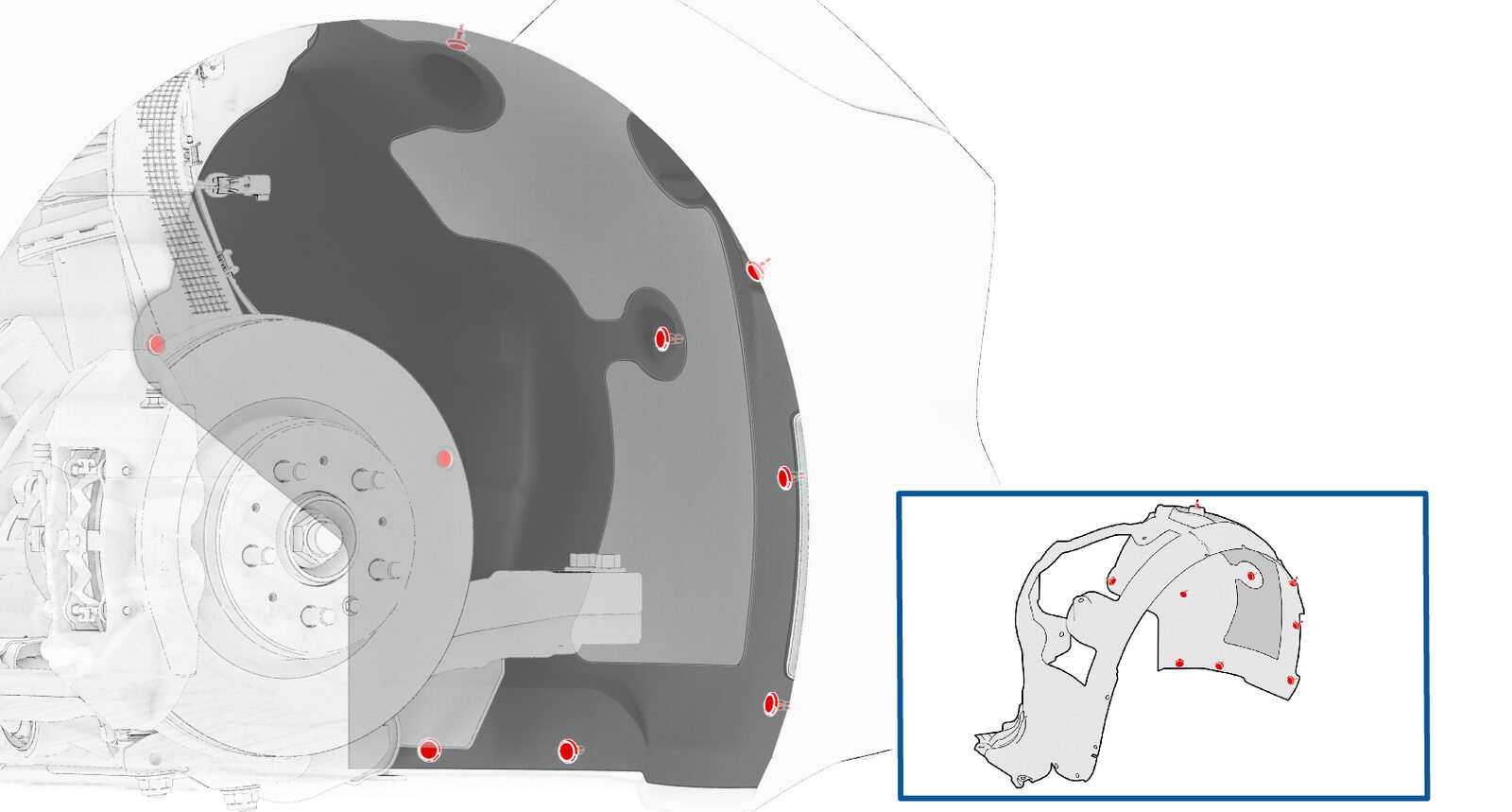

Install the RH front wheel arch liner
back to the vehicle, and then install the push clips (x7) and screws (x2) that attach
the RH front wheel arch liner to the vehicle.
2 Nm (1.5 lbs-ft)TipUse of the following tool(s) is recommended:- Torx T30 socket
- Install the RH front fender garnish. See Fender Garnish - Front - LH (Remove and Replace).
- Install the RH front wheel. See Wheel Assembly (Remove and Install).
