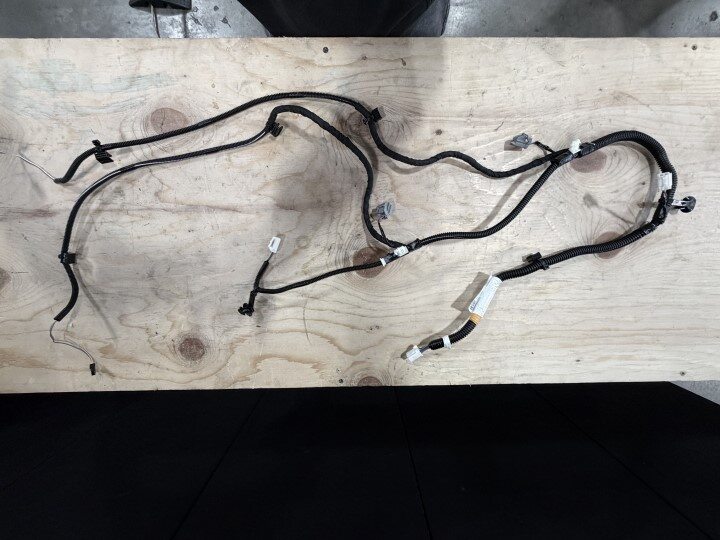

Harness - Seat Frame - 3rd Row Seat (7-Seat) (Remove and Replace)

Correction code 1710008502 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-01-27: Released new procedure.

Remove

  1. Remove 3rd row seat cushion and disconnect harness. See Seat Cushion - 3rd Row (7-Seat) (Remove and Replace).

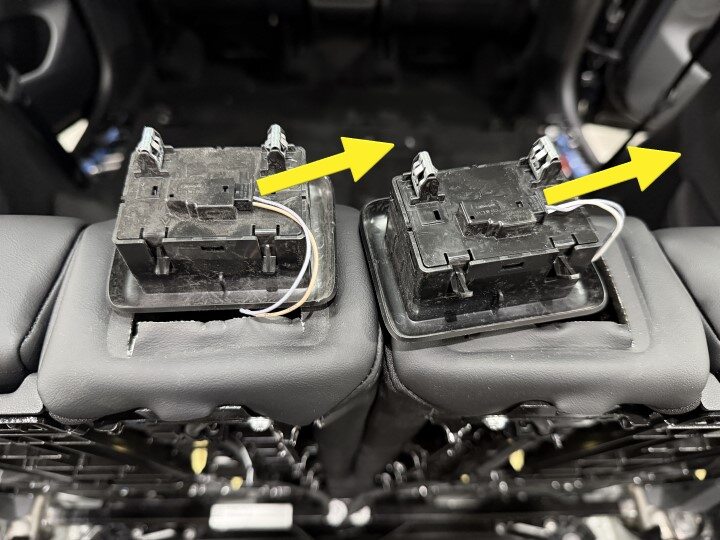

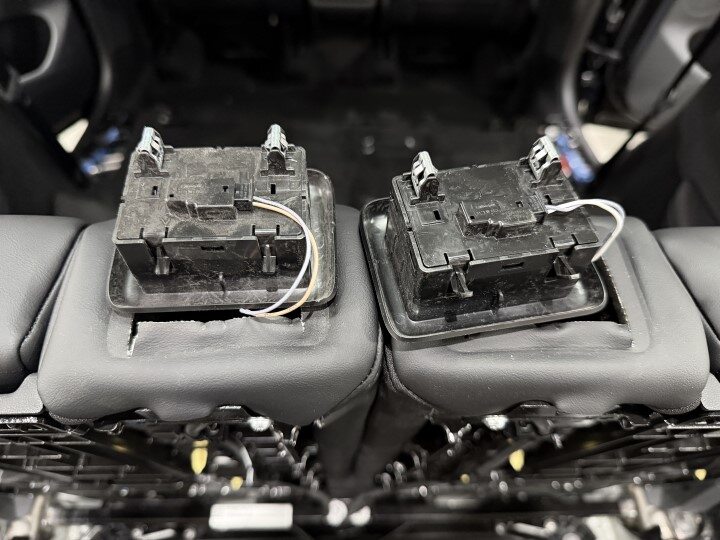

  2. Release RH and LH side of harness from escutcheons.
    Note

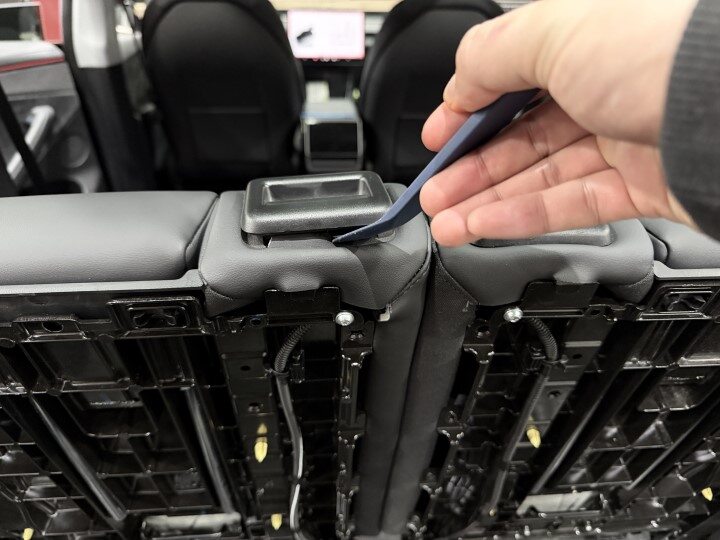

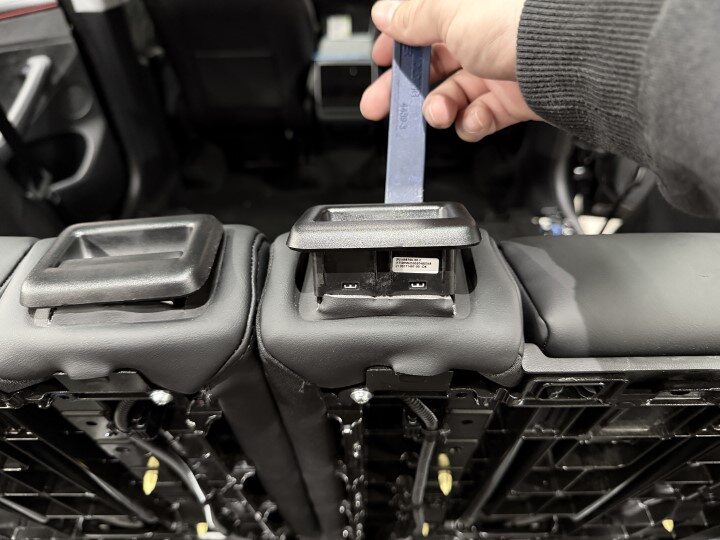

    Pry escutcheons off to access connector.

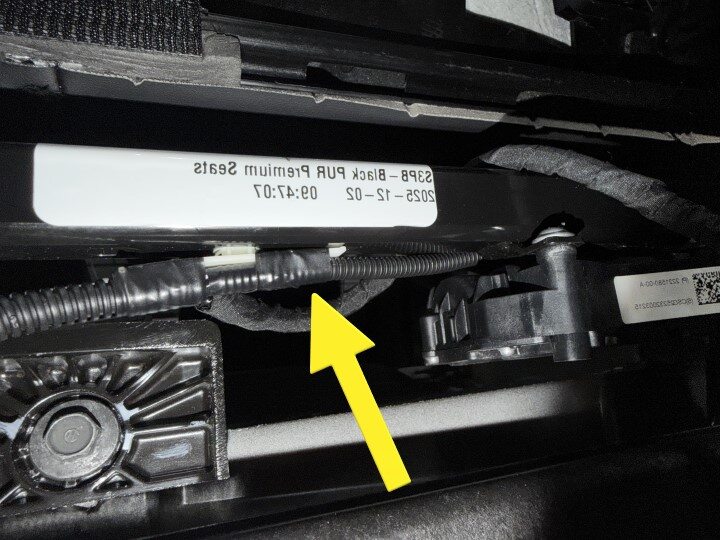

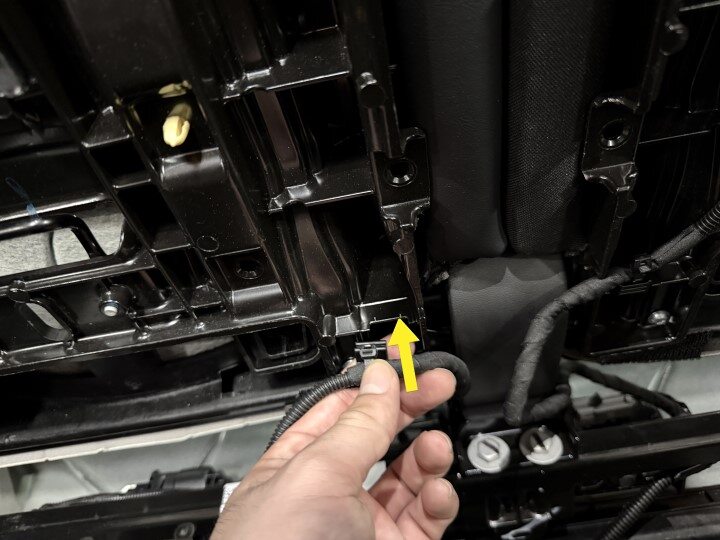

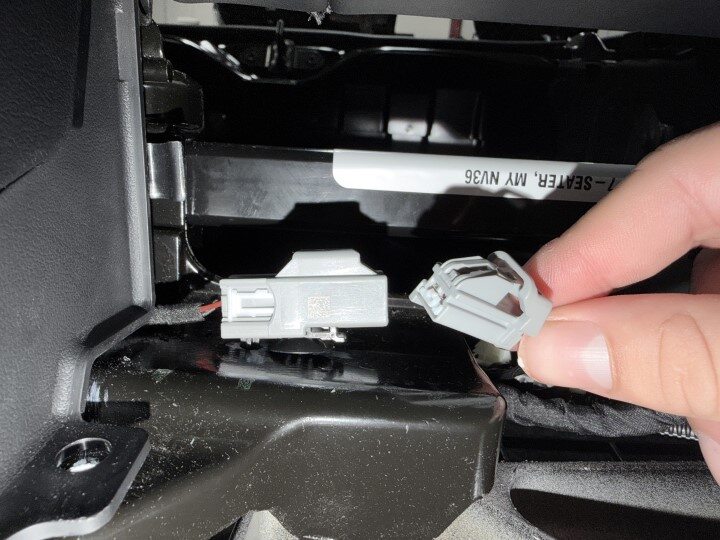

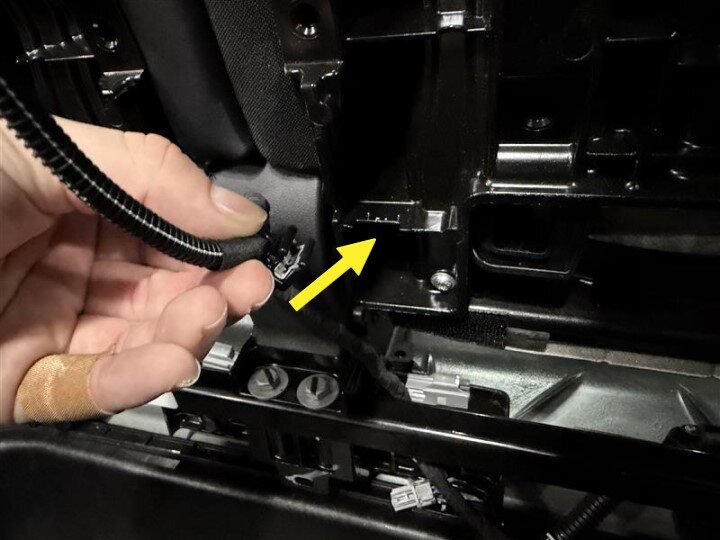

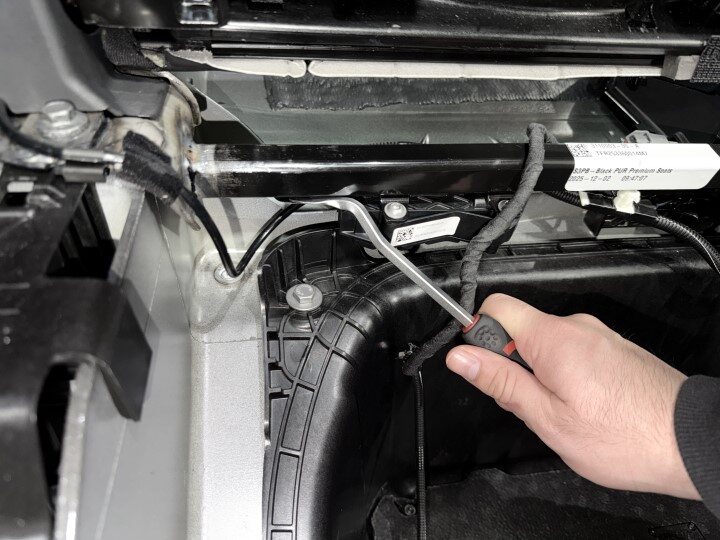

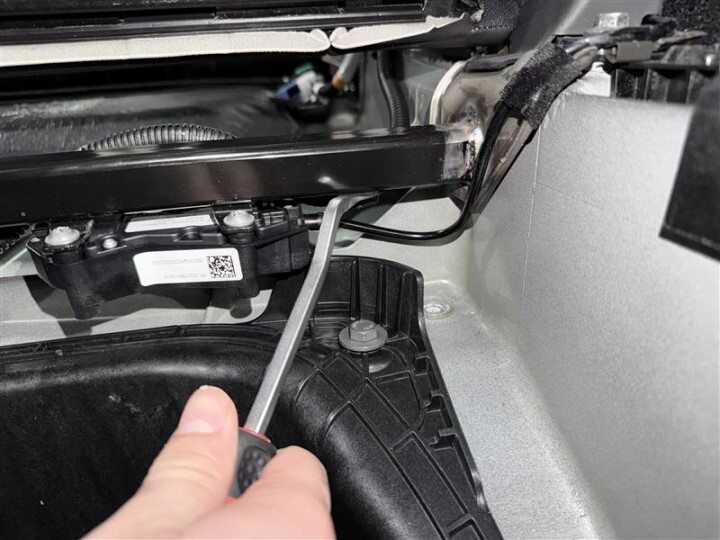

  3. Release RH side of harness from seat frame and buckle connector.
    Note

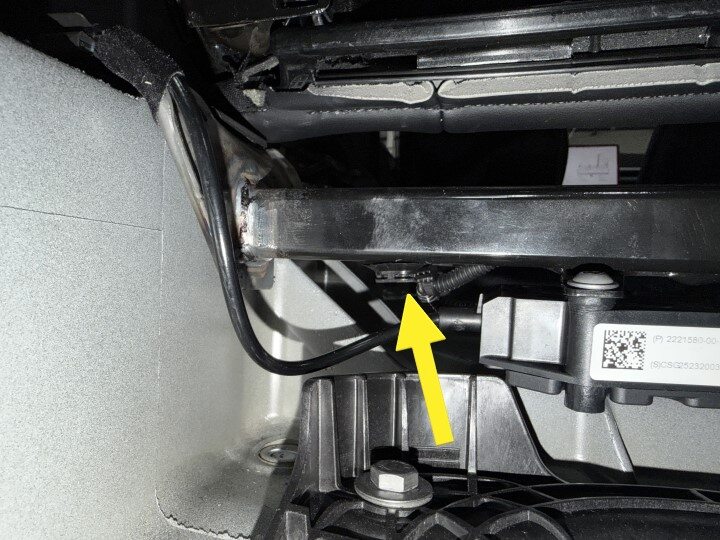

    Release harness from seatback by unclipping retainers, pry clips on lower frame to remove.

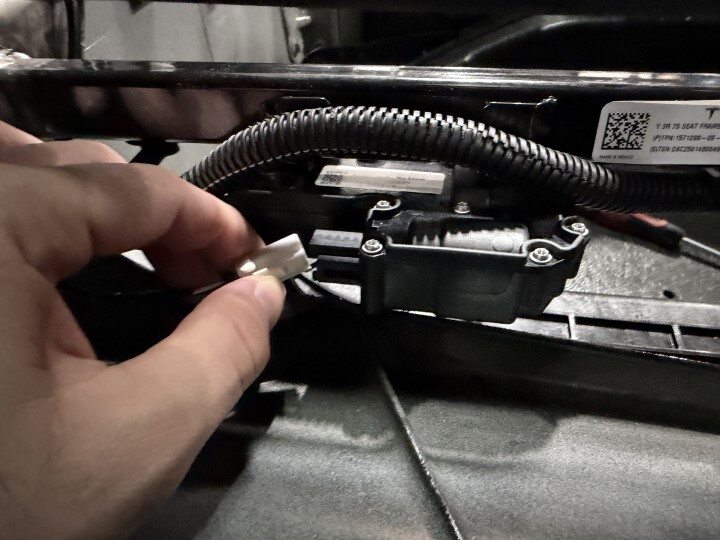

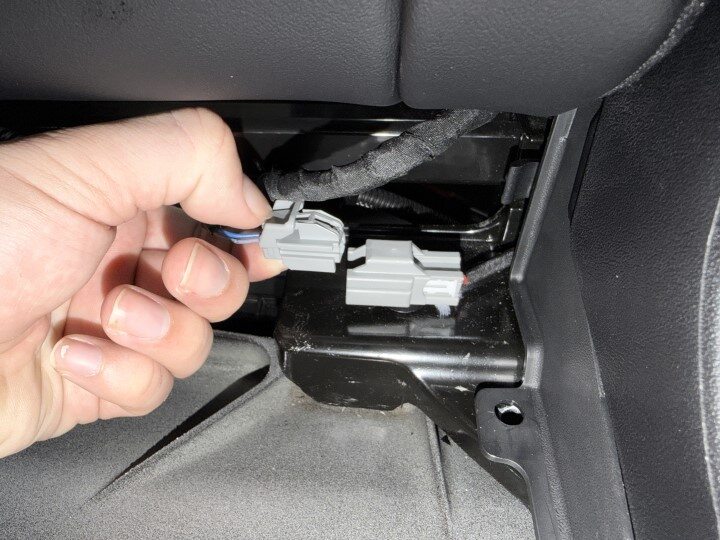

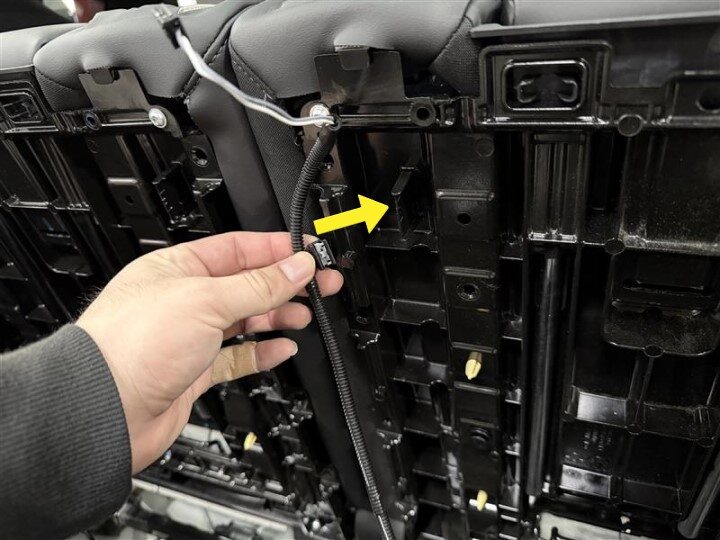

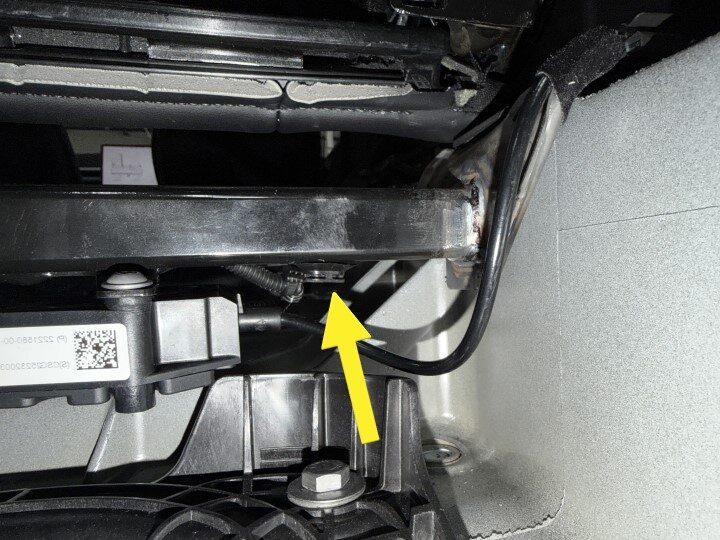

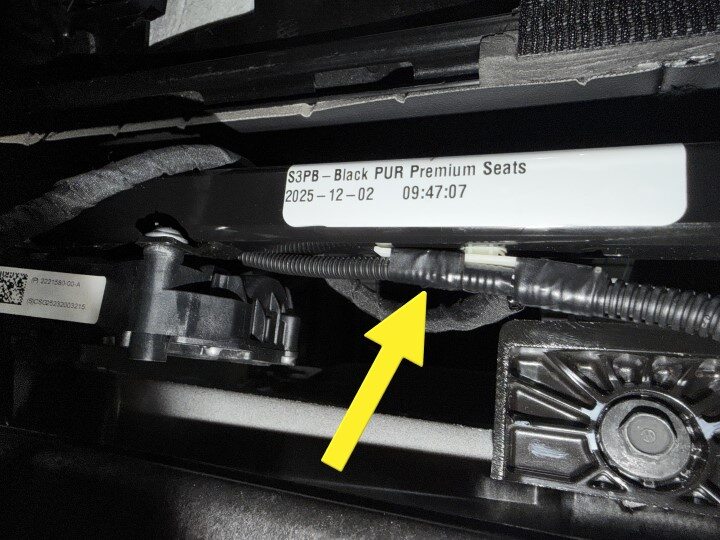

  4. Release LH side of harness from lower frame and buckle connector.
    Note

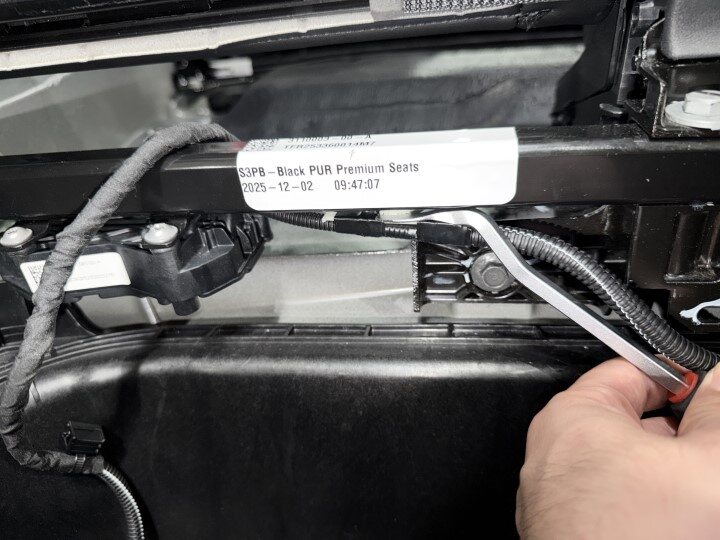

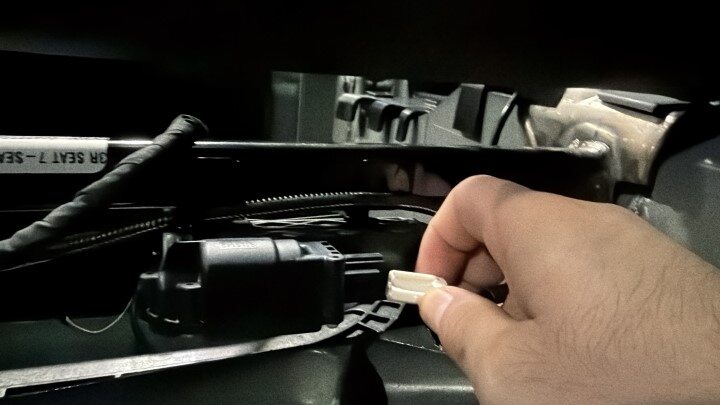

    Pry clips to disengage harness from frame, disconnect harness from buckle connector and fully release harness from frame.

Install

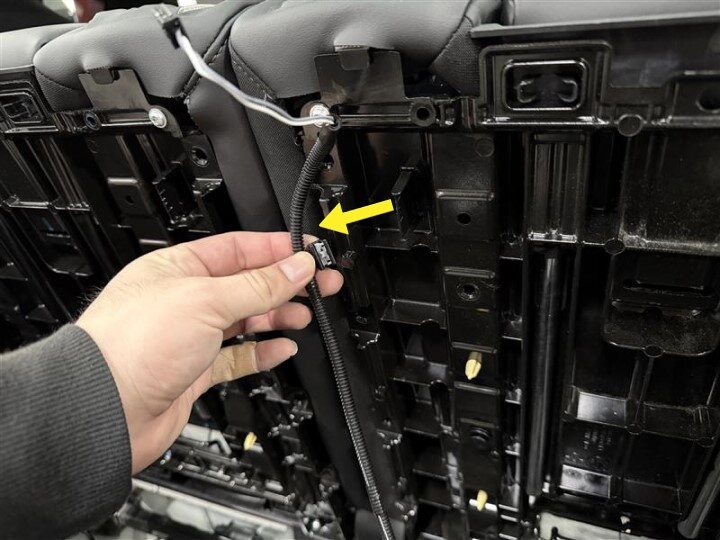

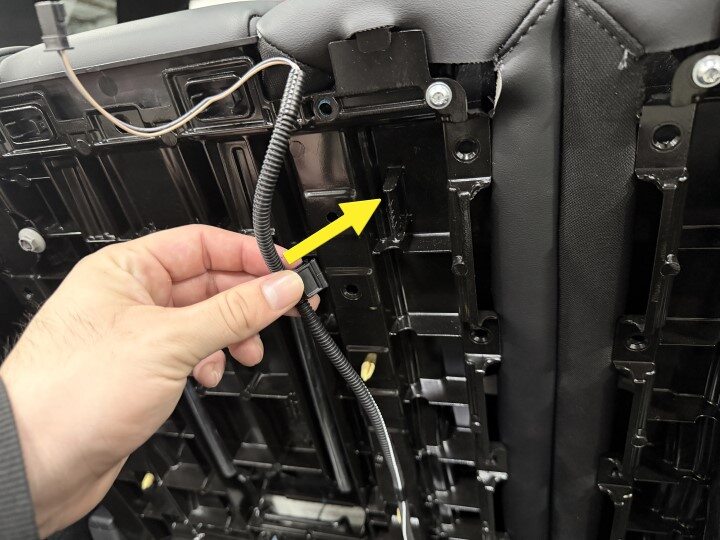

  1. Re-route LH side of harness onto seatback.
    Note

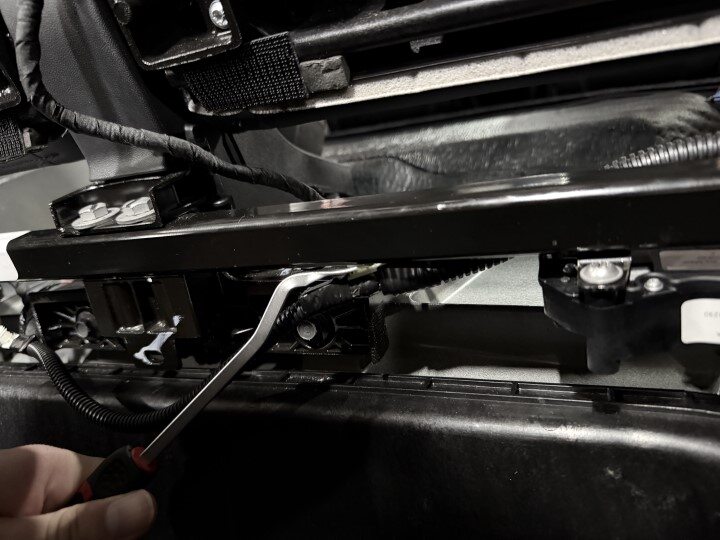

    Re-clip onto lower frame and connect to buckle assembly. Ensure to engage retainer clips to seatback for proper harness alignment.
  2. Re-route RH side of harness onto seatback.
    Note
    Re-clip onto lower frame and connect to buckle assembly. Ensure to engage retainer clips to seatback for proper harness alignment.
  3. Connect RH and LH sides of harness to escutcheons.
    Note

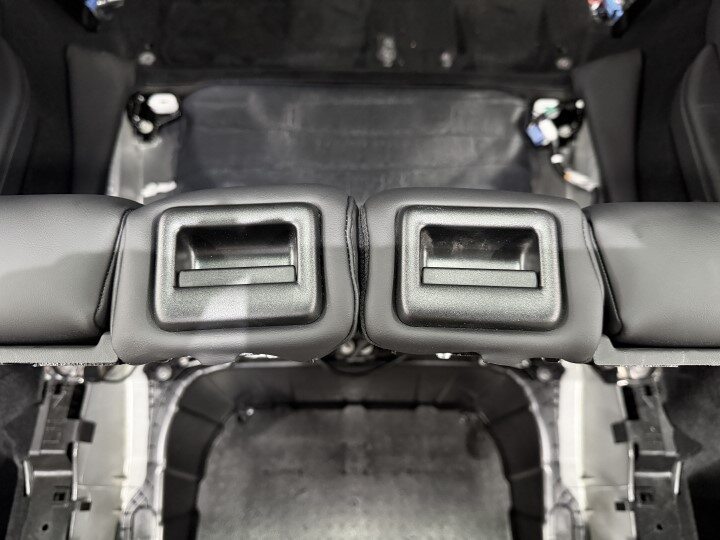

    Reconnect harness and install escutcheons by pushing into position. confirm engagement with clicking sound.
  4. Install 3rd row seat cushion and disconnect harness. See Seat Cushion - 3rd Row (7-Seat) (Remove and Replace).
