Bracket - Power Strut - Liftgate - LH (Model YL) (Remove and Replace)

Correction code 11332901002 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Equipment:
  • 1080562-00-A Telescoping Hood Prop

Remove

  1. Open the liftgate.
  2. Use a telescoping hood prop to support the liftgate.

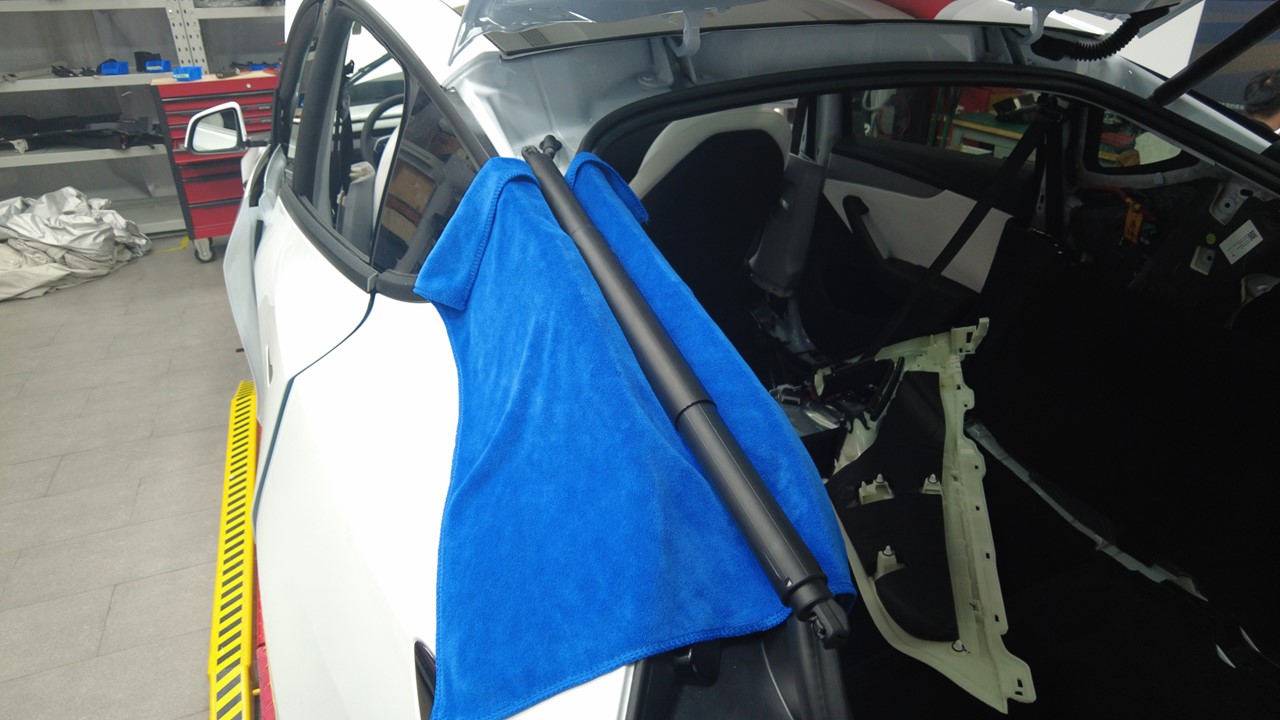

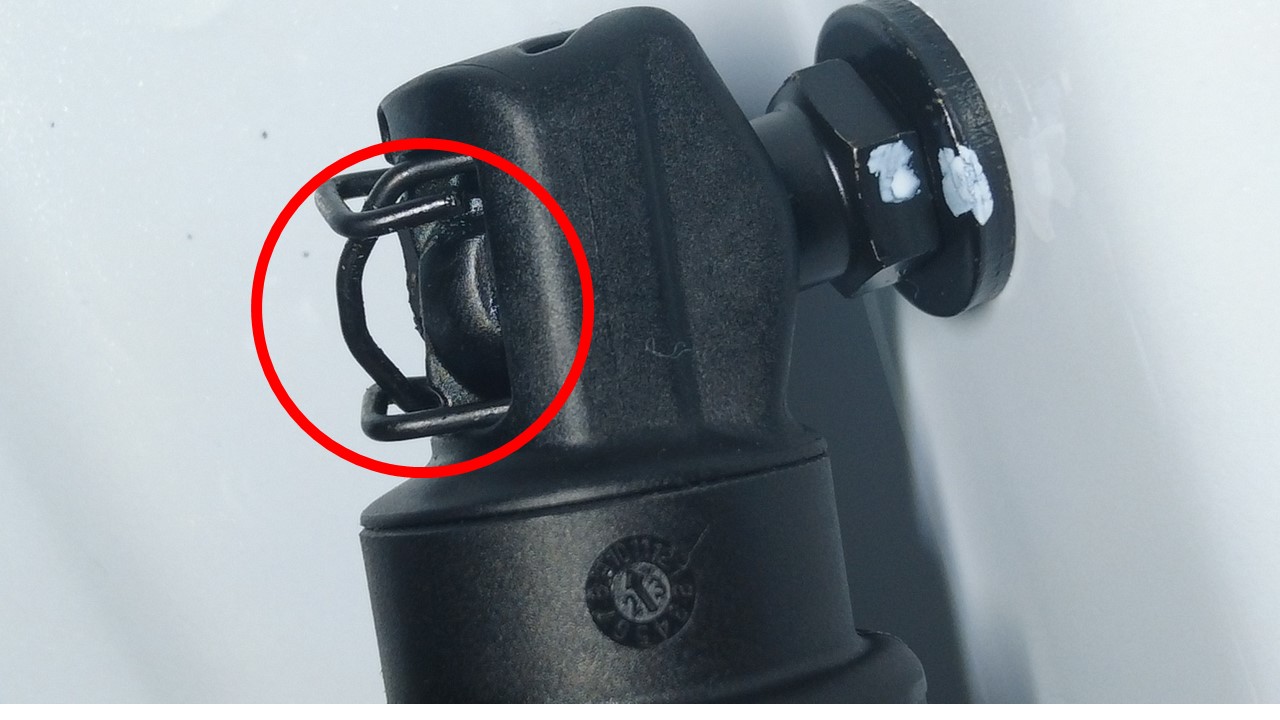

  3. Release the liftgate power strut upper ball stud that is attached to the liftgate, and then lay the strut down on the door jamb.
    Note
    Place a shop towel on the LH side trunk jamb.

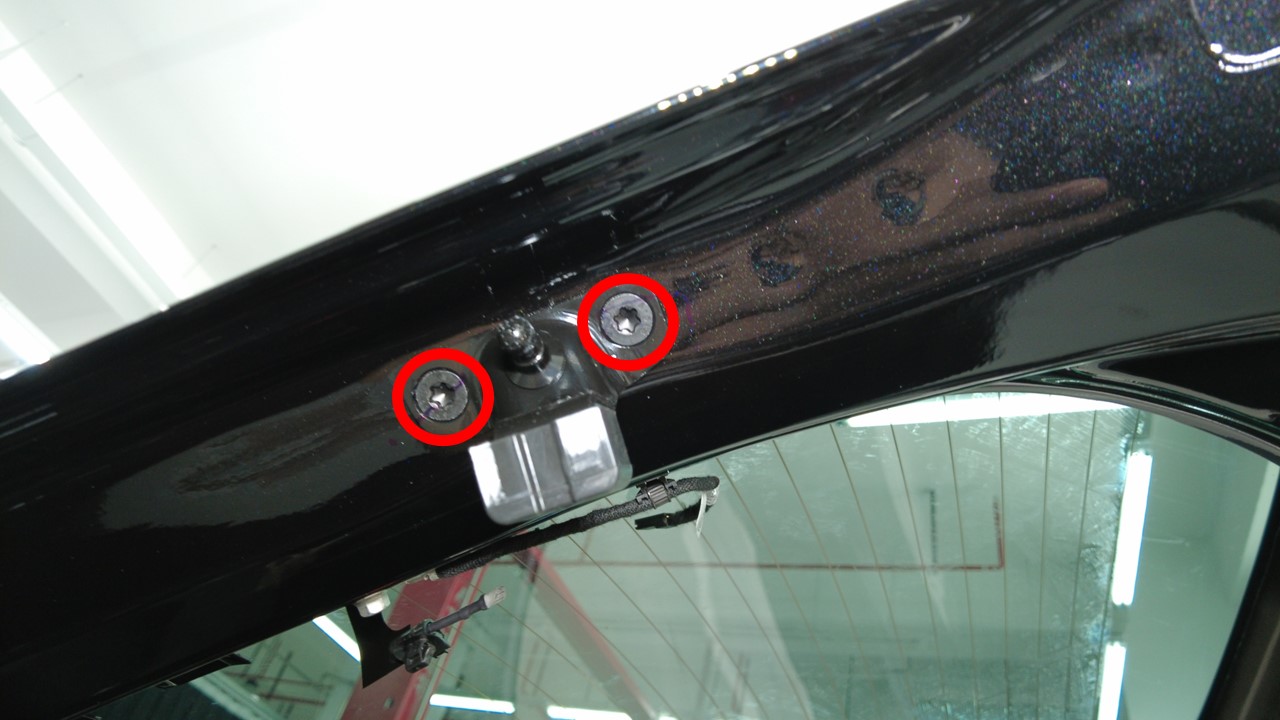

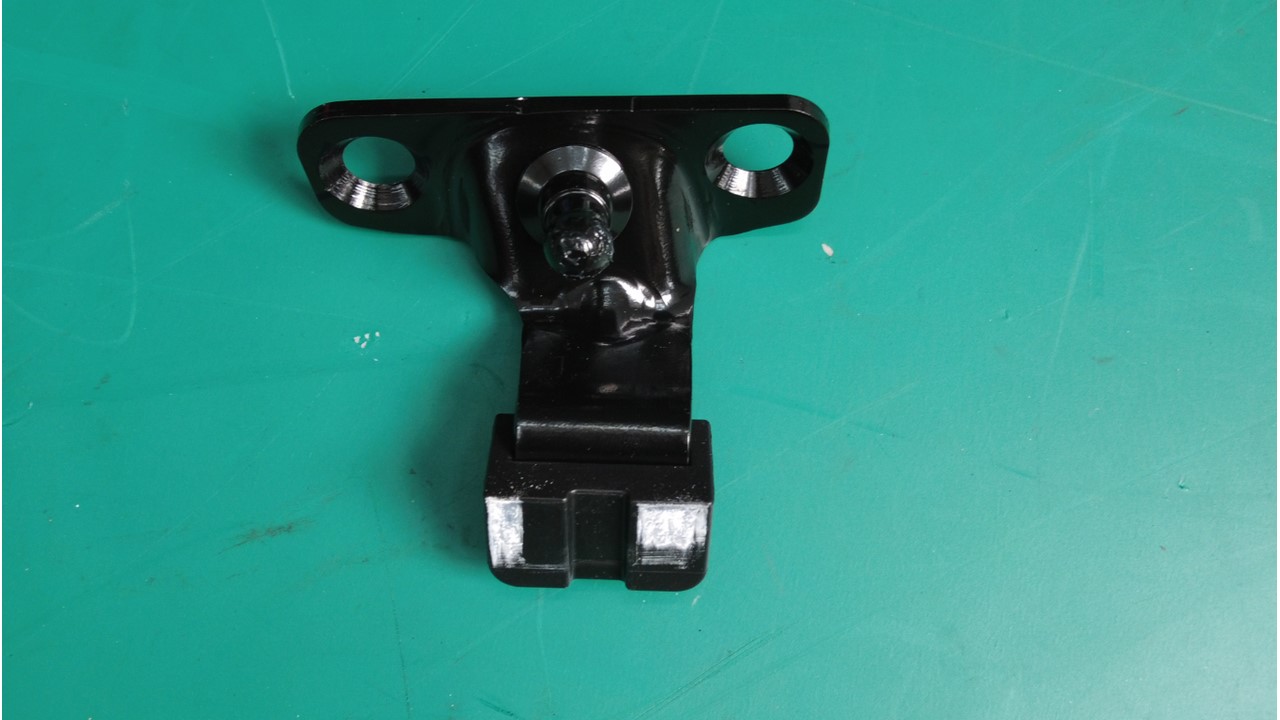

  4. Remove the bolts (x2) that attach the liftgate power strut bracket to the body, and then remove the bracket from the vehicle.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T45 socket

Install

  1. Install the bolts (x2) that attach the liftgate power strut bracket to the body.
    24 Nm (17.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T45 socket
  2. Install the liftgate power strut upper ball stud to the liftgate.
    Note
    Remove the shop towel from the LH side trunk jamb.
  3. Remove the telescoping hood prop.
  4. Close the liftgate.
