Liftgate Cinch Latch (Remove and Replace)

Correction code 1120020102 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Liftgate Cinch Latch (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x3) that attach the cinch latch to the liftgate
10 Nm (7.4 lbs-ft)
  • 4 in extension
  • 10 mm socket
  • Ratchet/torque wrench
Reuse

Remove

  1. Remove the liftgate lower trim. See Liftgate Lower Trim (Remove and Replace).

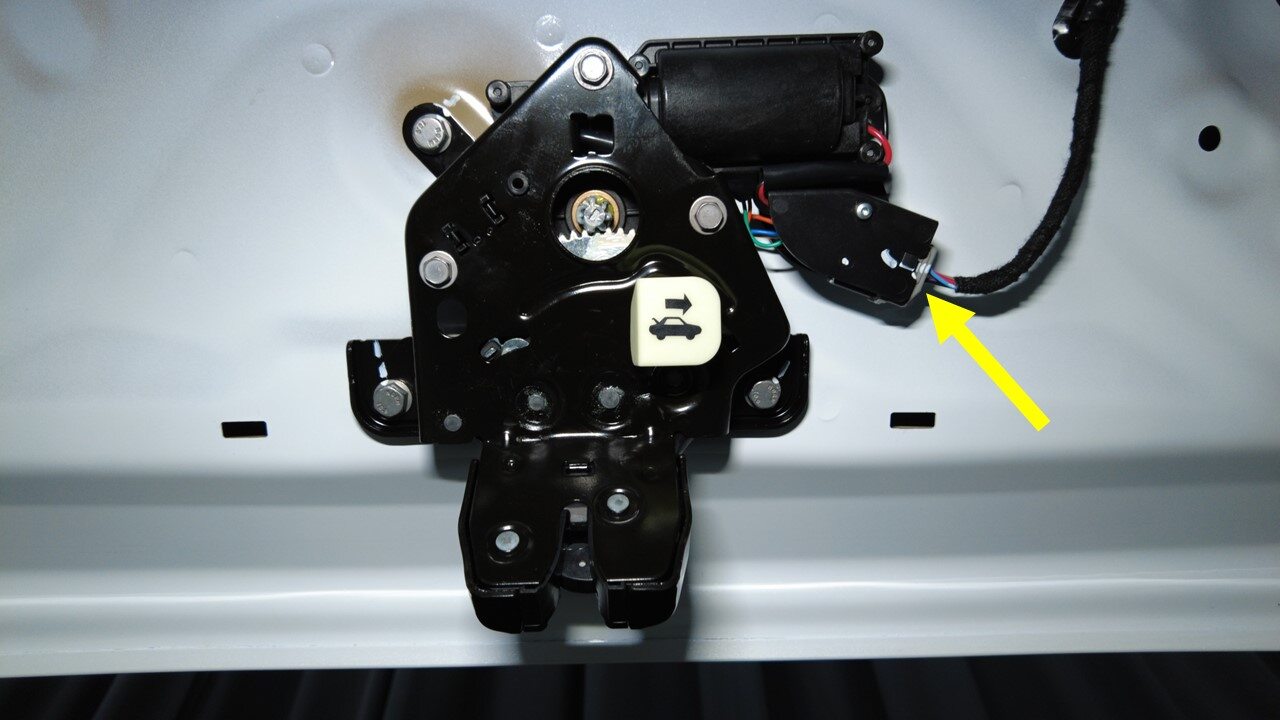

  2. Disconnect the cinch latch connector.

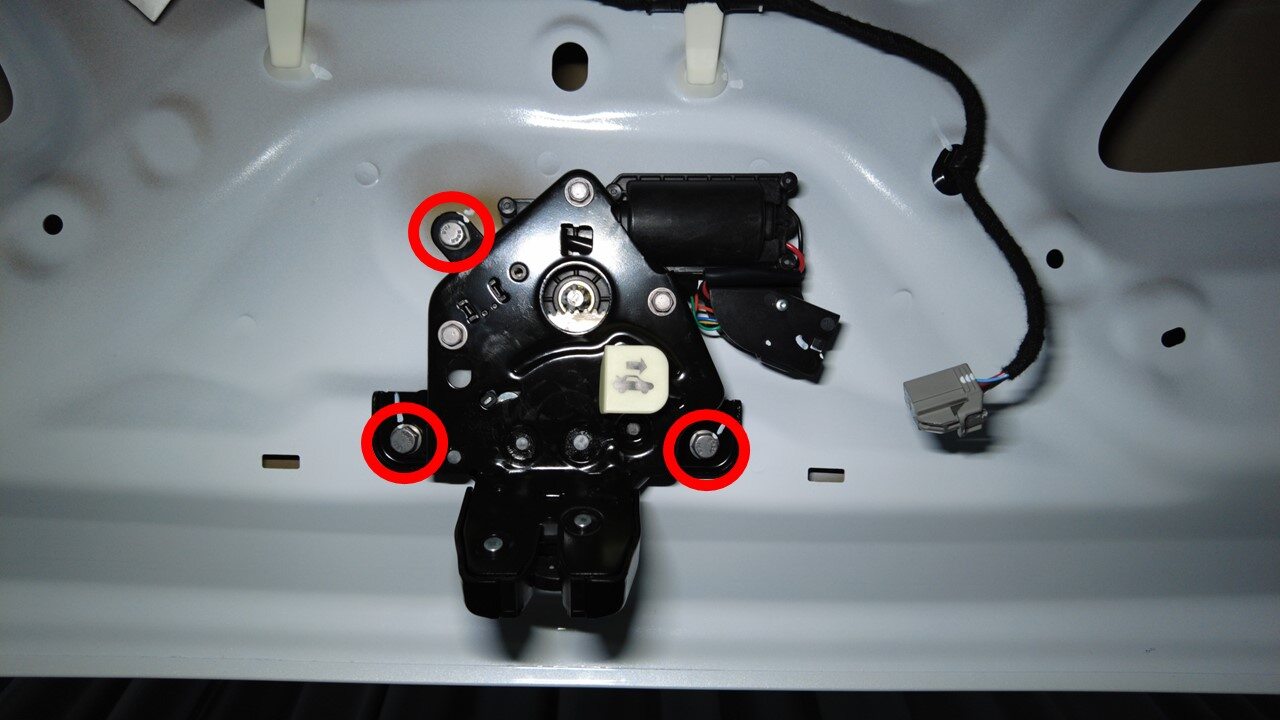

  3. Remove the bolts (x3) that attach the cinch latch to the liftgate.
    Tip
    Use of the following tool(s) is recommended:
    • 4 in extension
    • 10 mm socket
    • Ratchet/torque wrench

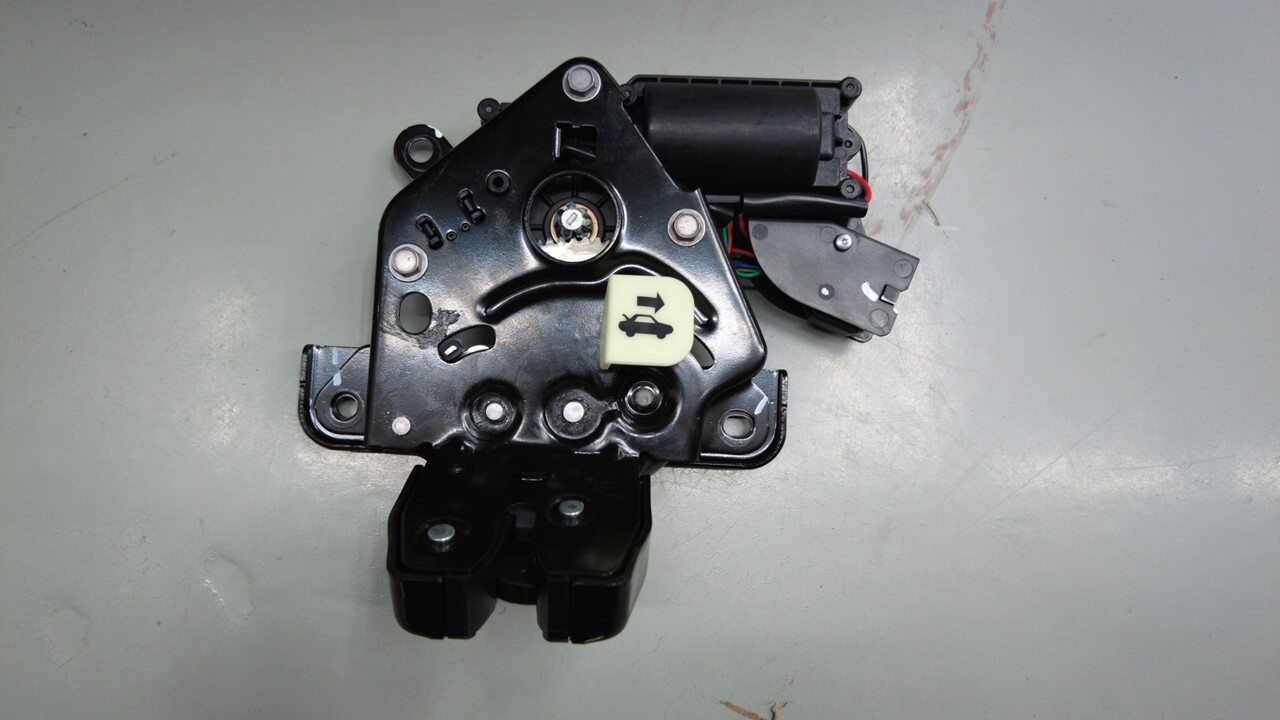

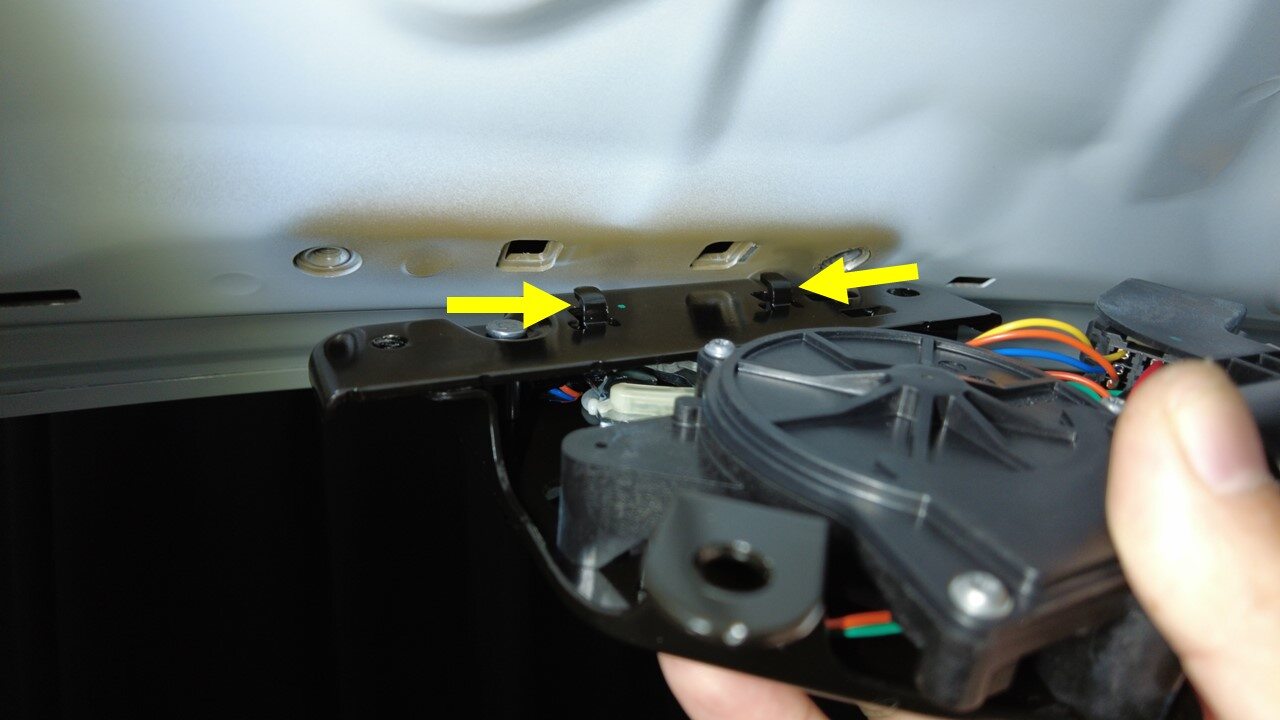

  4. Slide the cinch latch up and release the tabs (x2), and then remove the cinch latch from the liftgate.

Install

  1. Slide the cinch latch tabs (x2) into the liftgate.
  2. Install the bolts (x3) that attach the cinch latch to the liftgate.
    10 Nm (7.4 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 4 in extension
    • 10 mm socket
    • Ratchet/torque wrench
  3. Connect the cinch latch connector.
  4. Install the liftgate lower trim. See Liftgate Lower Trim (Remove and Replace).
