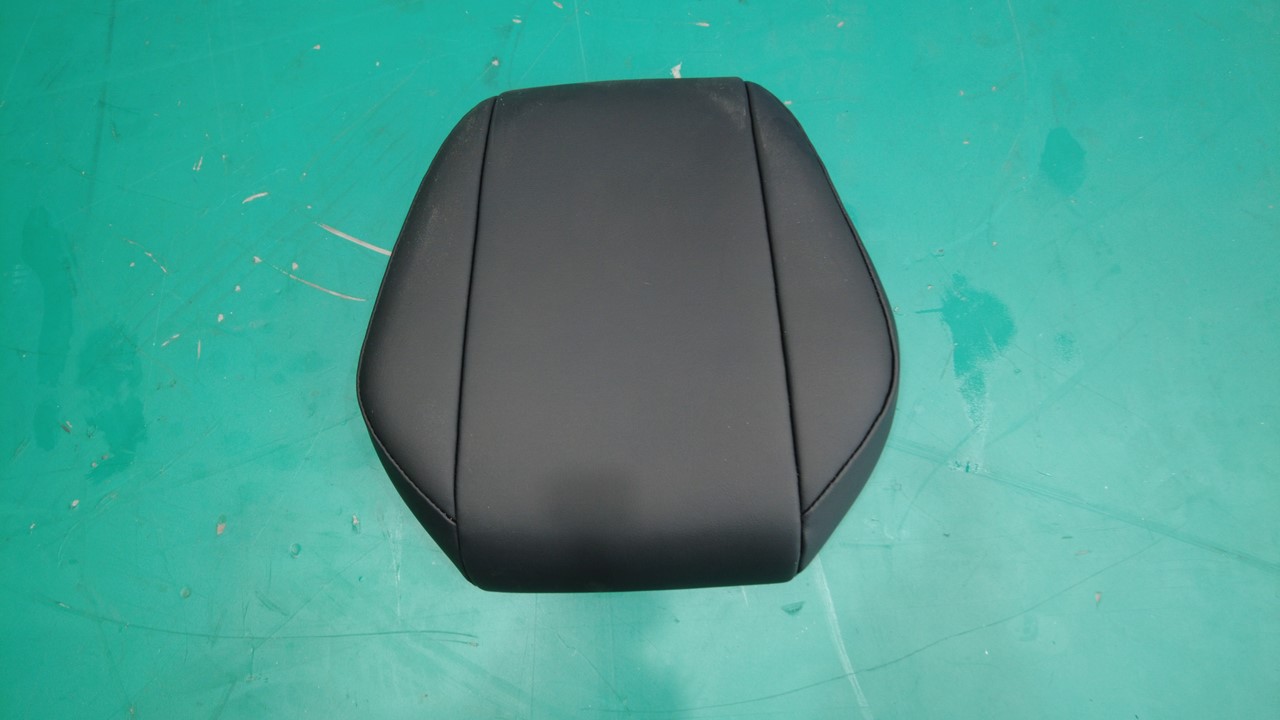

Headrest Pad Assembly - 1st Row Seat (Model YL) (Remove and Replace)

Correction code 13040100002 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-05-21: Added an animated image to better demonstrate how to remove the headrest.

Remove

  1. Open the LH front door and lower the LH front window.

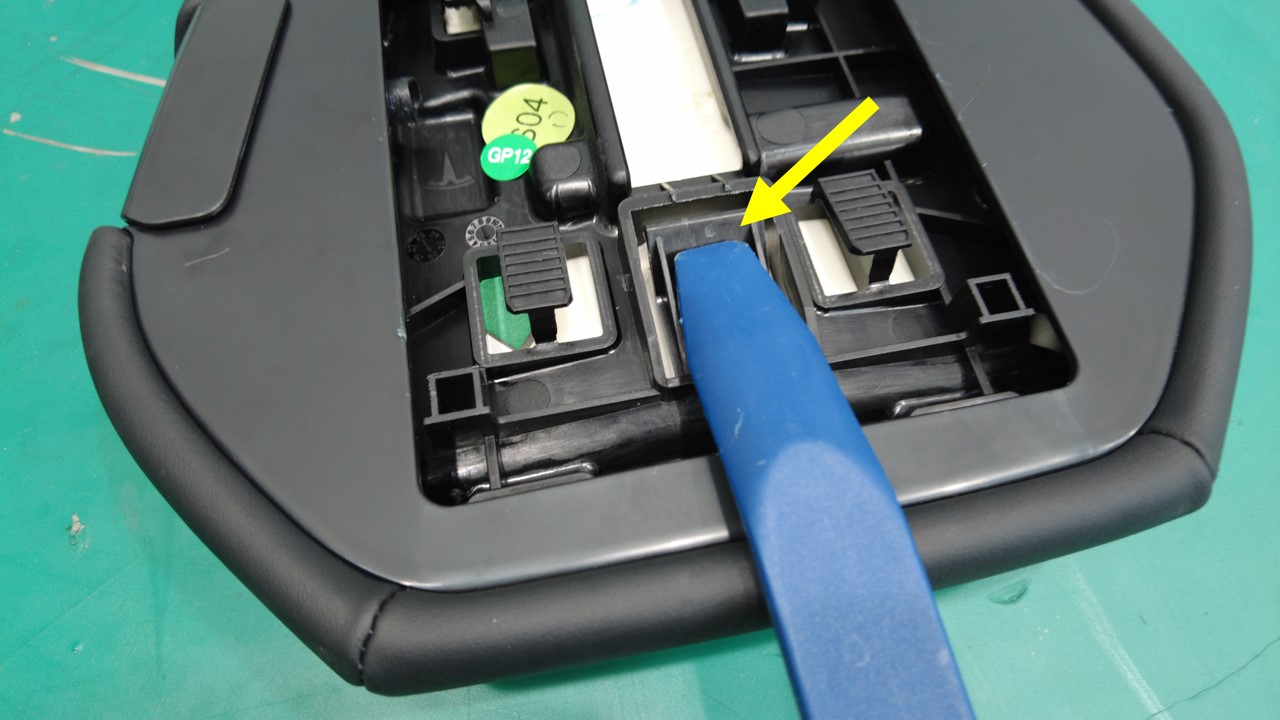

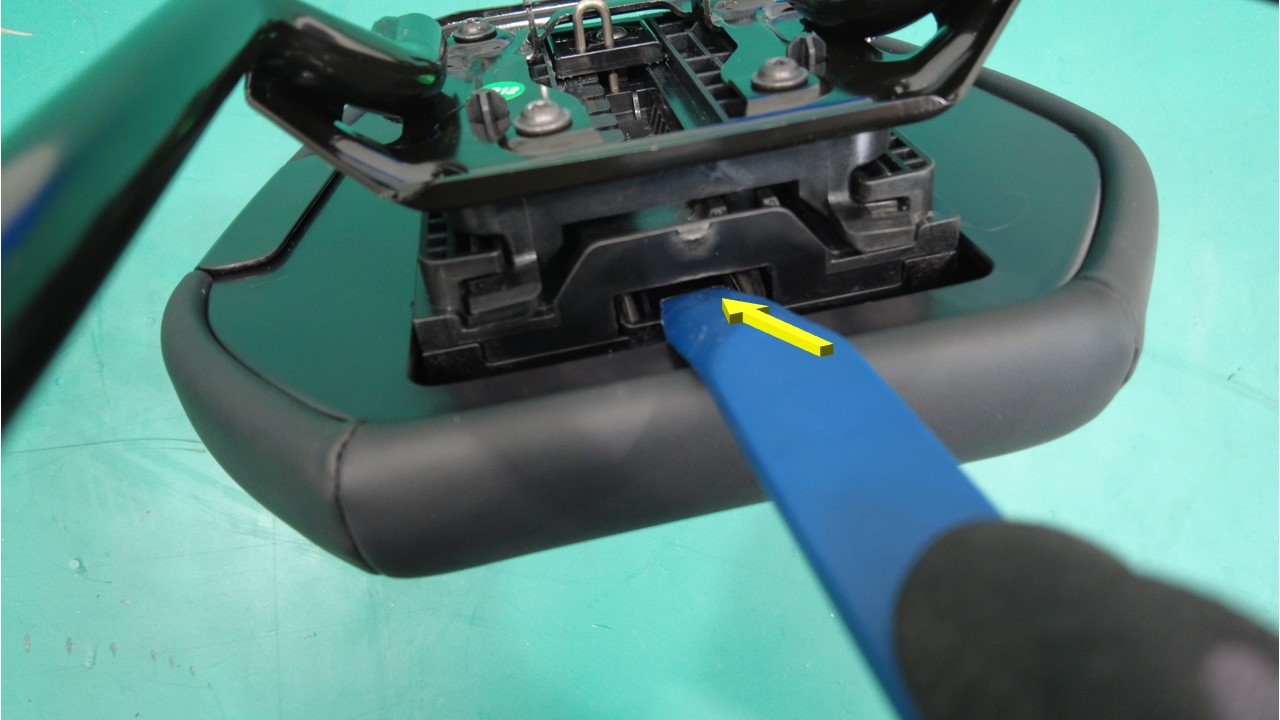

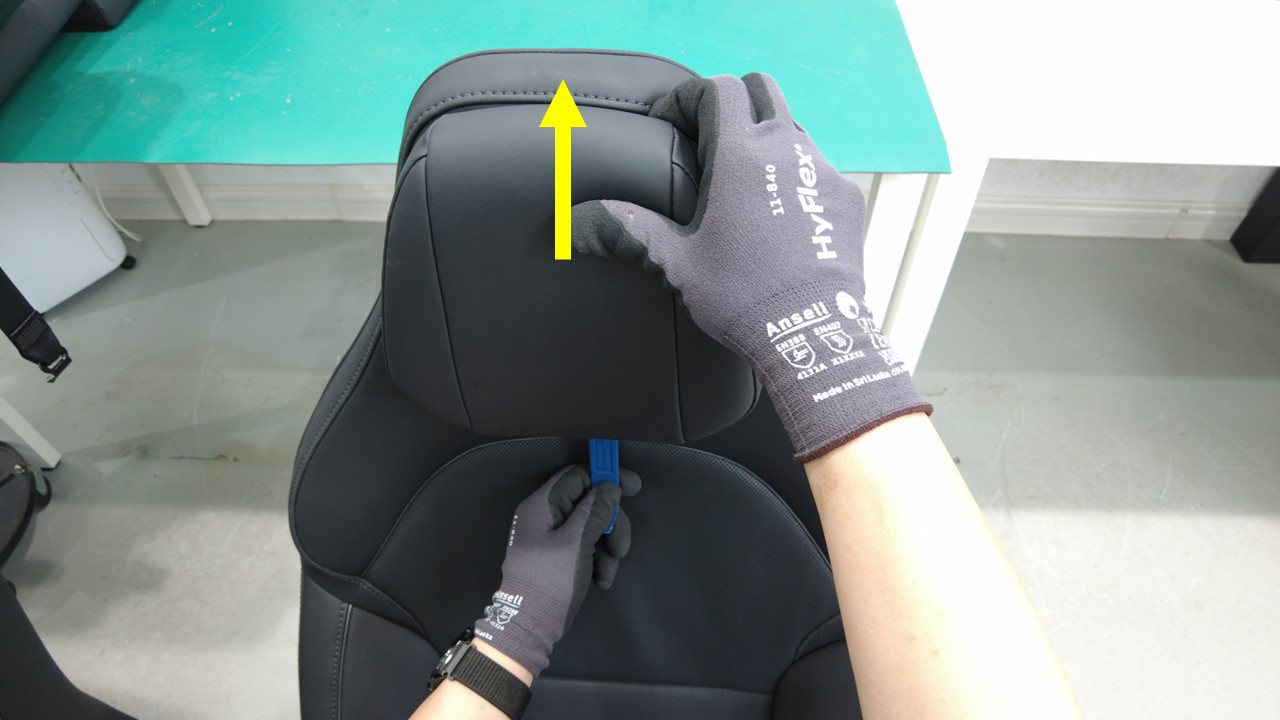

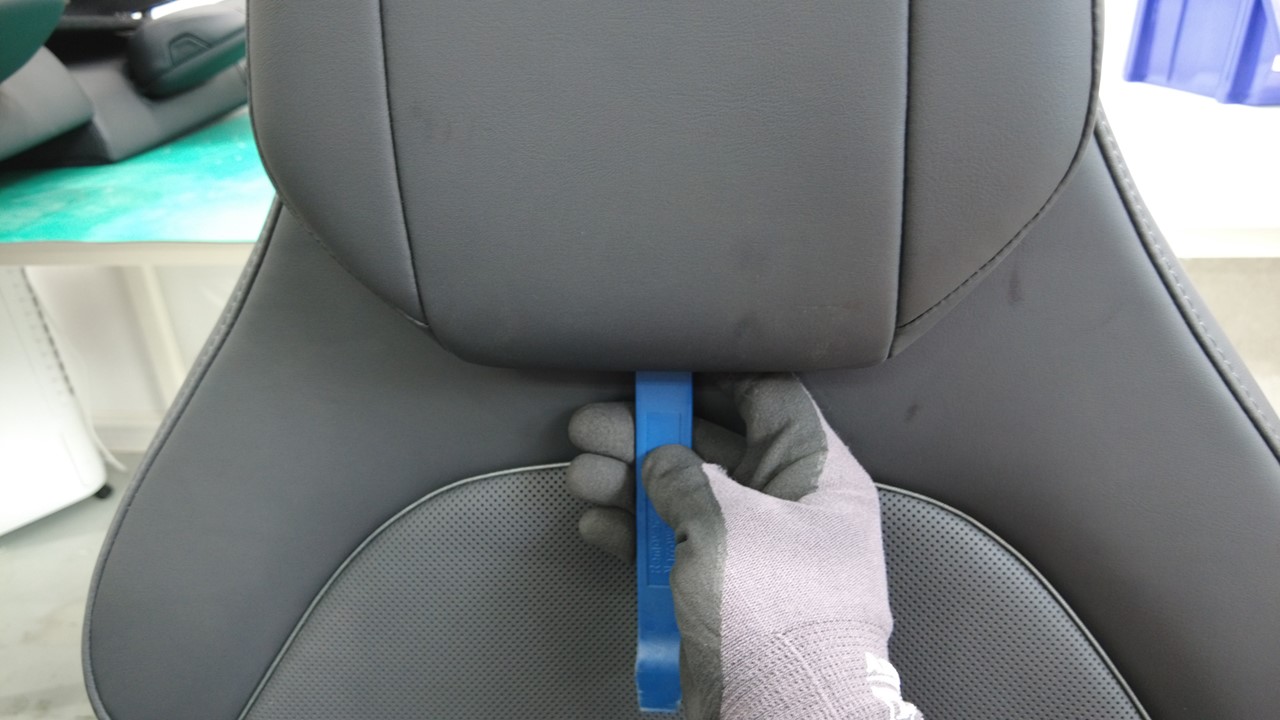

  2. Release the tab from the back of the headrest, then slide the headrest upwards to remove it from the LH front seat assembly.
    Note
    During the operation, note the following:
    • Hold the headrest with one hand.
    • Avoid applying excessive force when releasing the tab.
    • Take care not to harm the leather.

Install

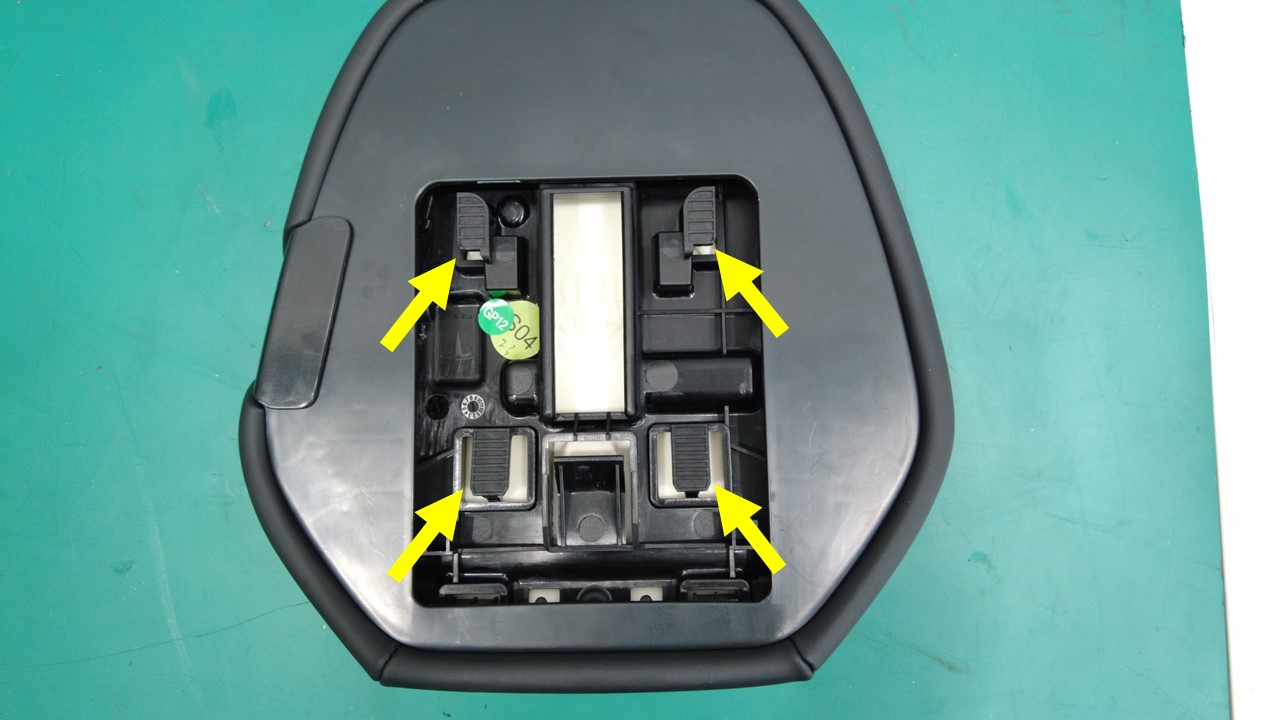

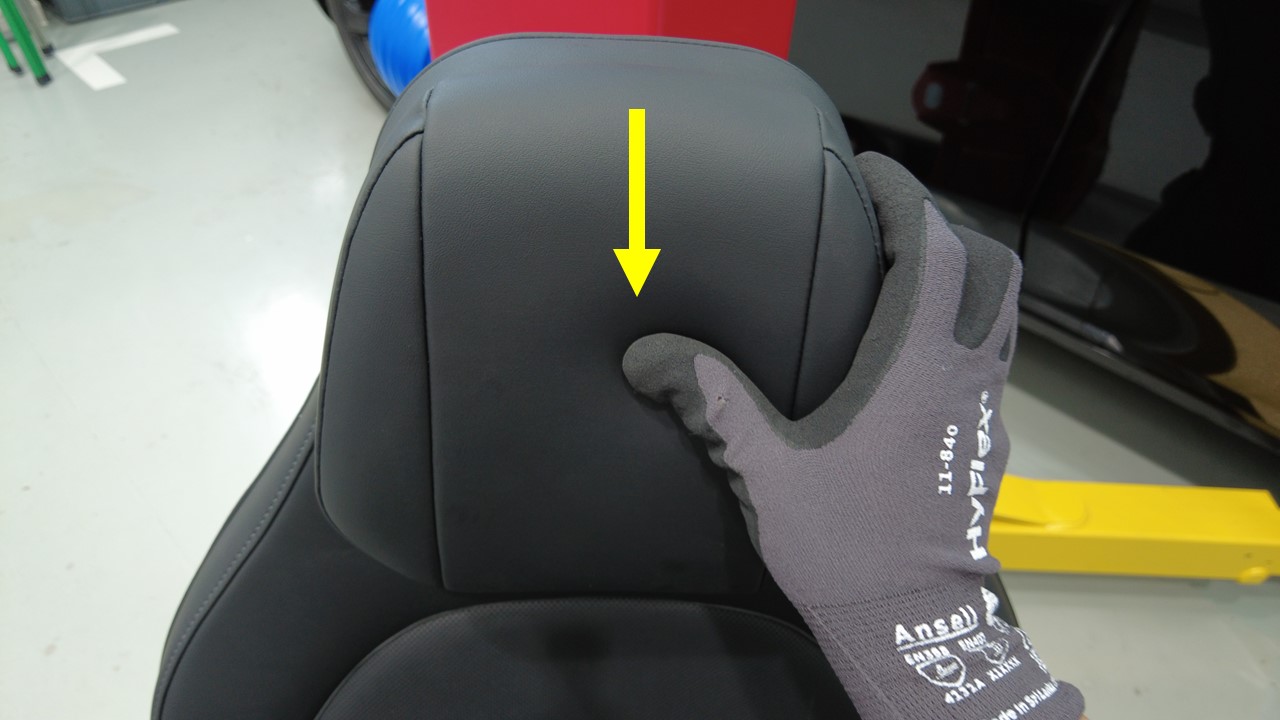

  1. Align the headrest slots (x4) with the corresponding mounting points on the LH front seat assembly, then slide the headrest downwards to secure it in place.
  2. Raise the LH front window and close the LH front door.
