Module - Ambient Light - Instrument Panel (Remove and Replace)

Correction code 1405021702 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-09-08: Released new procedure.

Torque Specifications

Remove

  1. Open both front doors and lower both front windows.
  2. Remove the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace).
  3. Remove the instrument panel speaker grille. See Speaker Grille - Instrument Panel (Remove and Install).
    Note
    During removal, certain steps require extra care. See the animation(s) for detailed guidance.

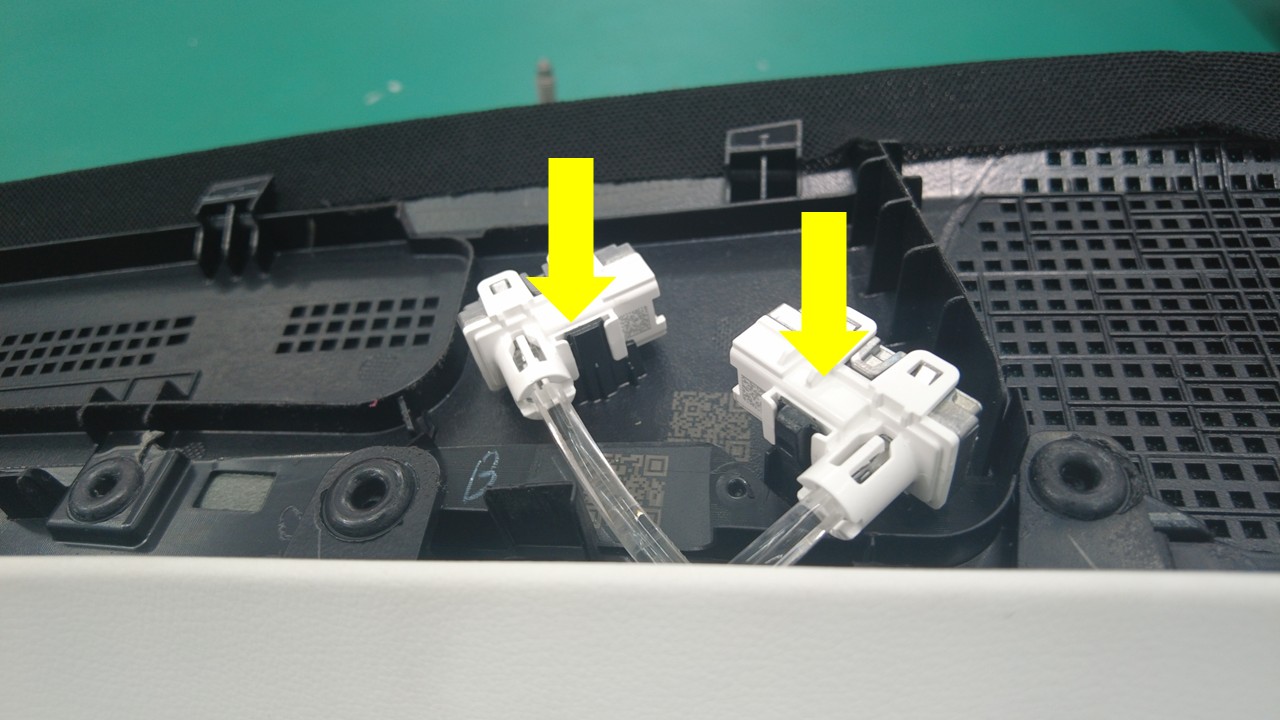

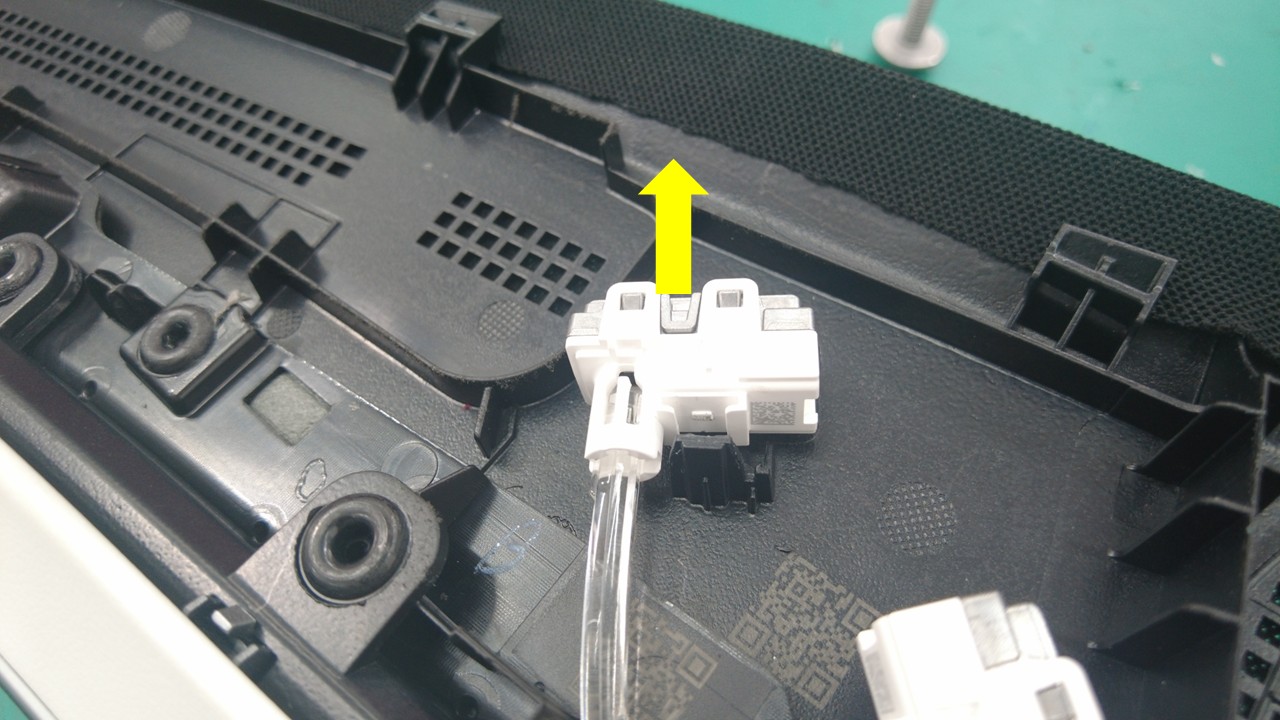

  4. Lift up to release the LED modules from the tabs.
    Note
    Make sure not to damage the tubes.

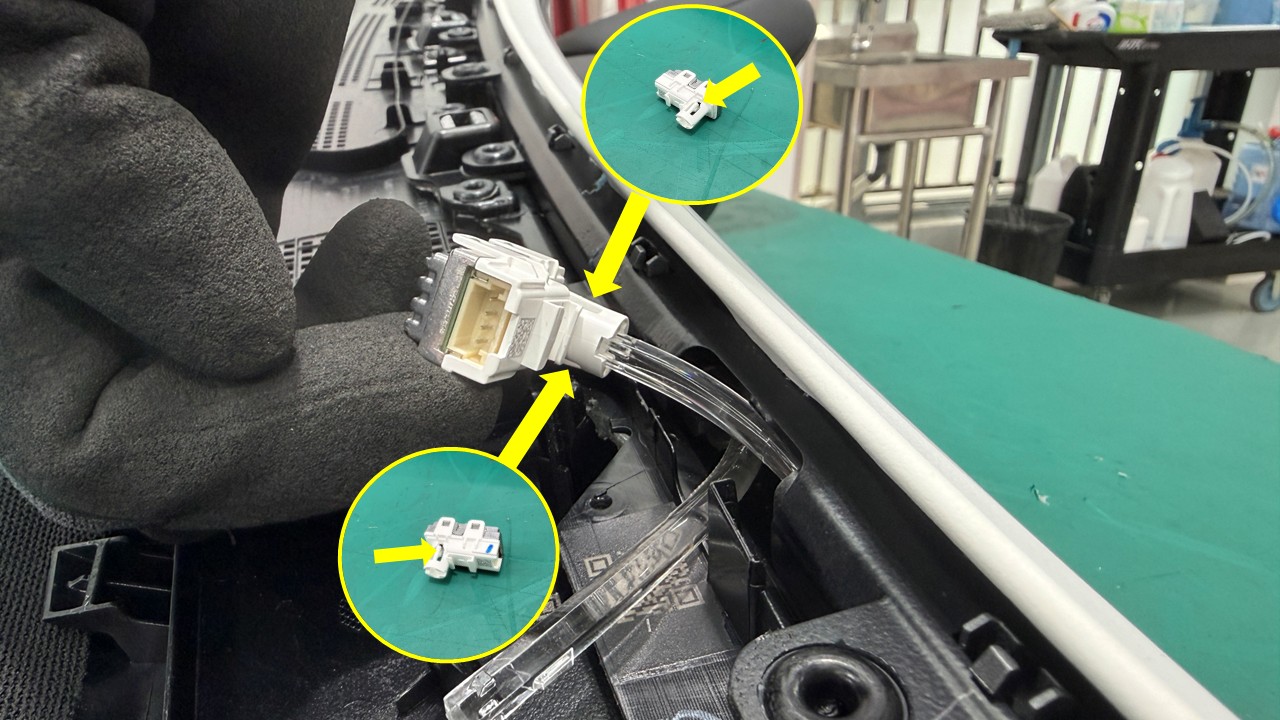

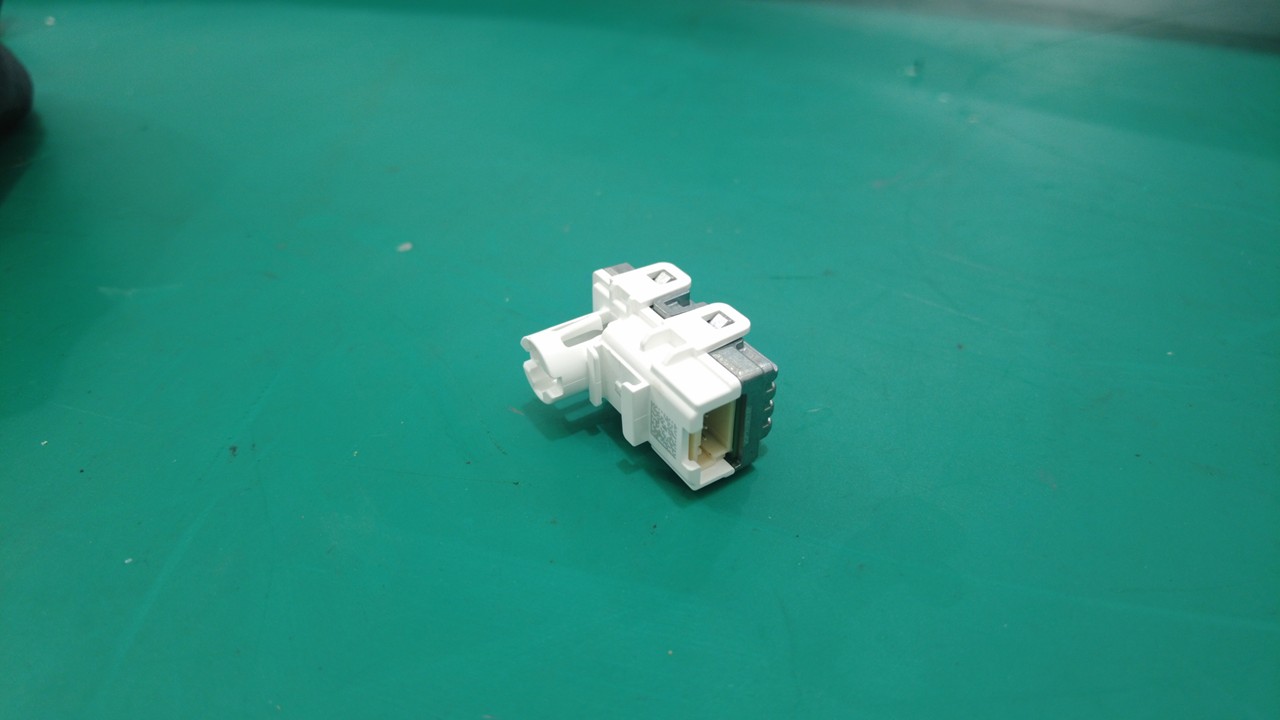

  5. Release the tabs on both sides of the LED module, then remove the ambient light LED modules from the tubes.
    Note
    Make sure not to damage the tubes.

Install

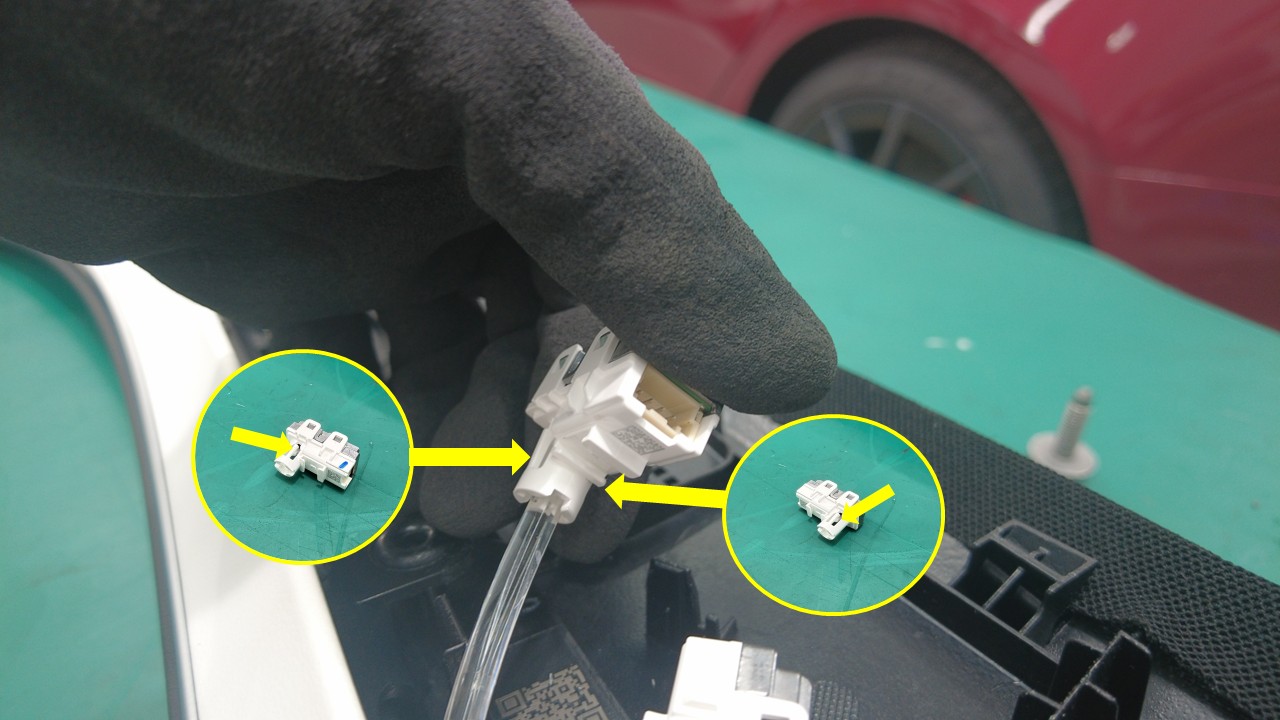

  1. Install the ambient light LED modules to the tubes and engage the tabs.
    Note
    Perform the push-pull test to ensure the modules are completely fixed.

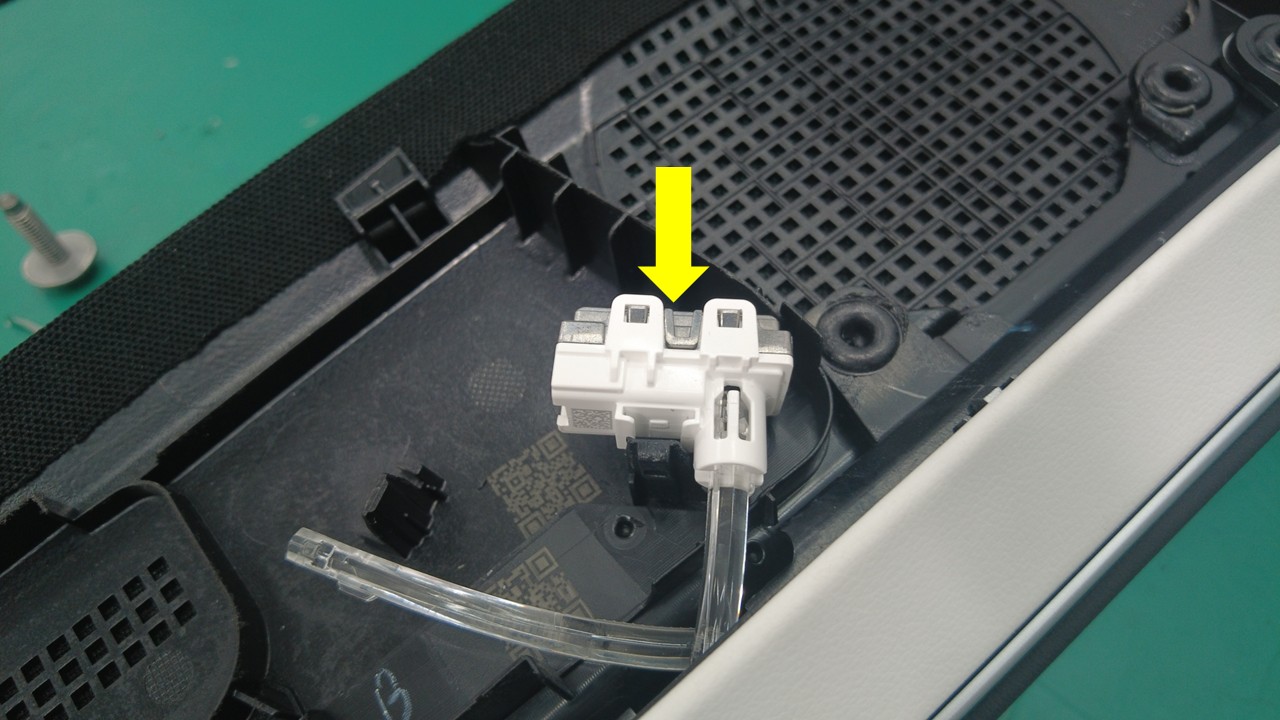

  2. Secure the LED modules to the tabs.
    Note
    Make sure not to damage the tubes.
  3. Install the instrument panel speaker grille. See Speaker Grille - Instrument Panel (Remove and Install).
  4. Install the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace).
  5. Enable Service Mode and unlock the vehicle gateway. See 0005 - Service Modes
  6. Perform the routine using Service Mode or Toolbox: PROC_VC_X_RGB-LIGHTS-ADDRESSINGvia Service Mode:
    • Low Voltage ➜ Lighting ➜ Address RGB Lights
    • Mid Voltage ➜ Lighting ➜ Address RGB Lights
    via Toolbox:(link)
  7. Reinstall the vehicle firmware. See Software Reinstall - Touchscreen.
  8. Exit Service Mode.
  9. Raise both front windows and close both front doors.
