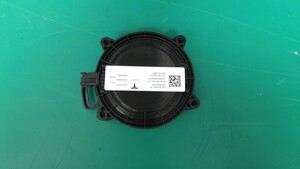

Blower - Backrest - 2nd Row Seat - LH (Model YL) (Remove and Replace)
Correction code
13020201102
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the LH 2nd row seat back shell. See Panel - Seat Back - 2nd Row Seat - LH (Model YL) (Remove and Replace).
-

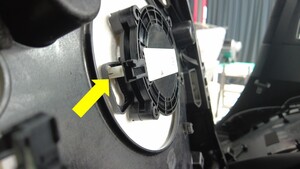

Disconnect the electrical connector from the LH 2nd row seat back blower.
-

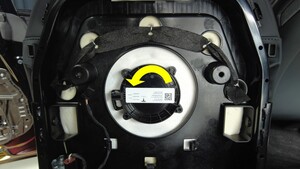

Rotate the seat back blower clockwise to remove it from the seat.
Install
-

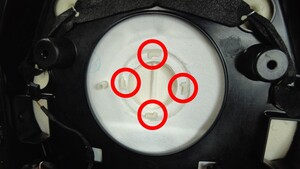

Rotate the seat back blower counter-clockwise to install it onto the seat.
-

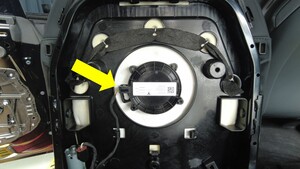

Connect the electrical connector to the LH 2nd row seat back blower.
- Install the LH 2nd row seat back shell. See Panel - Seat Back - 2nd Row Seat - LH (Model YL) (Remove and Replace).
