Visor Check - Magnetic (Remove and Replace)

Correction code 1520010032 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.

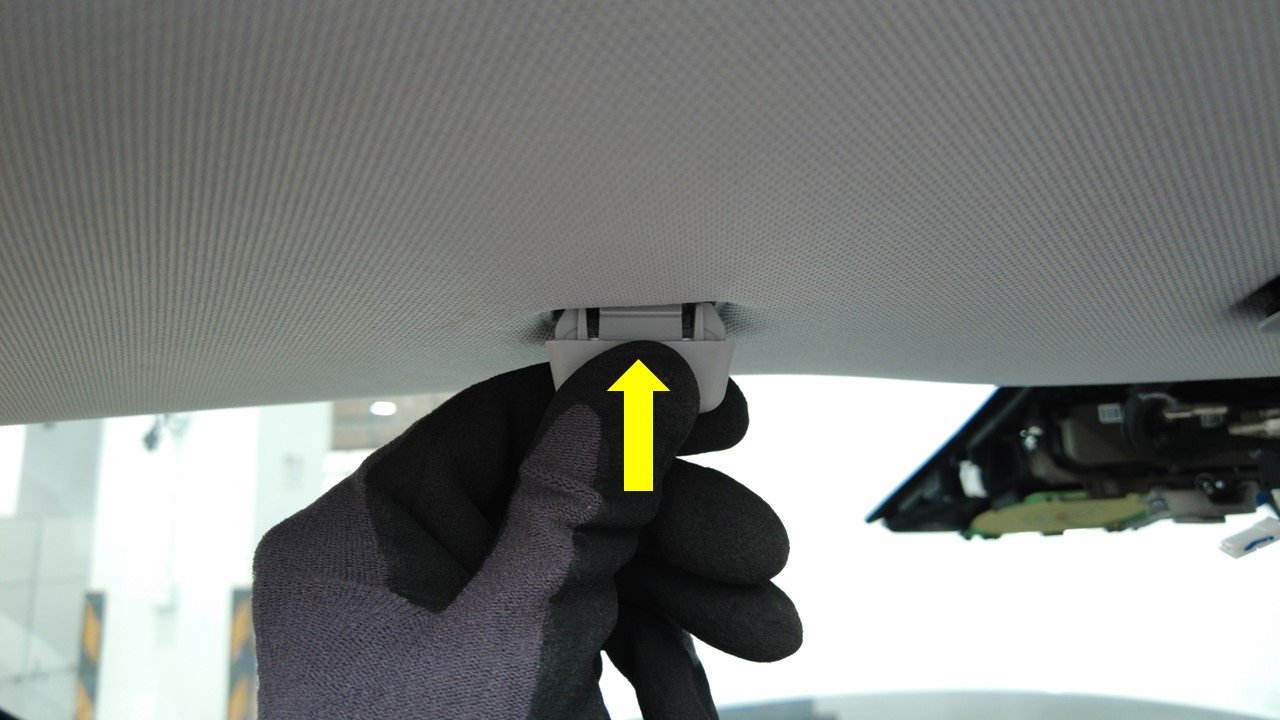

  2. Rotate the LH sun visor away from the check base.

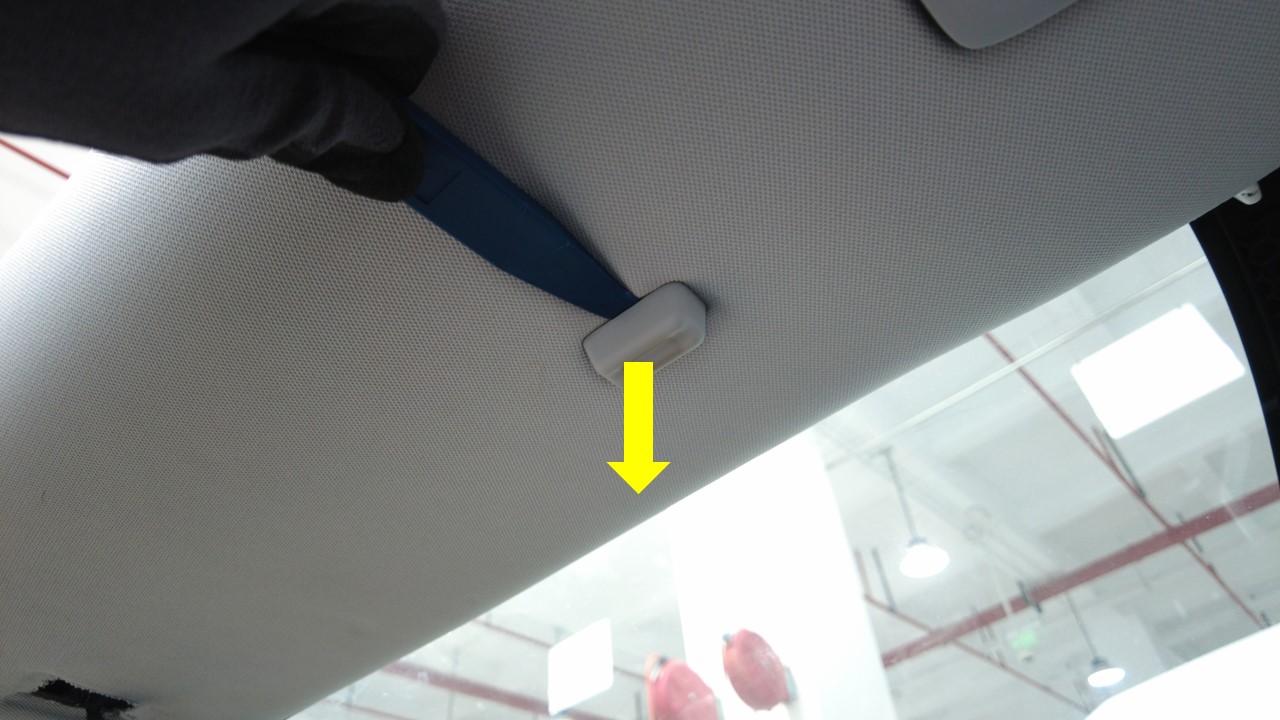

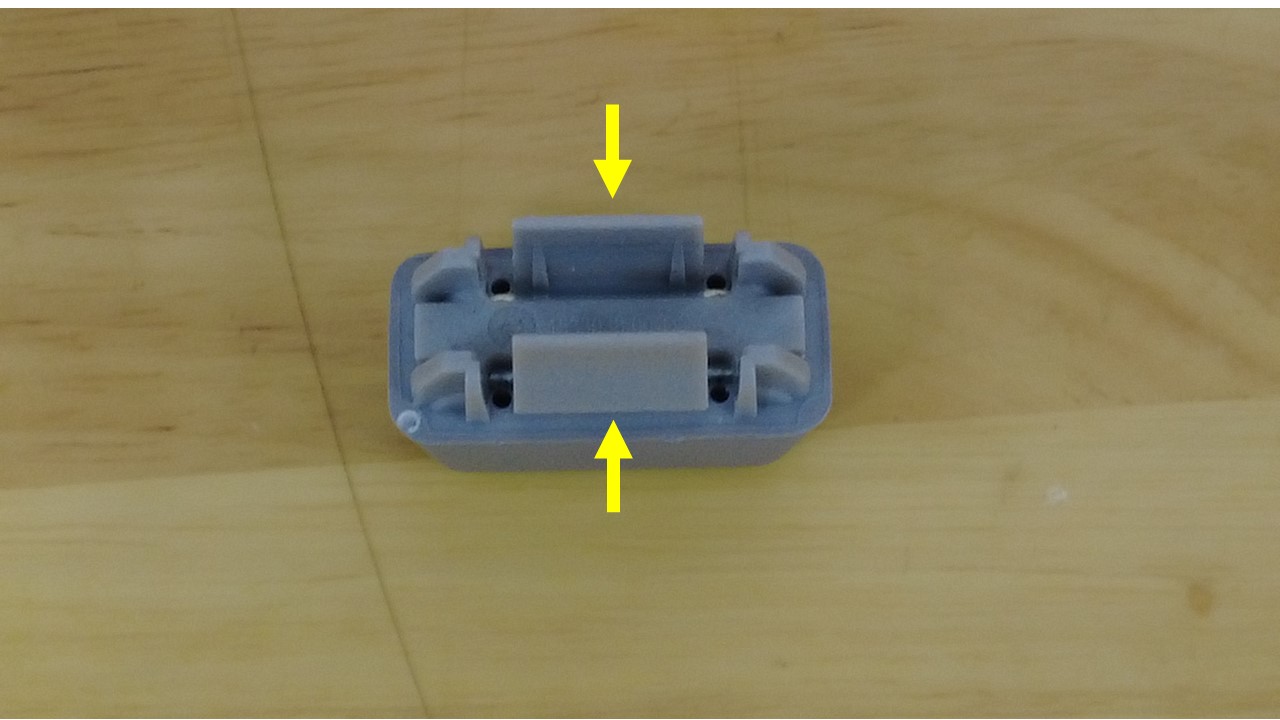

  3. Release the tabs (x2) to remove the sun visor check from the headliner.

Install

  1. Install the sun visor check to the headliner and secure the tabs (x2).
    Note
    Make sure the tabs are fully in place.
  2. Rotate the LH sun visor back to the check base.
  3. Raise the LH front window and close the LH front door.
